Product Description

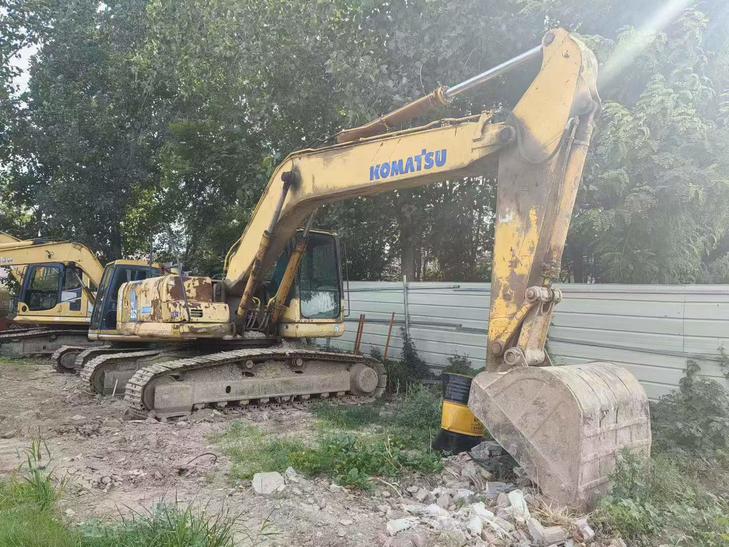

This 2020 Komatsu PC220-7 hydraulic excavator is currently located in Shandong, China and available for immediate export. The machine has been thoroughly inspected and demonstrates reliable operational performance across all systems. Comprehensive photographic documentation and video footage are available to qualified buyers upon request.
The PC220-7 represents Komatsu's proven mid-size excavator platform, known for durability in demanding jobsite conditions. This unit maintains good working order with verified hydraulic, electrical, and mechanical systems functioning as designed.
- Year of Manufacture: 2020
- Model: Komatsu PC220-7
- Machine Type: Hydraulic Excavator
- Current Location: Shandong Province, China
- Condition: Operational, performance verified
- Documentation: Detailed images and video available
Suitable for earthmoving, construction, and general excavation applications. Contact us for complete inspection reports, shipping quotes, and additional specifications.
| Specifications | Value |
|---|---|
| No. | 1099239 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22840 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.883 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 27.8 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9865 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3015 |
| Full cab height (mm) | 2110 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4265 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 6470 |
| Maximum digging radius (mm) | 9270 |
| Maximum digging depth (mm) | 5825 |
| Maximum excavation height (mm) | 9665 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 4750 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9070 |
| Maximum effective digging depth (mm) | 5825 |
