Product Description

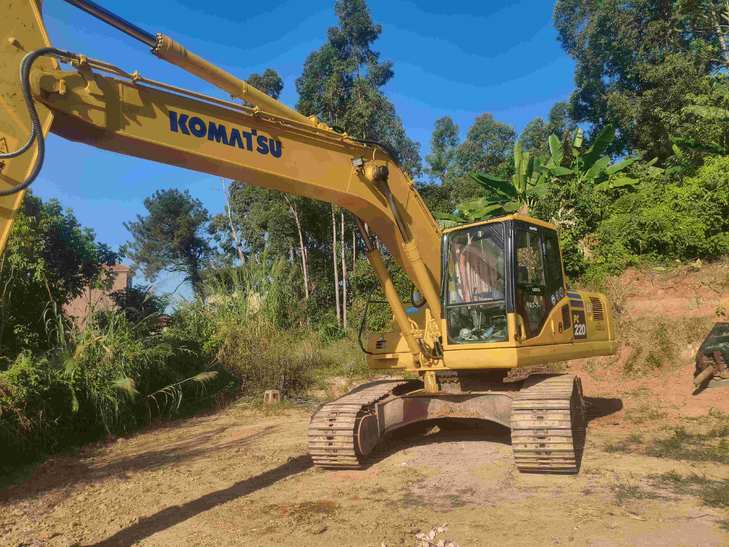

This 2020 Komatsu PC220-7 excavator is a proven mid-size hydraulic machine ready for immediate deployment. Currently located in Guangdong, China, this unit has been fully serviced and prepared for continuous heavy-duty operations. The PC220-7 series is recognized for its reliable Komatsu SAA6D107E engine, robust hydraulic system, and efficient fuel consumption in the 22-ton class.
Key attributes include:
- Operational bucket capacity suitable for general earthmoving and construction
- Standard swing mechanism with smooth rotation control
- Enclosed ROPS/FOPS certified cab with air conditioning
- Recently maintained and work-ready condition
This excavator is available due to the seller's capital reallocation requirements, offering an opportunity to acquire a well-maintained Komatsu unit at competitive terms. Suitable for contractors requiring dependable performance in excavation, loading, and site preparation applications across construction and civil engineering projects.
| Specifications | Value |
|---|---|
| No. | 1167109 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22840 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.883 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 27.8 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9865 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3015 |
| Full cab height (mm) | 2110 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4265 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 6470 |
| Maximum digging radius (mm) | 9270 |
| Maximum digging depth (mm) | 5825 |
| Maximum excavation height (mm) | 9665 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 4750 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9070 |
| Maximum effective digging depth (mm) | 5825 |
