Product Description

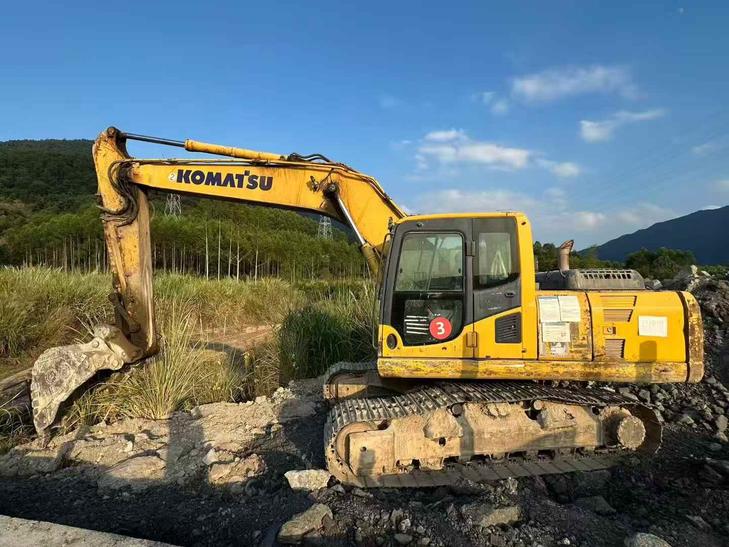

This 2017 Komatsu PC220-8 excavator is now available from Guangxi, China. As a single-owner machine from the local market, this mid-size hydraulic excavator has been maintained under known operating conditions. The PC220-8 series is recognized for its fuel efficiency and reliable hydraulic performance in construction and earthmoving applications.
Key features of the PC220-8 platform include:
- Operating weight class: approximately 22 metric tons
- Komatsu SAA6D107E-1 engine meeting emission standards
- Advanced hydraulic system for responsive control
- Spacious ROPS-certified operator cabin
- Proven durability in diverse working environments
This machine represents solid value for contractors seeking dependable excavation equipment. Located in Guangxi, China, it is ready for inspection and delivery. Contact us for competitive pricing on this locally-sourced unit.
| Specifications | Value |
|---|---|
| No. | 1166525 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 23100 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 50.4 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 19.8 |
| Total transport length (mm) | 9885 |
| Total transport width (mm) | 5190 |
| Total transport height (mm) | 3185 |
| Full cab height (mm) | 3055 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7035 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10020 |
| Maximum effective digging depth (mm) | 6700 |
