Product Description

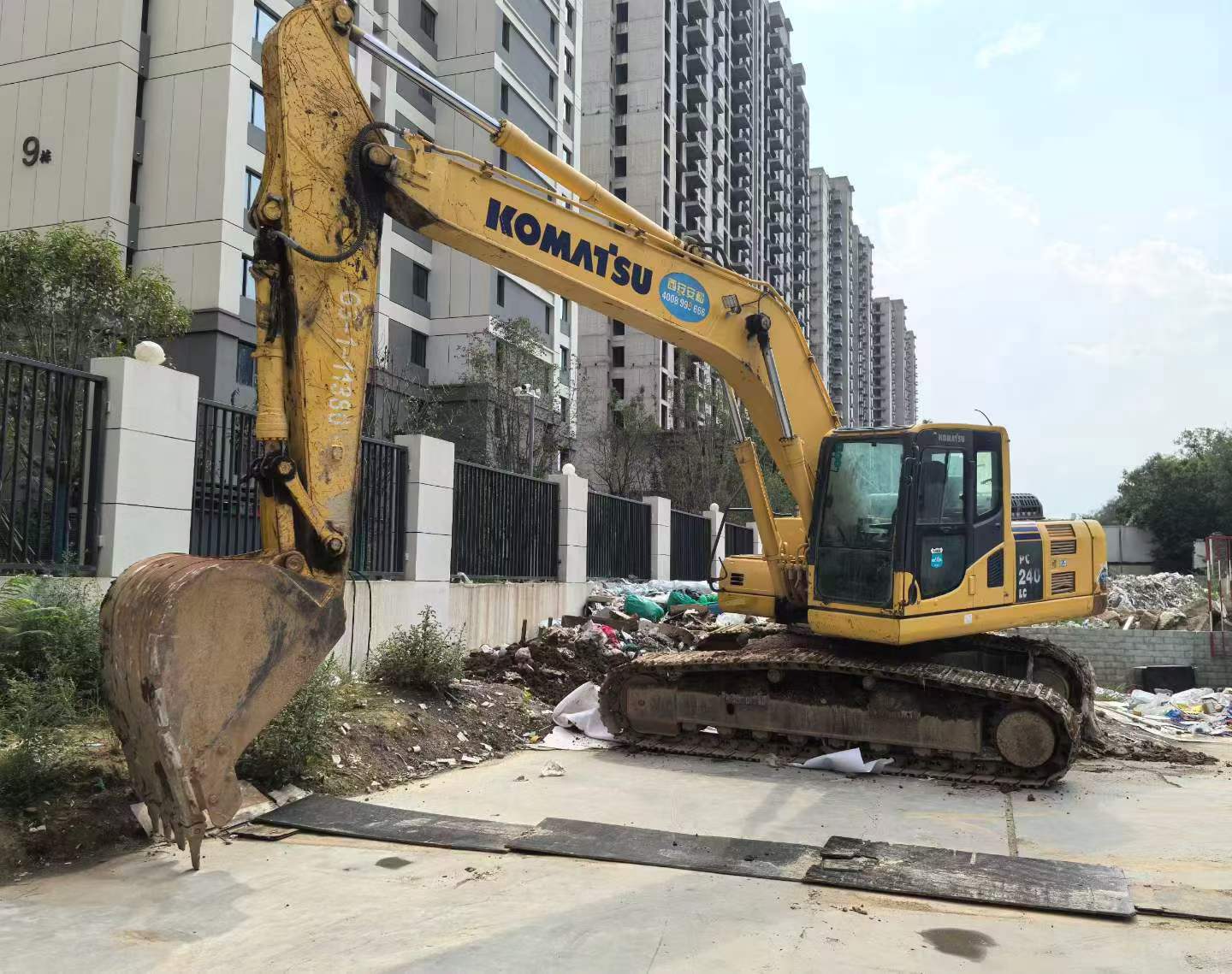

This 2020 Komatsu PC220-8M0 hydraulic excavator is a reliable workhorse ready for your next project. With approximately 4 years of field operation, this mid-size crawler excavator delivers proven performance in earthmoving, excavation, and general construction applications. The PC220-8M0 features Komatsu's fuel-efficient engine technology and hydraulic systems designed for productivity and operational cost control.
Currently located in Zhejiang, China, this machine has been actively used in working conditions and shows normal wear consistent with commercial operation. The PC220-8M0 is well-suited for contractors seeking dependable excavation capacity in the 22-ton class.
Key features include:
- Komatsu PC220-8M0 model with proven reliability
- 2020 manufacture year
- Operational condition with field service history
- Standard bucket and hydraulic attachments compatible
- Available for inspection in Zhejiang, China
Contact us for detailed specifications, current hour meter reading, and arrangement of pre-purchase inspection.
| Specifications | Value |
|---|---|
| No. | 1173675 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 23600-24200 |

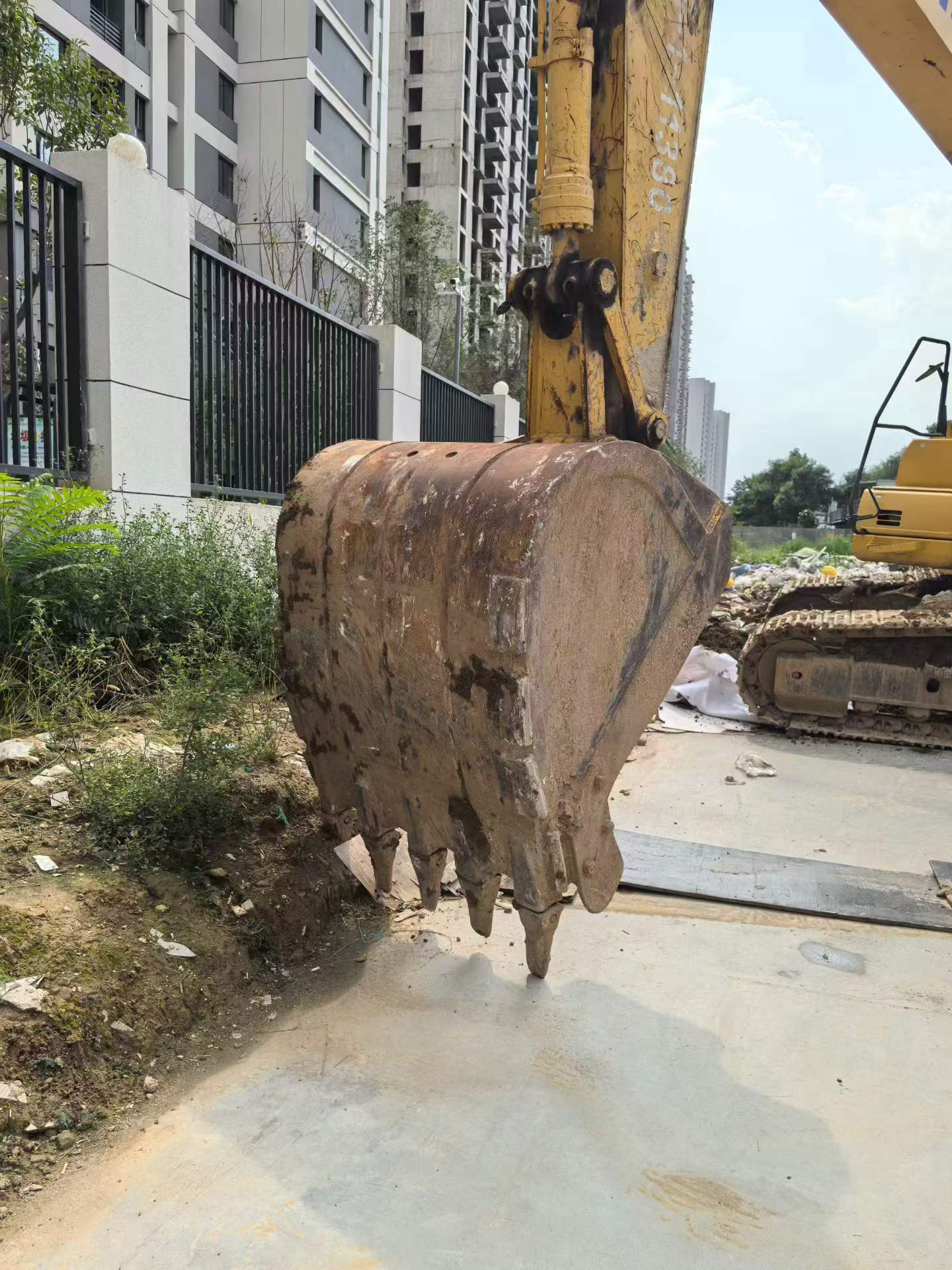

| Bucket capacity (m³) | 1.03-1.45 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| Country of origin | Changzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

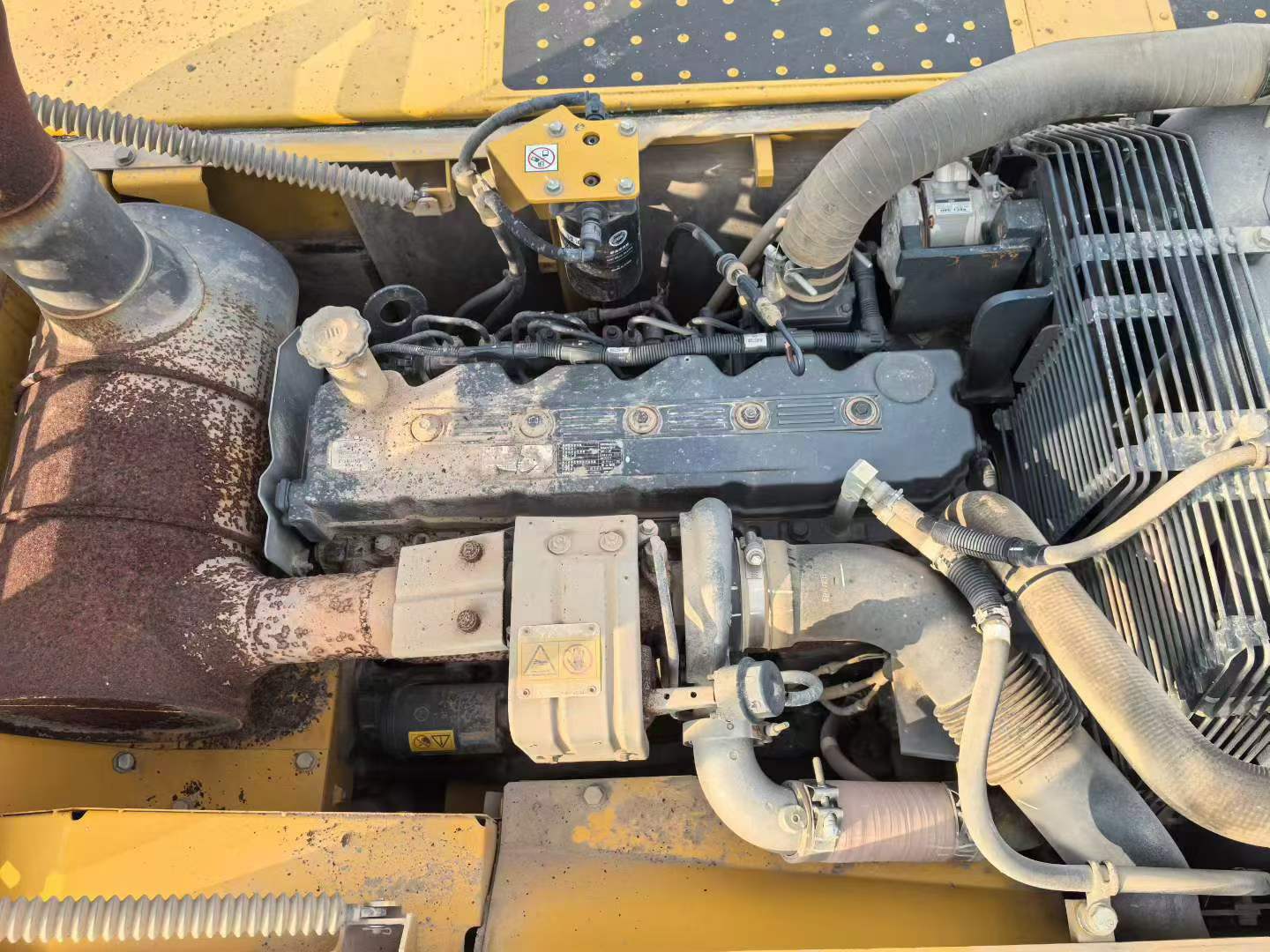

| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 123/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Water-cooled, 4-stroke, direct injection; Turbocharged, post-cooled |
| Ground specific pressure (Kpa) | 51.2 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 202 |
| Travel speed (km/h) | 5.5/4.2/3.1 |
| Rotary hydraulic motor type | Axial piston motor ×1 (turn-back holding brake) |
| Type of walking hydraulic motor | Axial piston motor ×2 (with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1020 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1635 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-130 x 1335 x 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 19.9 |
| Total transport length (mm) | 9885 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3185 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3450 |
| Back end turning radius (mm) | 2940 |
| Onboard width (mm) | 2710 |

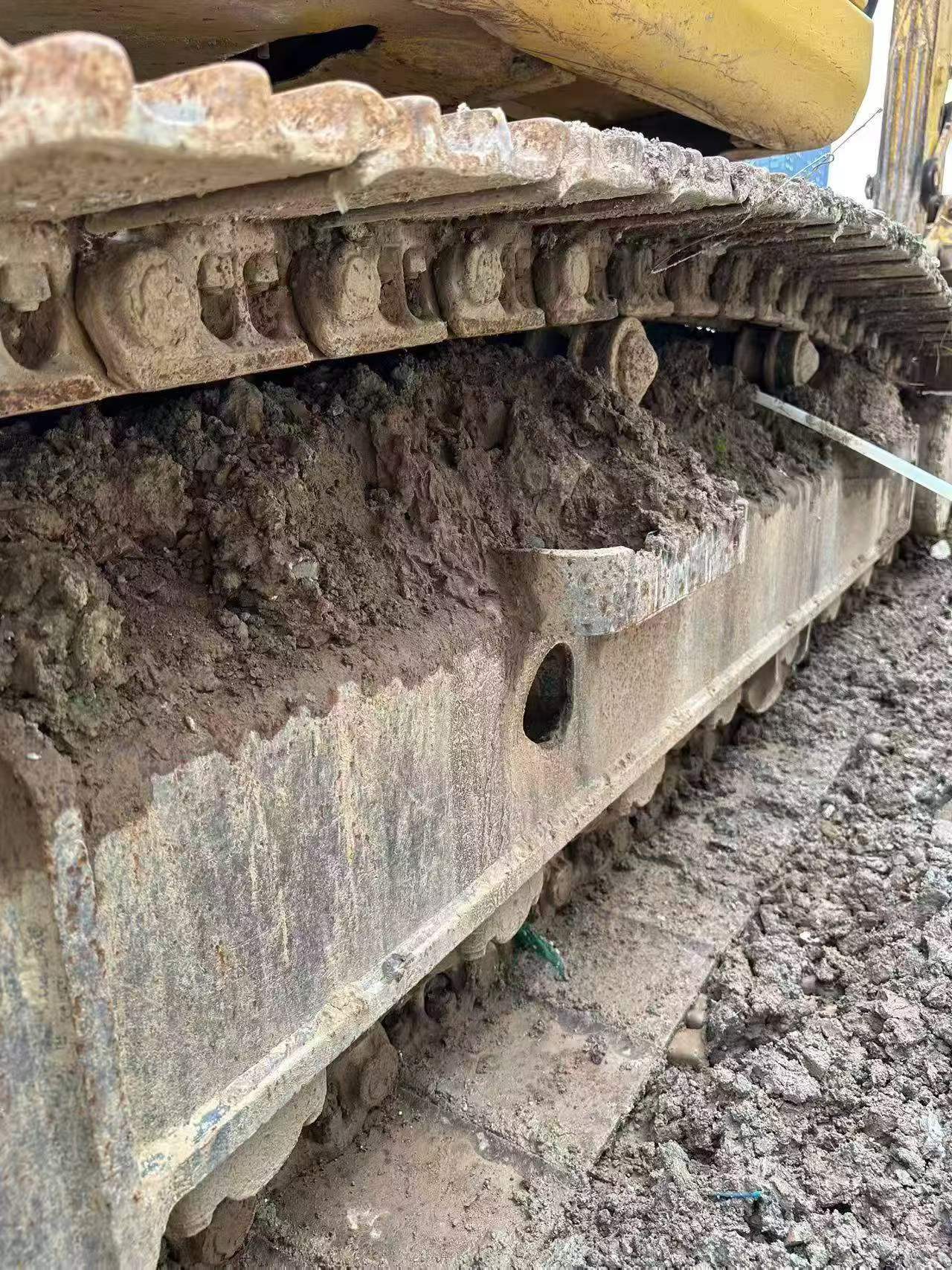

| Total track length (mm) | 4260 |
| Track gauge (mm) | 2380 |

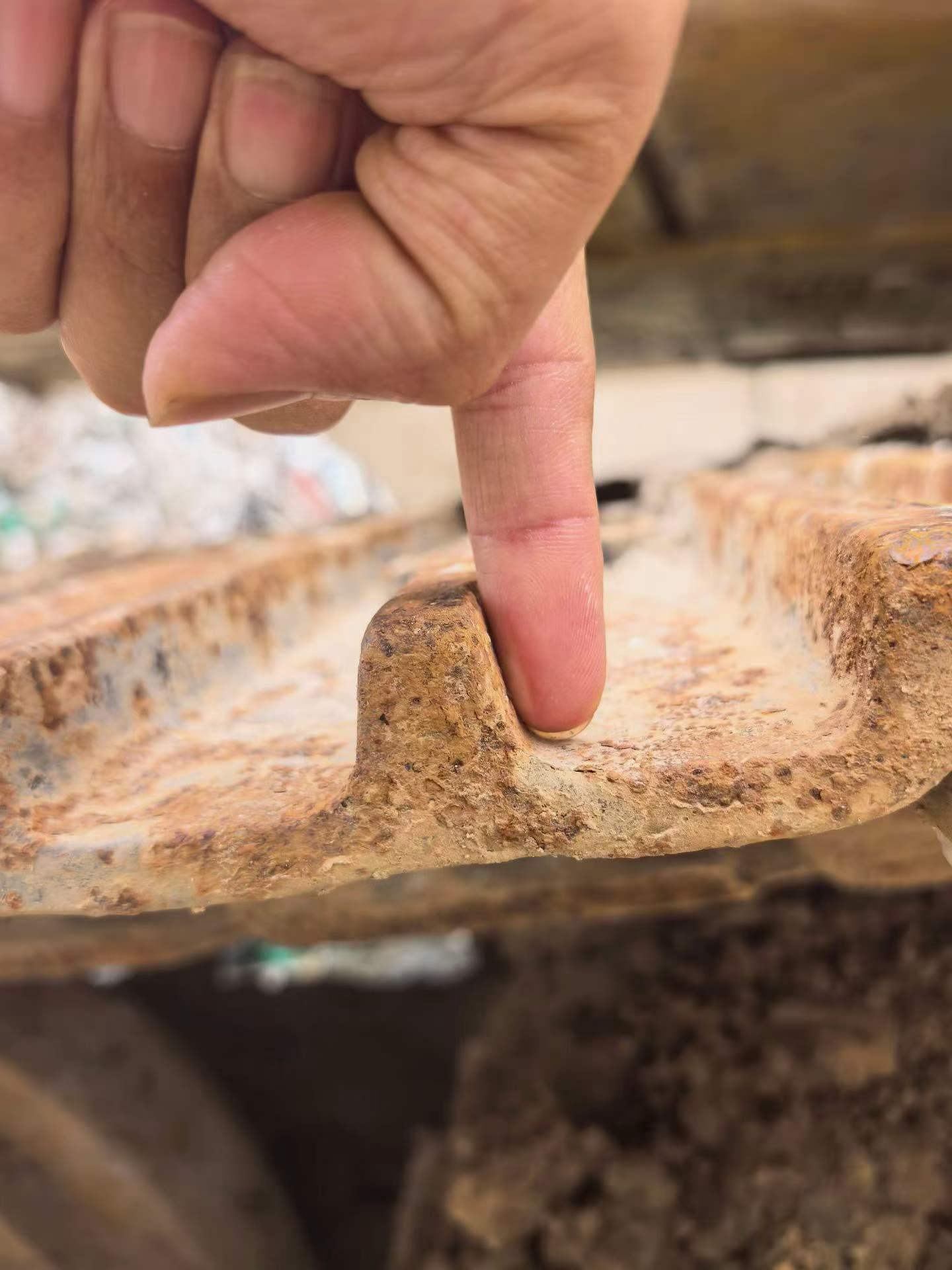

| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3460 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7035 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10020 |
| Boom turning Angle (left/right °) | There is no |
| Boom offset (left/right °) | There is no |
| Maximum effective digging depth (mm) | 6700 |
