Product Description

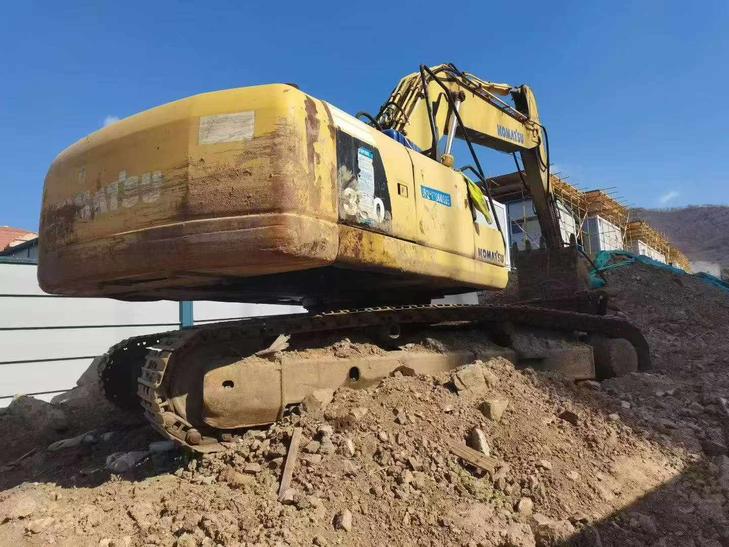

Built for demanding excavation work, this 2016 Komatsu PC240LC-8 delivers 24-ton performance with operator-centered engineering. Powered by a Komatsu SAA6D107E-1 engine producing 125kW at 2000 rpm, this machine combines reliable fuel efficiency with responsive hydraulic control. Operators benefit from exceptional visibility across the 10,180mm maximum digging radius, while the spacious cabin reduces fatigue during extended shifts.
- Enhanced Stability: 25,130kg working weight with 41.7 kPa ground pressure ensures confident operation on varied terrain
- Precise Control: 439 L/min maximum pump flow with 3.2 MPa pilot hydraulic circuit for smooth, accurate movements
- Operator Comfort: Climate-controlled cabin with optimized sightlines to bucket and work area
- Proven Reach: 6,920mm maximum digging depth with 172kN bucket digging force
- Professional Maintenance: Water-cooled 6-cylinder engine with accessible 400L fuel tank
Currently located in Qingdao, Shandong, this PC240LC-8 represents Komatsu's joint-venture quality standards with efficient turbocharged, post-cooled direct injection technology
| Specifications | Value |
|---|---|
| No. | 1018526 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25130 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 125/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Direct injection, turbocharged, post-cooling; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 19.8 |
| Total transport length (mm) | 9885 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3185 |
| Full cab height (mm) | 3055 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3280 |
| Track ground length (mm) | 3845 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7035 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10020 |
| Maximum effective digging depth (mm) | 6700 |
