Product Description
With a robust 24-ton capacity, the 2018 Komatsu PC240LC-8M0 excavator, located in 浙江杭州, is ready for immediate deployment. Powered by a Komatsu SAA6D107E-1 engine, delivering 123 kW at 2000 rpm, this machine ensures efficient and reliable performance. Featuring a bucket capacity of 1.2-1.45 m³ and a boom length of 5850 mm, it handles demanding tasks with ease. The water-cooled, 4-stroke, direct injection engine with turbocharging and post-cooling enhances its operational efficiency. Available now, skip the factory lead times and get your project moving. Fast deployment to your site from 浙江杭州 ensures minimal downtime and maximum productivity.
- Working weight: 25100-25700 kg
- Maximum digging depth: 6920 mm
- Travel speed: 5.5/4.2/3.1 km/h
- Bucket digging force: 172 kN
- Total transport dimensions: 9885 x 3180 x 3185 mm
| Specifications | Value |
|---|---|
| No. | 1003930 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25100-25700 |
| Bucket capacity (m³) | 1.2-1.45 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| Country of origin | Changzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

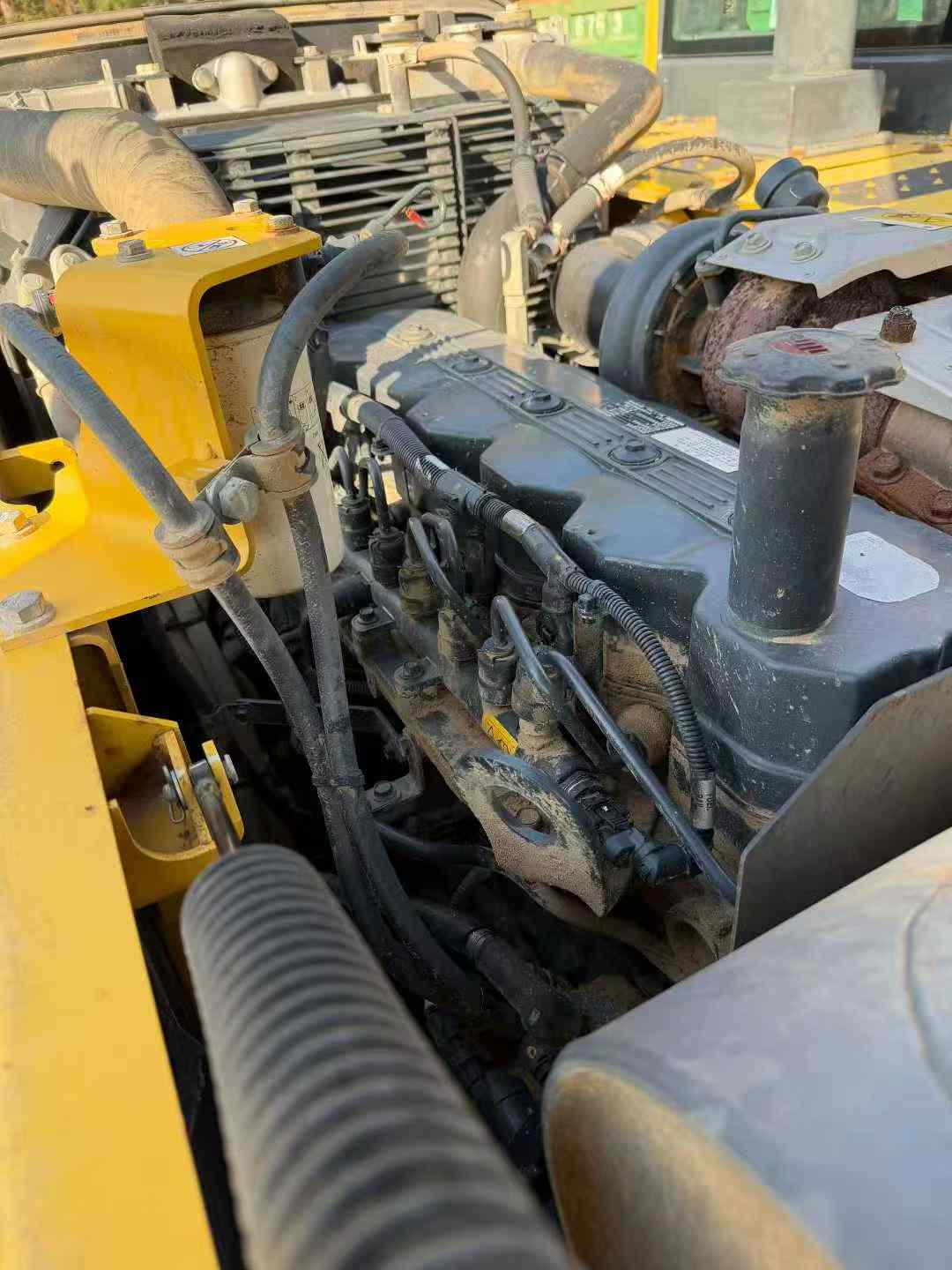

| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 123/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Water-cooled, 4-stroke, direct injection; Turbocharged, post-cooled |
| Ground specific pressure (Kpa) | 50.0 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 202 |
| Travel speed (km/h) | 5.5/4.2/3.1 |
| Rotary hydraulic motor type | Axial piston motor ×1 (turn-back holding brake) |
| Type of walking hydraulic motor | Axial piston motor ×2 (with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1020 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1635 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-130 x 1335 x 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 19.9 |
| Total transport length (mm) | 9885 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3185 |
| Full cab height (mm) | 3055 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3450 |
| Back end turning radius (mm) | 2940 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3460 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 10 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7035 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10020 |
| Boom turning Angle (left/right °) | There is no |
| Boom offset (left/right °) | There is no |
| Maximum effective digging depth (mm) | 6700 |
see more
Overview
No.1003930
Brand Name：
KomatsuModel Number：
PC240LC-8M0Year：
2018
Location：
Zhejiang China
Pub Date：
