HOME>>Komatsu>>Komatsu PC270-7

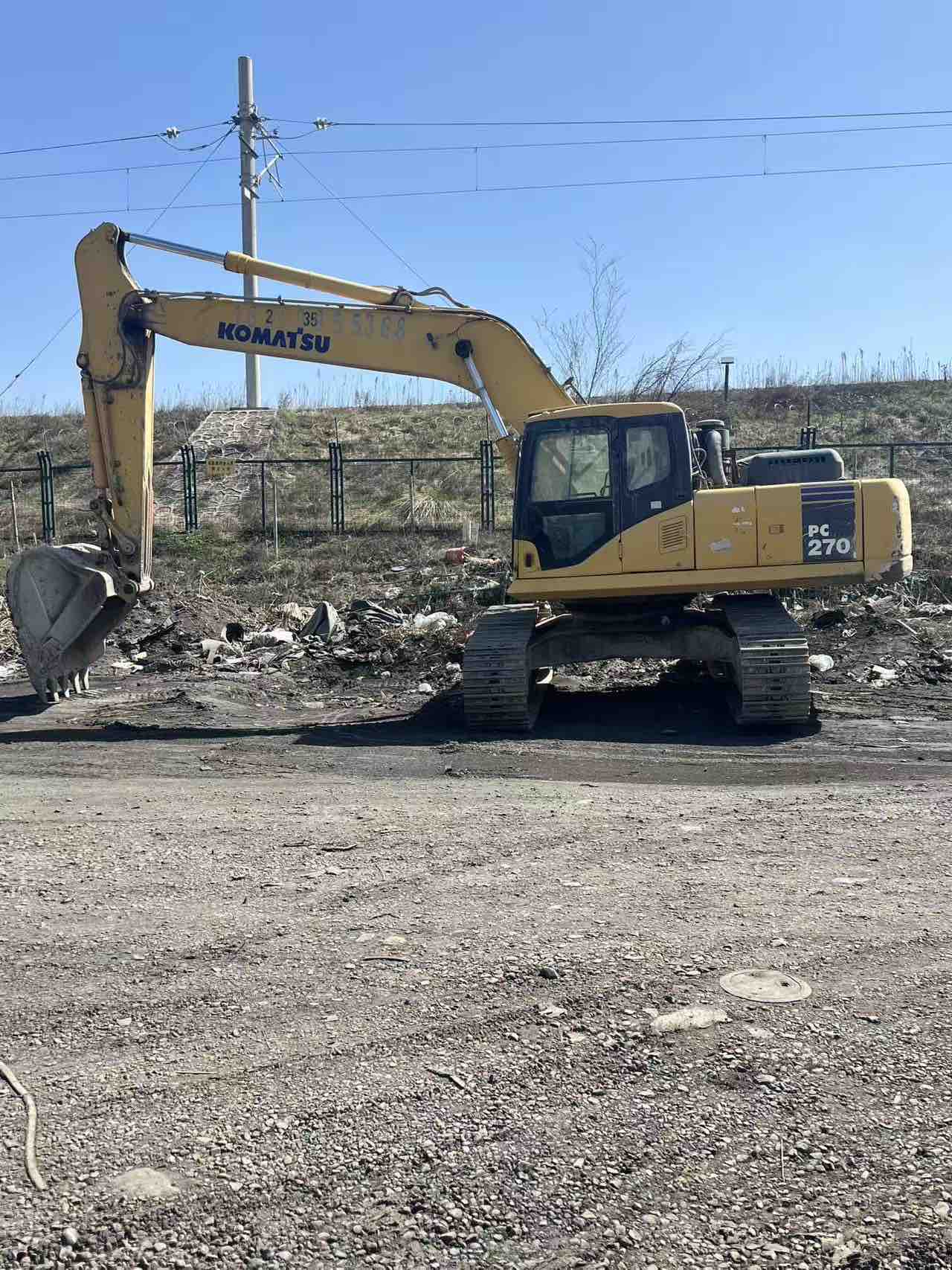

2000 Komatsu PC270-7

1/3
Buy Komatsu PC270-7 Used Excavator / 1

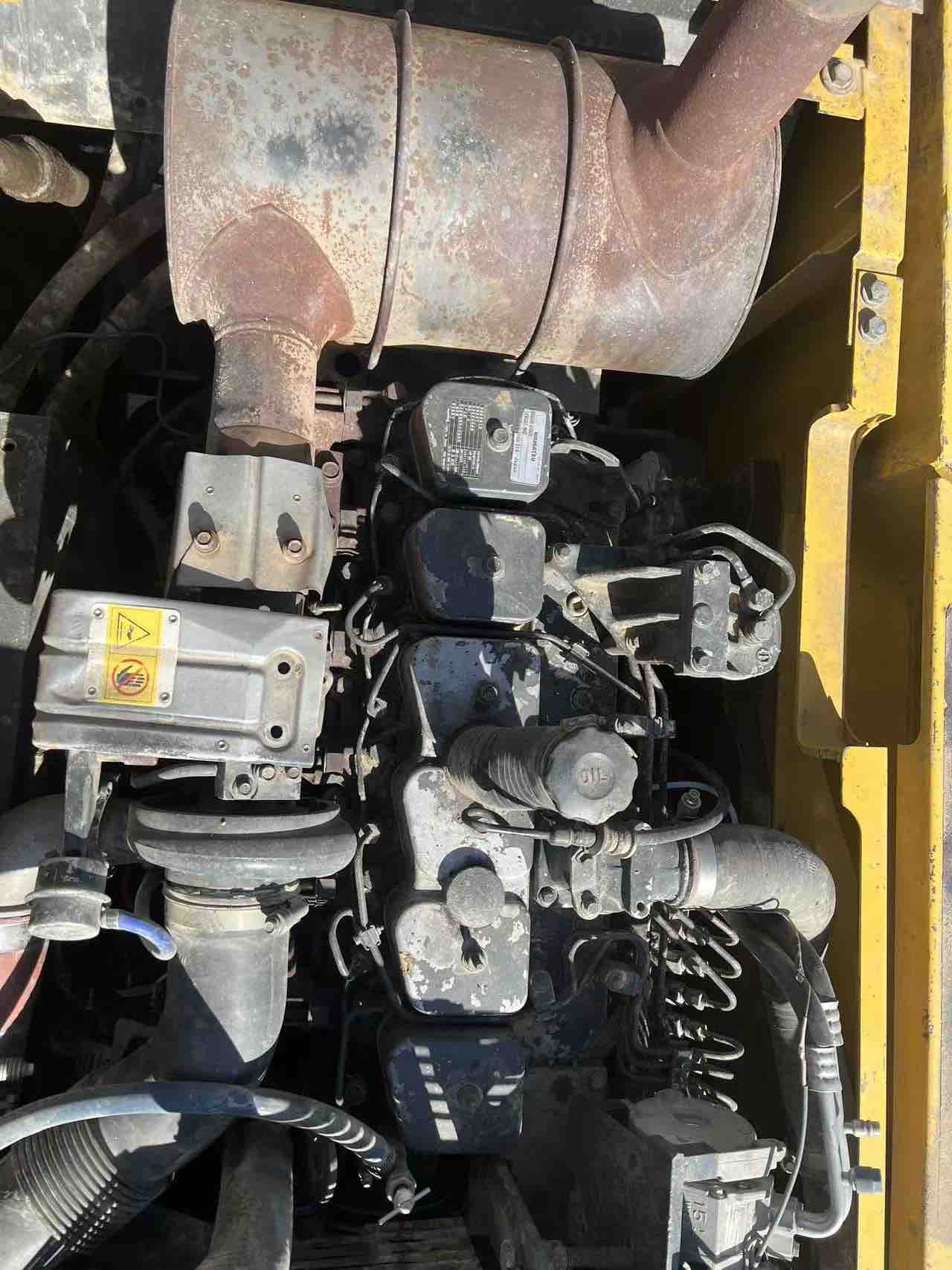

Buy Komatsu PC270-7 Used Excavator / 2

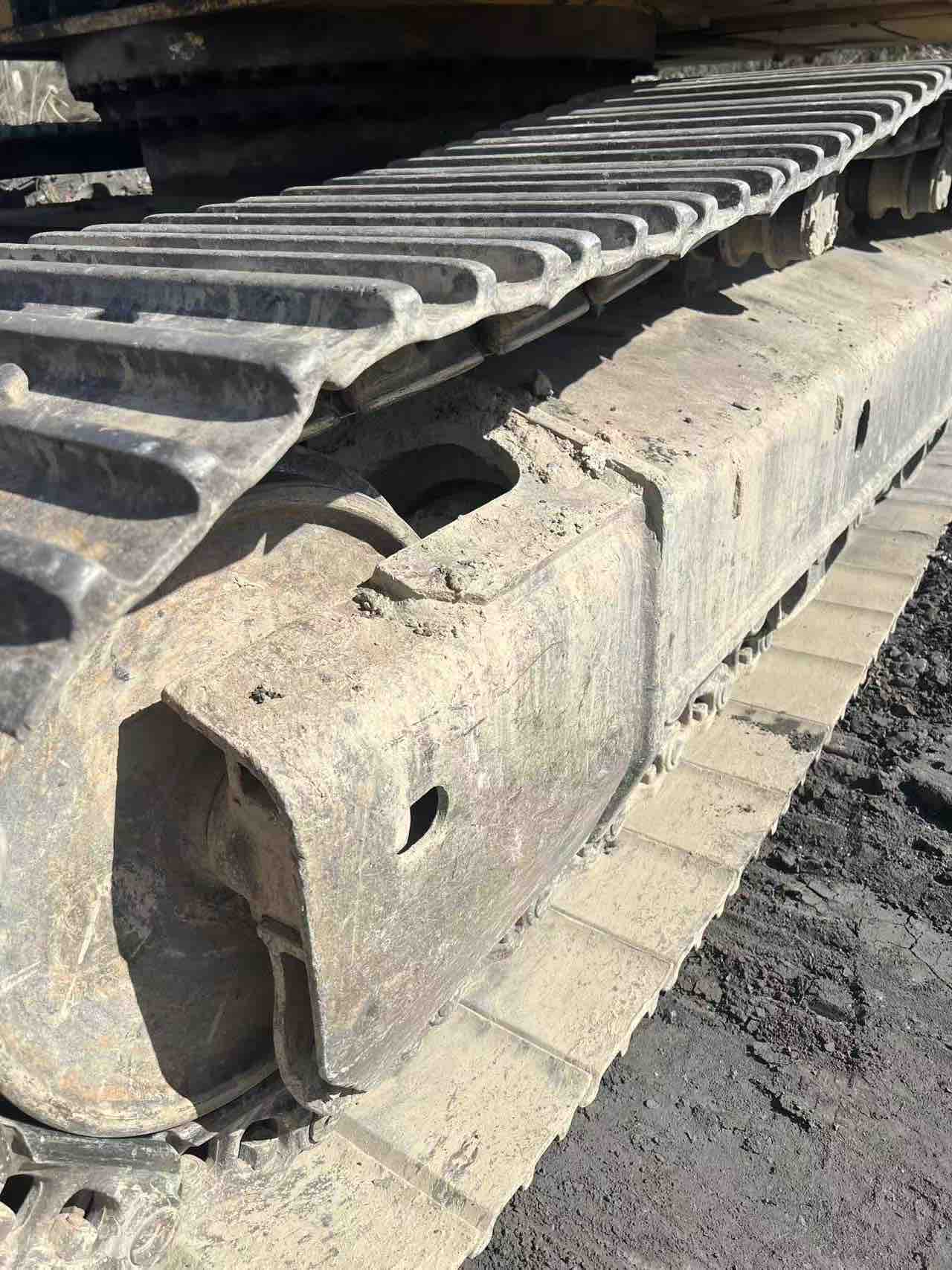

Buy Komatsu PC270-7 Used Excavator / 3

Product Description

Discover the reliability and performance of the 2012 Komatsu PC270-7 excavator, now available for sale in Xinjiang, China. This machine is a testament to Komatsu's commitment to durability and efficiency, making it an ideal choice for demanding construction and excavation projects. With its robust design and powerful engine, the PC270-7 is equipped to handle a wide range of tasks, ensuring productivity and versatility on any job site.

  • Year: 2012
  • Brand: Komatsu
  • Model: PC270-7
  • Location: Xinjiang, China
SpecificationsValue
No.1053531
Tonnage (tons)27
Working weight (kg)27460
Bucket capacity (m³)1.3
Boom length (mm)5850
Rod length (mm)3045
Country of originJining, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA6D102E-2
Rated power (kw/rpm)134/2050
Cooling modewater-cooling
Displacement (L)5.88
Working form6-cylinder, direct injection, turbocharged, post-cooled engine; Cylinder diameter × stroke: 102mm×120mm; Meet 2006EPA/Tier3 and EUIIIA standards.
Ground specific pressure (Kpa)48
Rotation speed (rpm)10.5
Climbing ability (%)70/35 °
Bucket digging force (kN)198
Rod digging force (kN)148
Travel speed (km/h)3.0/4.1/5.5
Rotary hydraulic motor typeAxial piston motor ×1(rotary holding valve)
Type of walking hydraulic motorAxial piston motor ×2(with parking brake)
Maximum flow of main pump (l/min)450
Traveling Hydraulic Circuit (Mpa)37.3
Rotary Hydraulic Circuit (Mpa)28.4
Control Hydraulic Circuit (Mpa)3.2 Pilot oil circuit
Hydraulic crushing pipeline is standardno
Bucket cylinders - Number × diameter × stroke (mm)140 * 1009 * 100
Bucket rod cylinders - Number × diameter × stroke (mm)150 * 1635 * 110
Boom cylinders - Number × diameter × stroke (mm)140 * 1300 * 100
Fuel Tank (L)400
Hydraulic Tank (L)143
Engine Oil changes (L)24
Coolant (L)30.9
Total transport length (mm)9790
Total transport width (mm)3390
Total transport height (mm)3210
Full cab height (mm)3100
Counterweight ground clearance (mm)1186
Minimum ground clearance (mm)498
Back end turning radius (mm)2905
Total track length (mm)4625
Track gauge (mm)2590
Track plate width (mm)800
Total track width (mm)3390
Track ground length (mm)3700
Maximum digging radius (mm)10100
Maximum digging depth (mm)6460
Maximum excavation height (mm)10000
Maximum unloading height (mm)7035
Maximum vertical digging depth (mm)5650
Bulldozer lift or depth (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9990
Maximum effective digging depth (mm)6320
see more

Overview

No.1053531

Brand Name:

Komatsu

Model Number:

PC270-7

Year:

2000

Location:

Xinjiang China

Pub Date
