Product Description
Engineered with precision hydraulics and proven ISUZU power, this 2013 Kobelco SK75 delivers consistent performance across demanding jobsites. At its core sits the ISUZU AU4LE2X engine—a water-cooled, 4-cylinder powerplant generating 41 kW at 2200 rpm through 2.179L displacement. Hydraulic architecture features a double variable displacement axial piston pump working at 29.4 Mpa, supported by dedicated circuits: 27.5 Mpa for travel, 14.5 Mpa for rotation, ensuring responsive control under load.
Built to joint venture/import standards in Chengdu, this 7-ton excavator combines compact dimensions with impressive reach capabilities. Maximum digging radius extends to 6,460 mm while maintaining a tight 1,760 mm front turning radius—critical for confined spaces. Vertical digging depth reaches 3,450 mm, backed by a maximum excavation height of 7,390 mm. Dual travel speeds (2.8/5.3 km/h) optimize productivity between positioning and transport modes.
Key Technical Specifications:
- Working weight: 7,000 kg (approximate)
- Hydraulic oil capacity: 120L system volume
- Fuel capacity: 120L for extended operation
- Transport height: 2,630 mm
- Currently located in Hubei Provin
| Specifications | Value |
|---|---|
| No. | 1031369 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

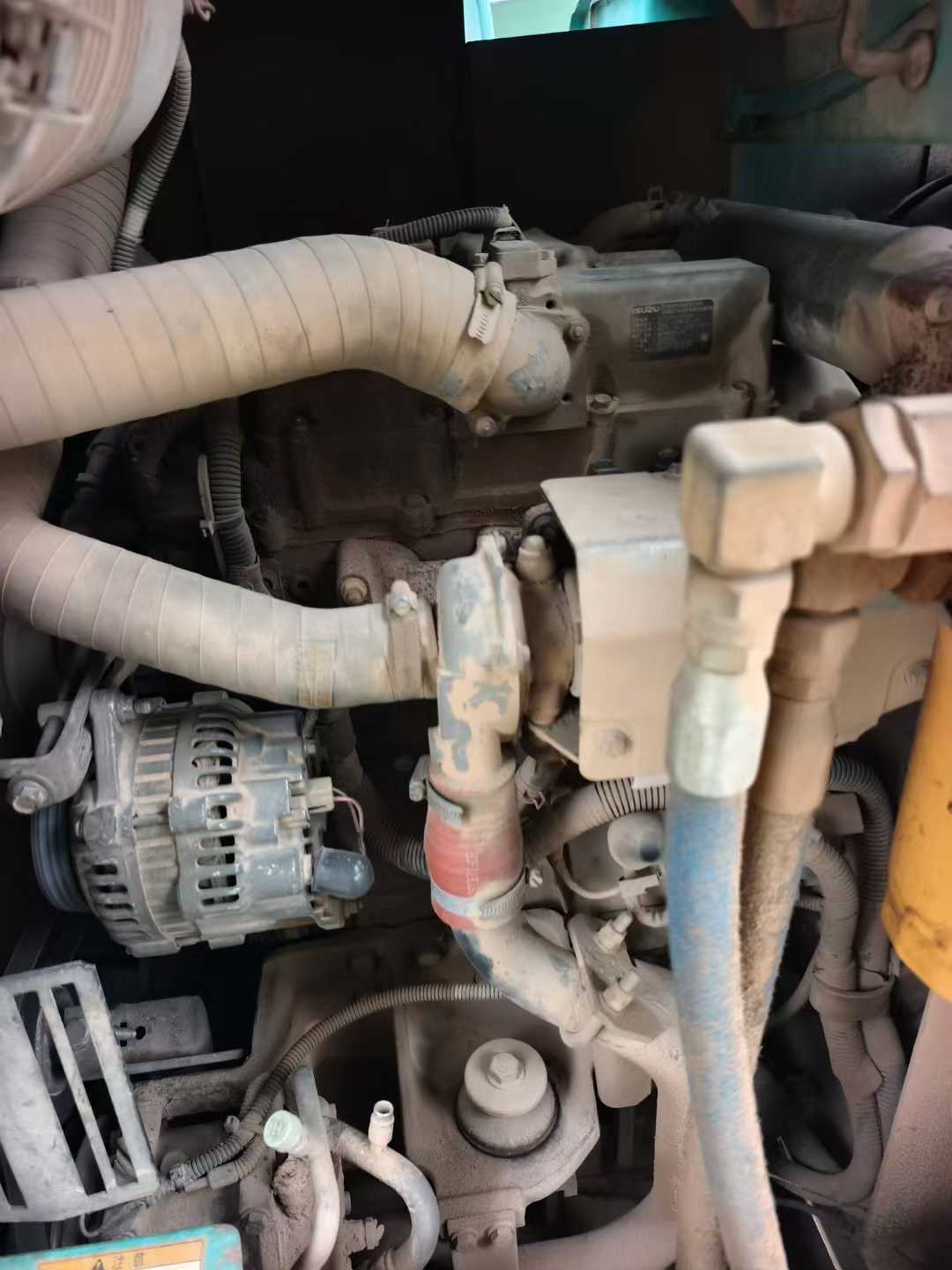

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
