Product Description

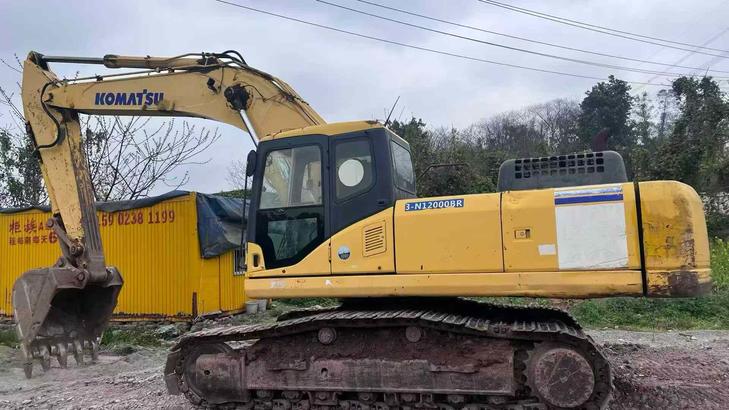

Expand your operational capacity with this 2010 Komatsu PC300-7 excavator, a proven 30-ton workhorse designed for contractors managing multiple job sites. Powered by a reliable Komatsu SAA6D114E engine delivering 180kW at 1900rpm, this machine provides consistent performance across demolition, excavation, and site preparation projects. Currently located in Hangzhou, Zhejiang, this unit offers immediate availability to keep your fleet running without downtime.
- Operating Weight: 31,200 kg with 1.4 m³ bucket capacity
- Digging Performance: 11,100mm max reach, 7,380mm depth capability
- Hydraulic System: 535 L/min main pump flow for responsive cycle times
- Mobility: 3.2–5.5 km/h travel speeds with 70% gradeability
- Fuel Efficiency: 605L fuel tank for extended shift operations
Backed by Komatsu's joint-venture manufacturing standards, this PC300-7 integrates seamlessly into existing fleets requiring supplemental capacity during peak seasons or concurrent projects. Water-cooled 6-cylinder engine ensures durability in demanding conditions.
| Specifications | Value |
|---|---|
| No. | 1021934 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 31200 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 3185 |
| Rod length (mm) | 6470 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E |
| Rated power (kw/rpm) | 180/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114mm×135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Working form | 6 cylinder, water cooled, direct injection, turbocharged, mechanical speed regulation |
| Ground specific pressure (Kpa) | 63.7 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 227 |
| Rod digging force (kN) | 171 |
| Travel speed (km/h) | 3.2/4.5/5.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 535L/min |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 * 1285 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 160 * 1825 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1480 * 100 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 32 |
| Total transport length (mm) | 11140 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10210 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7180 |
