Product Description
Built to withstand the most demanding excavation projects, this 2014 Komatsu PC300-7 represents a decade of proven performance in the field. Operating at 30 tons with a robust 31,200 kg working weight, this machine demonstrates the legendary durability that has made Komatsu a trusted name in heavy construction. Powered by the reliable Komatsu SAA6D114E engine delivering 180 kW at 1900 rpm, this workhorse combines substantial digging force with exceptional fuel efficiency through its 8.27L displacement, 6-cylinder water-cooled system.
Key performance specifications include:
- Maximum digging reach of 11,100 mm with 7,380 mm depth capability
- Impressive bucket digging force of 227 kN and rod force of 171 kN
- 1.4 m³ backhoe bucket capacity for high-volume material handling
- 535 L/min maximum pump flow ensuring responsive hydraulic performance
- 70% climbing ability for challenging terrain navigation
Currently located in Jiangsu, this PC300-7 has proven its reliability through years of operation. With comprehensive hydraulic systems, axial plunger motors, and Komatsu's renowned build quality, this excavator continues to deliver consistent productivity on job sites requirin
| Specifications | Value |
|---|---|
| No. | 1010229 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 31200 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 3185 |
| Rod length (mm) | 6470 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

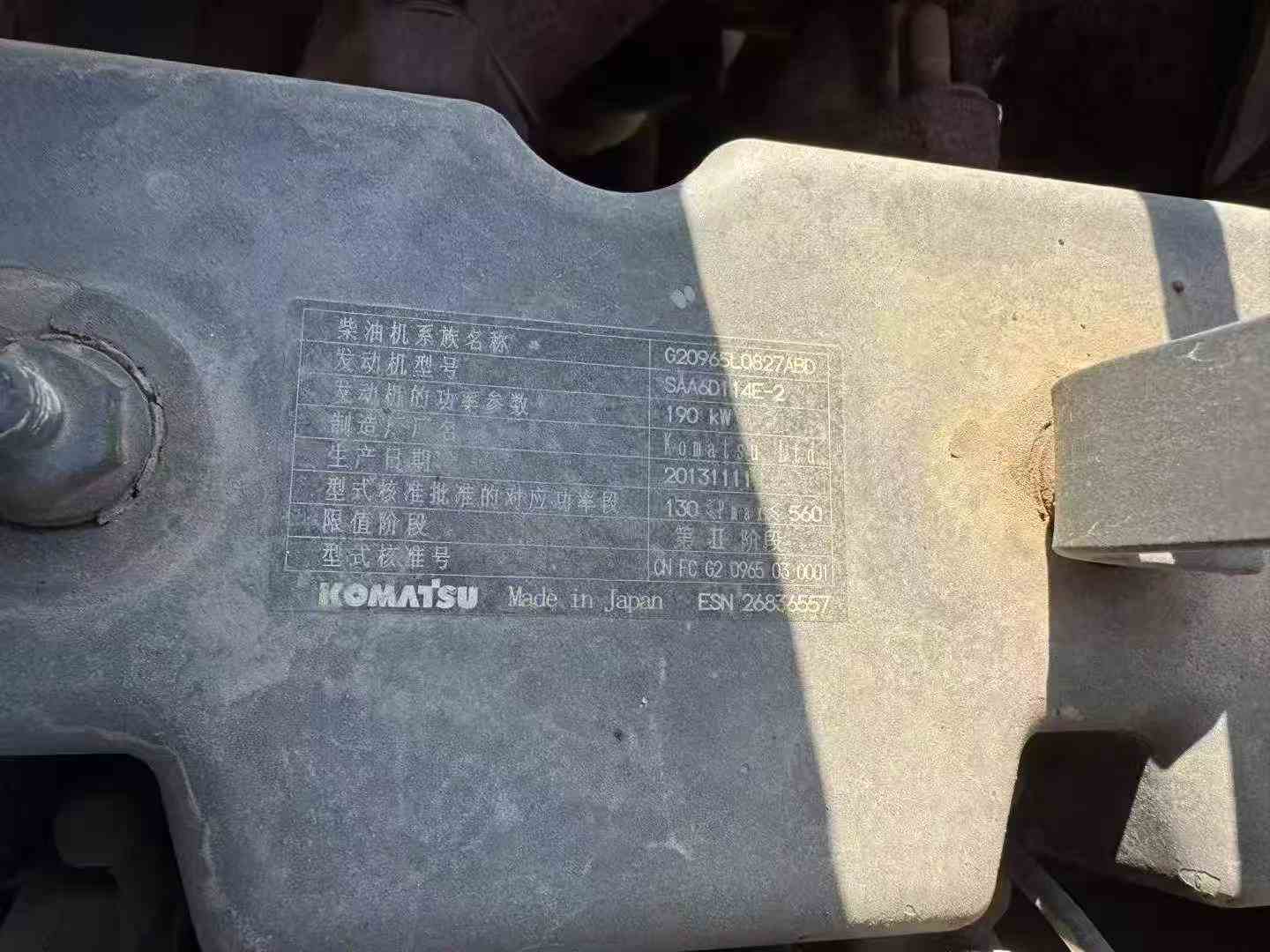

| Engine type | Komatsu SAA6D114E |
| Rated power (kw/rpm) | 180/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114mm×135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Working form | 6 cylinder, water cooled, direct injection, turbocharged, mechanical speed regulation |
| Ground specific pressure (Kpa) | 63.7 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 227 |
| Rod digging force (kN) | 171 |
| Travel speed (km/h) | 3.2/4.5/5.5 |

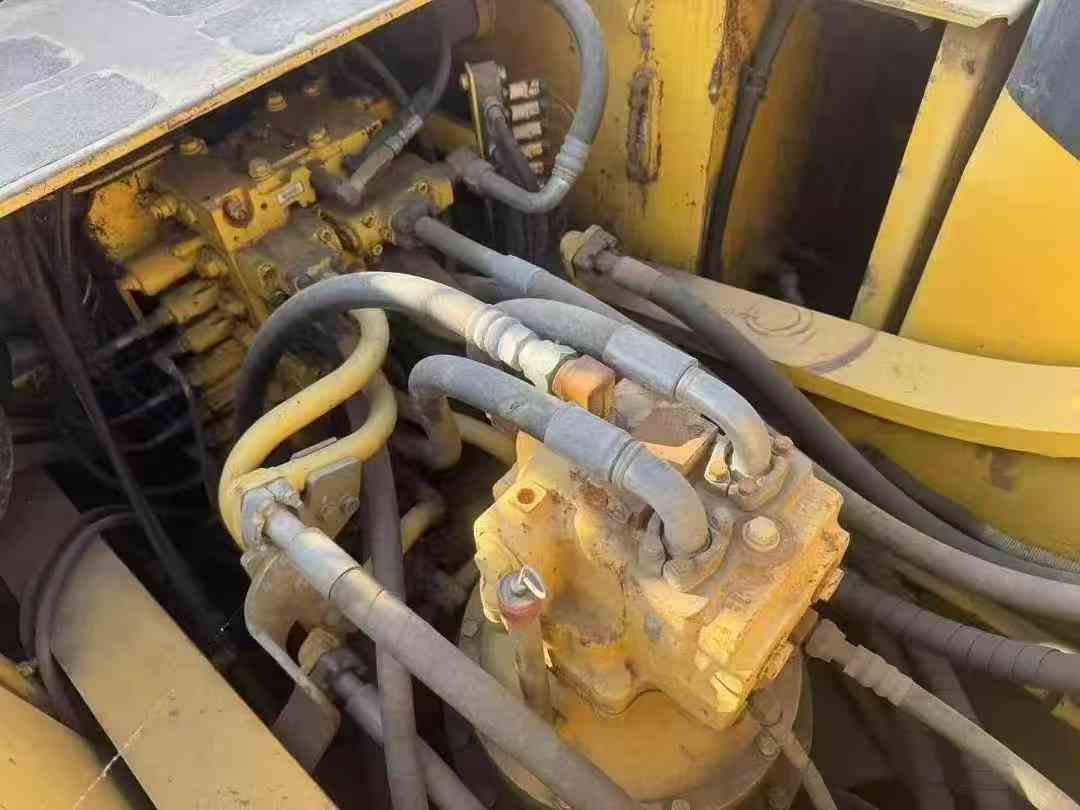

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 535L/min |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 * 1285 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 160 * 1825 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1480 * 100 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 32 |
| Total transport length (mm) | 11140 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10210 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7180 |
