Product Description

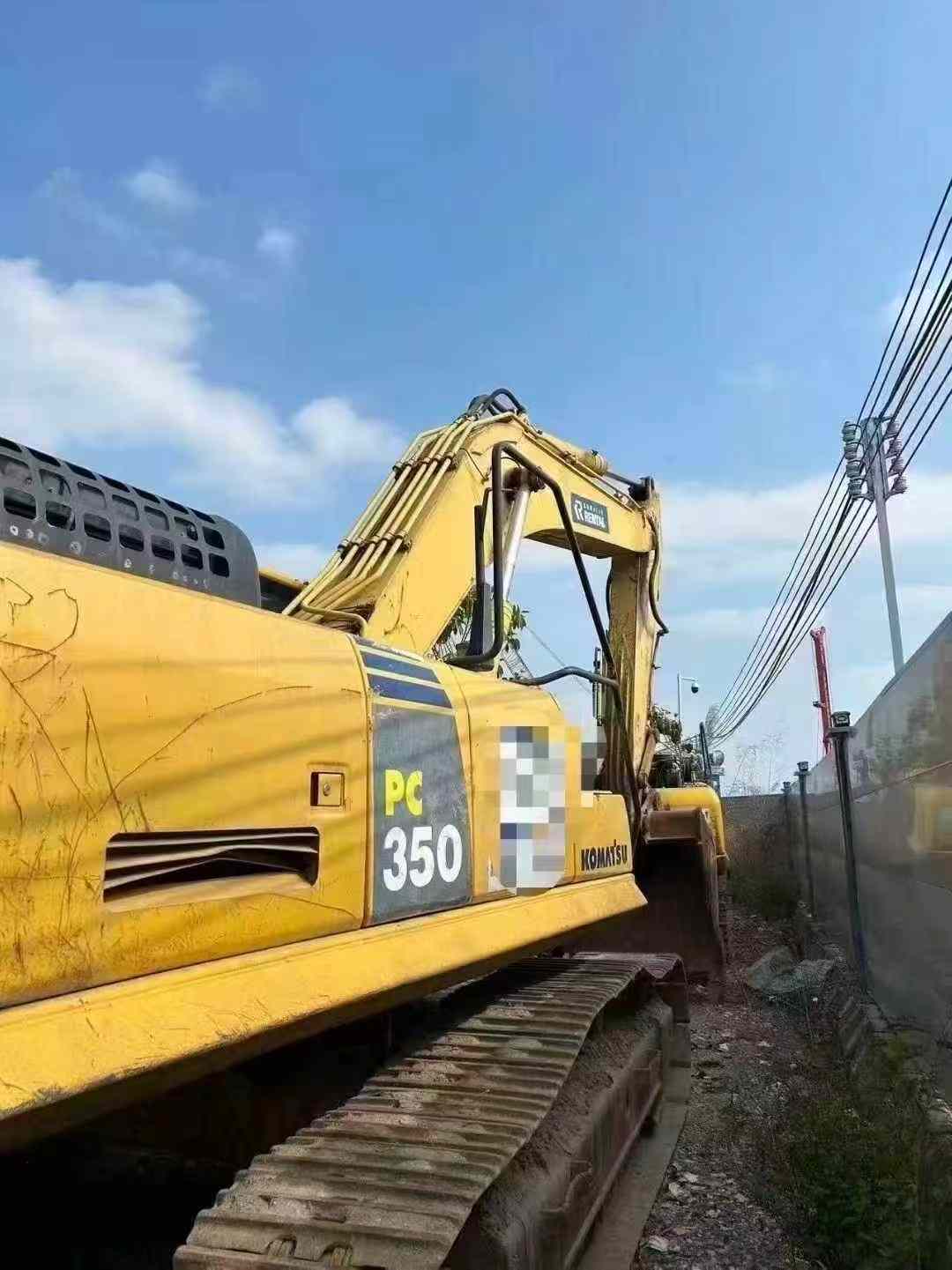

Commanding a 35-ton workhorse demands precision and confidence. This 2016 Komatsu PC350-8, currently located in Shaoxing, Zhejiang, delivers both through its operator-centric design and proven hydraulic performance. Powered by the reliable Komatsu SAA6D114E-3 engine producing 184 kW at 1950 rpm, this excavator combines responsive controls with exceptional stability across demanding jobsites.
Operators benefit from superior visibility and intuitive handling throughout extended shifts. The spacious cabin provides clear sightlines to the 1.4 m³ backhoe bucket, while the 6470 mm boom and 3185 mm arm configuration ensure optimal reach and digging depth. Hydraulic responsiveness is immediate, with a 535 l/min main pump flow supporting smooth, coordinated movements during complex operations.
- Working weight: 32,600 kg for enhanced stability
- 9.5 rpm rotation speed enables efficient positioning
- 70% climbing ability tackles challenging terrain
- Variable travel speeds (3.2/4.5/5.5 km/h) for site flexibility
- Water-cooled 6-cylinder engine ensures consistent performance
- 605 L fuel capacity minimizes refueling interruptions
Built for professionals who prioritize contr
| Specifications | Value |
|---|---|
| No. | 997869 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 32600 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

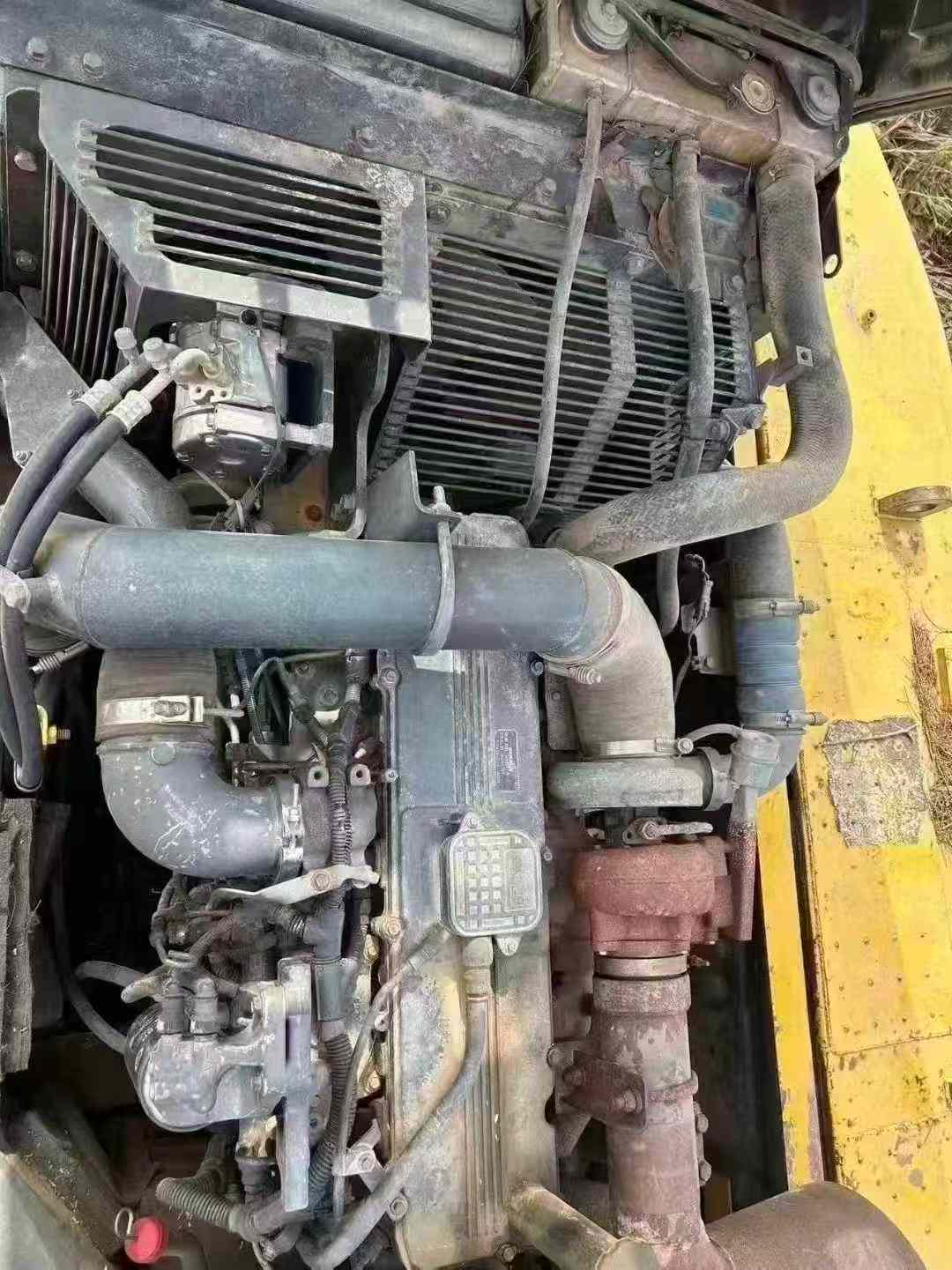

| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 184/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 3.2/4.5/5.5 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 32 |
