Product Description

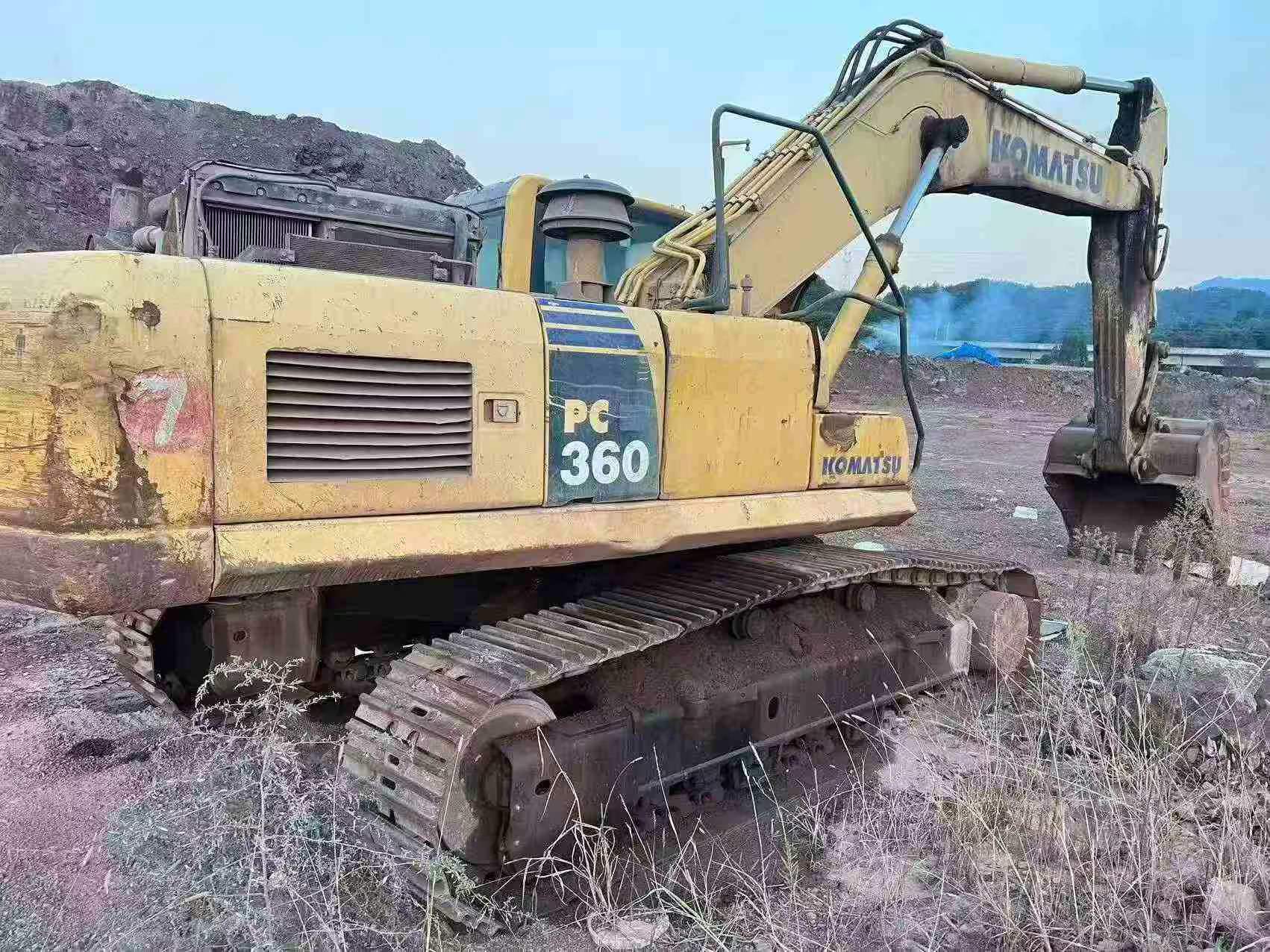

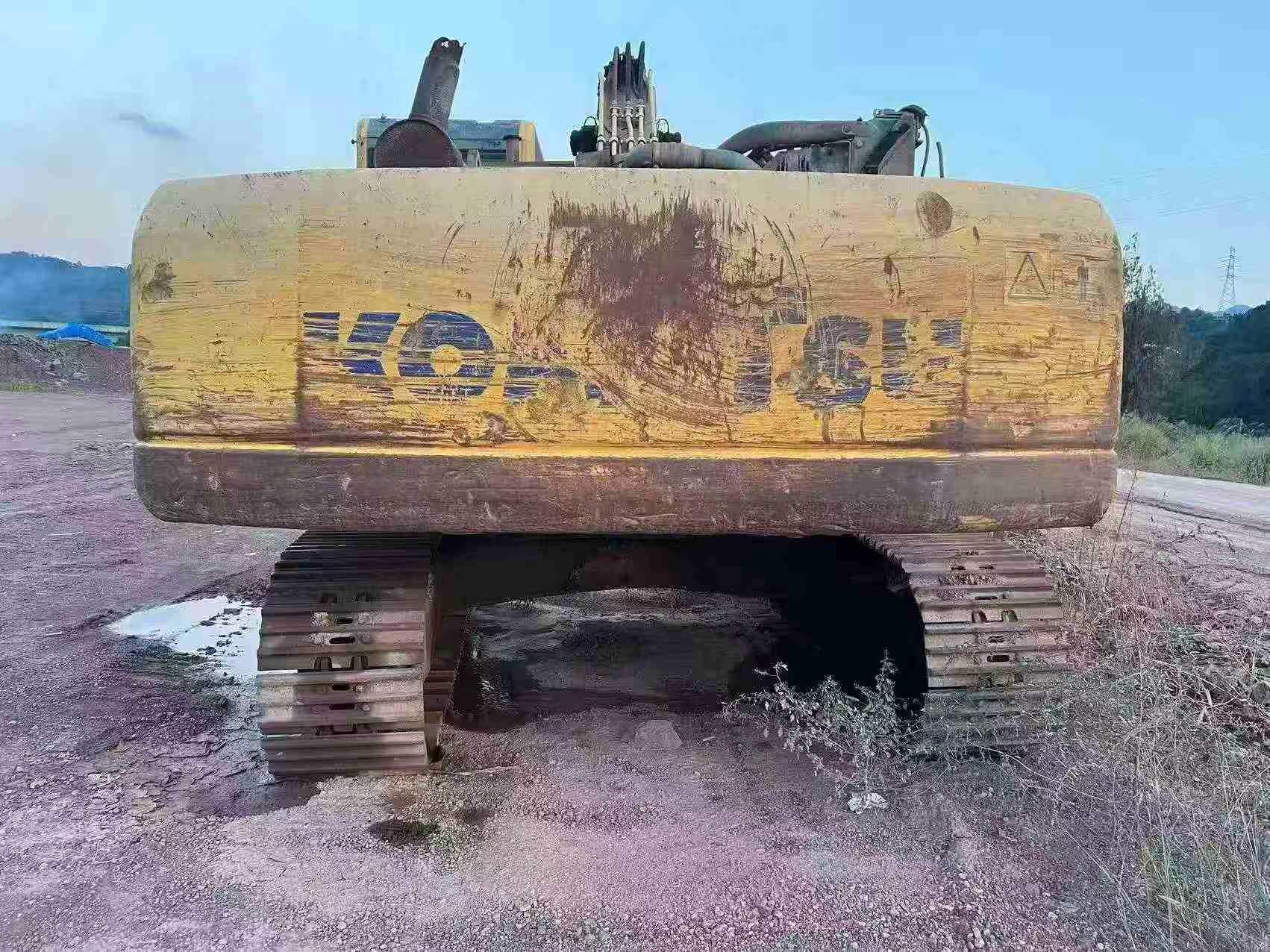

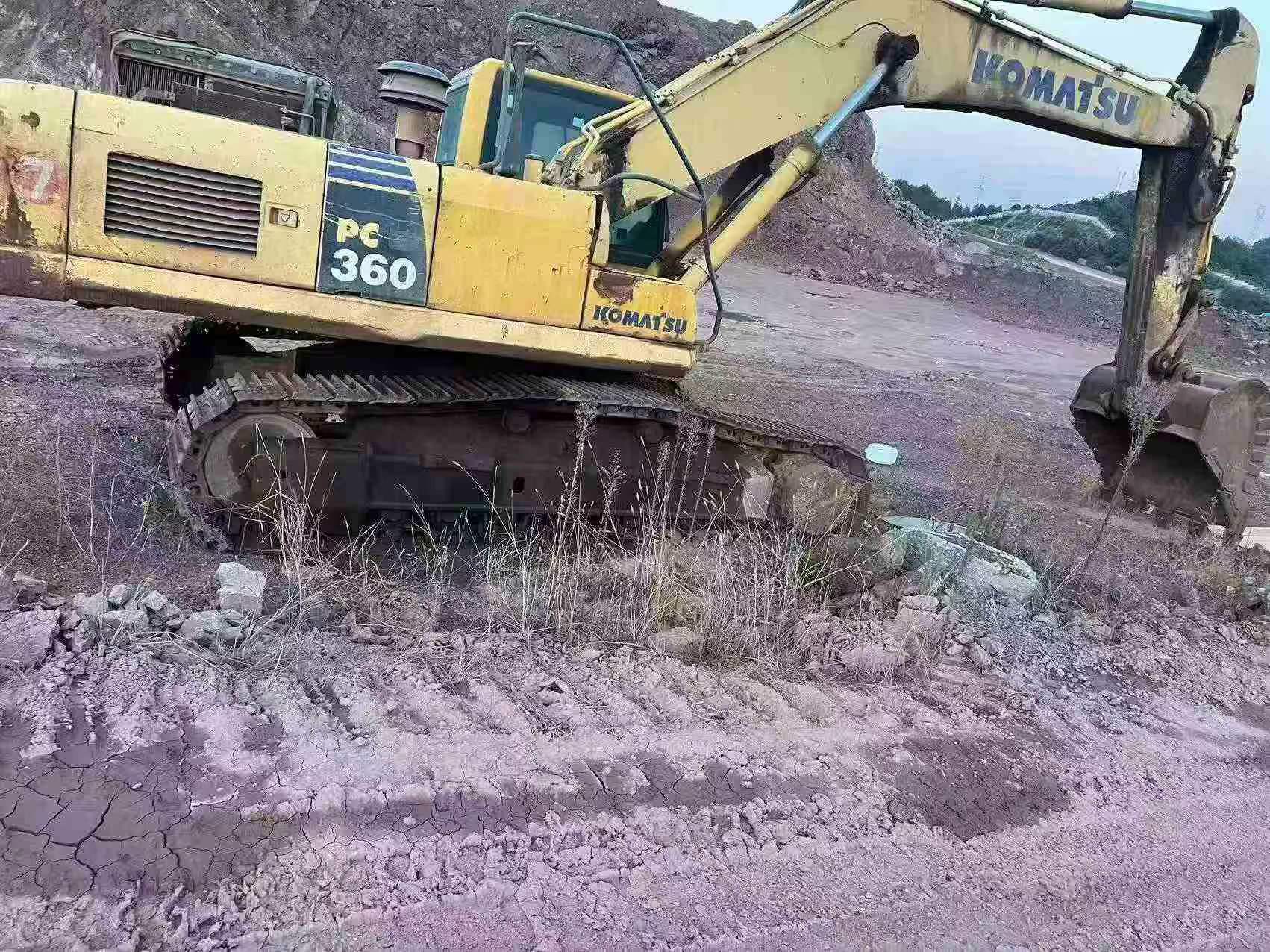

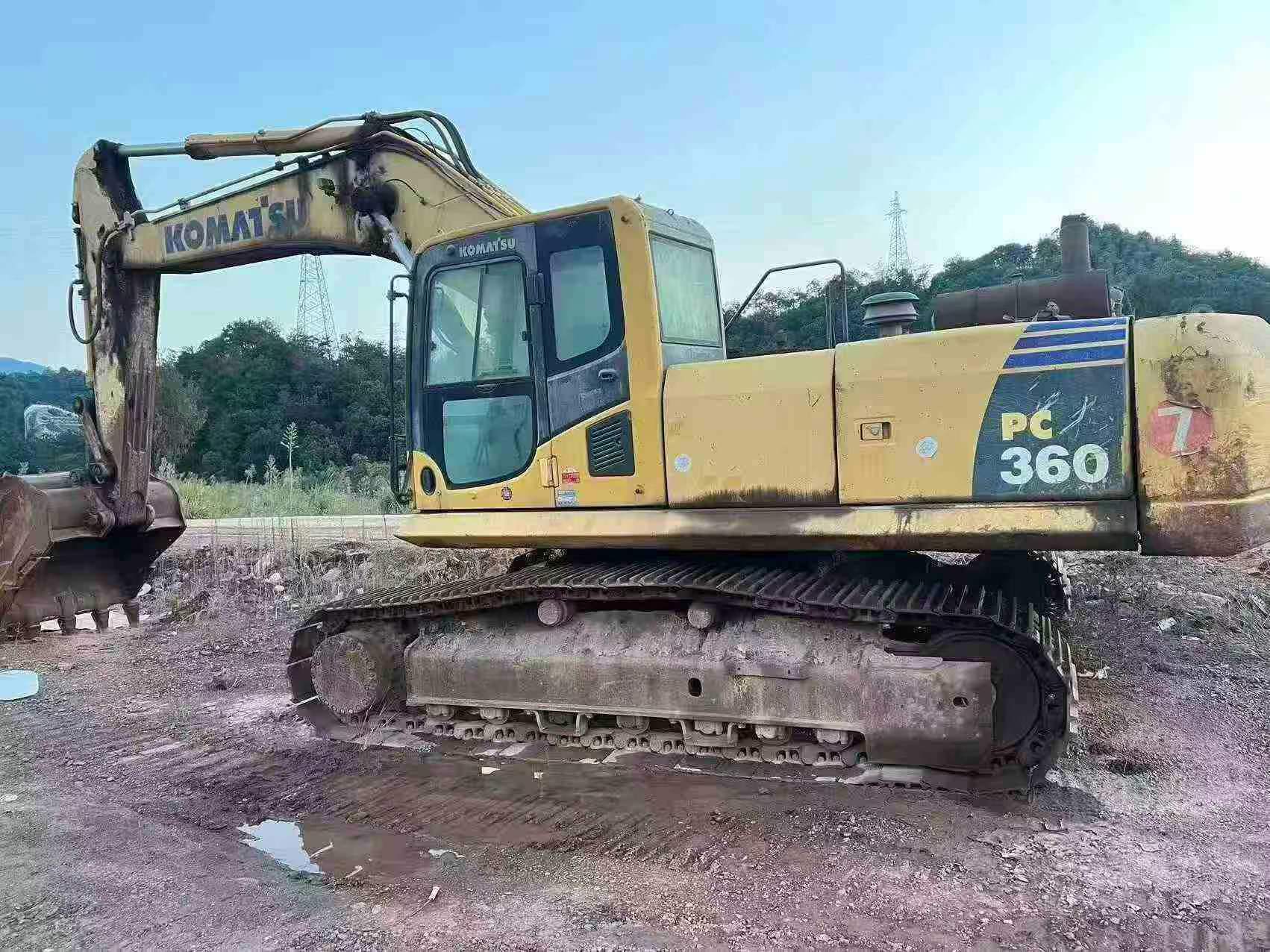

This 2016 Komatsu PC360-7 excavator offers proven performance for demanding excavation and earthmoving applications. With Komatsu's established hydraulic technology and operator-focused cab design, this machine delivers reliable productivity in the 36-ton class. The PC360-7 series is known for fuel efficiency and reduced emissions compliance, making it suitable for contractors focused on operational costs.
Currently located in Zhejiang, China, this unit is available for inspection and export arrangements. The PC360-7 features a spacious operator station with intuitive controls, reinforced undercarriage components, and serviceability designed for extended operational life.
- Year: 2016
- Model: Komatsu PC360-7
- Location: Zhejiang, China
- Class: Medium to heavy excavator
- Suitable for: Excavation, loading, demolition applications
Contact us for detailed specifications, current machine condition assessment, and pricing information.
| Specifications | Value |
|---|---|
| No. | 1171422 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33000 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

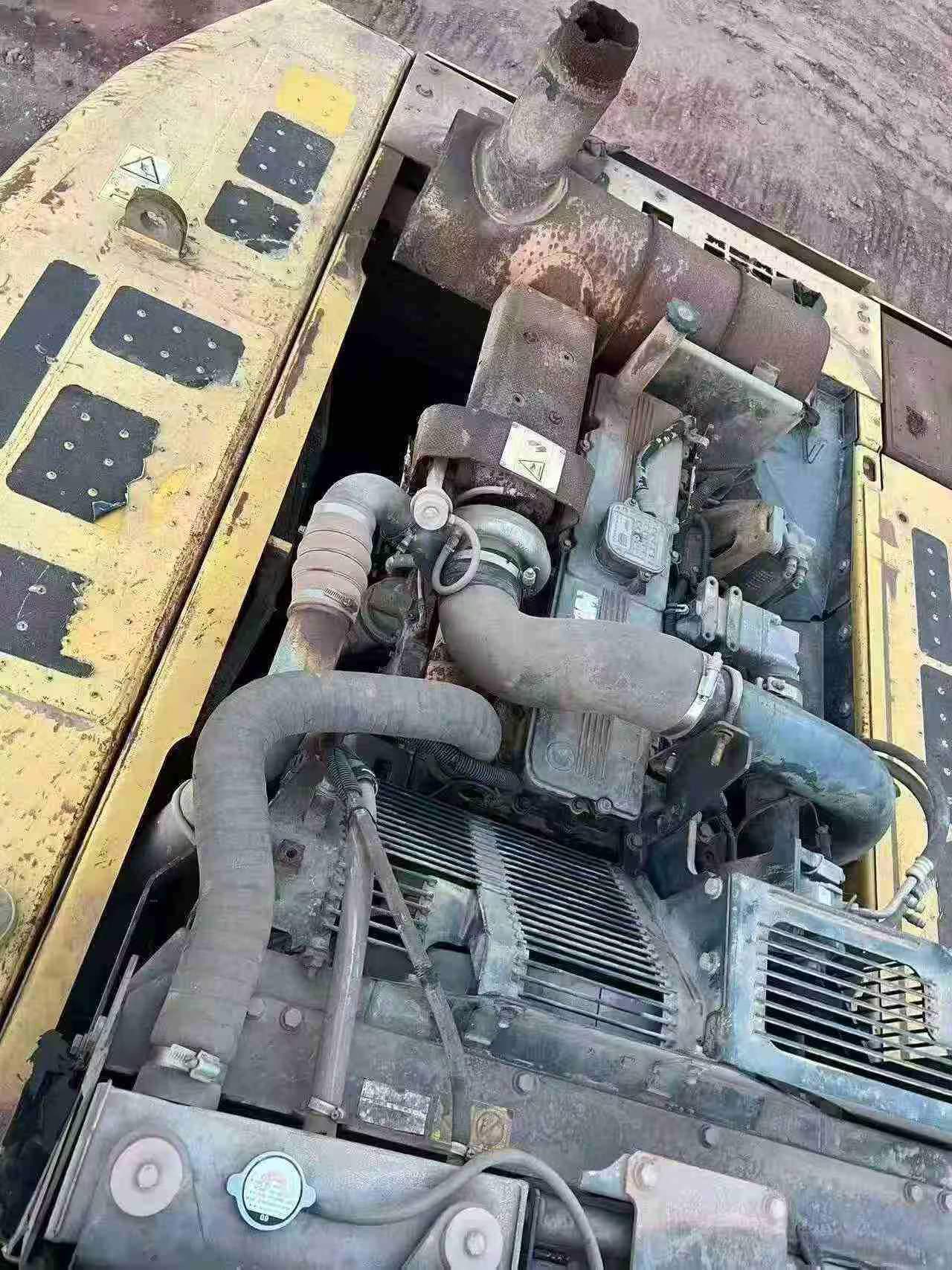

| Engine type | Komatsu SAA6D114E |
| Rated power (kw/rpm) | 180/1900 |
| Cooling mode | water-cooling |
| Displacement (L) | 8.27 |
| Working form | 6-cylinder, water-cooled, direct injection, turbocharged, mechanical full speed regulation; Cylinder diameter × stroke :114mm×135mm |
| Ground specific pressure (Kpa) | 67.7 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 227 |
| Rod digging force (kN) | 171 |
| Travel speed (km/h) | 3.2/4.5/5.5 |

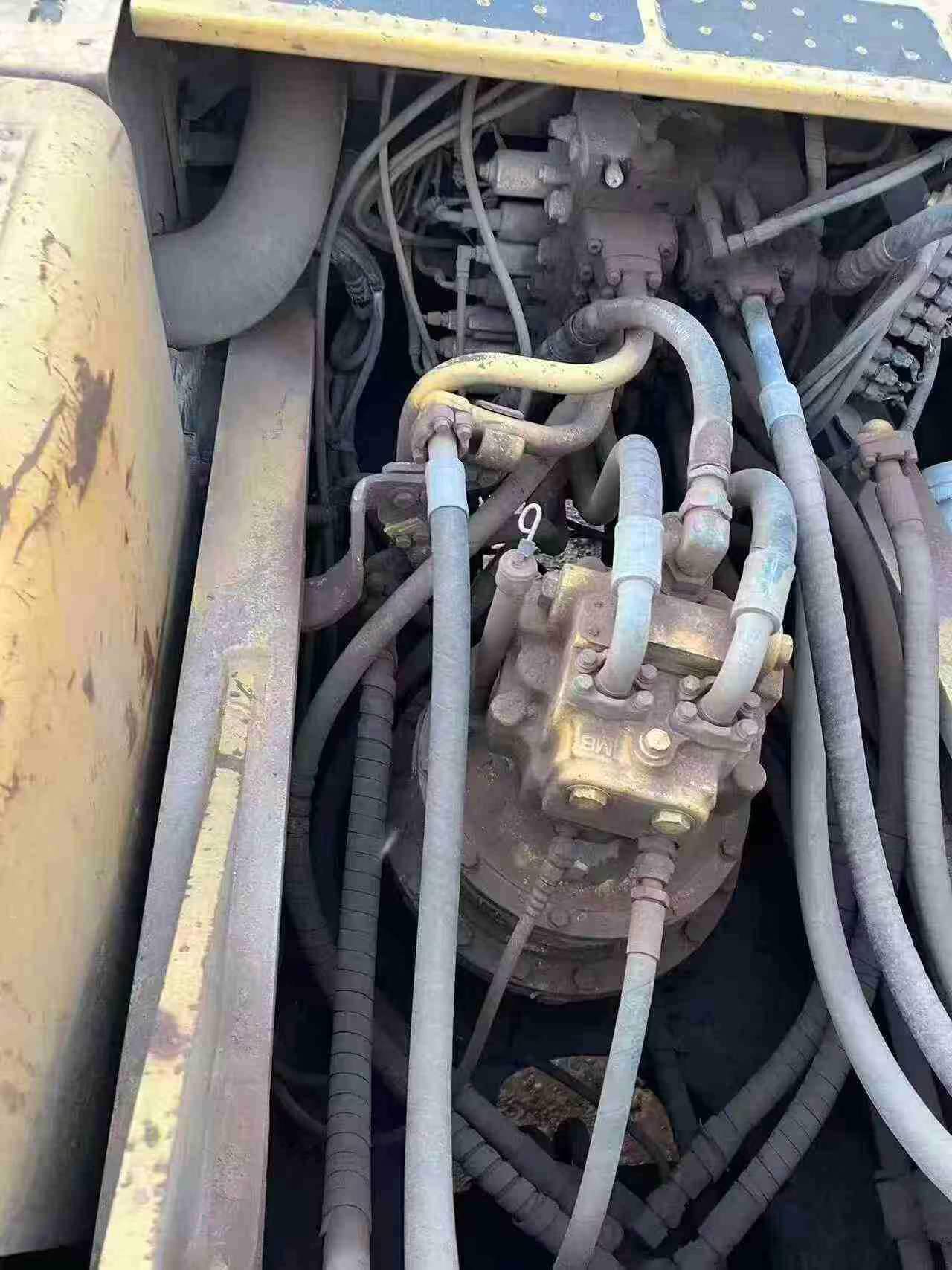

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |

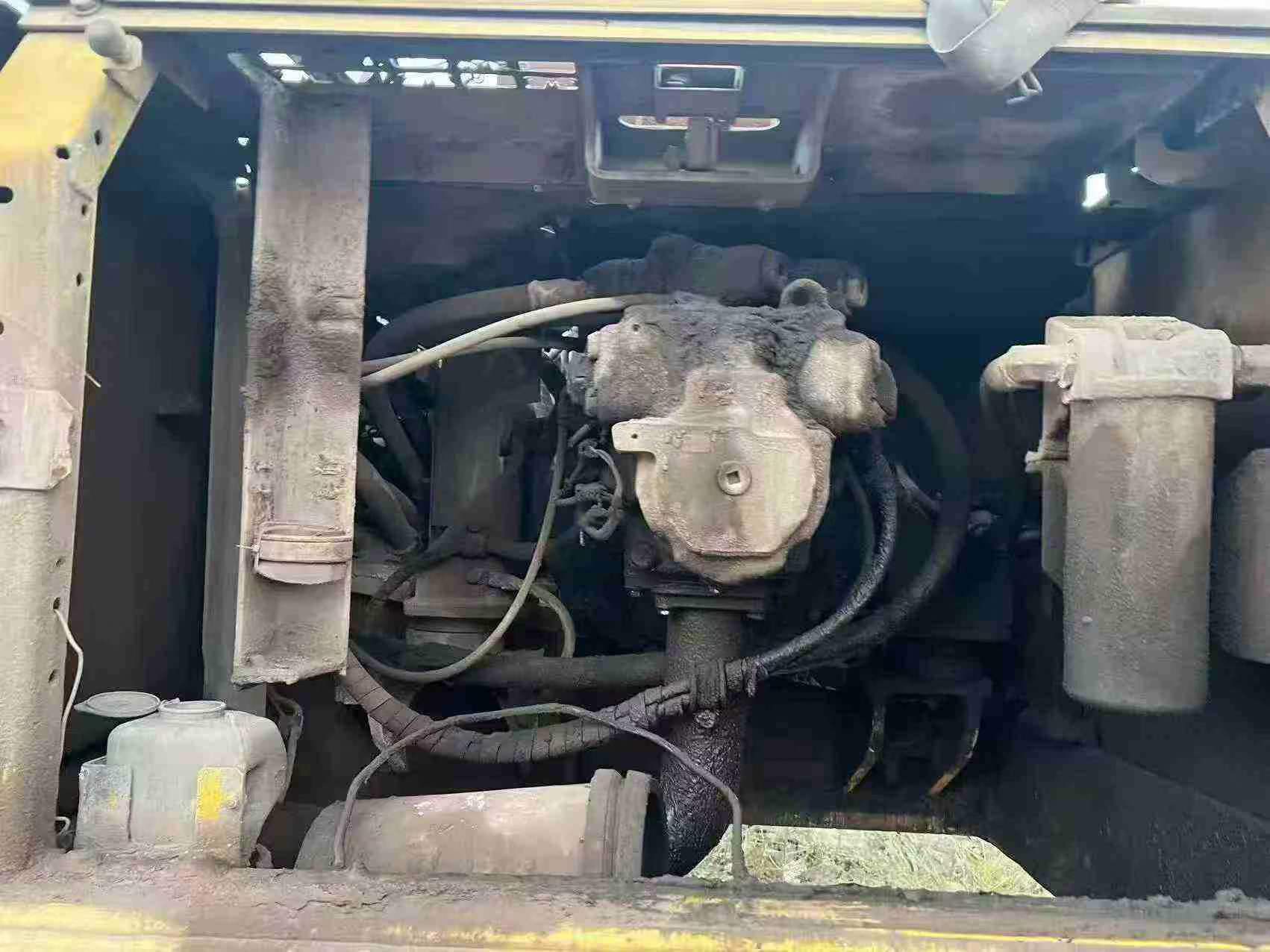

| Maximum flow of main pump (l/min) | 535L/min |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 * 1285 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 160 * 1825 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1480 * 100 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 32 |
| Total transport length (mm) | 11140 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10210 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7180 |
