Product Description

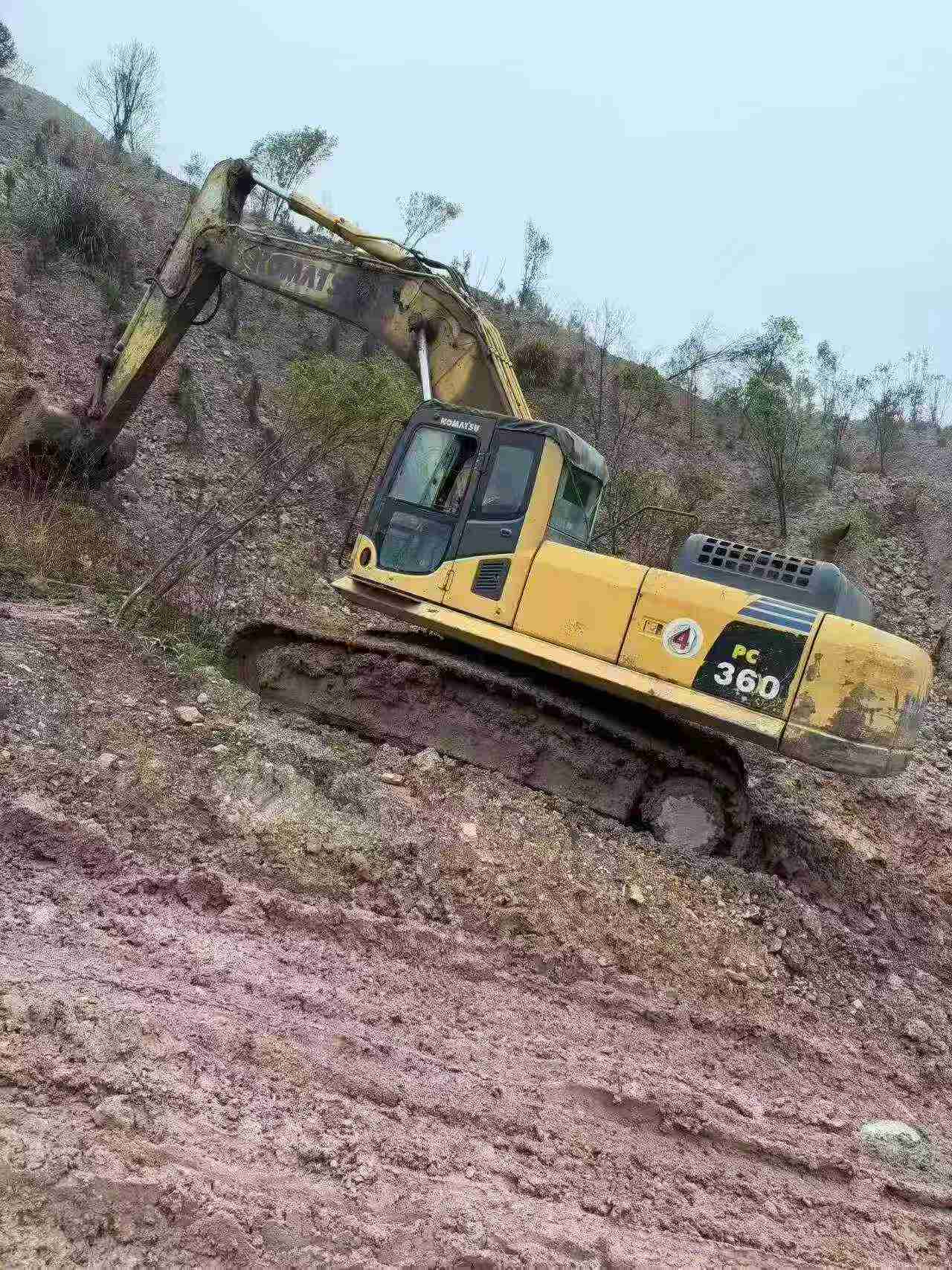

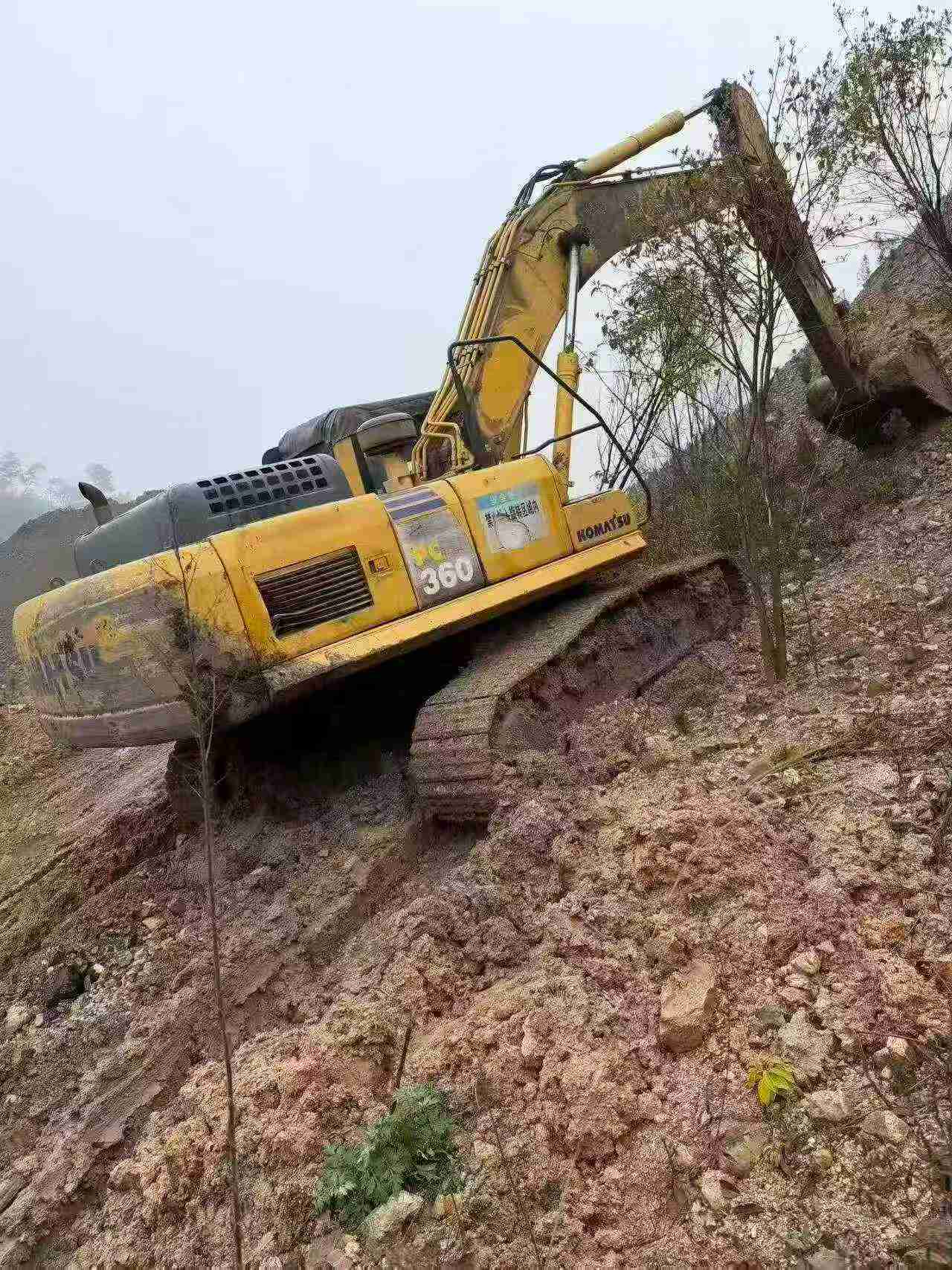

Built for serious earthmoving, the Komatsu PC360-7 is one of the most trusted names in the 36-ton excavator class — and for good reason. Komatsu's global parts network means downtime stays short, and the PC360-7's proven resale value makes it a sound investment whether you're expanding a fleet or sourcing a single workhorse machine. This 2018 unit is currently located in Sichuan, China.

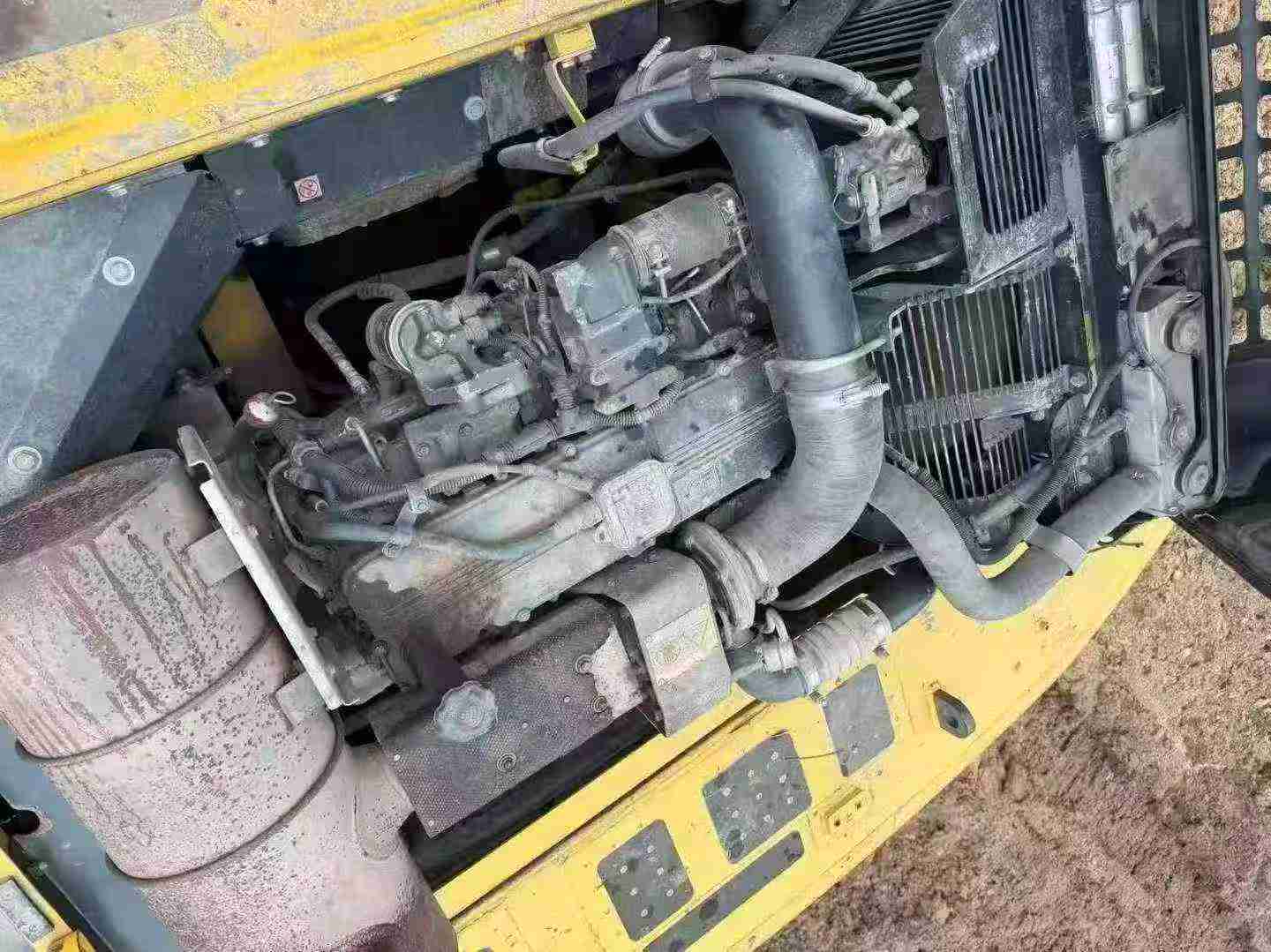

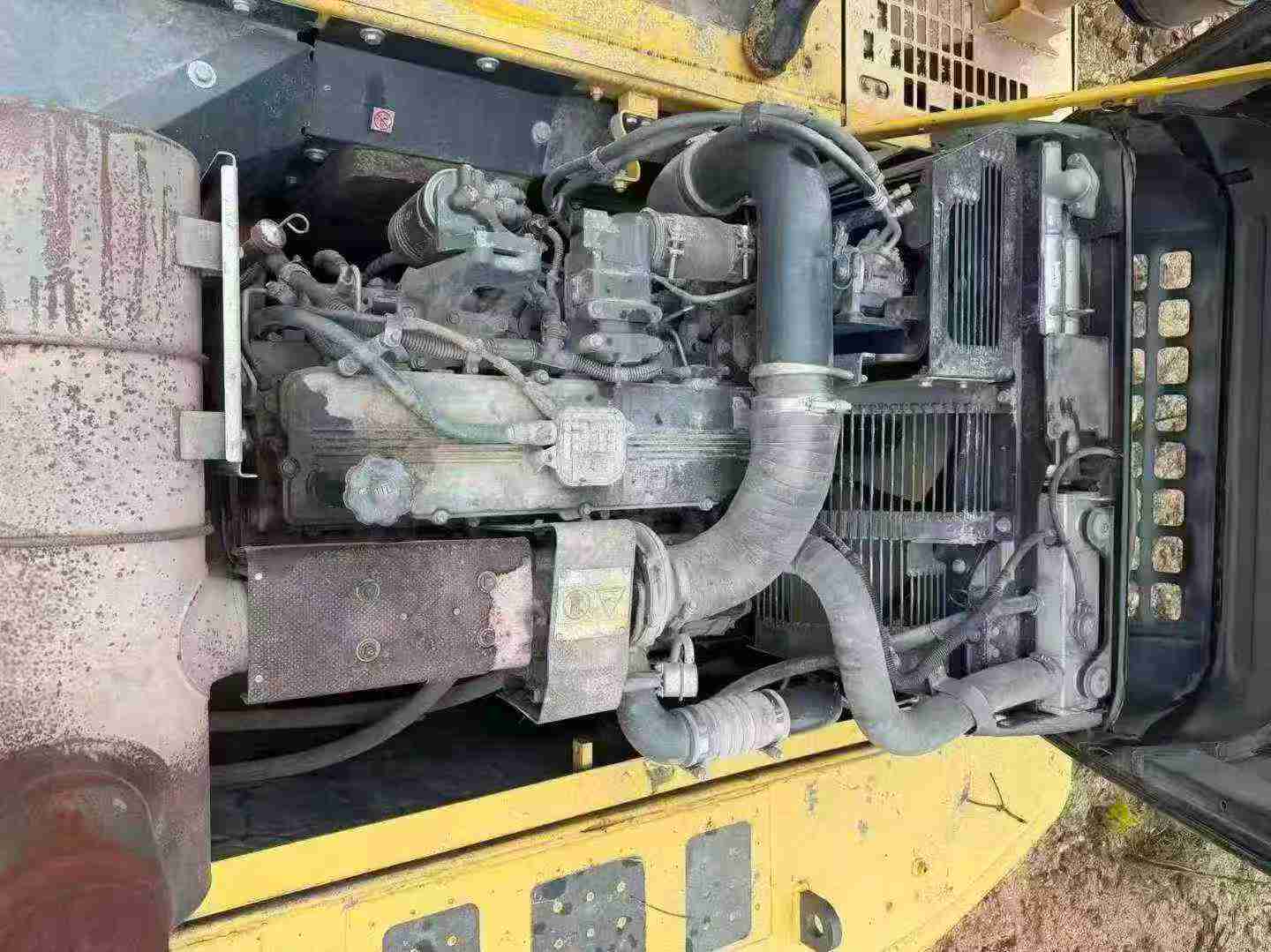

Powered by the Komatsu SAA6D114E engine producing 180 kW at 1,900 rpm, this machine delivers consistent performance across demanding applications. The 8.27L six-cylinder turbocharged, water-cooled powerplant is well-documented in the field, with widely available service parts and a strong base of qualified technicians globally.
- Working weight: 33,000 kg | Bucket capacity: 1.6 m³
- Bucket digging force: 227 kN | Arm digging force: 171 kN
- Maximum digging depth: 7,380 mm | Maximum digging radius: 11,100 mm
- Maximum excavation height: 10,210 mm | Maximum unloading height: 7,110 mm
- Travel speed: 3.2 / 4.5 / 5.5 km/h | Climbing ability: 70% / 35°

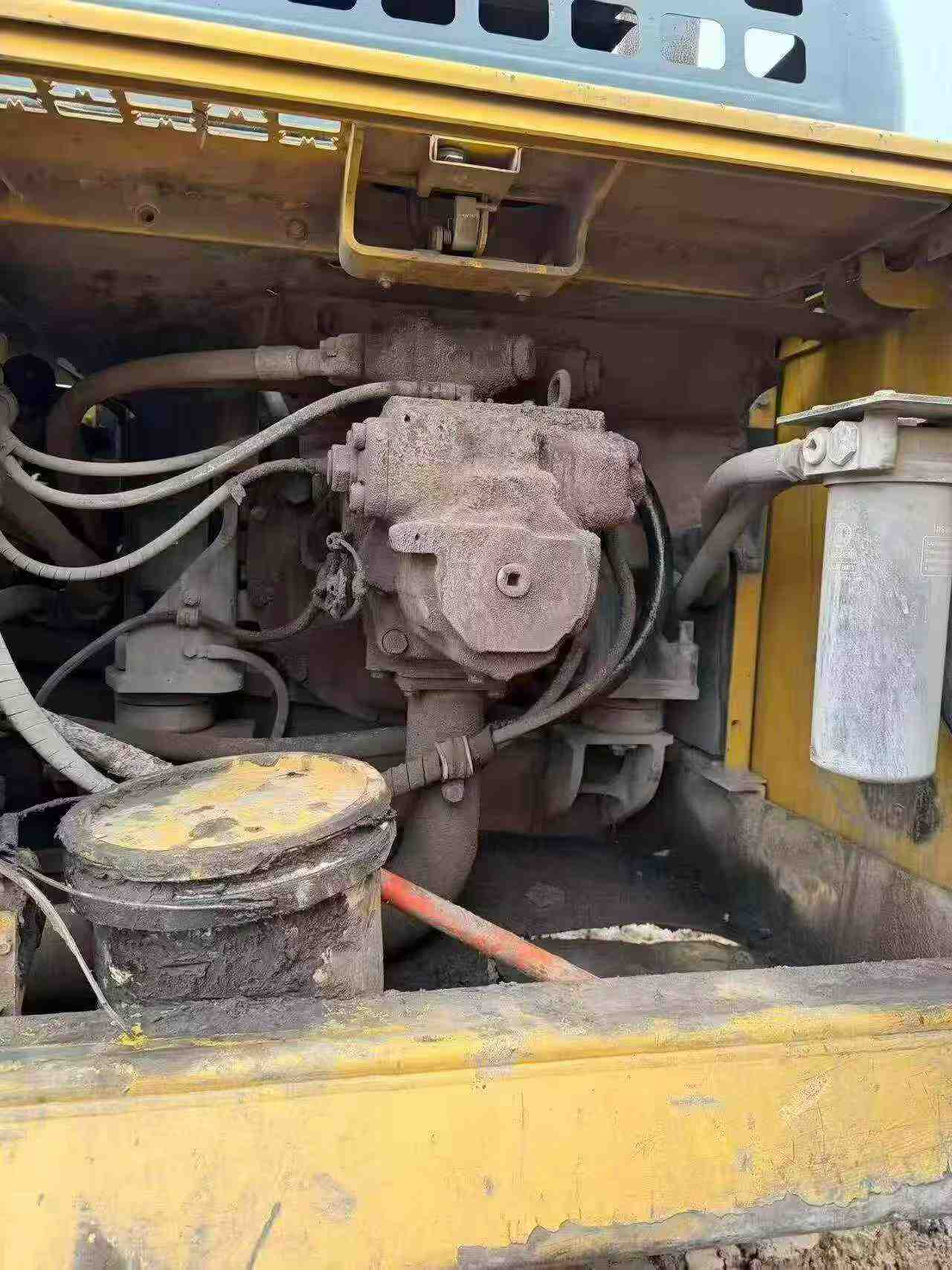

- Main pump max flow: 535 L/min | Fuel tank: 605 L
- Track plate width: 600 mm | Ground pressure: 67.7 kPa
Komatsu's reputation for build quality and long service intervals is reflected in machines like this — components are standardized, documentation is thorough, and the aftermarket support infrastructure is mature. For buyers prioritizing long-term operating costs and parts availability, the PC360-7 remains one of the most practical choices in its class.
| Specifications | Value |
|---|---|
| No. | 1042699 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33000 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E |
| Rated power (kw/rpm) | 180/1900 |
| Cooling mode | water-cooling |
| Displacement (L) | 8.27 |
| Working form | 6-cylinder, water-cooled, direct injection, turbocharged, mechanical full speed regulation; Cylinder diameter × stroke :114mm×135mm |
| Ground specific pressure (Kpa) | 67.7 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 227 |
| Rod digging force (kN) | 171 |
| Travel speed (km/h) | 3.2/4.5/5.5 |

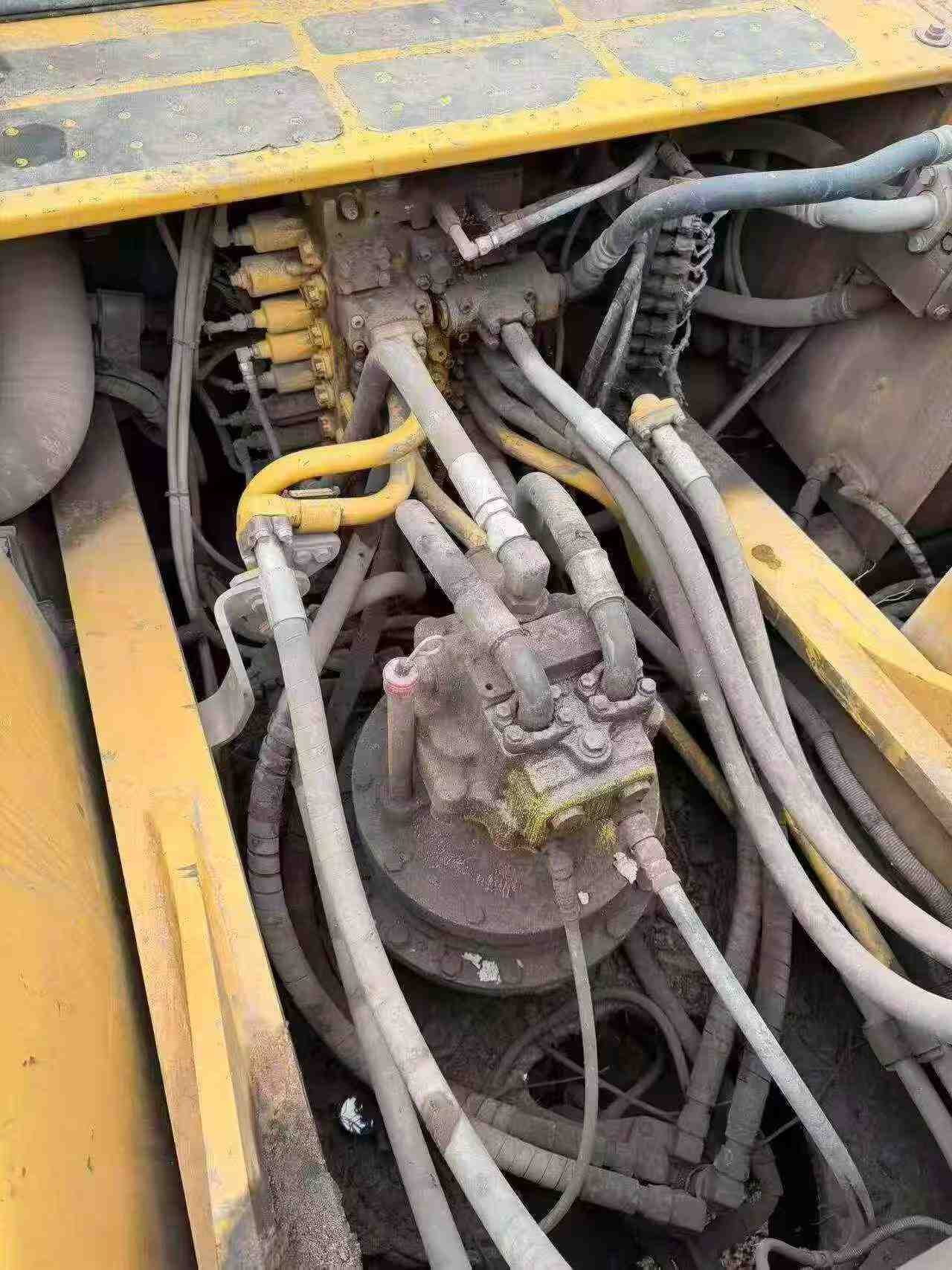

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 535L/min |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 * 1285 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 160 * 1825 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1480 * 100 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 32 |
| Total transport length (mm) | 11140 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10210 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7180 |
