Product Description
This 2016 Komatsu PC360-8M0 excavator offers reliable performance for demanding excavation and earthmoving applications. Sourced from Shandong, China, this machine has been actively deployed in working conditions and demonstrates the durability expected from Komatsu's proven hydraulic excavator platform. The PC360-8M0 configuration delivers strong digging force and operating efficiency suitable for construction, mining, and infrastructure projects.
Key features include:
- Komatsu PC360 series hydraulic system with responsive control

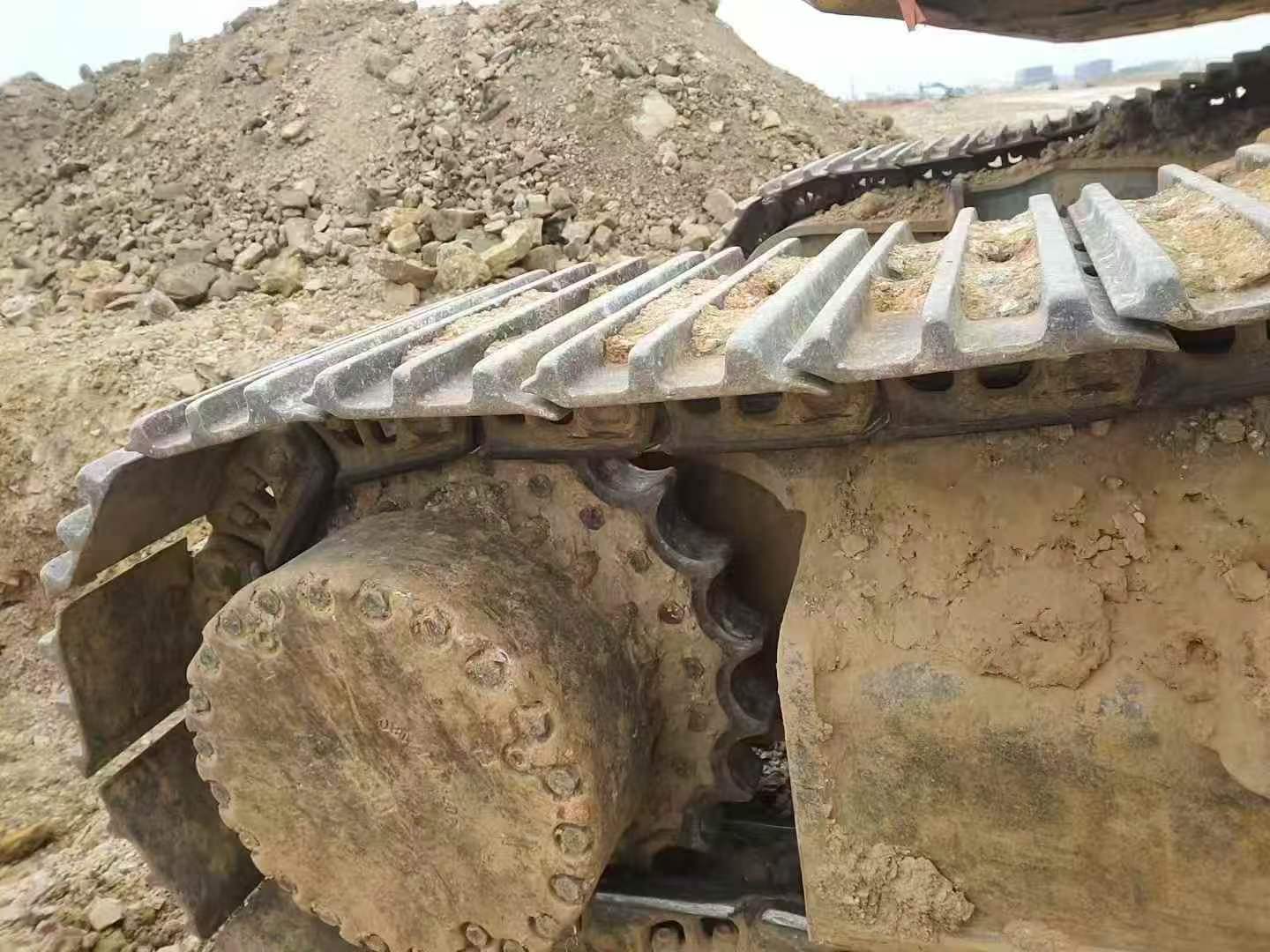

- Robust undercarriage designed for stability and traction

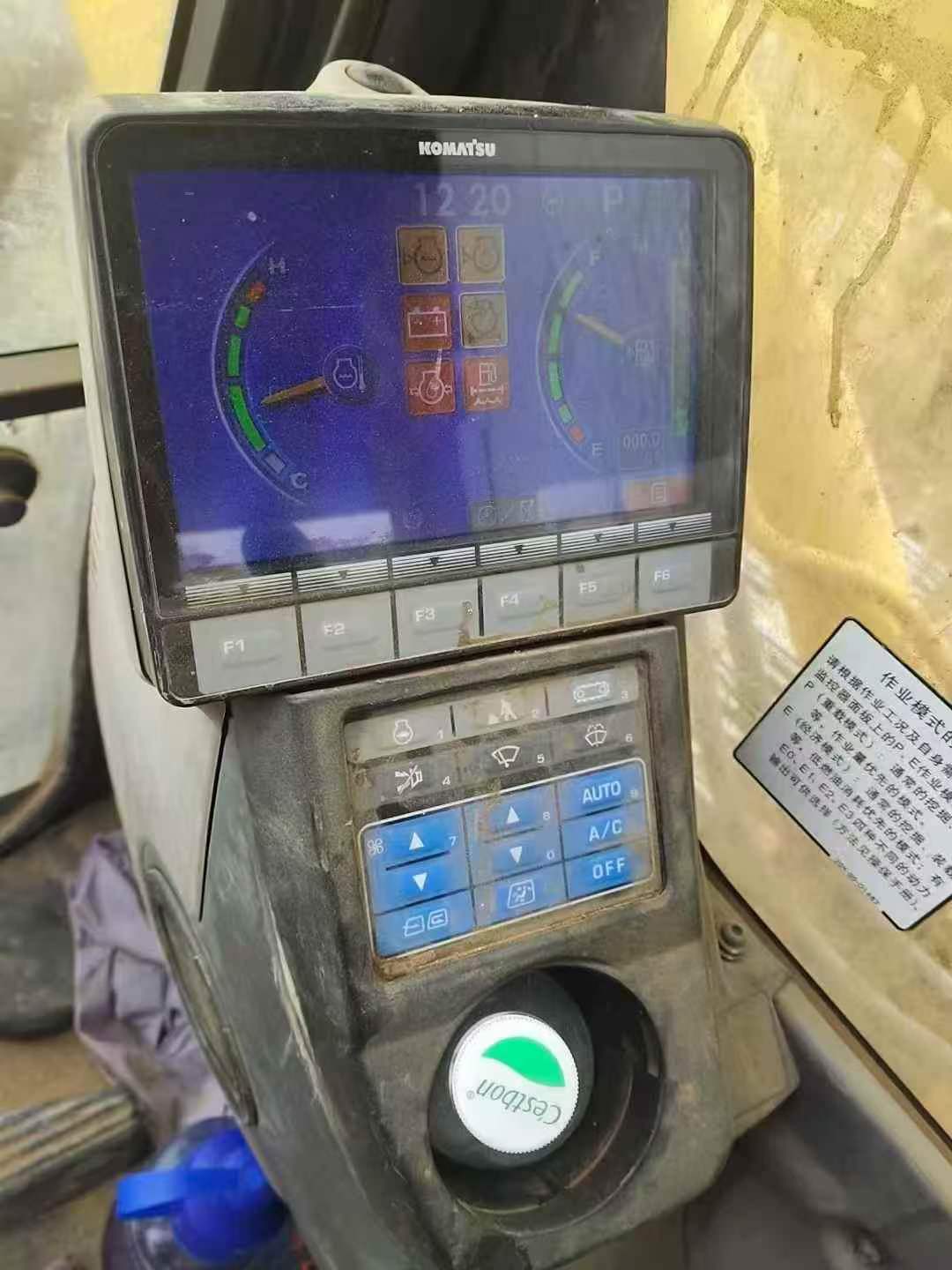

- Spacious operator cabin with ergonomic controls
- Fuel-efficient engine meeting operational demands
- Well-maintained working condition ready for deployment
This unit represents a cost-effective solution for contractors and operators seeking dependable mid-size excavator capacity. Available for immediate inspection and purchase from our Shandong location.
| Specifications | Value |
|---|---|
| No. | 1167703 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33550 |
| Bucket capacity (m³) | 1.6-1.9 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 187/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 68.5 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 232 |
| Rod digging force (kN) | 174 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/4.5/3.2 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 38.2 |
| Rotary Hydraulic Circuit (Mpa) | 28 |

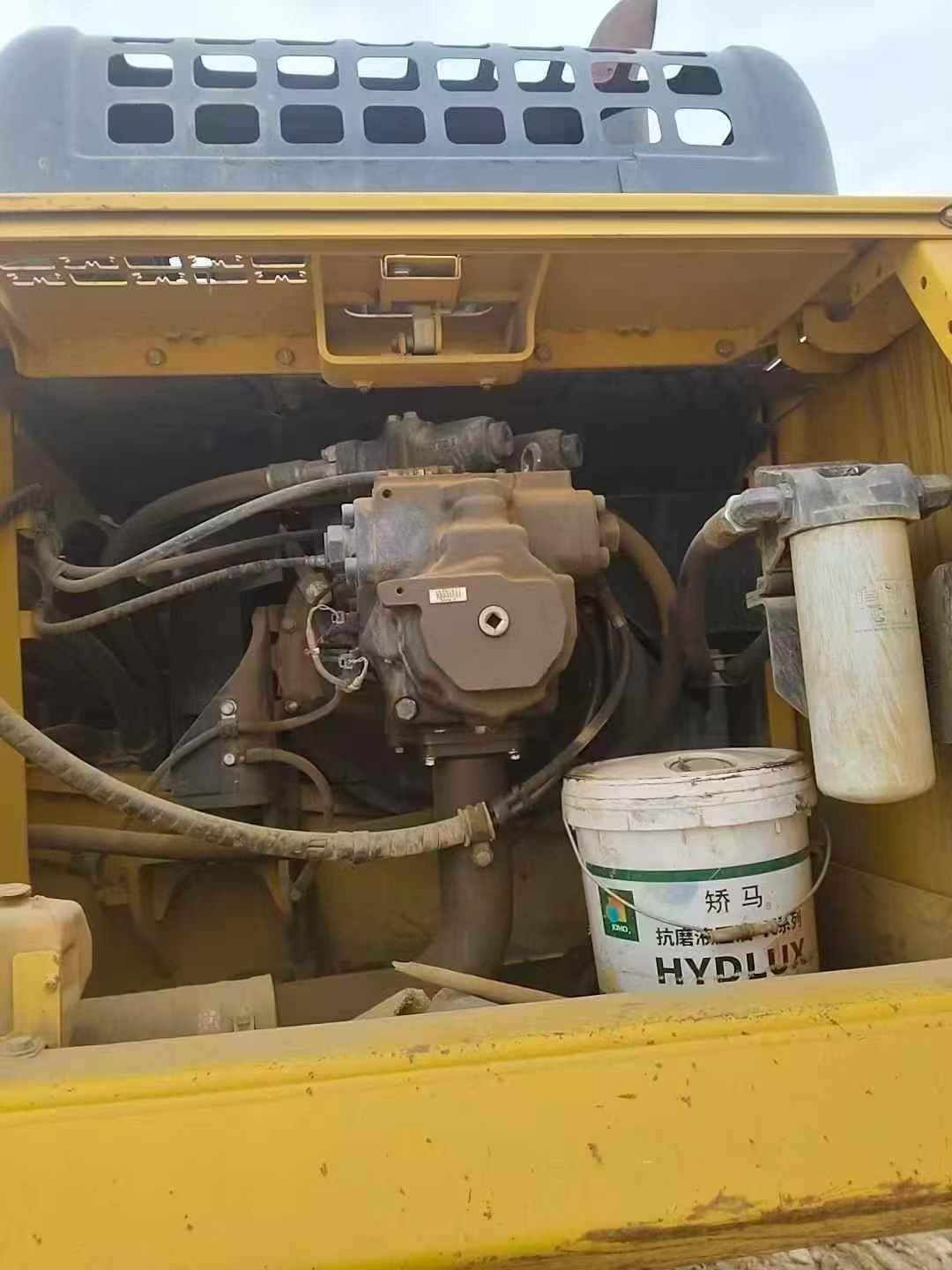

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 38.2 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 31 |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3145 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 5755 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11080 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 9925 |
| Maximum unloading height (mm) | 7040 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 10890 |
