Product Description

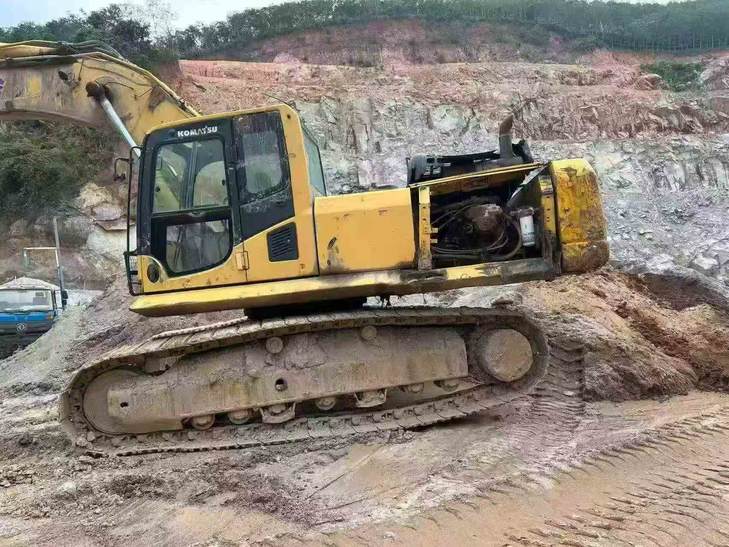

Built for serious excavation work, the 2018 Komatsu PC360-8M0 delivers 36-ton performance backed by one of the most trusted names in heavy equipment. Komatsu's global parts network and long service cycles make this machine a low-risk acquisition in the used market — components are widely available, and resale value holds stronger than most competing brands at this weight class.
Powered by the Komatsu SAA6D114E-3 six-cylinder turbocharged intercooled engine producing 187 kW at 1,950 rpm, this unit offers consistent output across demanding dig cycles. A variable piston main pump delivers up to 535 L/min, supporting a bucket digging force of 232 kN and a maximum tractive force of 264 kN.
- Working weight: 33,550 kg | Bucket capacity: 1.6–1.9 m³
- Maximum digging depth: 7,380 mm | Maximum digging radius: 11,080 mm
- Maximum excavation height: 9,925 mm | Maximum unloading height: 7,040 mm
- Travel speed: 5.5 / 4.5 / 3.2 km/h | Climbing ability: 70%
- Fuel tank: 605 L | Hydraulic tank: 188 L
- Track plate width: 600 mm | Ground pressure: 68.5 kPa
- Location: Zhejiang, China — available for international export
Komatsu's reputation for engineering precision translates directly into lower long-term ownership costs. For buyers prioritizing parts sourcing, dealer support, and retained asset value, this PC360-8M0 represents a dependable choice in the 36-ton segment.
| Specifications | Value |
|---|---|
| No. | 1075933 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33550 |
| Bucket capacity (m³) | 1.6-1.9 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 187/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 68.5 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 232 |
| Rod digging force (kN) | 174 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/4.5/3.2 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 38.2 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 38.2 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 31 |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3145 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 5755 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11080 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 9925 |
| Maximum unloading height (mm) | 7040 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 10890 |
