Product Description

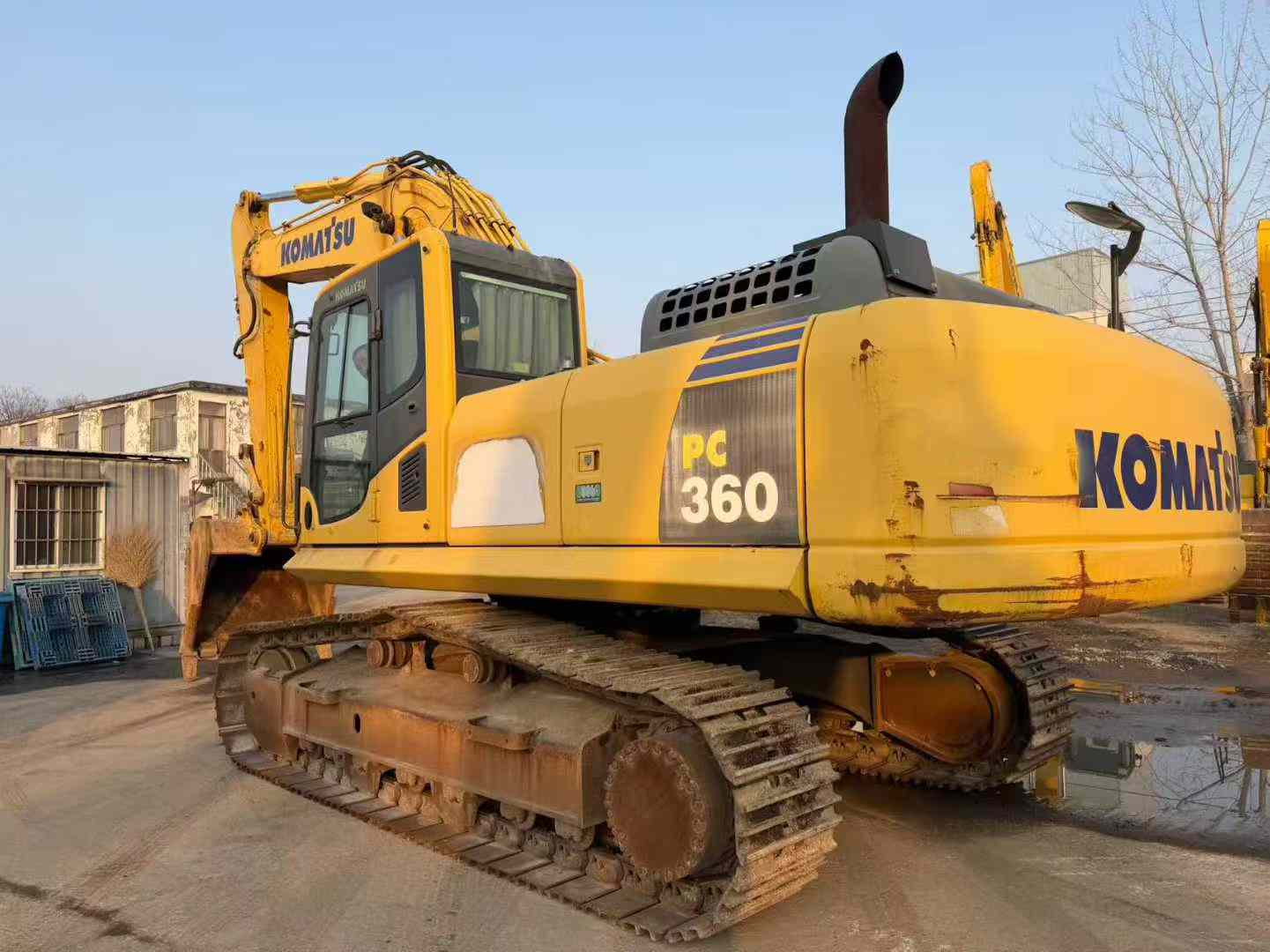

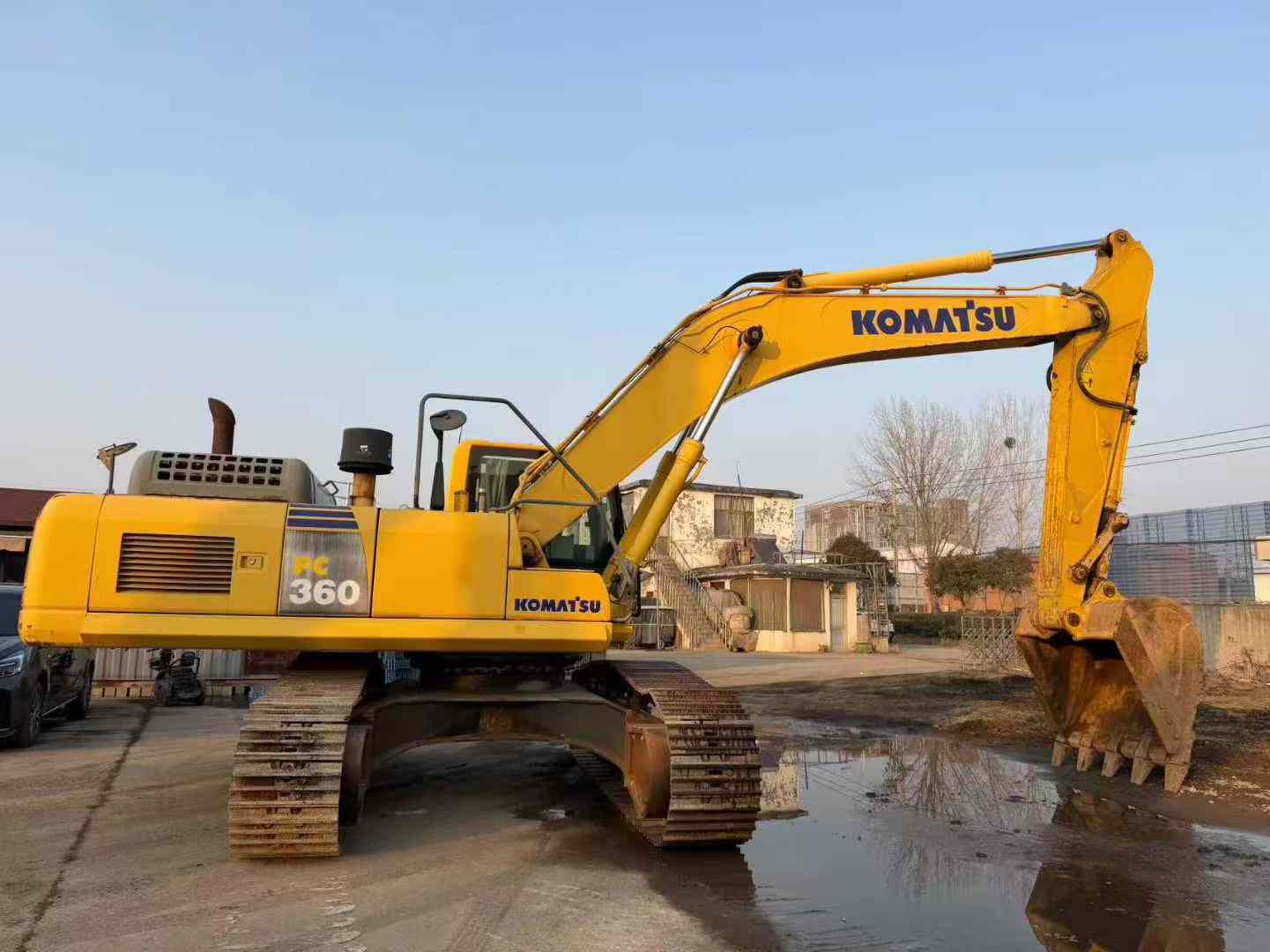

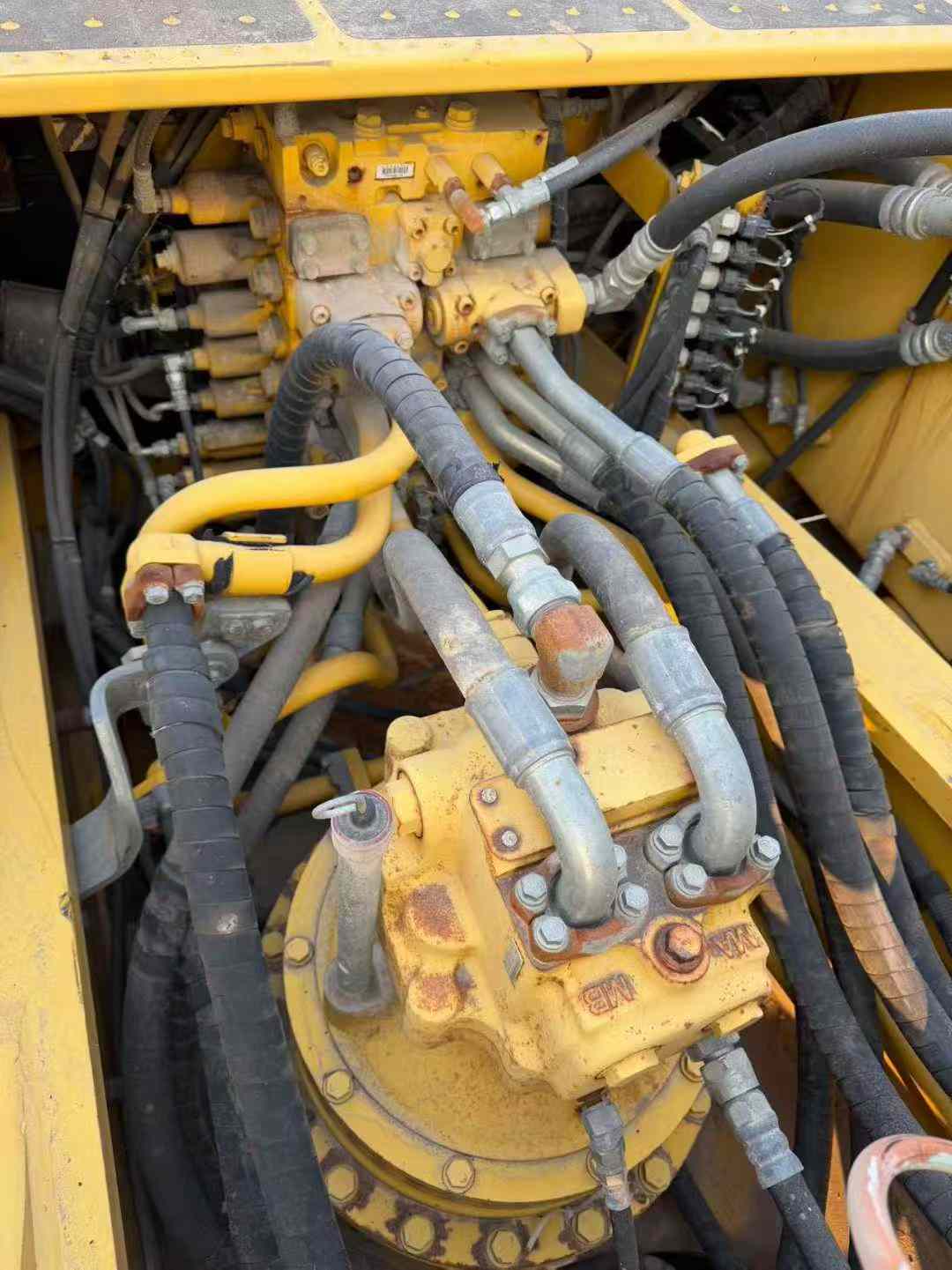

Expand your operational capacity with this 2020 Komatsu PC360-8M0 excavator, a 36-ton workhorse engineered for high-demand construction and earthmoving projects. Powered by a Komatsu SAA6D114E-3 engine delivering 187 kW at 1950 rpm, this machine combines proven hydraulic efficiency with robust digging performance—232 kN bucket force and 174 kN stick force handle challenging materials with consistent reliability. Currently located in Lishui, Zhejiang, this unit serves as an ideal fleet addition for contractors managing multiple job sites or requiring redundancy during peak season.
- Operating Weight: 33,550 kg with 1.6–1.9 m³ bucket capacity
- Reach & Depth: 11,080 mm maximum digging radius, 7,380 mm maximum depth

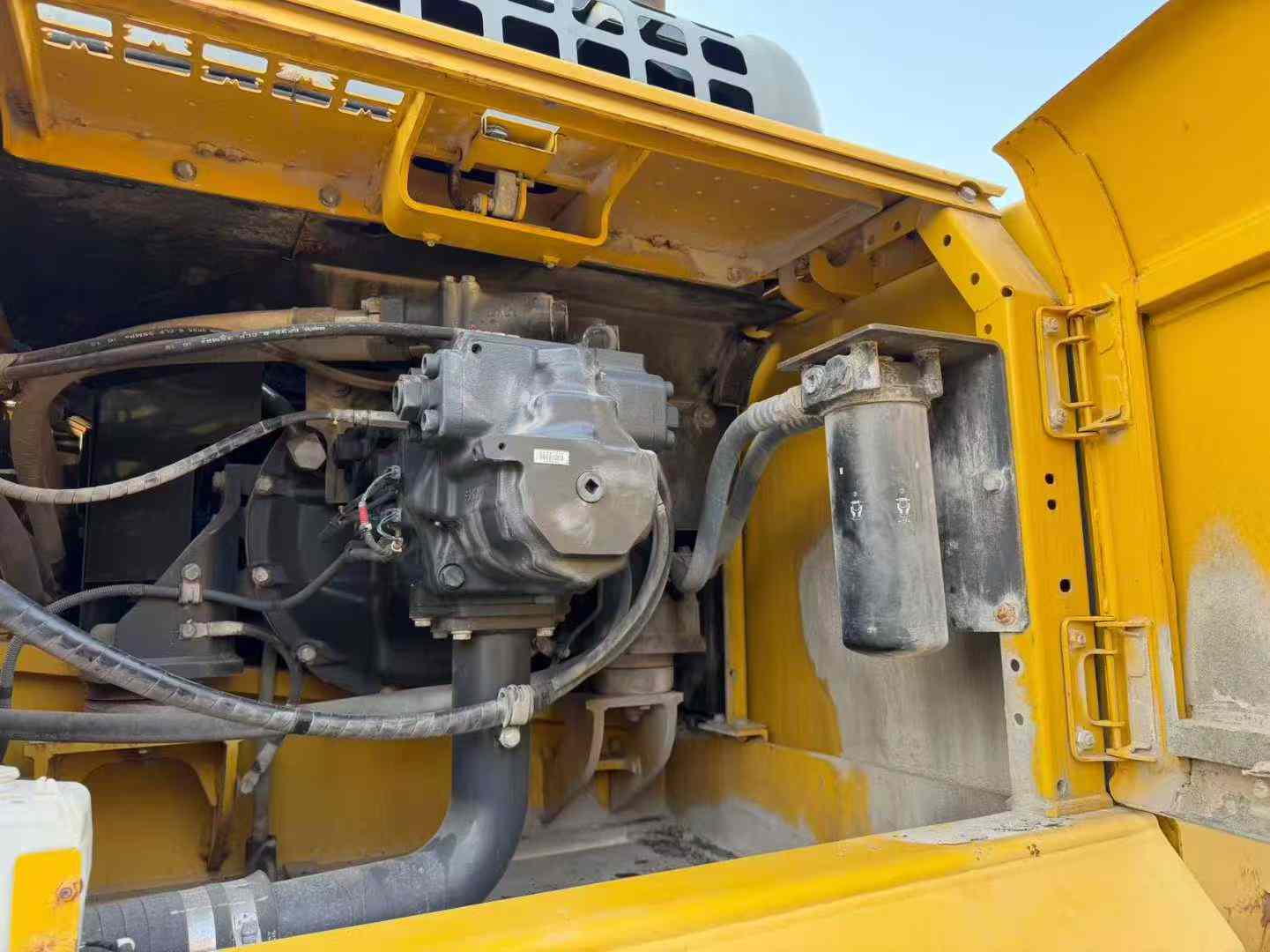

- Hydraulic System: 535 L/min variable piston pump, 38.2 MPa working pressure
- Mobility: 9.5 rpm rotation speed, 70% gradeability, 5.5 km/h travel speed
- Fuel Capacity: 605 L tank supports extended operational shifts
Built to integrate seamlessly into existing Komatsu fleets, this PC360-8M0 offers parts commonality and familiar controls that reduce training time and maintenance comple
| Specifications | Value |
|---|---|
| No. | 1019745 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33550 |
| Bucket capacity (m³) | 1.6-1.9 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 187/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 68.5 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 232 |
| Rod digging force (kN) | 174 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/4.5/3.2 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 38.2 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 38.2 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 31 |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3145 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 5755 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11080 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 9925 |
| Maximum unloading height (mm) | 7040 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 10890 |
