Product Description

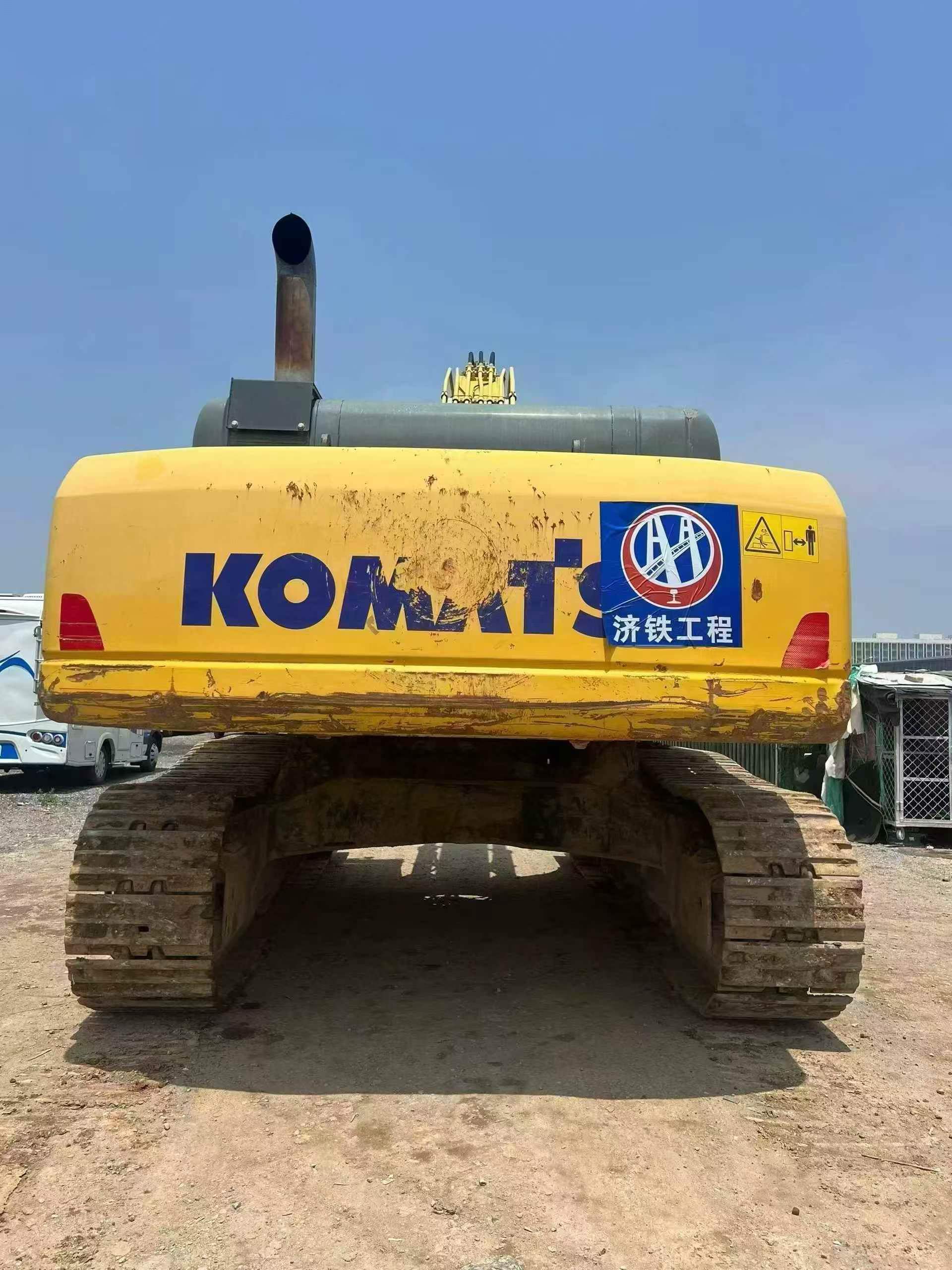

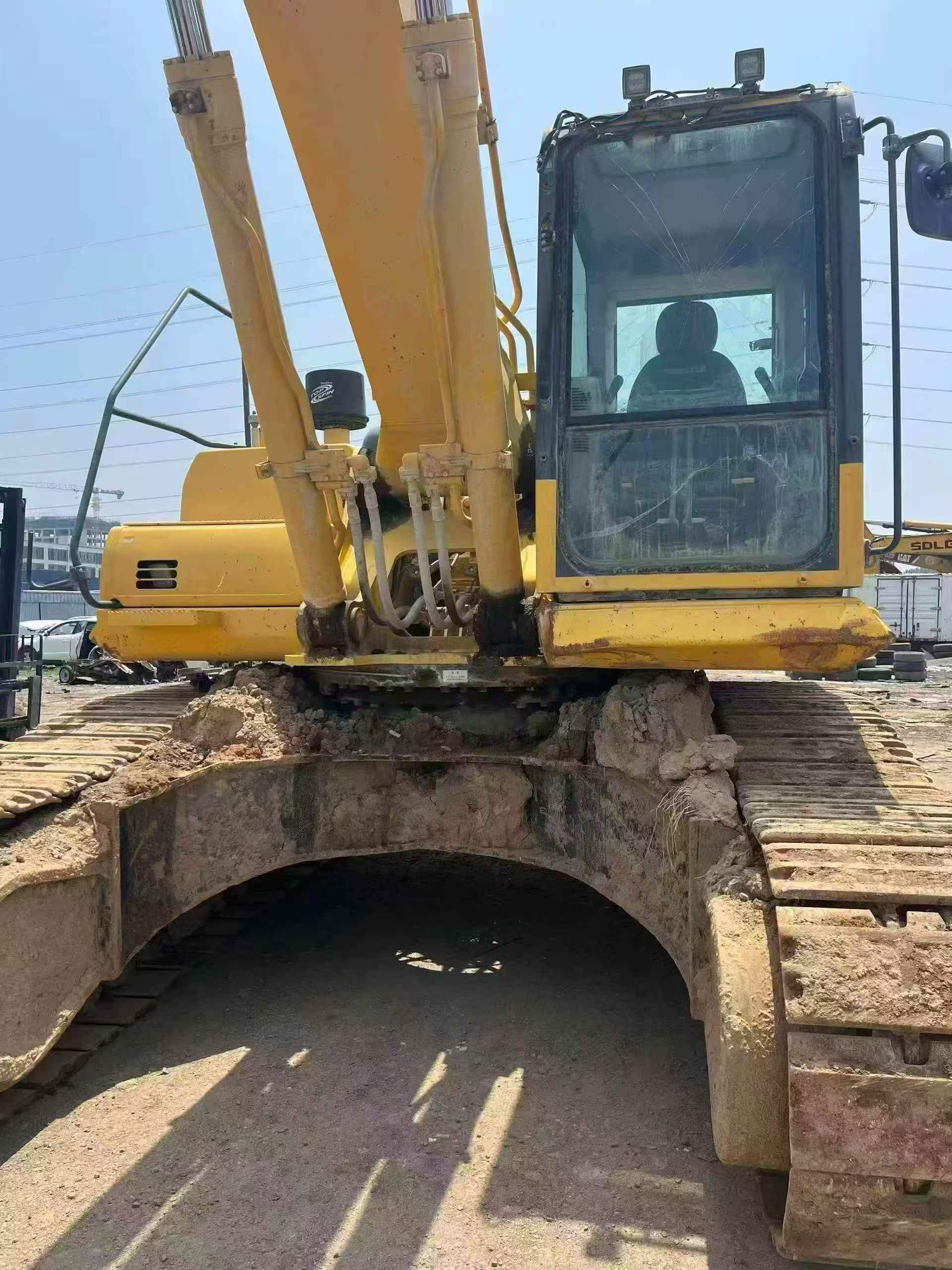

2020 Komatsu PC390LC-8M0 hydraulic excavator available from Shandong, China. This late-2020 production unit shows approximately 2,500 genuine operating hours and has been primarily utilized in earthmoving applications. The machine represents solid value at significantly below original retail pricing.
The PC390LC-8M0 is a proven mid-size excavator suitable for general construction, excavation, and material handling operations. This unit's low hour count indicates minimal wear relative to its age, making it an attractive option for contractors seeking reliable performance without new equipment investment.
- Year of Manufacture: 2020
- Verified Hours: Approximately 2,500
- Primary Application: Earthmoving
- Current Location: Shandong Province, China
- Condition: Used, operational
Inspection welcomed. Suitable for export or domestic operation. Contact FairTradeMachinery for detailed specifications, current photos, and pricing information.
| Specifications | Value |
|---|---|
| No. | 1116367 |
| Tonnage (tons) | 39 |
| Working weight (kg) | 38000 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 2810 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

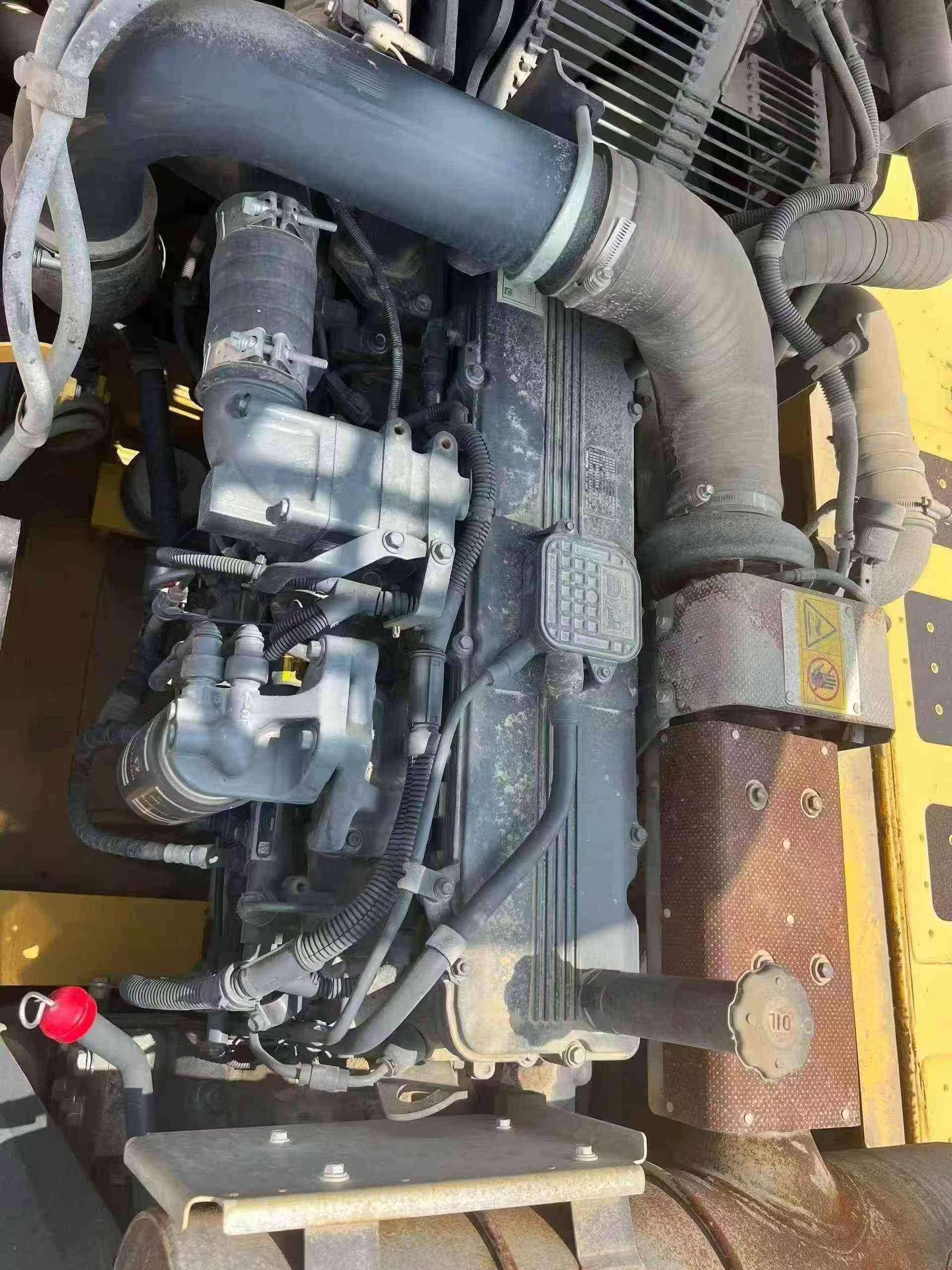

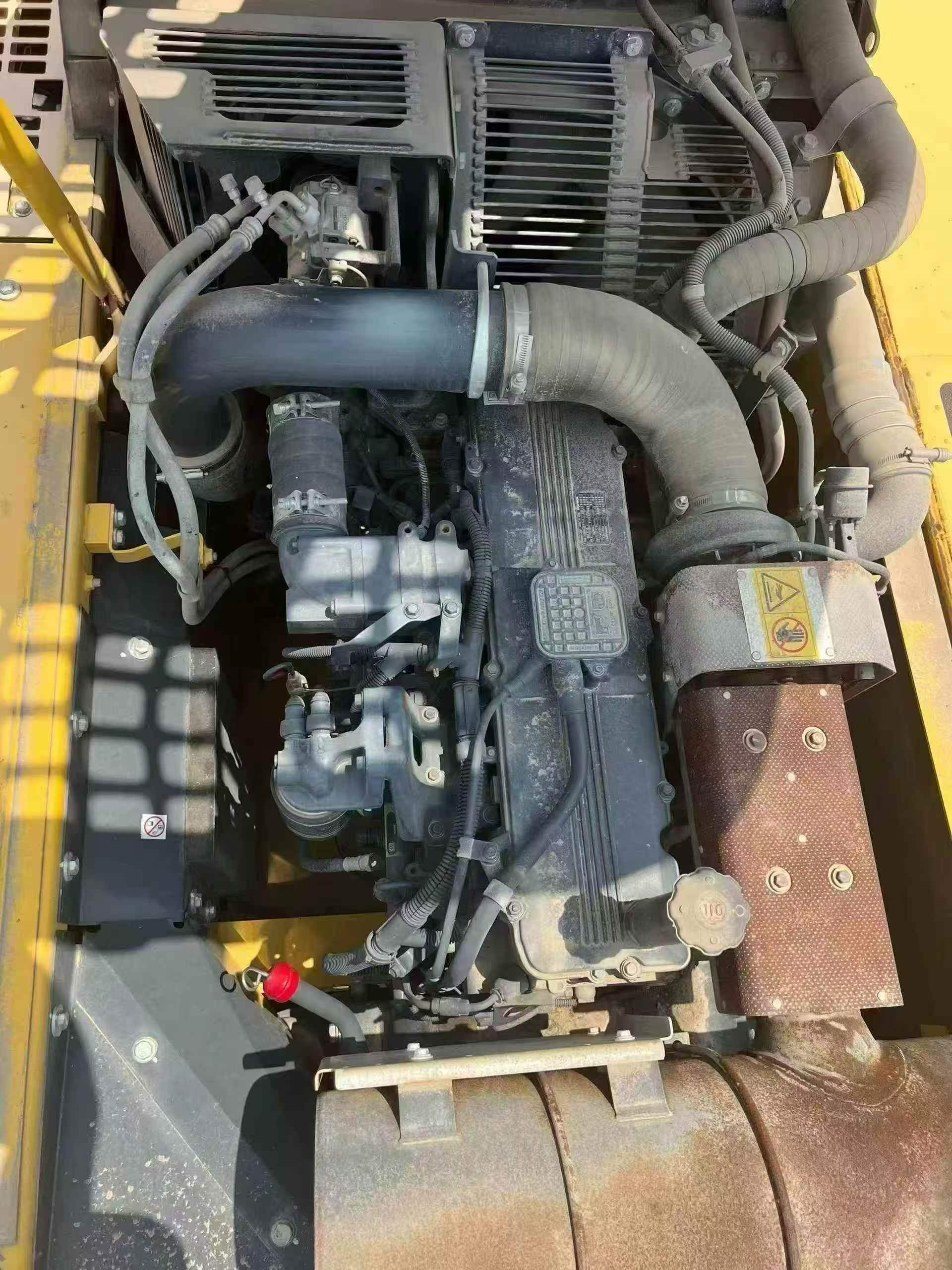

| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 187/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114*135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Ground specific pressure (Kpa) | 71.4 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 272 |
| Rod digging force (kN) | 194 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 2.5~4.3 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 38.2 |
| Rotary Hydraulic Circuit (Mpa) | 28 |

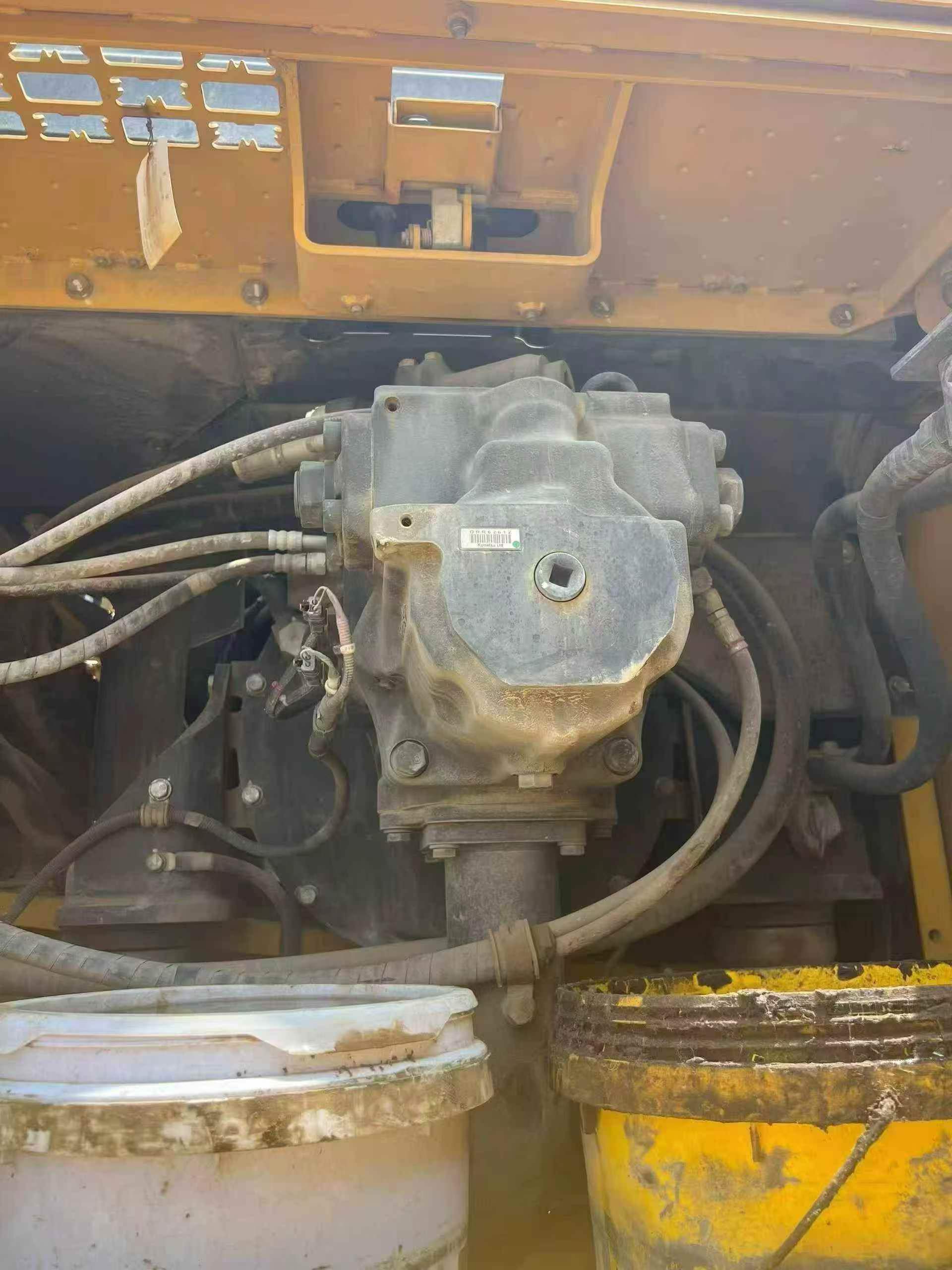

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 38.2 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150*1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160*1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140*1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 37 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3400 |
| Minimum ground clearance (mm) | 567 |
| Minimum turning radius of front working device (mm) | 4440 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 5055 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4020 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 10765 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9970 |
| Maximum unloading height (mm) | 7065 |
| Maximum vertical digging depth (mm) | 4730 |
| Maximum excavation radius of stop surface (mm) | 10550 |
Overview
No.1116367
Brand Name：
KomatsuModel Number：
PC390LC-8M0Year：
2020
Location：
Shandong China
Pub Date：
