Product Description

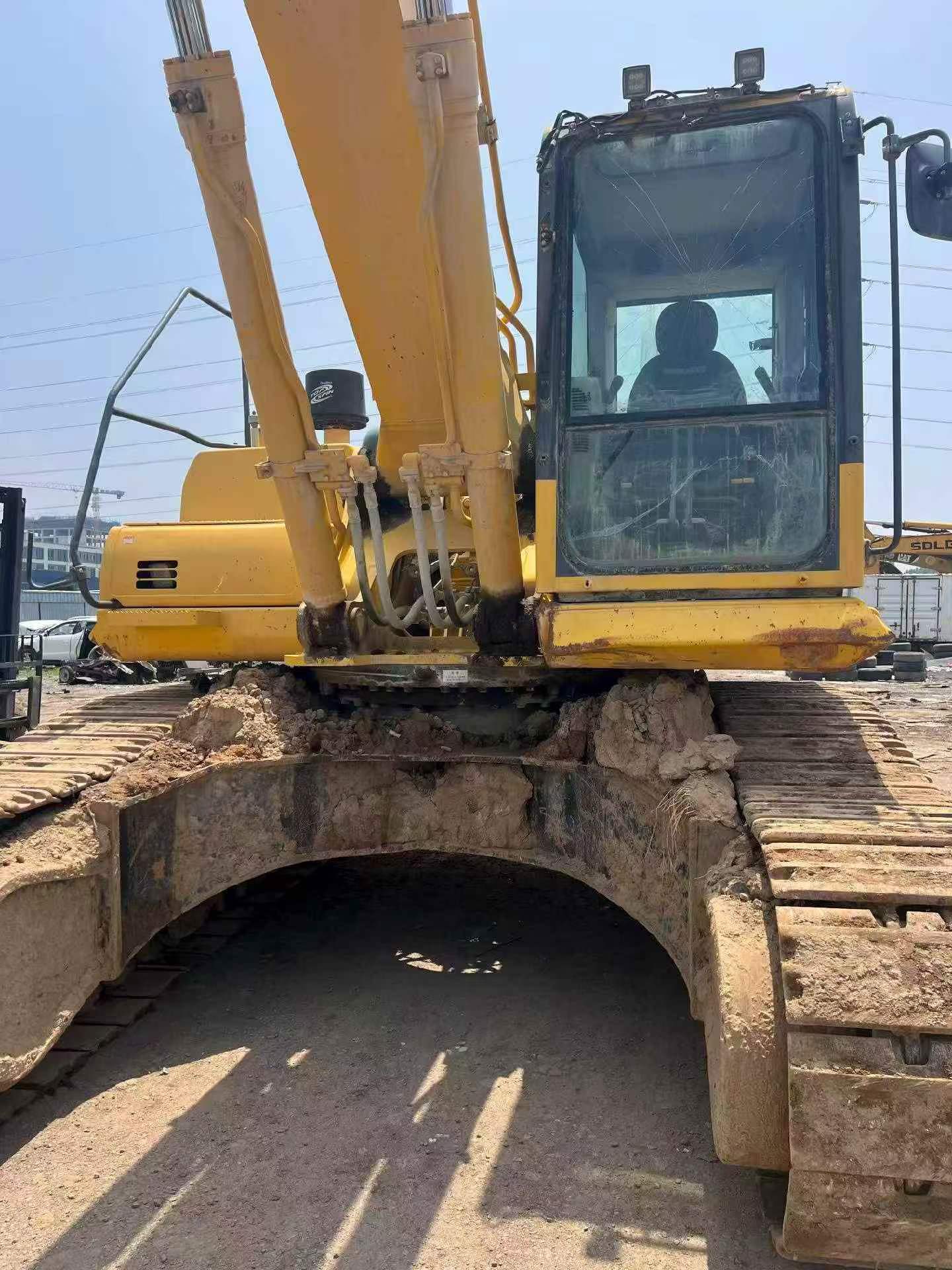

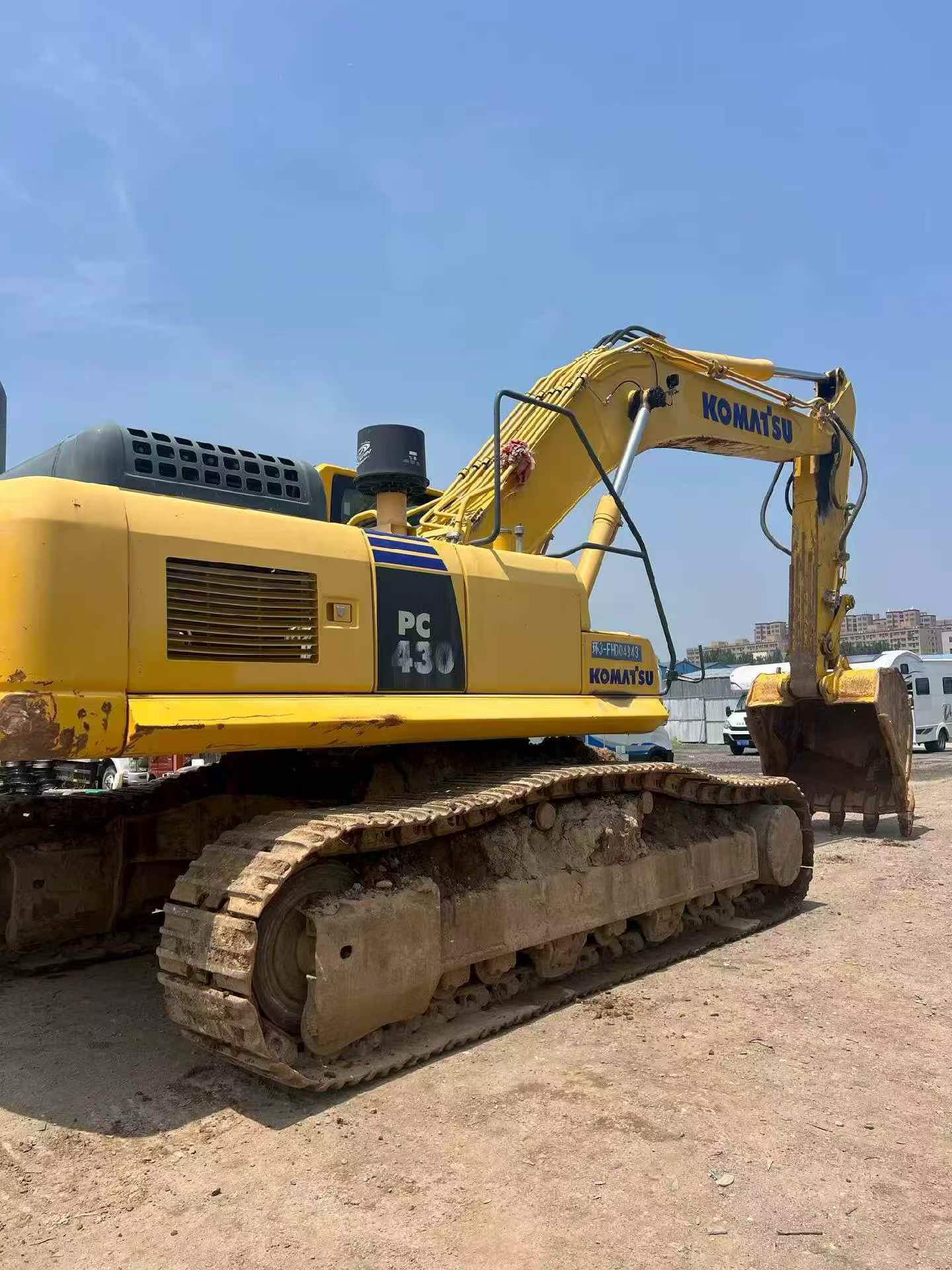

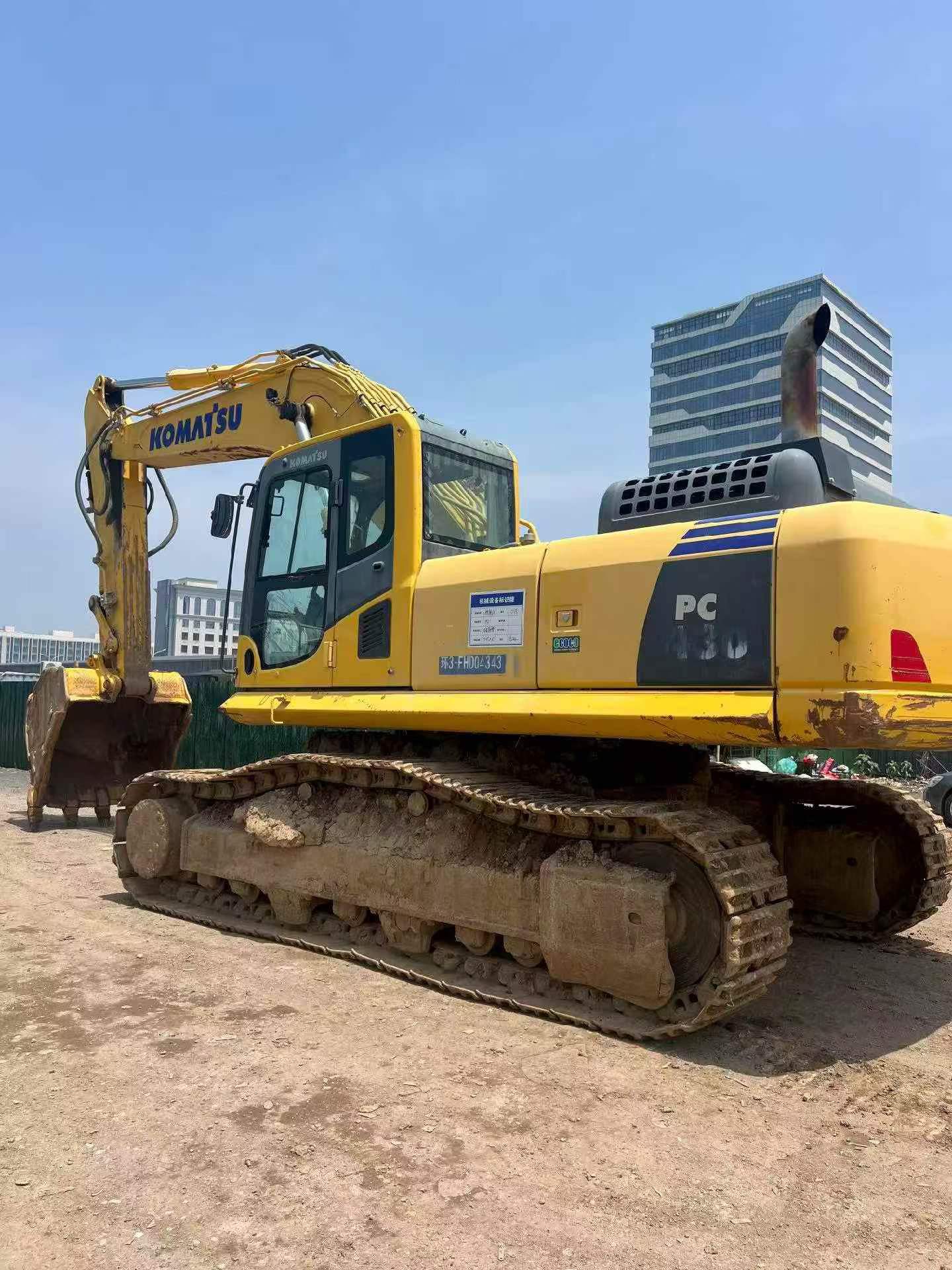

Discover the 2020 Komatsu PC390LC-8M0, a robust and reliable excavator available for export. With only 2500 genuine operating hours, this machine is in near-new condition, ready to tackle your most demanding projects. Located in Shandong, China, this excavator is at its peak performance, ensuring high productivity and efficiency on any job site. Ideal for construction, mining, and large-scale earthmoving tasks, the PC390LC-8M0 is built to deliver superior digging force and stability. Invest in this well-maintained piece of equipment and enhance your fleet's capabilities with a trusted name in heavy machinery.
- Year: 2020
- Brand: Komatsu
- Model: PC390LC-8M0

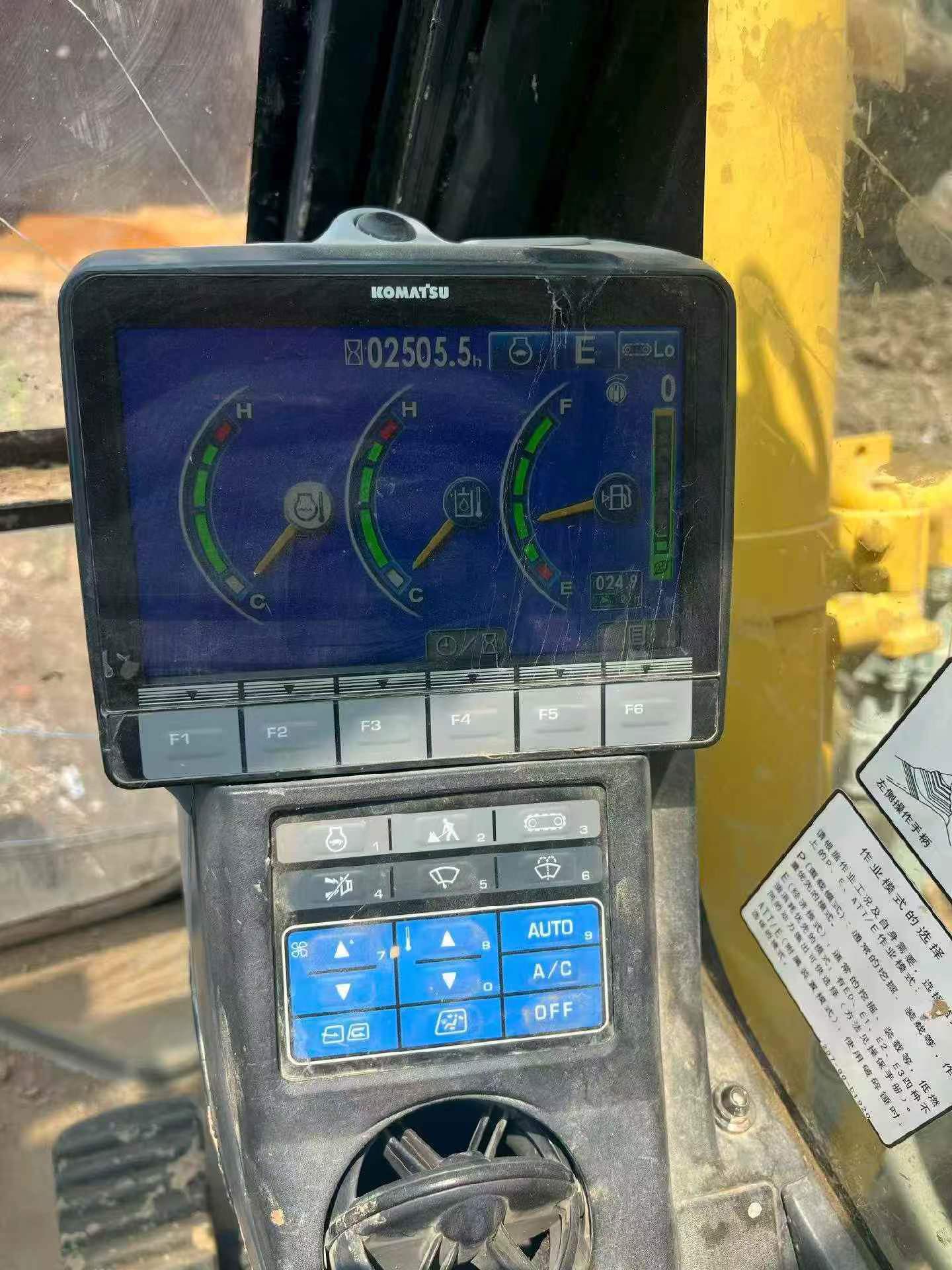

- Operating Hours: 2500
- Location: Shandong, China
| Specifications | Value |
|---|---|
| No. | 1131305 |
| Tonnage (tons) | 39 |
| Working weight (kg) | 38000 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 2810 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

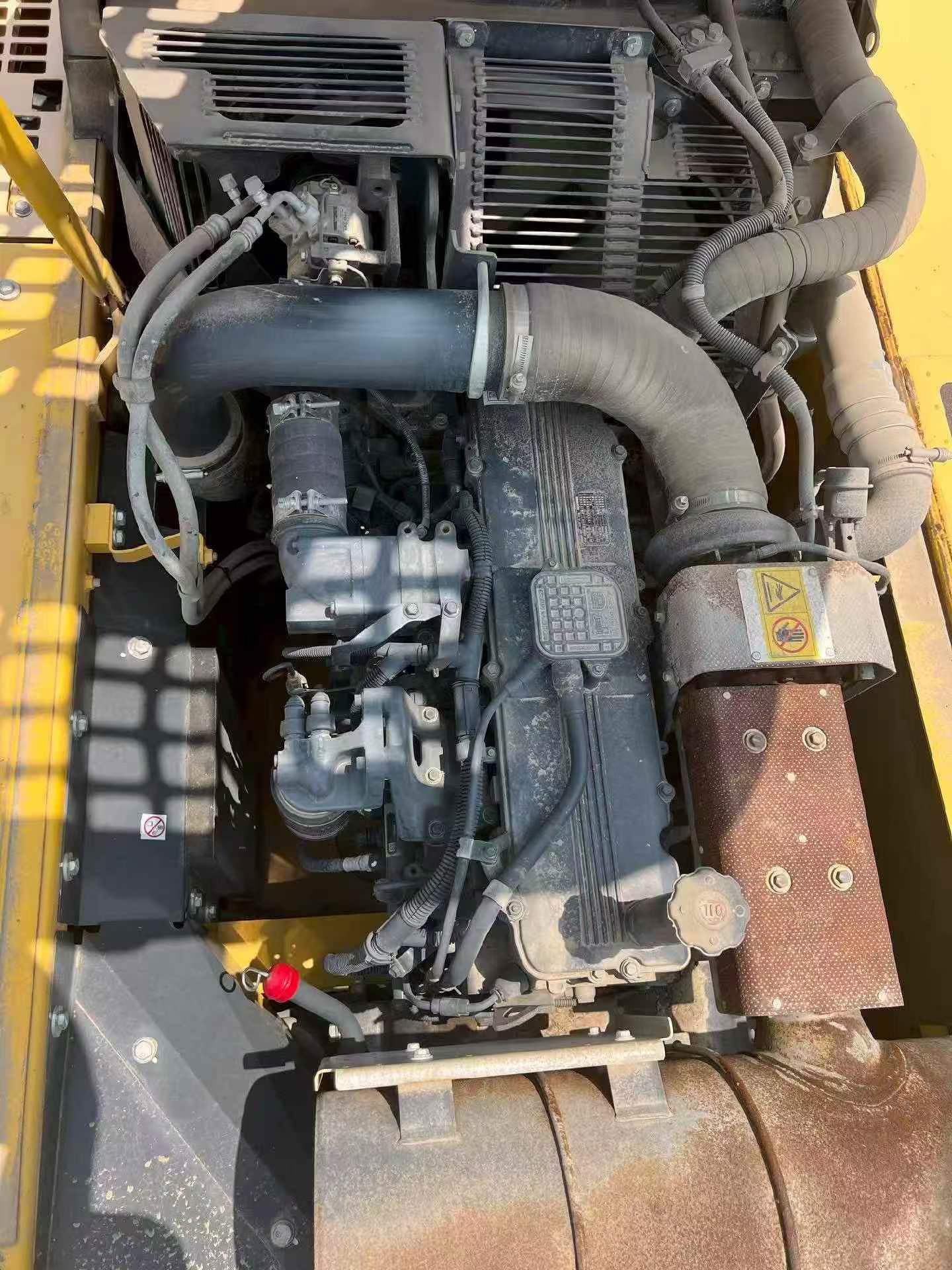

| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 187/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114*135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Ground specific pressure (Kpa) | 71.4 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 272 |
| Rod digging force (kN) | 194 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 2.5~4.3 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 38.2 |
| Rotary Hydraulic Circuit (Mpa) | 28 |

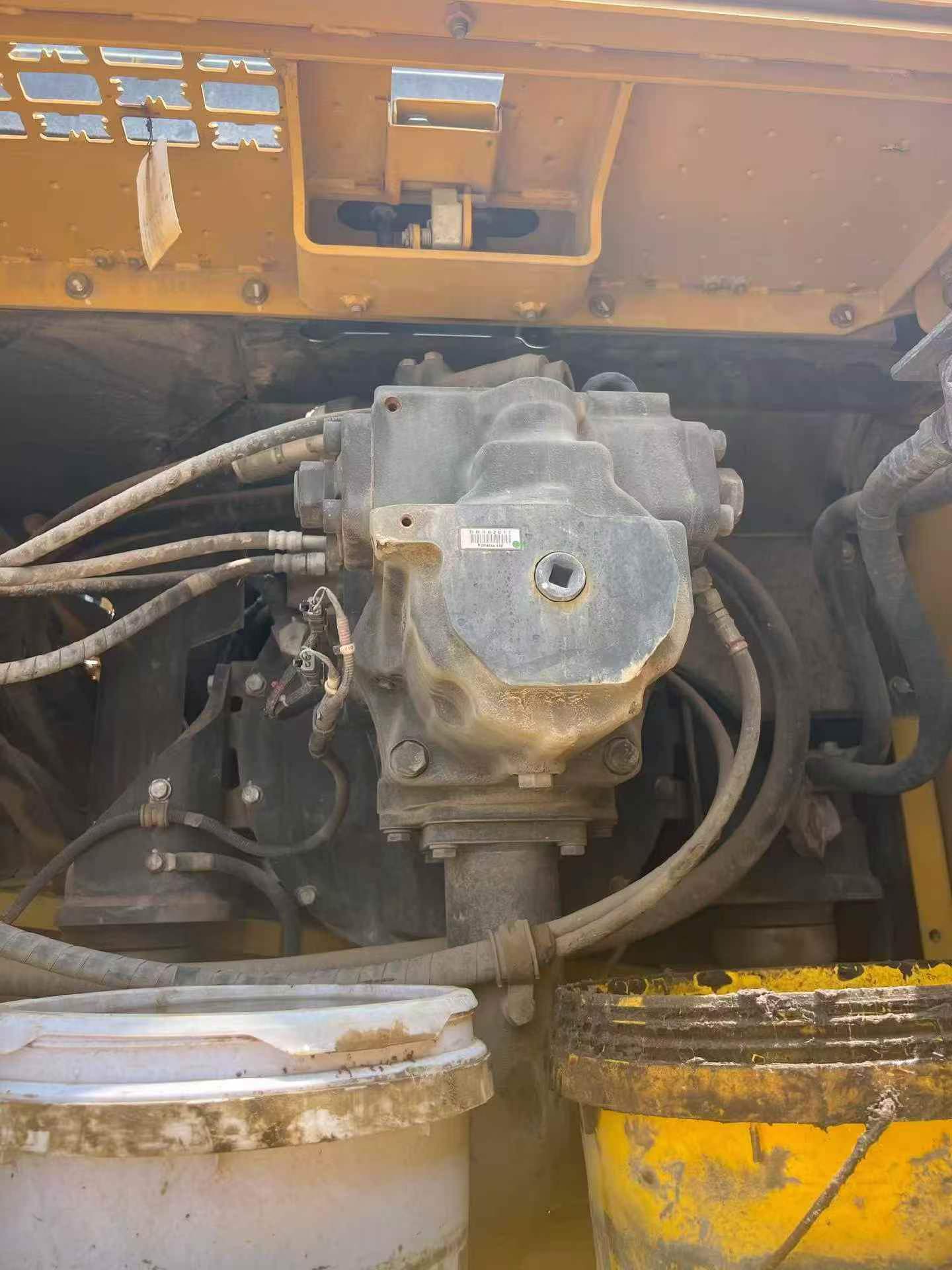

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 38.2 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150*1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160*1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140*1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 37 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3400 |
| Minimum ground clearance (mm) | 567 |
| Minimum turning radius of front working device (mm) | 4440 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 5055 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4020 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 10765 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9970 |
| Maximum unloading height (mm) | 7065 |
| Maximum vertical digging depth (mm) | 4730 |
| Maximum excavation radius of stop surface (mm) | 10550 |
