Product Description

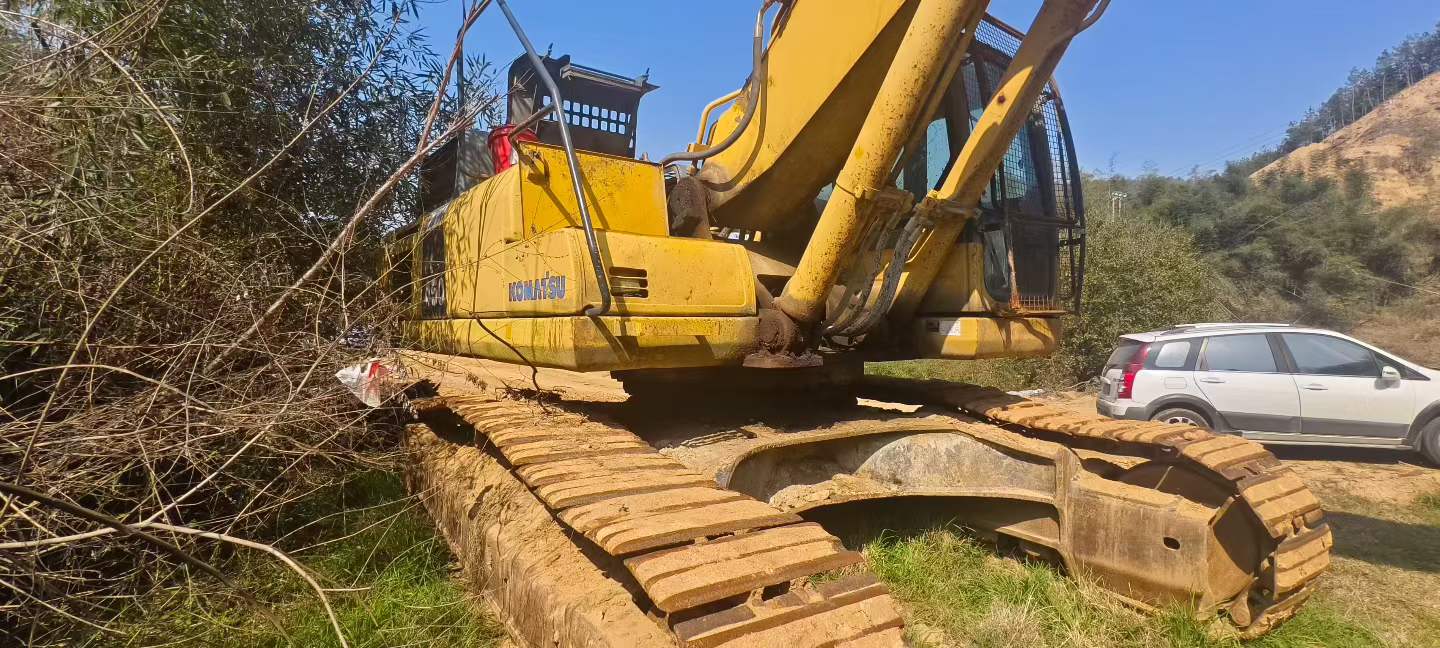

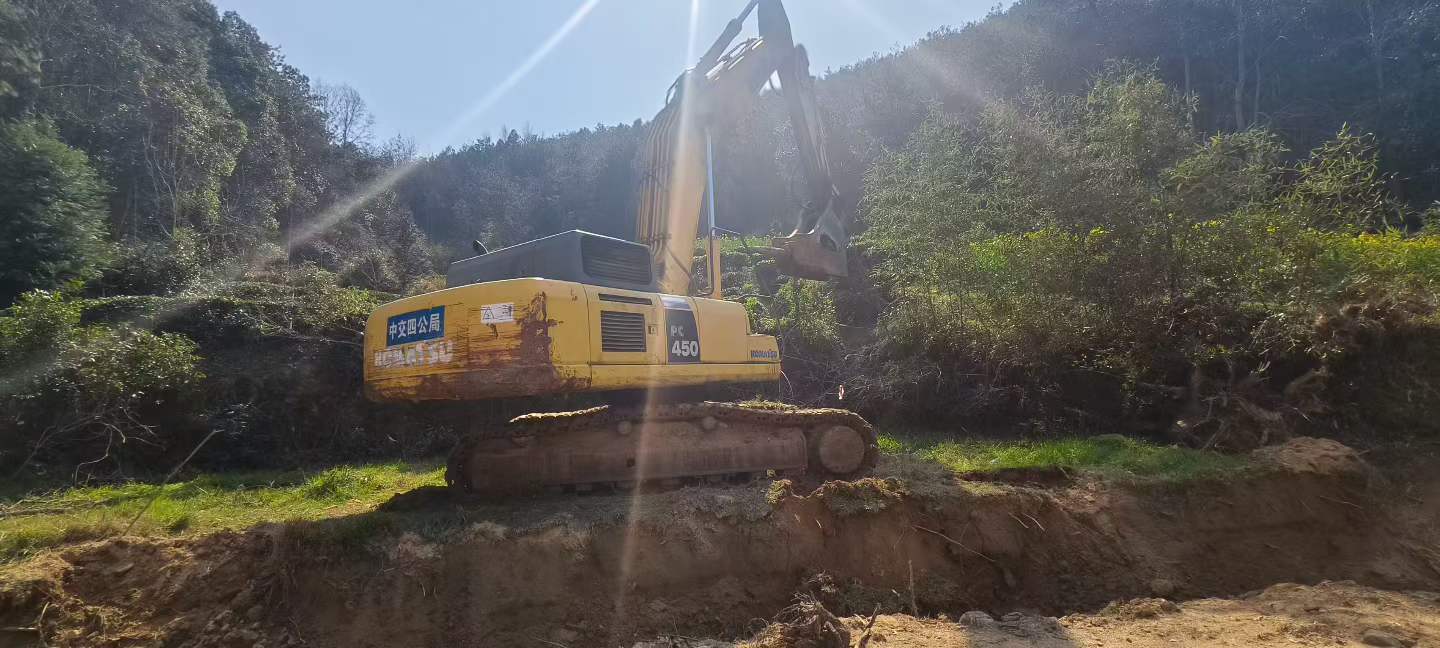

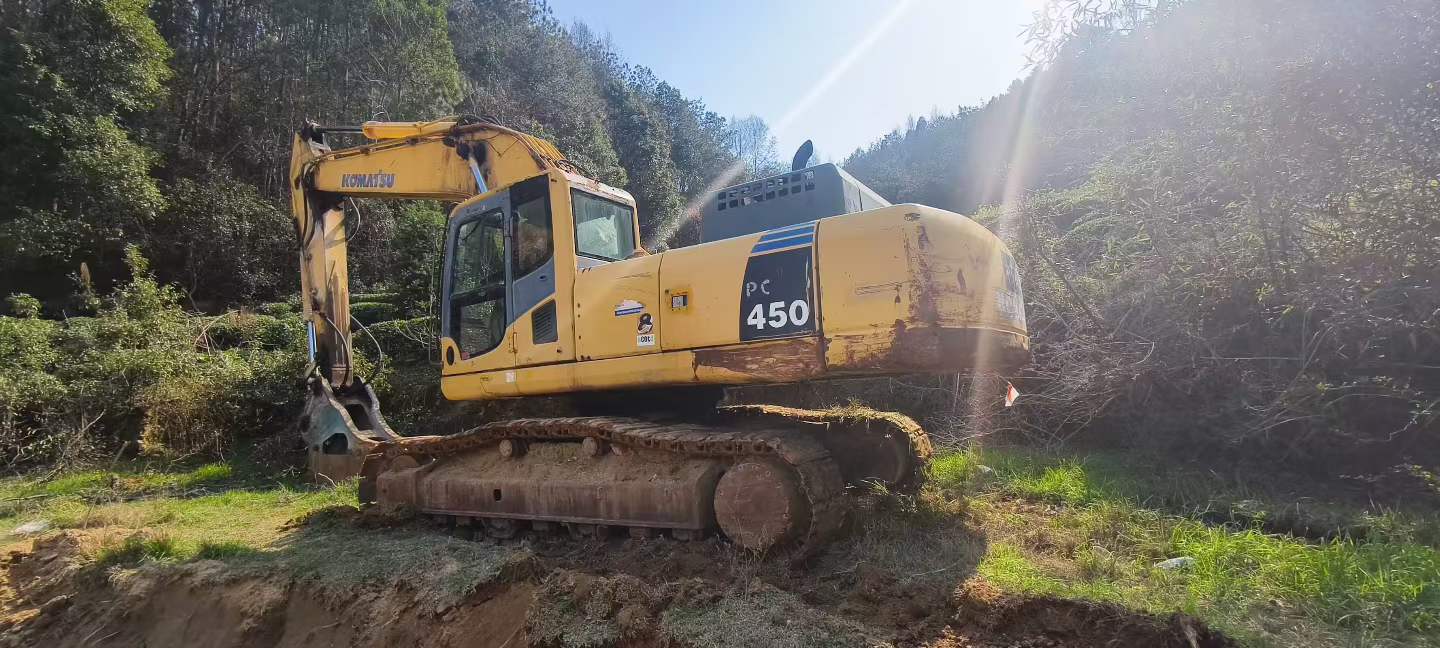

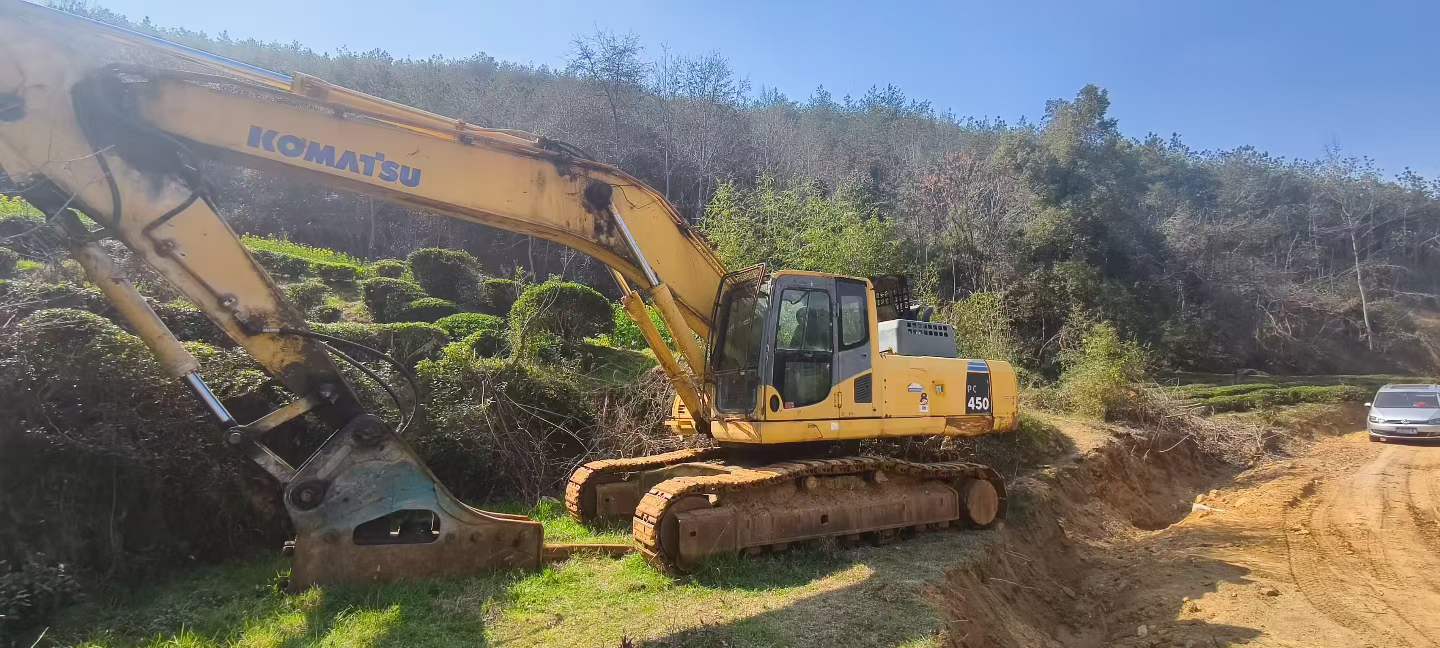

Built to withstand the most demanding excavation projects, this 2016 Komatsu PC400-8 represents proven Japanese engineering at its finest. With a robust 42,100 kg working weight and a powerful Komatsu SAA6D1125E-5 engine delivering 257 kW at 1900 rpm, this 40-ton workhorse has demonstrated its reliability in real-world conditions. Currently located in Guangzhou, Guangdong, this machine combines impressive performance specifications with the durability Komatsu is renowned for worldwide.
- Exceptional Reach: 12,005 mm maximum digging radius and 7,790 mm digging depth
- Proven Power: 6-cylinder, 11.04L turbocharged engine with water-cooling system
- Superior Digging Force: 278 kN bucket force and 233 kN arm force
- Large Capacity: 1.9 m³ bucket, 650L fuel tank for extended operation
- Advanced Hydraulics: 690 L/min maximum pump flow with axial plunger motors
- Impressive Mobility: 70% climbing ability with multiple travel speeds
Engineered for longevity and backed by years of field-proven performance, this PC400-8 remains a reliable choice for heavy-duty excavation, mining,
| Specifications | Value |
|---|---|
| No. | 1039574 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 42100 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

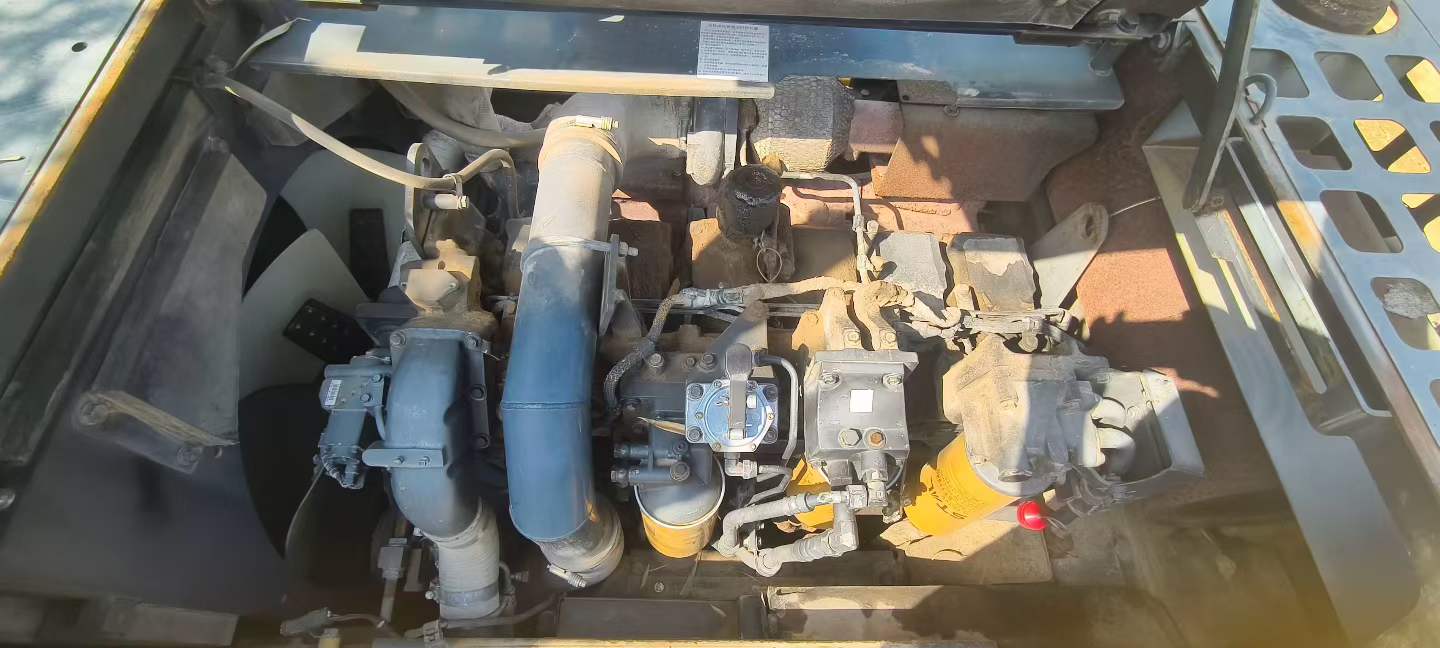

| Engine type | Komatsu SAA6D1125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Working form | Direct injection, turbocharged, electronic full speed regulation |
| Ground specific pressure (Kpa) | 78.2 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Travel speed (km/h) | 3.0/4.0/5.5 |

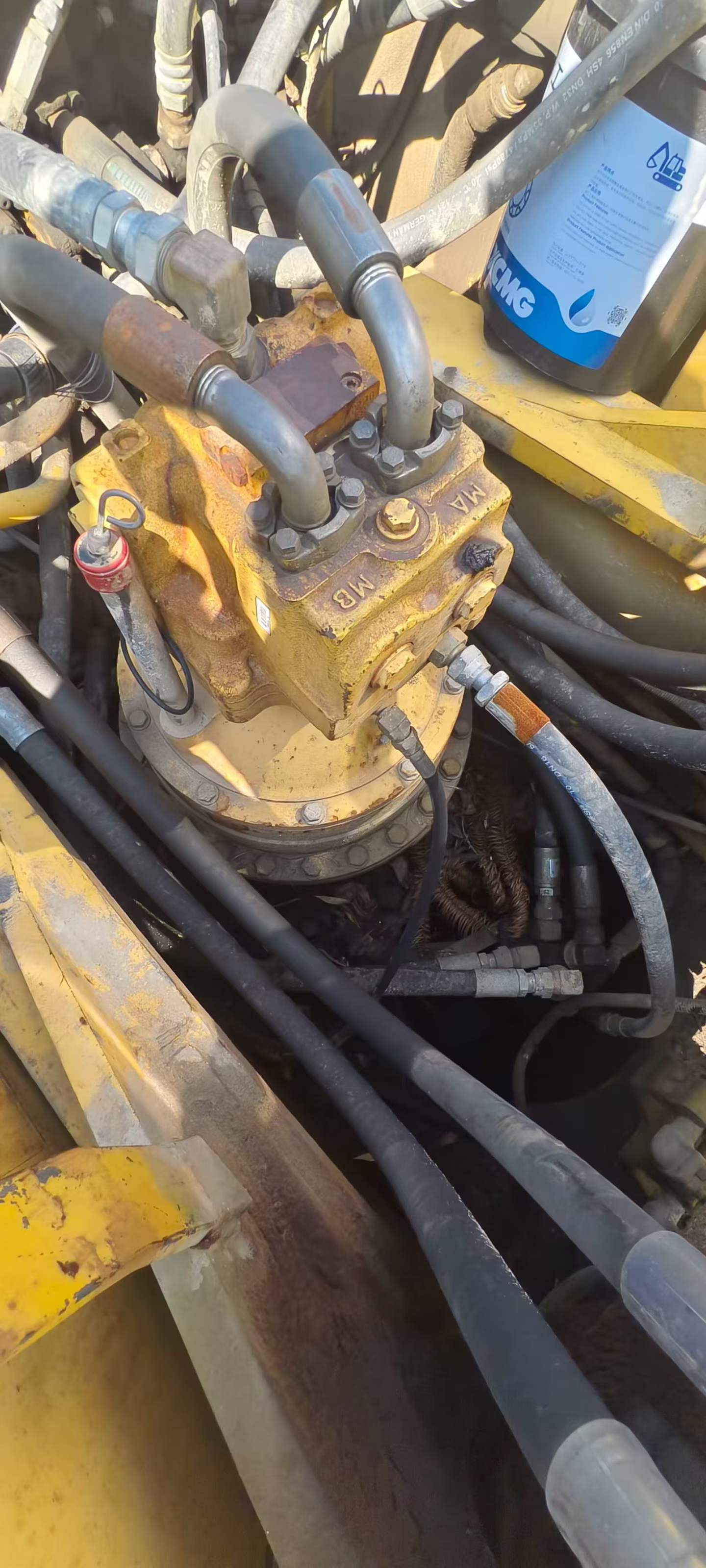

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |

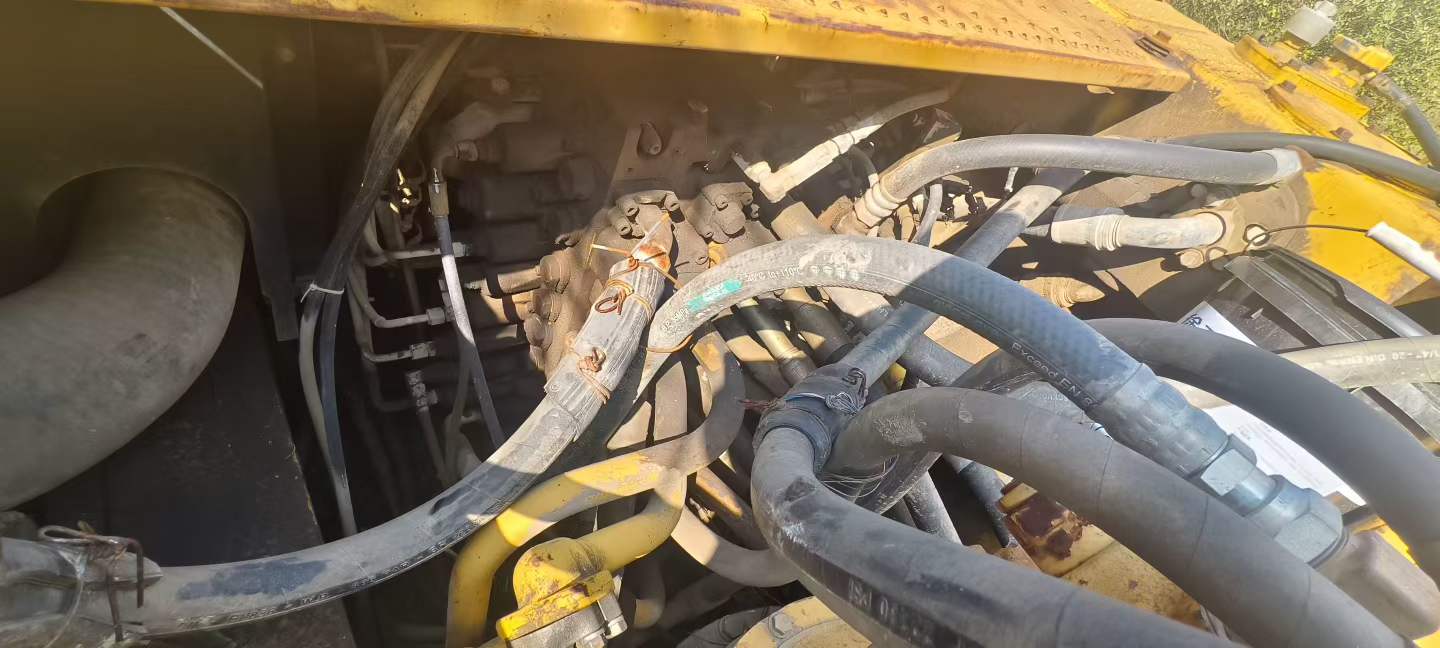

| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 160 * 1270 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 185 * 1985 * 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 160 * 1570 * 110 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 36 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3660 |
| Full cab height (mm) | 3285 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 567 |
| Back end turning radius (mm) | 3605 |
| Total track length (mm) | 5055 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4020 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Bulldozer lift or depth (mm) | No dodging plate |
| Maximum excavation radius of stop surface (mm) | 11800 |
