2018 Komatsu PC460LC-8

1/6

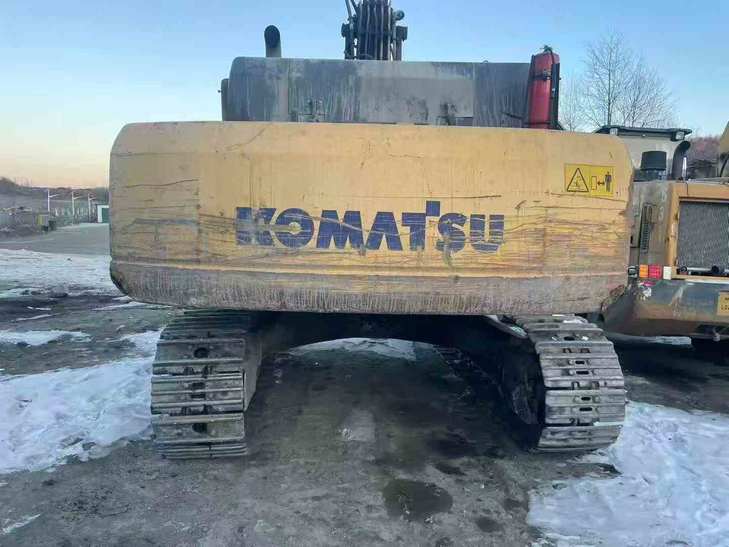

Buy Komatsu PC460LC-8 Used Excavator / 1
Buy Komatsu PC460LC-8 Used Excavator / 2
Buy Komatsu PC460LC-8 Used Excavator / 3
Buy Komatsu PC460LC-8 Used Excavator / 4
Buy Komatsu PC460LC-8 Used Excavator / 5
Buy Komatsu PC460LC-8 Used Excavator / 6

Product Description

Cut months off your project timeline with this 2018 Komatsu PC460LC-8 excavator, available now in Guangzhou, Guangdong. Skip the factory lead times and deploy a proven 46-ton workhorse to your site within days. Powered by a robust SAA6D125E-5 engine delivering 257 kW at 1900 rpm, this machine combines a 2.1 m³ bucket capacity with an impressive 12,005 mm maximum digging radius to tackle demanding earthmoving operations without delay.

  • Immediate Availability: Guangzhou location ensures rapid logistics across South China and export markets
  • Proven Performance: 278 kN bucket digging force, 7,790 mm maximum digging depth
  • Efficient Hydraulics: 690 l/min main pump flow, variable piston pump system for responsive control
  • Production-Ready: 11.04 L displacement, water-cooled 6-cylinder engine, 70% climbing ability
  • Full Specification: 7,060 mm boom, 3,380 mm arm, 650 L fuel capacity for extended shifts

Secure this joint venture-manufactured excavator today and eliminate the uncertainty of new equipment wait times. Fast deployment starts here.

SpecificationsValue
No.1050162
Tonnage (tons)46
Working weight (kg)46000
Bucket capacity (m³)2.1
Boom length (mm)7060
Rod length (mm)3380
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeSAA6D125E-5
Rated power (kw/rpm)257/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)125*150
Number of cylinders (PCS)6
Displacement (L)11.04
Ground specific pressure (Kpa)79.3
Rotation speed (rpm)9.1
Climbing ability (%)70
Bucket digging force (kN)278
Rod digging force (kN)233
Maximum tractive force (kN)330
Travel speed (km/h)5.5/4.2/3.0
Maximum flow of main pump (l/min)690
Traveling Hydraulic Circuit (Mpa)37.8
Rotary Hydraulic Circuit (Mpa)27.9
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)37.8
Pilot Oil Circuit (MPa)3.3
Bucket cylinders - Number × diameter × stroke (mm)1-160*1270
Bucket rod cylinders - Number × diameter × stroke (mm)1-185*1985
Boom cylinders - Number × diameter × stroke (mm)2-160*1570
Fuel Tank (L)650
Hydraulic Tank (L)248
Engine Oil changes (L)37
Total transport length (mm)12040
Total transport width (mm)3570
Total transport height (mm)3660
Counterweight ground clearance (mm)1320
Minimum ground clearance (mm)567
Minimum turning radius of front working device (mm)4805
Back end turning radius (mm)3645
Total track length (mm)5385
Track gauge (mm)2740
Track plate width (mm)600
Total track width (mm)3340
Track ground length (mm)4350
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)12005
Maximum digging depth (mm)7790
Maximum excavation height (mm)10925
Maximum unloading height (mm)7625
Maximum vertical digging depth (mm)6600
Maximum excavation radius of stop surface (mm)11800
see more

Overview

No.1050162

Brand Name:

Komatsu

Model Number:

PC460LC-8

Year:

2018

Location:

Guangdong China

Pub Date
