2019 Komatsu PC460LC-8

1/8
Buy Komatsu PC460LC-8 Used Excavator / 1
Buy Komatsu PC460LC-8 Used Excavator / 2
Buy Komatsu PC460LC-8 Used Excavator / 3
Buy Komatsu PC460LC-8 Used Excavator / 4
Buy Komatsu PC460LC-8 Used Excavator / 5
Buy Komatsu PC460LC-8 Used Excavator / 6
Buy Komatsu PC460LC-8 Used Excavator / 7
Buy Komatsu PC460LC-8 Used Excavator / 8

Product Description

Available now in Zhejiang Shaoxing, this 2019 Komatsu PC460LC-8 eliminates factory lead times and gets your crew operational fast. Powered by a robust SAA6D125E-5 engine delivering 257 kW at 1900 rpm, this 46-ton excavator combines proven hydraulic performance with immediate deployment capability. Skip the months-long wait for new equipment and secure a machine ready for transport to your jobsite.

Operating specifications include a 2.1 m³ bucket capacity, 12,005 mm maximum digging reach, and 7,790 mm digging depth. The variable piston pump system supplies 690 l/min flow at 37.8 MPa working pressure, ensuring consistent cycle times under heavy loads. With 278 kN bucket digging force and 233 kN rod digging force, this LC-series excavator handles demanding excavation, loading, and trenching applications across construction and mining operations.

  • 46,000 kg working weight with 600 mm track plates

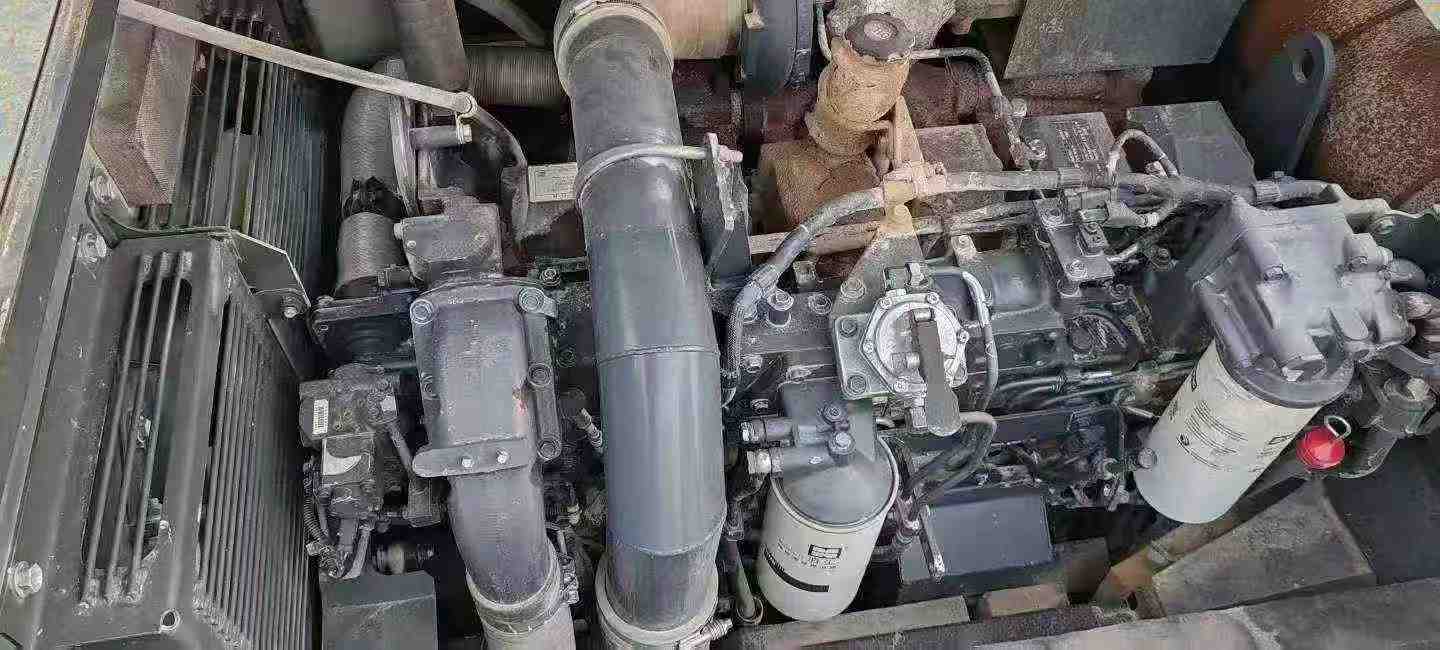

  • 11.04 L displacement, water-cooled 6-cylinder engine
  • Fast logistics from Shaoxing port—ready for immediate export
  • 650 L fuel capacity for extended shifts
  • Joint venture quality with full technical documentation
SpecificationsValue
No.1047234
Tonnage (tons)46
Working weight (kg)46000
Bucket capacity (m³)2.1
Boom length (mm)7060
Rod length (mm)3380
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeSAA6D125E-5
Rated power (kw/rpm)257/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)125*150
Number of cylinders (PCS)6
Displacement (L)11.04
Ground specific pressure (Kpa)79.3
Rotation speed (rpm)9.1
Climbing ability (%)70
Bucket digging force (kN)278
Rod digging force (kN)233
Maximum tractive force (kN)330
Travel speed (km/h)5.5/4.2/3.0
Maximum flow of main pump (l/min)690
Traveling Hydraulic Circuit (Mpa)37.8
Rotary Hydraulic Circuit (Mpa)27.9
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)37.8
Pilot Oil Circuit (MPa)3.3
Bucket cylinders - Number × diameter × stroke (mm)1-160*1270
Bucket rod cylinders - Number × diameter × stroke (mm)1-185*1985
Boom cylinders - Number × diameter × stroke (mm)2-160*1570
Fuel Tank (L)650
Hydraulic Tank (L)248
Engine Oil changes (L)37
Total transport length (mm)12040
Total transport width (mm)3570
Total transport height (mm)3660
Counterweight ground clearance (mm)1320
Minimum ground clearance (mm)567
Minimum turning radius of front working device (mm)4805
Back end turning radius (mm)3645
Total track length (mm)5385
Track gauge (mm)2740
Track plate width (mm)600
Total track width (mm)3340
Track ground length (mm)4350
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)12005
Maximum digging depth (mm)7790
Maximum excavation height (mm)10925
Maximum unloading height (mm)7625
Maximum vertical digging depth (mm)6600
Maximum excavation radius of stop surface (mm)11800
see more

Overview

No.1047234

Brand Name:

Komatsu

Model Number:

PC460LC-8

Year:

2019

Location:

Zhejiang China
