Product Description

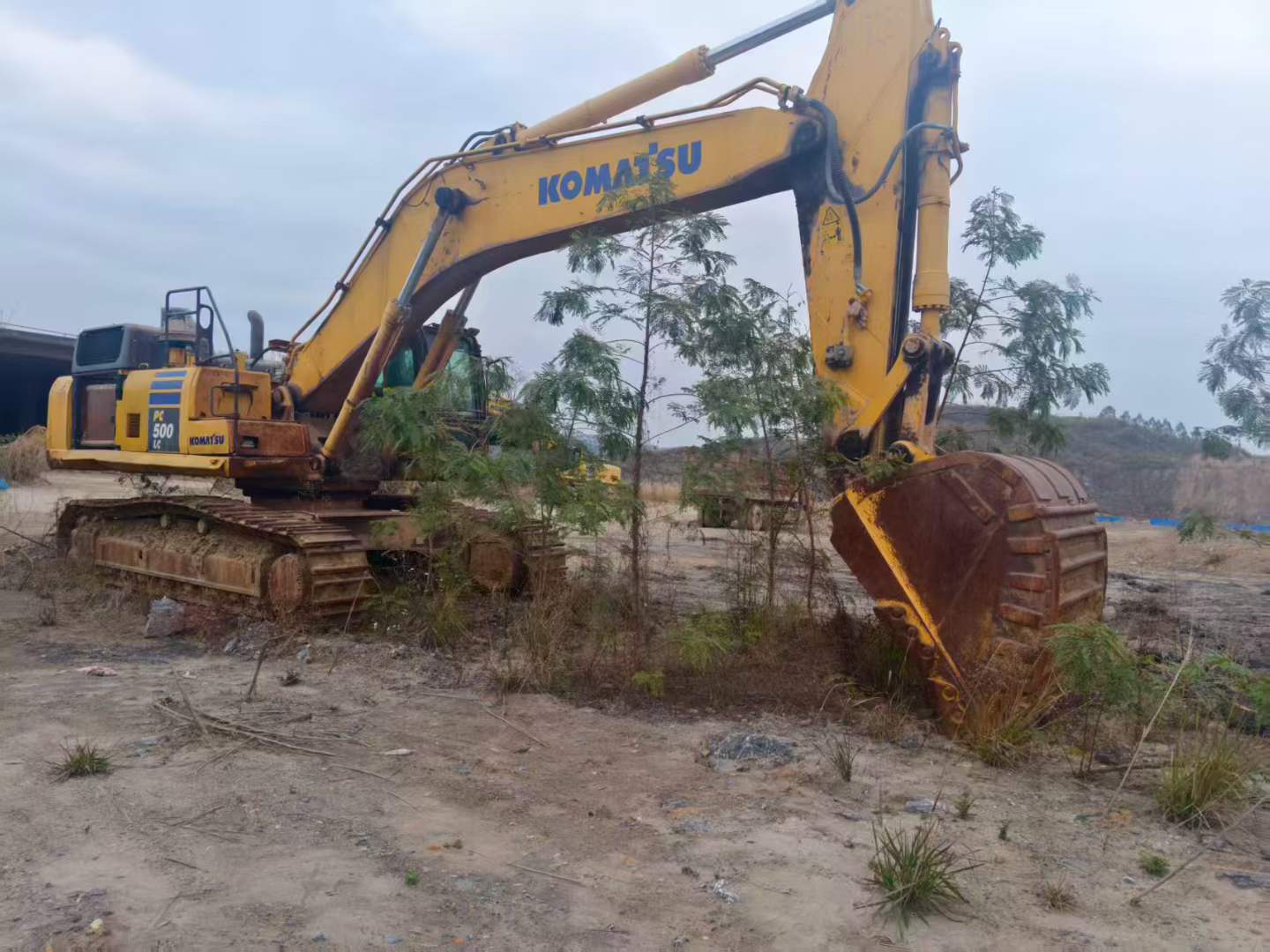

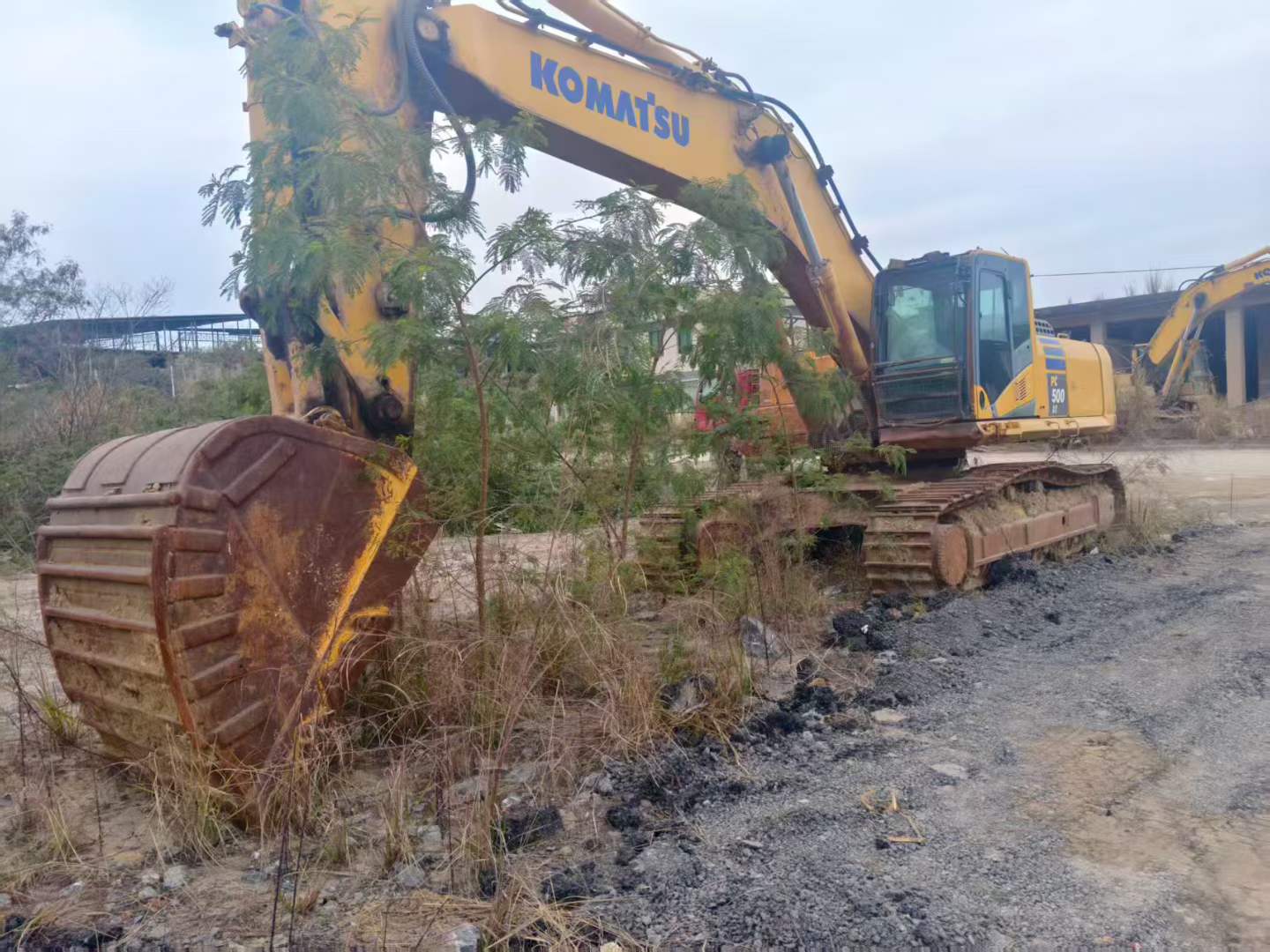

Built in 2020, this PC500LC-10M0 represents Komatsu's commitment to engineering excellence in the 50-ton excavator class. Powered by the proven SAA6D125E-5 engine delivering 269 kW at 1900 rpm, this machine combines robust performance with the reliability that keeps Komatsu at the forefront of the used equipment market. Operating weight of 49,800 kg and bucket capacity ranging from 2.5 to 3.22 m³ make it ideal for large-scale earthmoving, mining, and infrastructure projects.
Currently located in Fuzhou, Fujian, this China-manufactured unit offers several ownership advantages:
- Maximum digging reach of 11,985 mm with 7,695 mm depth capability
- Exceptional digging forces: 267 kN bucket, 228 kN arm
- Variable piston pumps delivering 690 l/min for responsive hydraulics
- Komatsu's global parts network ensures minimal downtime
- Strong resale value backed by brand recognition across 6 continents
Choosing Komatsu means investing in a machine supported by decades of engineering data and readily available components—critical factors when purchasing pre-owned heavy equipment.
| Specifications | Value |
|---|---|
| No. | 1011684 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 49800 |
| Bucket capacity (m³) | 2.5-3.22 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | SAA6D125E-5 |
| Rated power (kw/rpm) | 269/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Ground specific pressure (Kpa) | 87 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 267 |
| Rod digging force (kN) | 228 |
| Maximum tractive force (kN) | 329 |
| Travel speed (km/h) | 3.0-5.5 |
| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160*1350 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-185*1985 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-170*1570 |
| Fuel Tank (L) | 640 |
| Hydraulic Tank (L) | 279 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 45 |
| Total transport length (mm) | 12260 |
| Total transport width (mm) | 3580 |
| Total transport height (mm) | 3460 |
| Counterweight ground clearance (mm) | 1385 |
| Minimum ground clearance (mm) | 570 |
| Minimum turning radius of front working device (mm) | 5050 |
| Back end turning radius (mm) | 3765 |
| Total track length (mm) | 5385 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4350 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 11985 |
| Maximum digging depth (mm) | 7695 |
| Maximum excavation height (mm) | 10885 |
| Maximum unloading height (mm) | 7650 |
| Maximum vertical digging depth (mm) | 6335 |
| Maximum excavation radius of stop surface (mm) | 11760 |
Overview
No.1011684
Brand Name：
KomatsuModel Number：
PC500LC-10M0Year：
2020
Location：
Fujian China
