Product Description

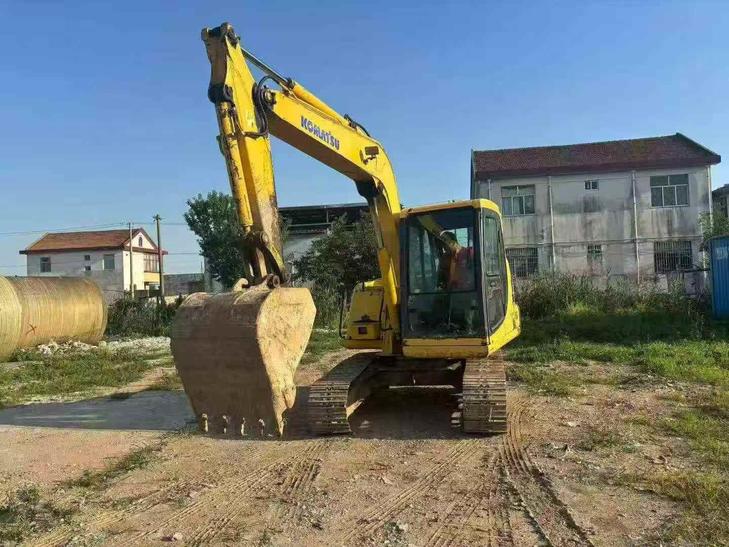

This 2020 Komatsu PC60-7 compact excavator offers reliable performance for construction and earthmoving applications. Currently located in Jiangsu, China, this unit demonstrates strong operational capability and has been maintained to ensure consistent productivity in the field.
Recent maintenance includes replacement of critical undercarriage components: track chains, carrier rollers, and drive sprockets have been newly installed, extending service life and reducing near-term maintenance costs. The machine is equipped with a standard bucket configuration suitable for general excavation work.
Key features:
- 2020 model year Komatsu PC60-7
- Strong hydraulic performance
- Newly replaced track chains and undercarriage components
- Carrier rollers and drive sprockets recently serviced
- Detailed photos and operational video available upon request
- Currently operational and ready for inspection
Suitable for contractors seeking a compact excavator with recent undercarriage investment. Inspection welcomed.
| Specifications | Value |
|---|---|
| No. | 1076025 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6300 |
| Bucket capacity (m³) | 0.28-0.37 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu 4D95LE |
| Rated power (kw/rpm) | 40/2100 |
| Displacement (L) | 3.26 |
| Working form | 4-stroke, water-cooled, direct injection engine; Cylinder diameter :95mm; Travel :115mm; Mechanical full speed regulation. |
| Ground specific pressure (Kpa) | 28.4 |
| Rotation speed (rpm) | 12 |
| Bucket digging force (kN) | 54.8kN |
| Rod digging force (kN) | 37.3kN |
| Maximum tractive force (kN) | 56.37KN |
| Travel speed (km/h) | 2.8-4.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 155L/min |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 19.1 |
| Control Hydraulic Circuit (Mpa) | 2.9 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 90 x 710 x 60 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 100 x 865 x 60 |
| Boom cylinders - Number × diameter × stroke (mm) | 115 * 840 * 65 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 10.3 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2225 |
| Total transport height (mm) | 2590 |
| Full cab height (mm) | 2590 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2150 |
| Track ground length (mm) | 2130 |
| Maximum digging radius (mm) | 6360 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5015 |
| Maximum vertical digging depth (mm) | 3505 |
| Bulldozer lift or depth (mm) | 270/410 |
| Maximum excavation radius of stop surface (mm) | 6220 |
| Maximum effective digging depth (mm) | 3755 |
