Product Description

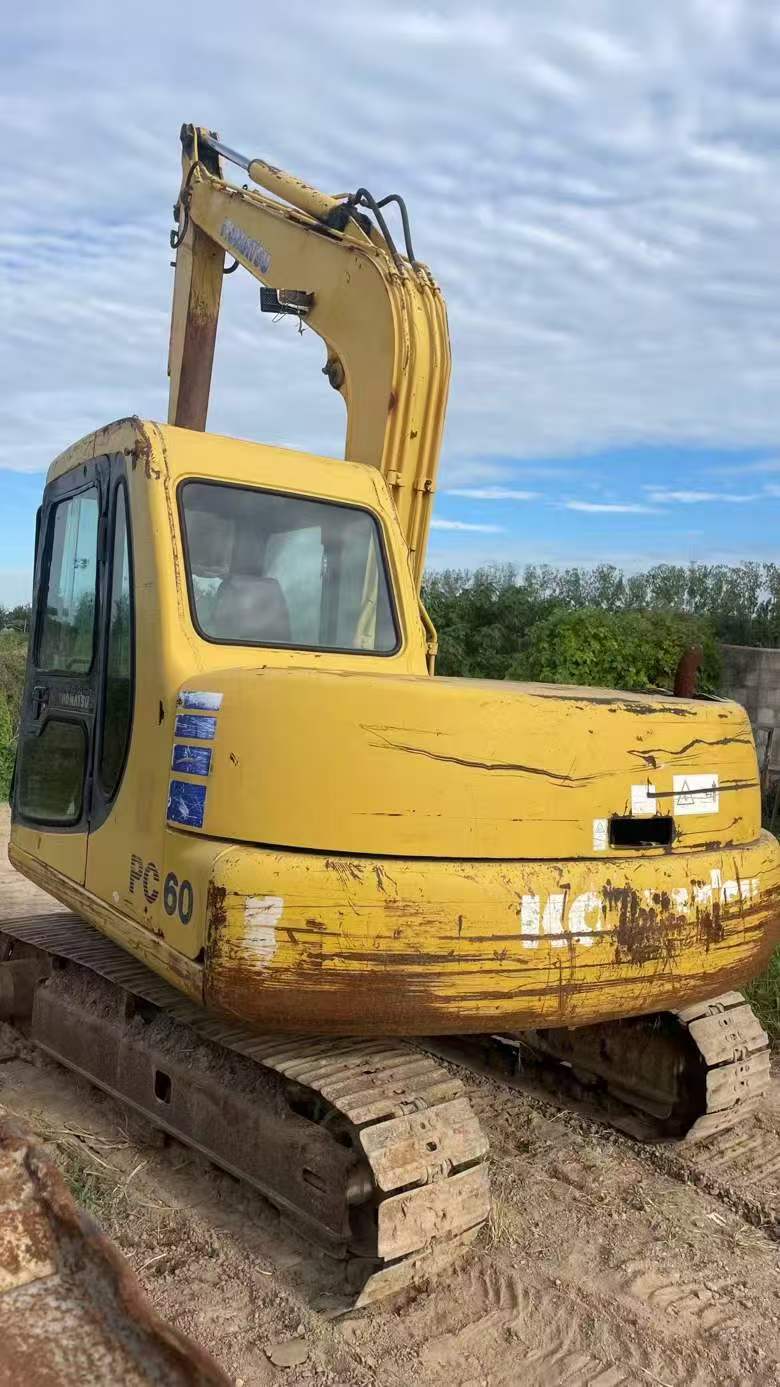

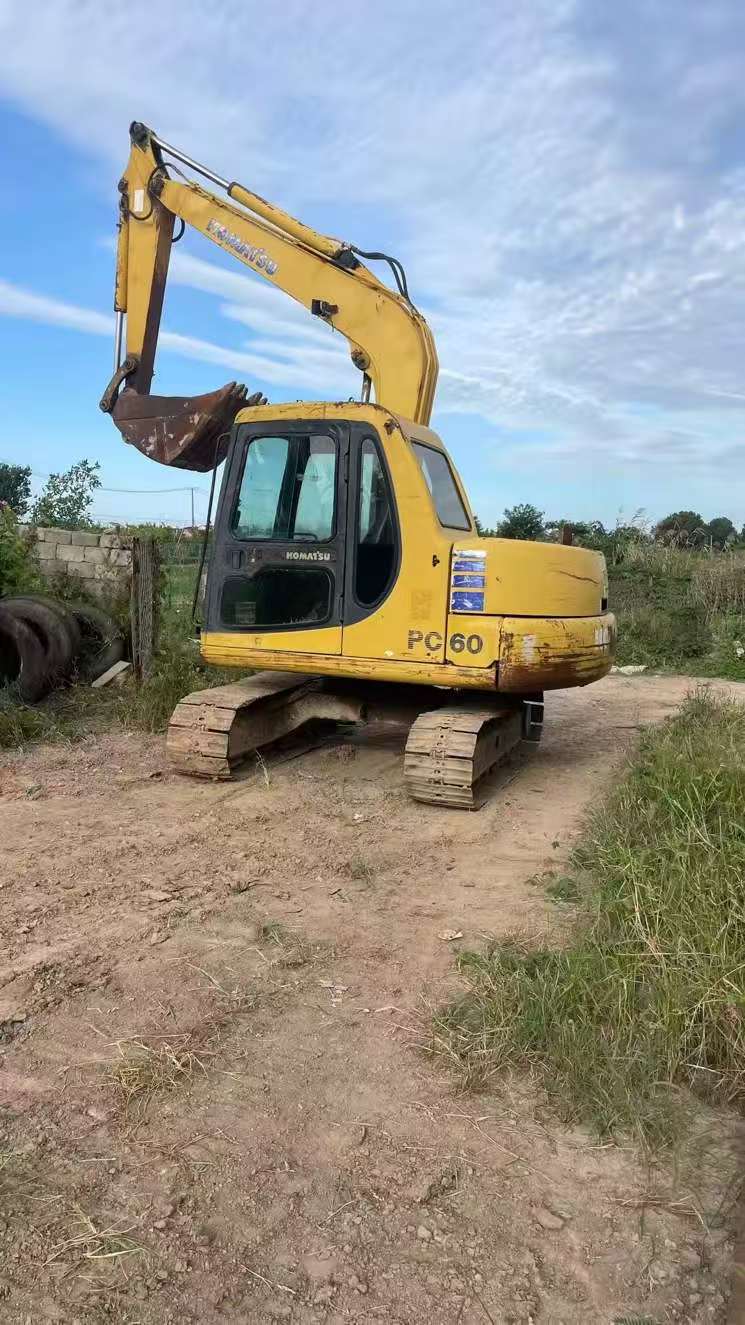

This 2020 Komatsu PC60-7 compact hydraulic excavator offers reliable performance for mid-sized construction and excavation projects. Currently located in Jiangsu, China, this machine demonstrates good overall condition with well-maintained components throughout its operational life.
The PC60-7 is a proven model in Komatsu's compact excavator lineup, designed for durability and fuel efficiency in demanding work environments. With an operating weight of approximately 6 tons, it provides excellent maneuverability in confined spaces while delivering the power needed for productive earthmoving operations.
Key features include:

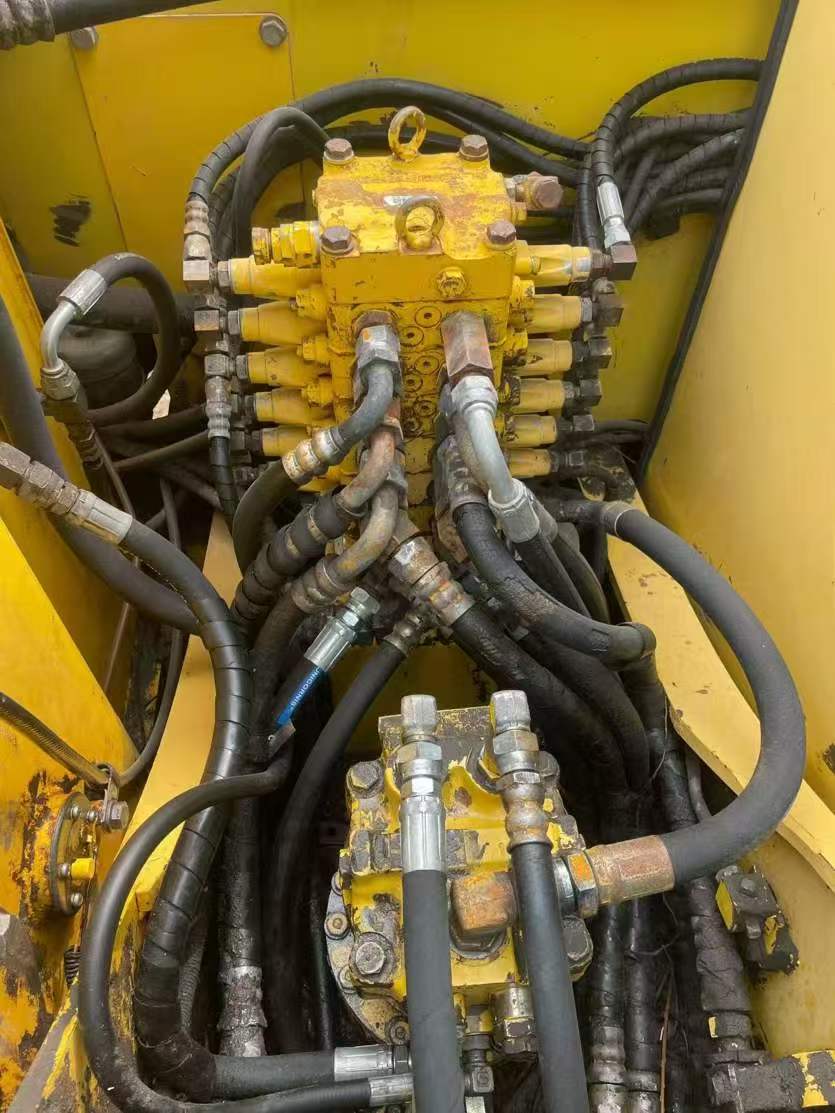

- Hydraulic system engineered for smooth, precise control
- Comfortable operator cabin with good visibility

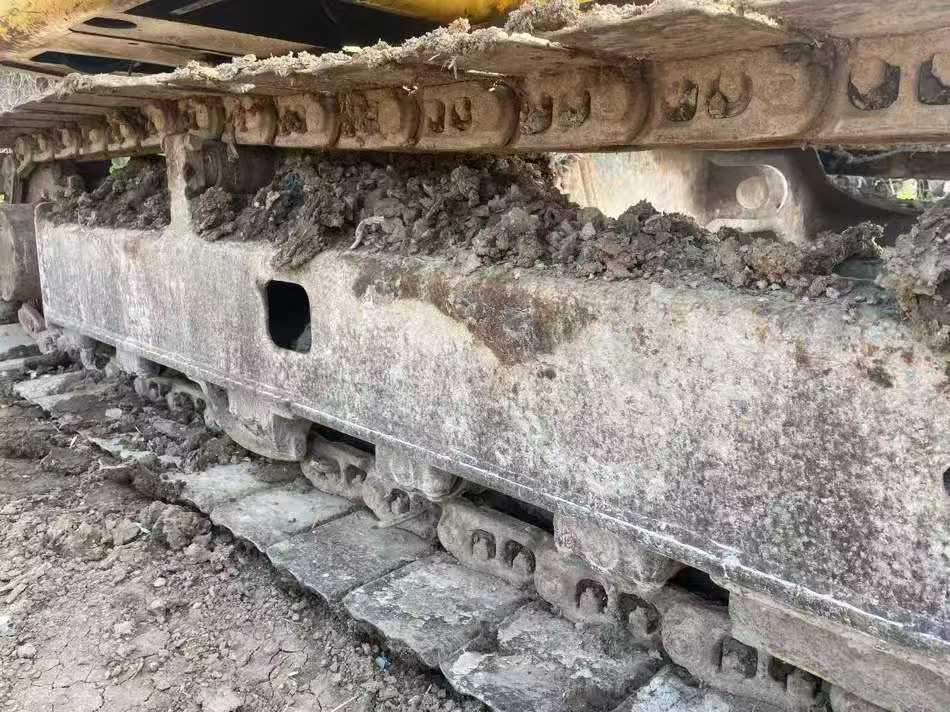

- Robust undercarriage for stable operation
- Compact footprint suitable for urban construction sites
- Available for inspection in Jiangsu Province
This unit represents solid value for contractors seeking dependable equipment with established service support throughout the region.
| Specifications | Value |
|---|---|
| No. | 1142223 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6300 |
| Bucket capacity (m³) | 0.28-0.37 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

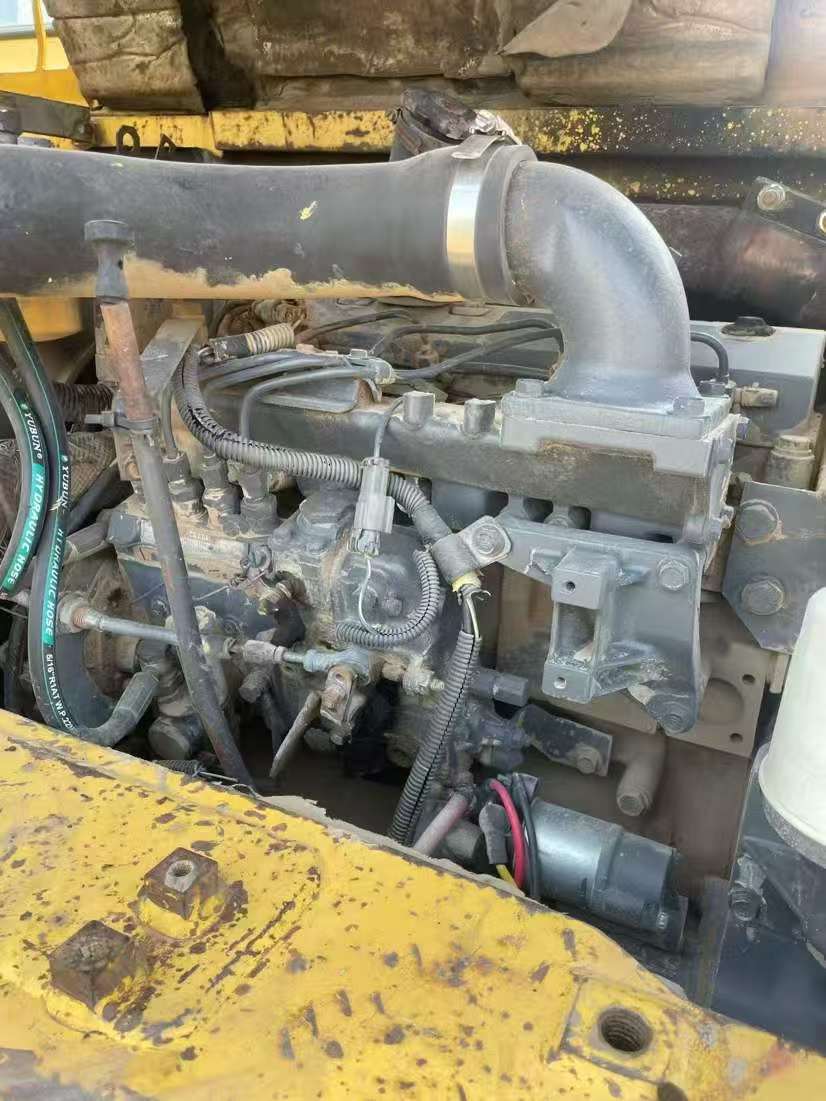

| Engine type | Komatsu 4D95LE |
| Rated power (kw/rpm) | 40/2100 |
| Displacement (L) | 3.26 |
| Working form | 4-stroke, water-cooled, direct injection engine; Cylinder diameter :95mm; Travel :115mm; Mechanical full speed regulation. |
| Ground specific pressure (Kpa) | 28.4 |
| Rotation speed (rpm) | 12 |
| Bucket digging force (kN) | 54.8kN |
| Rod digging force (kN) | 37.3kN |
| Maximum tractive force (kN) | 56.37KN |
| Travel speed (km/h) | 2.8-4.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 155L/min |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 19.1 |
| Control Hydraulic Circuit (Mpa) | 2.9 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 90 x 710 x 60 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 100 x 865 x 60 |
| Boom cylinders - Number × diameter × stroke (mm) | 115 * 840 * 65 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 10.3 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2225 |
| Total transport height (mm) | 2590 |
| Full cab height (mm) | 2590 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2150 |
| Track ground length (mm) | 2130 |
| Maximum digging radius (mm) | 6360 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5015 |
| Maximum vertical digging depth (mm) | 3505 |
| Bulldozer lift or depth (mm) | 270/410 |
| Maximum excavation radius of stop surface (mm) | 6220 |
| Maximum effective digging depth (mm) | 3755 |
