Product Description
This 2020 Komatsu PC60-7 compact excavator offers reliable performance for construction, landscaping, and utility applications. With approximately 4 years of operational service, this machine demonstrates the proven durability of Komatsu's PC60 series. Currently located in Guangxi, China, the unit is available with supporting documentation and operational video footage.
The PC60-7 features a compact footprint ideal for confined jobsites while maintaining productive digging depth and reach capabilities. Komatsu's hydraulic system provides smooth, precise control for trenching, grading, and material handling tasks.
- Year of Manufacture: 2020
- Model: Komatsu PC60-7
- Machine Class: 6-ton compact excavator
- Current Location: Guangxi Province, China
- Documentation and video available upon request
Suitable for contractors seeking dependable equipment for medium-duty excavation projects. Inspection welcomed for qualified buyers.
| Specifications | Value |
|---|---|
| No. | 1173821 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6300 |
| Bucket capacity (m³) | 0.28-0.37 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

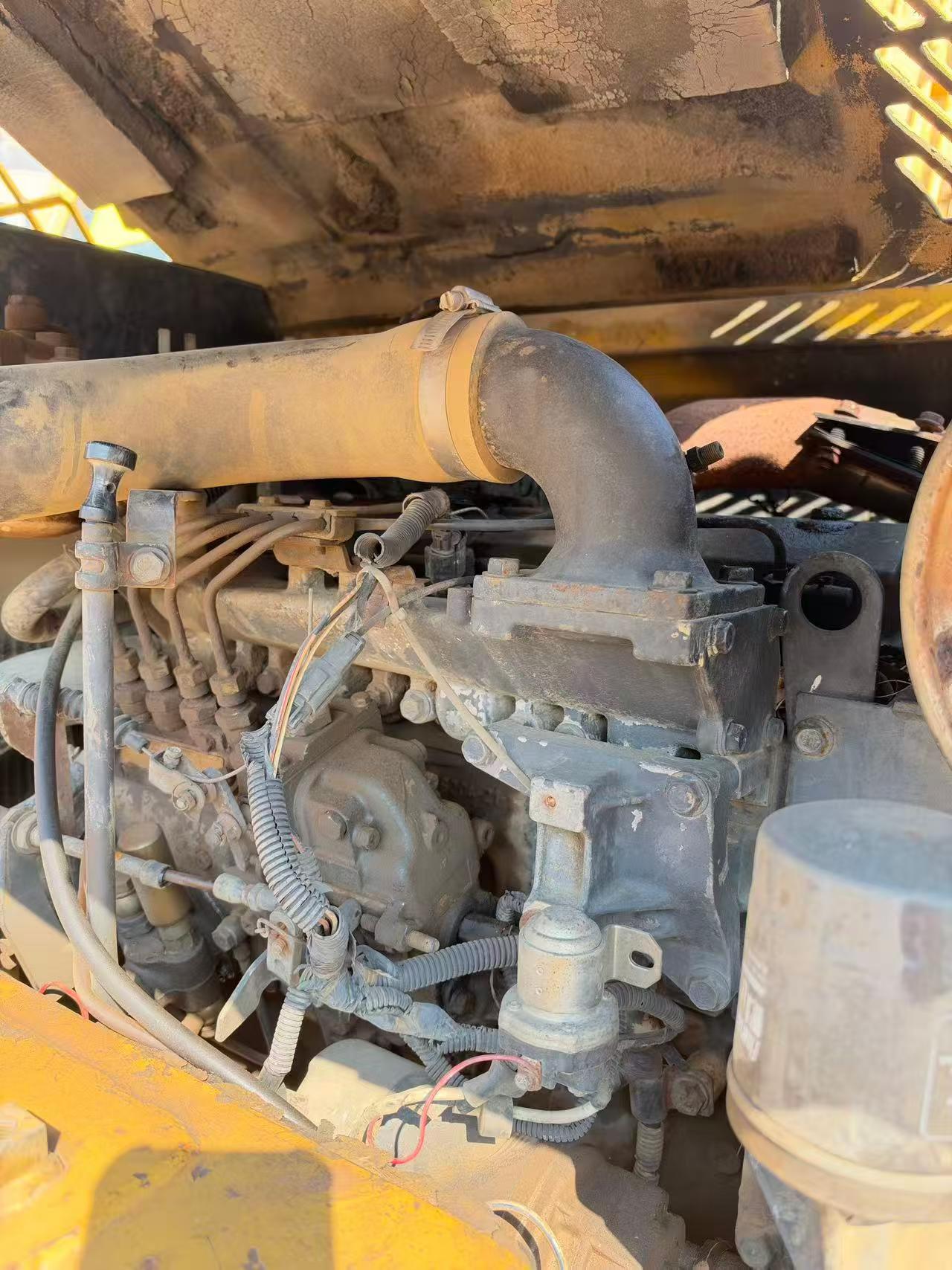

| Engine type | Komatsu 4D95LE |
| Rated power (kw/rpm) | 40/2100 |
| Displacement (L) | 3.26 |
| Working form | 4-stroke, water-cooled, direct injection engine; Cylinder diameter :95mm; Travel :115mm; Mechanical full speed regulation. |
| Ground specific pressure (Kpa) | 28.4 |
| Rotation speed (rpm) | 12 |
| Bucket digging force (kN) | 54.8kN |
| Rod digging force (kN) | 37.3kN |
| Maximum tractive force (kN) | 56.37KN |
| Travel speed (km/h) | 2.8-4.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 155L/min |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 19.1 |
| Control Hydraulic Circuit (Mpa) | 2.9 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 90 x 710 x 60 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 100 x 865 x 60 |
| Boom cylinders - Number × diameter × stroke (mm) | 115 * 840 * 65 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 10.3 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2225 |
| Total transport height (mm) | 2590 |
| Full cab height (mm) | 2590 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2150 |
| Track ground length (mm) | 2130 |
| Maximum digging radius (mm) | 6360 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5015 |
| Maximum vertical digging depth (mm) | 3505 |
| Bulldozer lift or depth (mm) | 270/410 |
| Maximum excavation radius of stop surface (mm) | 6220 |
| Maximum effective digging depth (mm) | 3755 |
