2017 Komatsu PC60-8

1/9
Buy Komatsu PC60-8 Used Excavator / 1

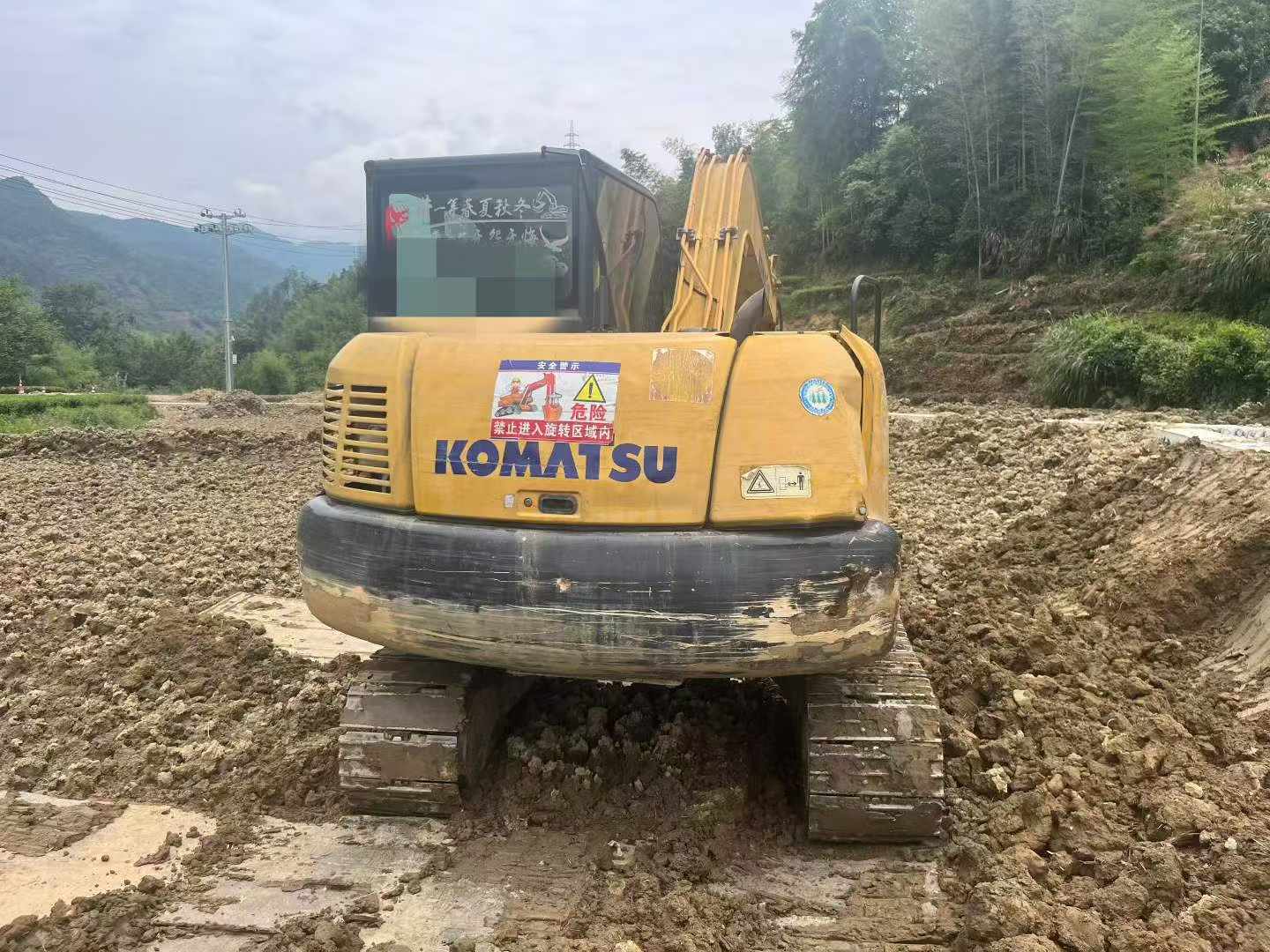

Buy Komatsu PC60-8 Used Excavator / 2

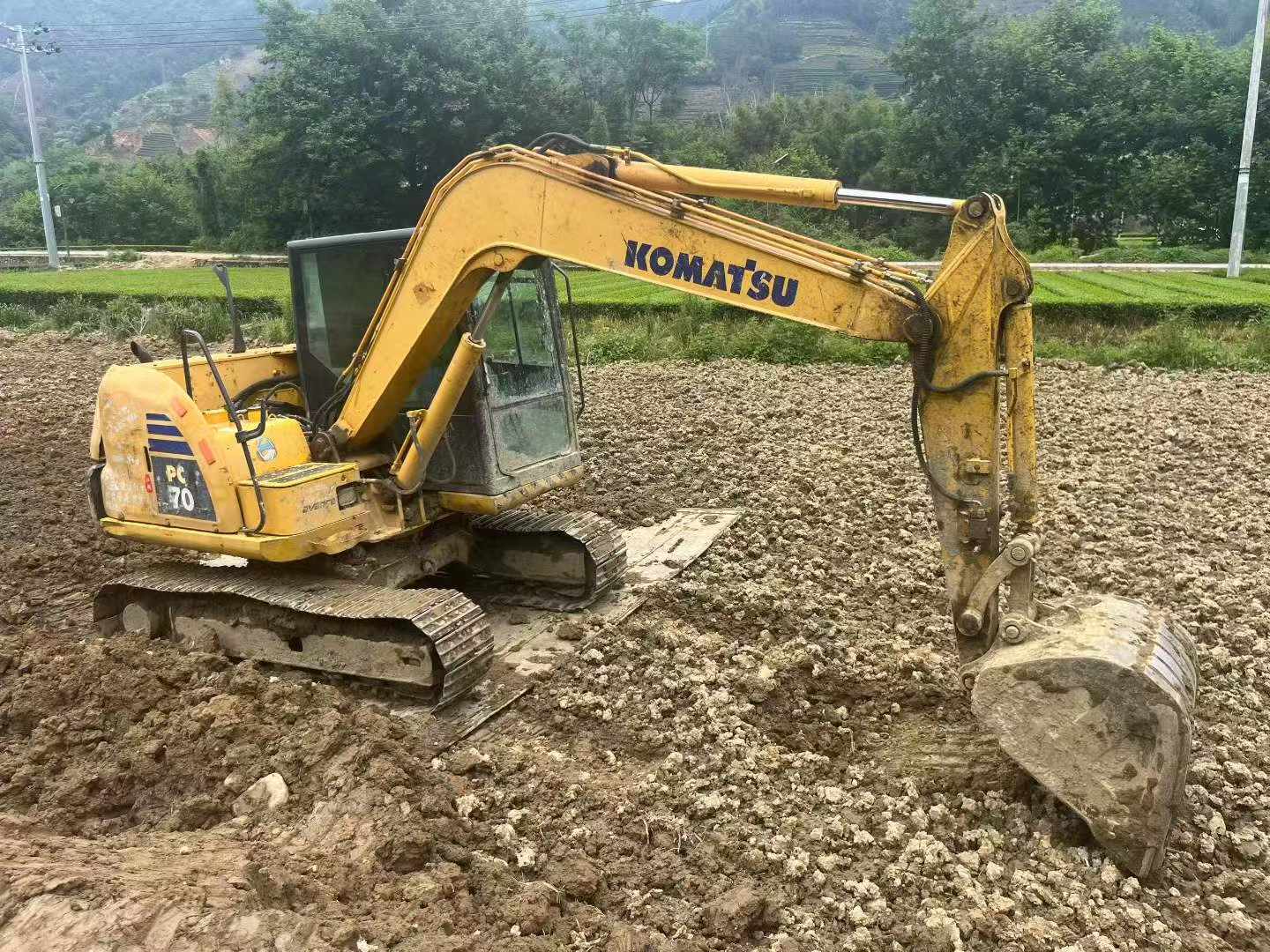

Buy Komatsu PC60-8 Used Excavator / 3

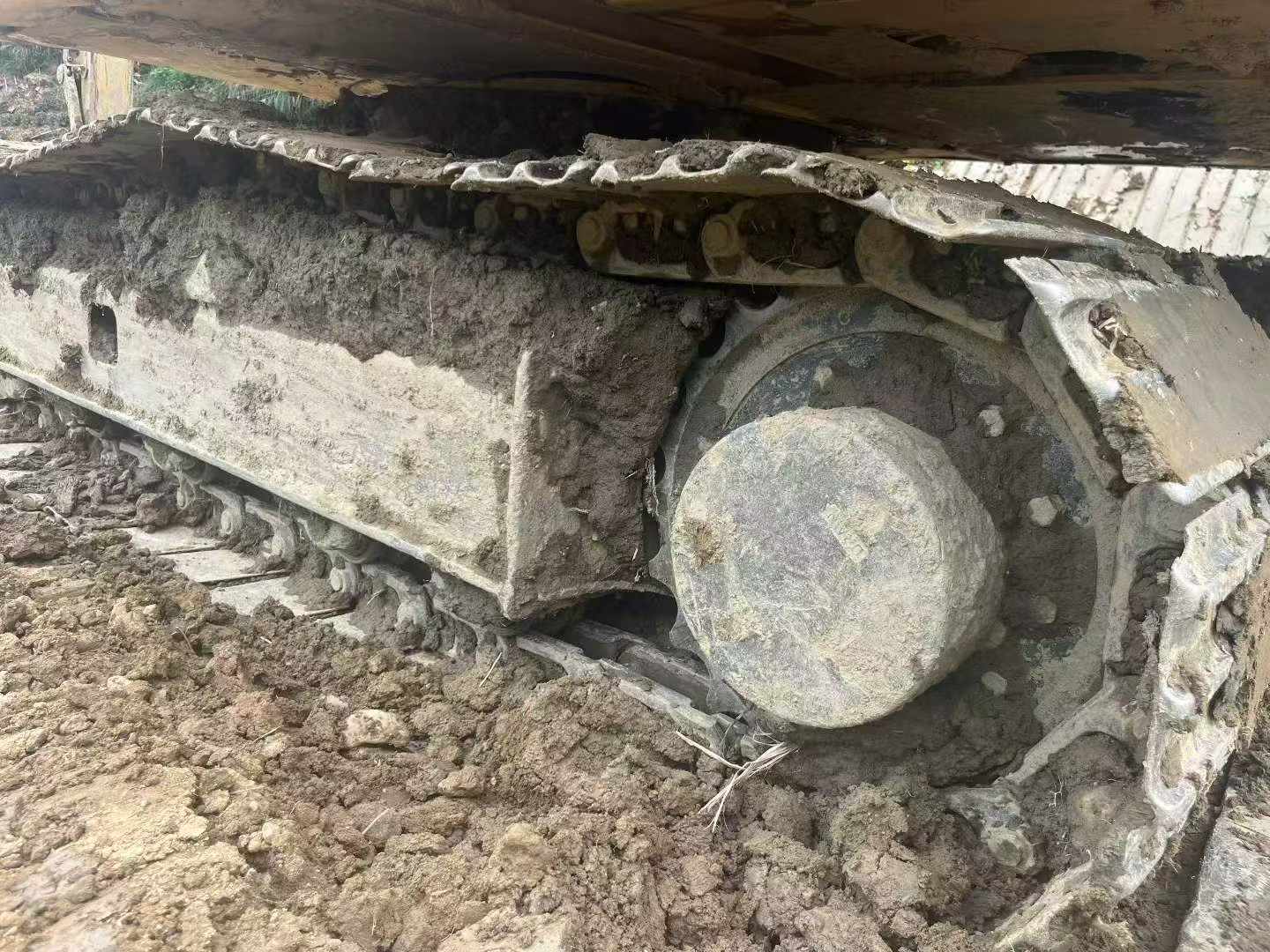

Buy Komatsu PC60-8 Used Excavator / 4

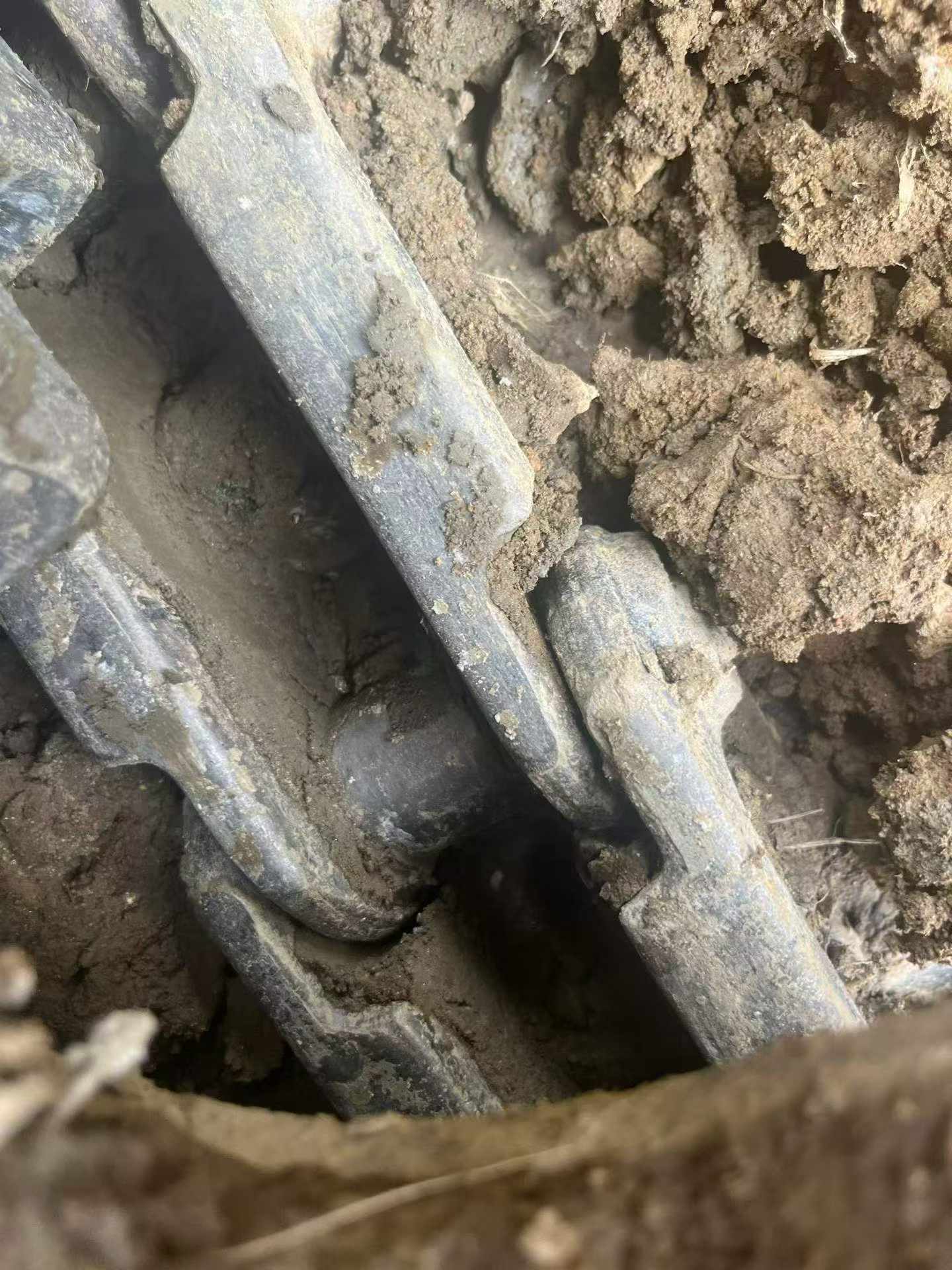

Buy Komatsu PC60-8 Used Excavator / 5

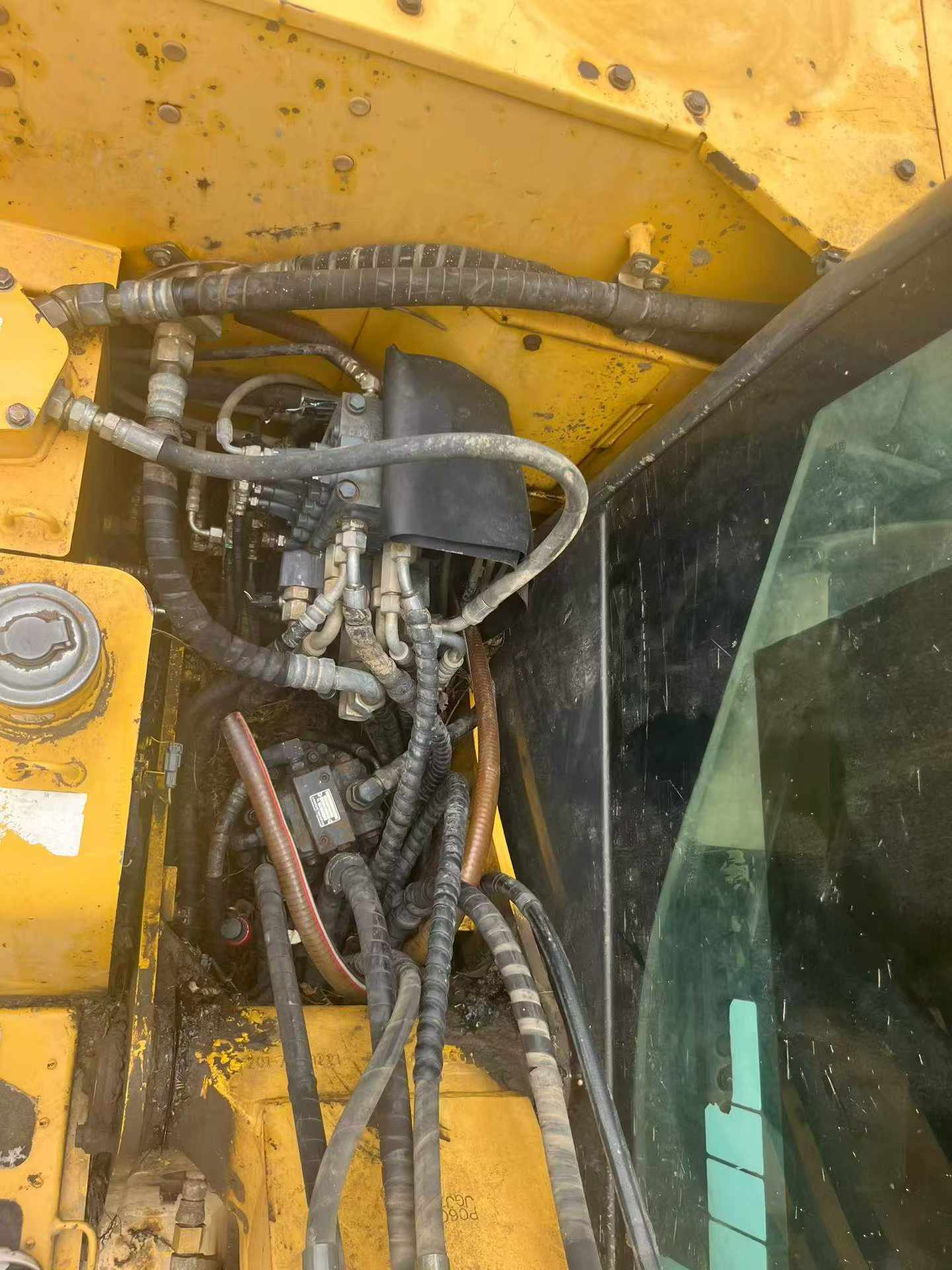

Buy Komatsu PC60-8 Used Excavator / 6
Buy Komatsu PC60-8 Used Excavator / 7

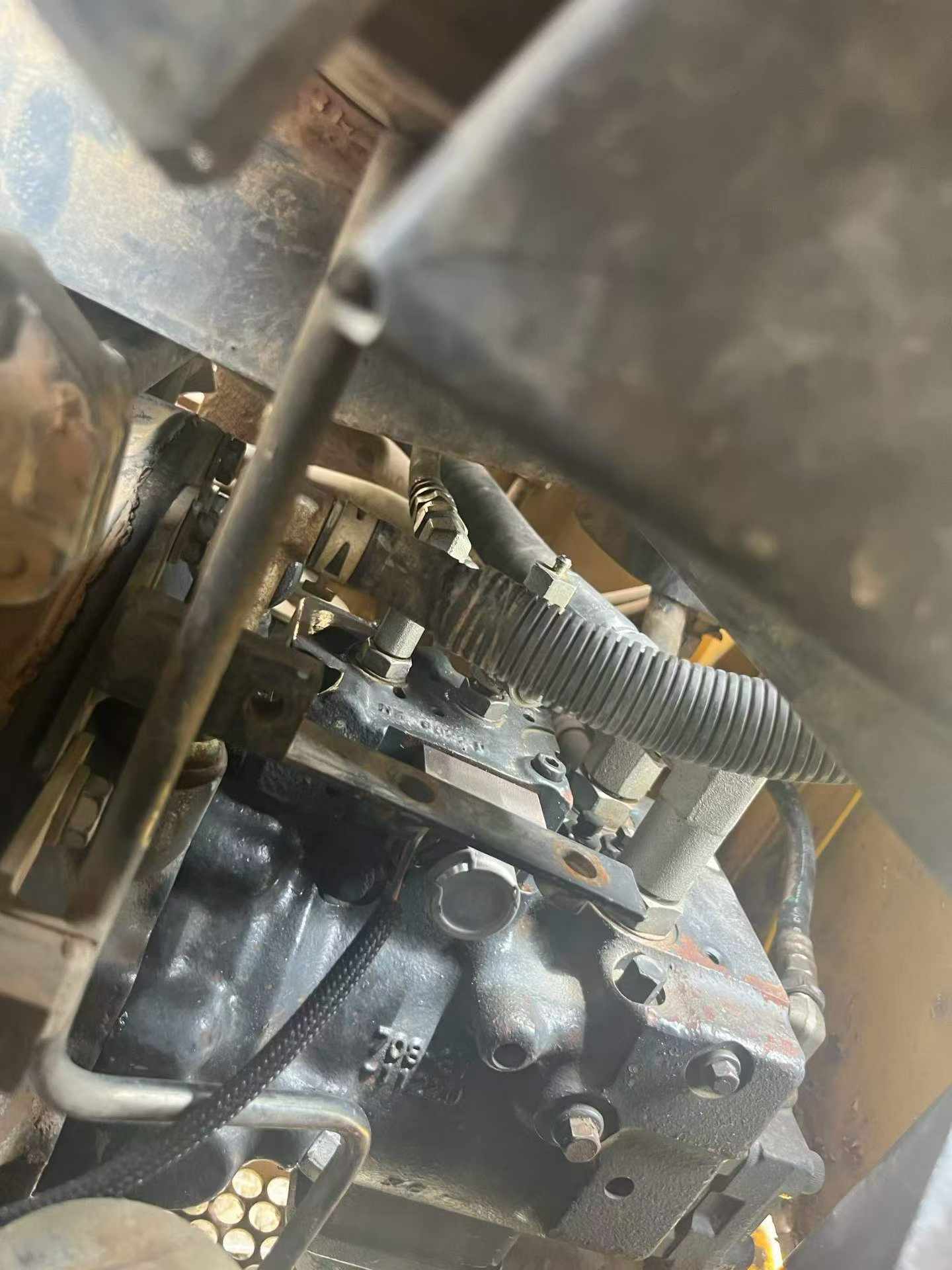

Buy Komatsu PC60-8 Used Excavator / 8

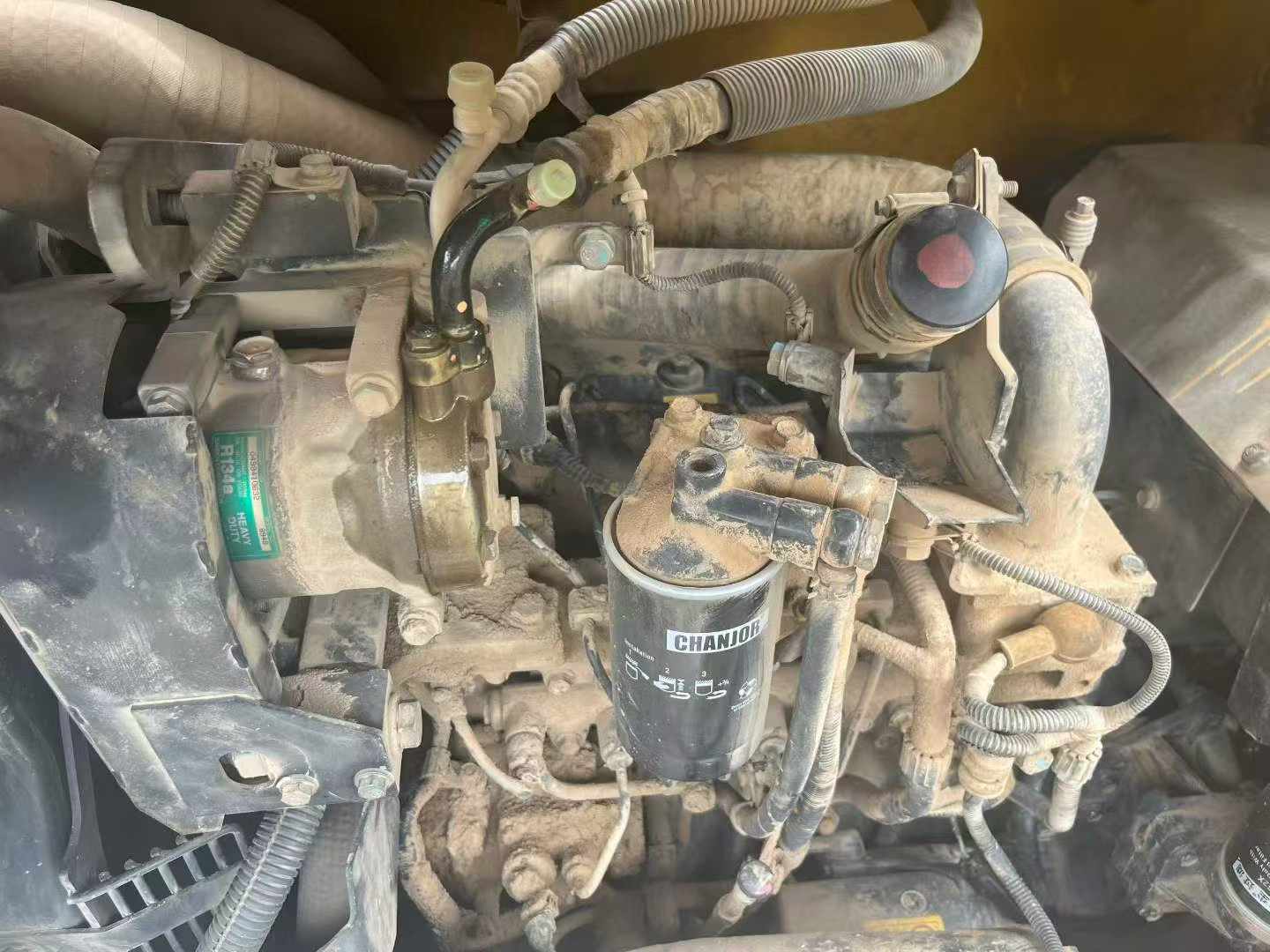

Buy Komatsu PC60-8 Used Excavator / 9

Product Description

2017 Komatsu PC60-8 mini excavator available from Zhejiang, China. This first-owner unit shows approximately 6,000 operating hours, representing well-maintained service life with significant capacity remaining. The PC60-8 features Komatsu's proven hydraulic system and compact design, ideal for urban construction, utility work, and confined site applications.

Key highlights:

  • Single ownership history with comprehensive service records
  • Operating weight approximately 6 tons
  • Detailed inspection photos and operational video available upon request
  • Currently located in Zhejiang Province for viewing and assessment
  • Suitable for contractors seeking reliable compact excavation equipment

This machine represents a cost-effective solution for operators requiring proven Japanese engineering and parts availability. Contact us for technical specifications, imagery, and export documentation assistance.

SpecificationsValue
No.1082096
Tonnage (tons)6
Working weight (kg)6180
Bucket capacity (m³)0.25~0.37
Country of originJining, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA4D95LE-5
Rated power (kw/rpm)40.7/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95*115
Number of cylinders (PCS)4
Displacement (L)3.26
Working formturbocharging
Ground specific pressure (Kpa)28.4
Rotation speed (rpm)10
Bucket digging force (kN)54.8
Rod digging force (kN)39.8
Maximum tractive force (kN)56.6
Travel speed (km/h)2.8-4.5
Maximum flow of main pump (l/min)172
Traveling Hydraulic Circuit (Mpa)24.5
Rotary Hydraulic Circuit (Mpa)21.1
Hydraulic crushing pipeline is standardno
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)24.5
Pilot Oil Circuit (MPa)2.9
Bucket cylinders - Number × diameter × stroke (mm)1-90*710
Bucket rod cylinders - Number × diameter × stroke (mm)1-100*865
Boom cylinders - Number × diameter × stroke (mm)1-115*840
Fuel Tank (L)130
Hydraulic Tank (L)95
Engine Oil changes (L)12.5
Coolant (L)10
Total transport length (mm)6035
Total transport width (mm)2225
Total transport height (mm)2620
Counterweight ground clearance (mm)750
Minimum ground clearance (mm)350
Minimum turning radius of front working device (mm)1700
Back end turning radius (mm)1750
Total track length (mm)2765
Track gauge (mm)1700
Track plate width (mm)450
Total track width (mm)2150
Track ground length (mm)2130
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6190
Maximum digging depth (mm)3900
Maximum excavation height (mm)7030
Maximum unloading height (mm)4925
Maximum vertical digging depth (mm)3350
Maximum excavation radius of stop surface (mm)6045
see more

Overview

No.1082096

Brand Name:

Komatsu

Model Number:

PC60-8

Year:

2017

Location:

Zhejiang China

Pub Date
