2020 Komatsu PC60-8

1/5

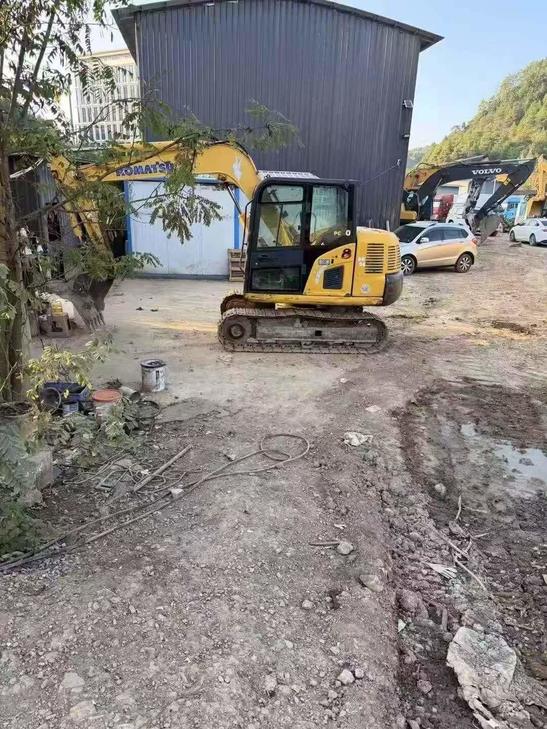

Buy Komatsu PC60-8 Used Excavator / 1
Buy Komatsu PC60-8 Used Excavator / 2
Buy Komatsu PC60-8 Used Excavator / 3
Buy Komatsu PC60-8 Used Excavator / 4
Buy Komatsu PC60-8 Used Excavator / 5

Product Description

This 2020 Komatsu PC60-8 excavator is available for immediate deployment from Zhejiang, China. As a first-owner machine with approximately 45,000 RMB in value, this mid-size excavator offers reliable performance for construction, earthmoving, and utility applications. The PC60-8 represents Komatsu's commitment to fuel efficiency and operator comfort in the 6-ton class.

  • Year: 2020
  • Model: Komatsu PC60-8
  • Location: Zhejiang Province, China
  • Ownership: Single owner, ready for loading
  • Operating weight: Approximately 6 tons
  • Application: General excavation, trenching, landscaping

The PC60-8 features Komatsu's proven hydraulic system and durable undercarriage designed for Asian market conditions. This unit is available for inspection and can be loaded immediately for domestic or international shipping. Suitable for contractors seeking dependable used equipment with documented single-owner history.

SpecificationsValue
No.1173511
Tonnage (tons)6
Working weight (kg)6180
Bucket capacity (m³)0.25~0.37
Country of originJining, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA4D95LE-5
Rated power (kw/rpm)40.7/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95*115
Number of cylinders (PCS)4
Displacement (L)3.26
Working formturbocharging
Ground specific pressure (Kpa)28.4
Rotation speed (rpm)10
Bucket digging force (kN)54.8
Rod digging force (kN)39.8
Maximum tractive force (kN)56.6
Travel speed (km/h)2.8-4.5
Maximum flow of main pump (l/min)172
Traveling Hydraulic Circuit (Mpa)24.5
Rotary Hydraulic Circuit (Mpa)21.1
Hydraulic crushing pipeline is standardno
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)24.5
Pilot Oil Circuit (MPa)2.9
Bucket cylinders - Number × diameter × stroke (mm)1-90*710
Bucket rod cylinders - Number × diameter × stroke (mm)1-100*865
Boom cylinders - Number × diameter × stroke (mm)1-115*840
Fuel Tank (L)130
Hydraulic Tank (L)95
Engine Oil changes (L)12.5
Coolant (L)10
Total transport length (mm)6035
Total transport width (mm)2225
Total transport height (mm)2620
Counterweight ground clearance (mm)750
Minimum ground clearance (mm)350
Minimum turning radius of front working device (mm)1700
Back end turning radius (mm)1750
Total track length (mm)2765
Track gauge (mm)1700
Track plate width (mm)450
Total track width (mm)2150
Track ground length (mm)2130
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6190
Maximum digging depth (mm)3900
Maximum excavation height (mm)7030
Maximum unloading height (mm)4925
Maximum vertical digging depth (mm)3350
Maximum excavation radius of stop surface (mm)6045
see more

Overview

No.1173511

Brand Name:

Komatsu

Model Number:

PC60-8

Year:

2020

Location:

Zhejiang China

Pub Date:
