Product Description
Backed by Komatsu's legendary engineering, this 2014 PC70-8 mini excavator delivers proven reliability for contractors demanding uptime and long-term value. Operating at 7 tons with a Komatsu SAA4D95LE-5 engine producing 48.5kW, this machine combines compact dimensions (6080mm transport length) with serious digging capability—4100mm maximum depth and 54.8kN bucket force handle demanding jobsites with precision.
Komatsu's global parts network ensures this PC70-8 remains serviceable for years, protecting your investment with readily available components and strong resale value. Currently located in Luzhou, Sichuan, this turbocharged, water-cooled unit features a 0.32-0.39m³ bucket capacity and efficient hydraulics (172 l/min main pump flow) for productive trenching, utility work, and site preparation.
- Proven Komatsu 4-cylinder diesel with 3.26L displacement
- Compact 2225mm width navigates restricted access sites
- 11 rpm swing speed and 4.5 km/h travel maximize productivity
- 130L fuel tank extends operational periods between refills
- Established brand reputation supports higher resale returns
Contact Fair Trade Machinery today for detailed inspection reports and compe
| Specifications | Value |
|---|---|
| No. | 1024481 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6500 |
| Bucket capacity (m³) | 0.32-0.39 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

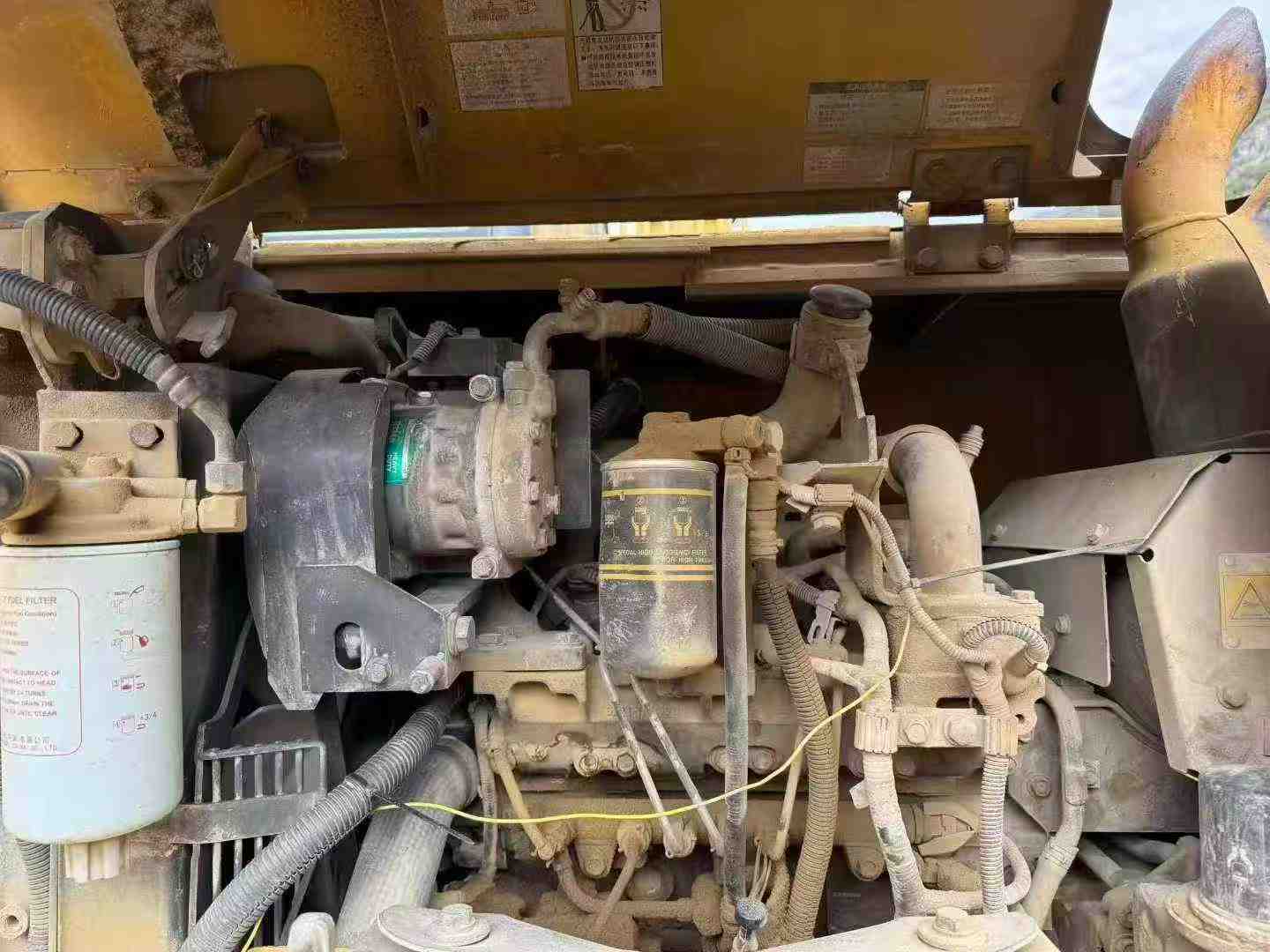

| Engine type | Komatsu SAA4D95LE-5 |
| Rated power (kw/rpm) | 48.5/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95*115 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.26 |
| Working form | Turbocharged, post-cooled |
| Ground specific pressure (Kpa) | 30.2 |
| Rotation speed (rpm) | 11 |
| Bucket digging force (kN) | 54.8 |
| Rod digging force (kN) | 38.2 |
| Maximum tractive force (kN) | 56.4 |
| Travel speed (km/h) | 4.5/2.8 |
| Maximum flow of main pump (l/min) | 172 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 21.1 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Pilot Oil Circuit (MPa) | 2.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-90*710 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-100*865 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-115*840 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 95 |
| Engine Oil changes (L) | 12.5 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2225 |
| Total transport height (mm) | 2620 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2150 |
| Track ground length (mm) | 2130 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6360 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5015 |
| Maximum vertical digging depth (mm) | 3505 |
| Maximum excavation radius of stop surface (mm) | 6220 |
