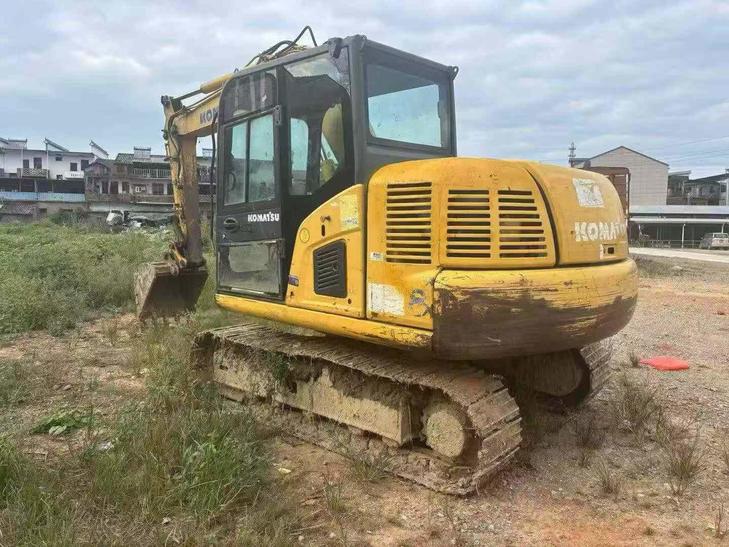

Name: Used Excavators 2016 Komatsu PC70-8
Brand: Komatsu
SKU: USED-1134584
Availability: InStock
Rating: 4.8 (45 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Kobelco

Doosan

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Discover the reliability and performance of this 2016 Komatsu PC70-8, available directly from a single owner in Jiangxi, China. This compact excavator is ideal for construction, landscaping, and utility work, offering robust operation and maneuverability in tight spaces. Known for its durability and efficiency, the PC70-8 model has been a trusted choice for professionals requiring precision and power. Ideal for businesses looking to enhance their fleet with a well-maintained, used machine that delivers consistent results.
<ul>
<li>Year: 2016</li>
<li>Brand: Komatsu</li>
<li>Model: PC70-8</li>
<li>Location: Jiangxi, China</li>
<li>Single-owner machine, ensuring a well-documented maintenance history</li>
</ul>

【 2021 Sumitomo 260-6 Second-hand Excavator 】

This second-hand Sumitomo SH260-6 excavator from 2021 has been highly praised in the market for its outstanding performance and reliable quality. The total working time of this equipment is only 3,500 hours. With moderate usage frequency and proper maintenance, it ensures its good mechanical condition. In terms of the power system, it is equipped with an efficient and energy-saving diesel engine, which not only has strong power but also excellent fuel economy, capable of providing stable and reliable power output under various working conditions. The hydraulic system adopts an advanced closed-loop design, featuring fast response and precise operation. It can handle various operations such as excavation, loading and crushing with ease. In addition, this excavator is equipped with an intelligent control system that can automatically adjust the engine speed and pump flow according to the actual load, further improving work efficiency while reducing energy consumption. The spacious and comfortable cab, all-round view and user-friendly control interface ensure that you won't feel tired even after long hours of work. In conclusion, this is a high-quality second-hand excavator that integrates hig

Sumitomo SH260LC-6

Built in 2021, this Doosan DL420 wheel loader delivers proven performance with the backing of one of the industry's most reliable brands. Powered by a robust 210 kW engine producing 1,275 N·m of torque, this machine handles demanding material handling operations with an 8,000 kg rated load and 3.9 m³ bucket capacity. Operating weight of 21,900 kg ensures stability during loading cycles, while the 3,085 mm unloading height and 1,285 mm reach optimize truck loading efficiency.

Doosan's global parts network and strong resale value make this DL420 a smart investment in the used equipment market. With maximum digging force of 20 kN and tractive force of 21.4 kN, this loader tackles heavy-duty applications across construction, mining, and aggregate operations. The 40 km/h maximum speed enhances productivity on larger job sites, supported by generous fuel (367 L) and hydraulic (265 L) tank capacities for extended operation.

Currently located in Wenzhou, Zhejiang, this machine represents dependable Doosan engineering with documented service history and readily available replacement parts worldwide.

Doosan DH420

Built for demanding excavation work, this 2021 Sany SY365C delivers 36 tons of operational muscle across construction, demolition, and grading projects. Powered by a proven traditional diesel engine and manufactured in China to Sany's industrial standards, this machine arrives from Zhejiang ready to tackle foundation trenching, site preparation, and heavy material handling without delay.

<ul>
 <li>36-ton operating weight provides stability for deep excavation and demolition tasks</li>
 <li>Backhoe bucket configuration optimized for digging, loading, and grading operations</li>
 <li>2021 model year with traditional power system ensures parts availability and straightforward maintenance</li>
 <li>Site-ready condition—inspect, transport, and deploy to your project immediately</li>
</ul>

Currently located in Zhejiang, China, this SY365C represents a cost-effective solution for contractors requiring proven excavation capacity. No learning curve, no extended setup—just reliable hydraulic performance and the digging depth your projects demand. Contact Fair Trade Machinery today to arrange inspection or discuss international shipping options.

Sany SY365C

Built for high-output excavation, this 2021 Sumitomo SH260LC-6 delivers 26 tons of working capacity with a robust 132.1 kW engine. Equipped with a 1.3 m³ backhoe bucket, 5850 mm boom, and 3000 mm arm, it handles deep foundation work, mass earthmoving, and demolition projects without hesitation. Maximum digging depth reaches 6900 mm, while the 10280 mm digging radius covers substantial ground per cycle.

Key performance specifications include:
<ul>
<li>Bucket digging force: 162-174 kN for breaking hard-packed soil and fractured rock</li>
<li>Arm digging force: 120-129 kN for precise trenching and grading</li>
<li>70% climbing ability navigates steep site terrain</li>
<li>Variable capacity piston pump delivers consistent hydraulic power at 34.3-36.8 MPa</li>
<li>410 L fuel tank supports extended shifts with minimal downtime</li>
</ul>

Currently located in Zhejiang, this machine arrives site-ready for immediate deployment. Transport dimensions of 9930 × 3190 × 3150 mm allow standard lowbed hauling. Contact Fair Trade Machinery today to put this excavator to work on your next project.

Secure immediate access to this 2021 Doosan DH420 excavator, currently positioned in Zhejiang and ready for rapid deployment to your project site. Rated at 42 tons with proven traditional power configuration, this joint venture-manufactured machine delivers the reliability and performance your operations demand without the extended factory wait times.

<ul>
<li>Year: 2021</li>
<li>Model: Doosan DH420</li>
<li>Operating Weight: 42 tons</li>
<li>Power Type: Traditional diesel</li>
<li>Configuration: Backhoe</li>
<li>Origin: Joint venture/Import quality</li>
<li>Current Location: Zhejiang, China</li>
</ul>

Available now for fast-track acquisition. Skip months of manufacturing lead times and capitalize on current market opportunities with this inspection-ready unit. Positioned in Zhejiang's strategic logistics hub, this excavator can reach major ports and domestic destinations efficiently. Contact our team to arrange viewing, coordinate shipping logistics, and put this machine to work on your site within days, not quarters.

Discover the reliability and efficiency of the 2022 Sumitomo SH360-5, a top-tier used excavator currently available in Zhejiang, China. This machine is designed for demanding industrial applications, offering robust performance and durability. Ideal for construction, mining, and large-scale earthmoving projects, the SH360-5 is equipped with advanced features that enhance productivity and operator comfort.
<ul>
<li>Year: 2022</li>
<li>Brand: Sumitomo</li>
<li>Model: SH360-5</li>
<li>Location: Zhejiang, China</li>
</ul>

Sumitomo SH360-5

Discover the reliability and efficiency of the 2022 Sumitomo SH360-5 excavator, currently available in Zhejiang, China. This machine is a top-tier choice for construction and excavation projects, offering robust performance and durability. Known for its precision and power, the SH360-5 is designed to handle a wide range of tasks with ease, making it an essential addition to any fleet.
<ul>
<li>Year: 2022</li>
<li>Brand: Sumitomo</li>
<li>Model: SH360-5</li>
<li>Location: Zhejiang, China</li>
</ul>

This 2020 Kobelco SK200-9 excavator represents a well-maintained mid-size crawler excavator currently located in Guangdong, China. The SK200-9 is known for its reliable hydraulic system and responsive controls, making it suitable for a wide range of construction and earthmoving applications.

Key features of this unit include:

<ul>
<li>Responsive hydraulic system with smooth operation</li>
<li>Efficient fuel consumption at idle and under load</li>
<li>Kobelco's proven 20-ton class platform</li>
<li>Well-suited for excavation, loading, and grading work</li>
<li>Available for inspection in Guangdong province</li>
</ul>

This machine offers reliable performance for contractors and operators seeking a dependable excavator from a trusted Japanese manufacturer. The SK200-9 series is recognized for durability and operational efficiency in demanding job site conditions.

Kobelco SK200-9

2021 Kobelco SK500XD-10 hydraulic excavator available from Zhejiang, China. This late-model unit demonstrates excellent operational condition with minimal operational hours, presenting well-maintained major components and hydraulic systems showing no visible leakage. Factory-installed climate control system intact and functional.

<ul>
<li>Year: 2021</li>
<li>Model: SK500XD-10</li>
<li>Location: Zhejiang Province, China</li>
<li>Condition: Well-maintained with comprehensive service records</li>
<li>Major Components: Inspected, no fluid leaks detected</li>
<li>Cab: Original air conditioning system operational</li>
<li>Undercarriage: Approximately 90% remaining life</li>
<li>Documentation: Complete ownership and maintenance records available</li>
<li>Financing: Installment payment options available</li>
</ul>

Suitable for heavy-duty excavation, demolition, and earthmoving applications. Complete documentation package supports international export requirements. Contact for detailed inspection reports and shipping arrangements.

Kobelco SK500XD-10

Available now from Zhejiang, China — skip the factory lead times and get this 2021 Sumitomo SH260LC-6 working on your site fast. Built for demanding excavation projects, this 26-ton machine ships ready to perform with zero waiting on new-unit production queues. Fast deployment means your project timeline stays intact.

Engineered for precision and power, the SH260LC-6 delivers a bucket digging force of 162/174 kN and a maximum digging depth of 6,900 mm — built to handle heavy-duty earthmoving, trenching, and site preparation with confidence.

<ul>
 <li>Working Weight: 25,500 kg | Bucket Capacity: 1.3 m³</li>
 <li>Rated Power: 132.1 kW @ 2,000 rpm | Displacement: 5.193 L</li>
 <li>Max Digging Radius: 10,280 mm | Max Digging Depth: 6,900 mm</li>
 <li>Max Excavation Height: 9,760 mm | Max Unloading Height: 6,760 mm</li>
 <li>Travel Speed: 5.5 / 3.5 km/h | Climbing Ability: 70%</li>
 <li>Fuel Tank: 410 L | Hydraulic System: 250 L</li>
 <li>Track Plate Width: 600 mm | Ground Pressure: 50 kPa</li>
</ul>

Positioned in Zhejiang for efficient port access and export logistics, this unit is ready for immediate inspection and dispatch. Contact us today to confirm availability and arrange shipping to your destination.

This 2020 Doosan DH55-7 compact excavator represents an excellent opportunity for contractors seeking reliable performance in a proven platform. Currently located in Guangdong, China, this machine has accumulated approximately 20,000+ operating hours while maintaining strong operational condition.

The DH55-7 is designed for versatility across construction, utility, and landscaping applications. Its compact footprint enables access to confined jobsites while delivering the digging power needed for productive work. Doosan's established service network and parts availability support long-term operational efficiency.

<ul>
<li>Year of Manufacture: 2020</li>
<li>Model: Doosan DH55-7</li>
<li>Condition: Work-ready, field-tested</li>
<li>Operating Hours: 20,000+</li>
<li>Current Location: Guangdong Province, China</li>
</ul>

This excavator is ready for immediate deployment. Suitable for buyers seeking a mid-duty machine with documented operational history in an established model line.

Doosan DH55-7

This 2020 Caterpillar 312V2 hydraulic excavator is a well-maintained unit ready for immediate deployment. The machine presents in excellent working condition with documented service history. Currently located in Guangdong, China, this mid-size excavator offers proven reliability for contractors and fleet operators seeking dependable performance on construction, infrastructure, and earthmoving projects.

The Cat 312V2 delivers consistent productivity in its weight class, featuring robust hydraulic systems and durable undercarriage components. The operator station provides practical controls and visibility for efficient daily operation. This unit has been professionally maintained and is work-ready upon delivery.

<ul>
<li>Year: 2020</li>
<li>Model: Caterpillar 312V2</li>
<li>Condition: Excellent working order</li>
<li>Location: Guangdong Province, China</li>
<li>Status: Ready for immediate site deployment</li>
</ul>

Caterpillar 312V2

Discover the 2023 Caterpillar 336E, a top-tier excavator available in Hunan, China. This machine is in impeccable condition, reflecting its minimal use and high maintenance standards. Ideal for construction, mining, and infrastructure projects, the 336E model is renowned for its reliability and efficiency. With a robust design and advanced features, it ensures optimal performance on any job site. Whether you are expanding your fleet or looking to upgrade, this Caterpillar 336E is a solid investment.
<ul>
<li>Year: 2023</li>
<li>Brand: Caterpillar</li>
<li>Model: 336E</li>
<li>Location: Hunan, China</li>
<li>Condition: Excellent, meticulously maintained</li>
</ul>

Caterpillar 336E

Discover the reliability and efficiency of the 2017 Caterpillar 320A, available for purchase in Hunan, China. This high-specification model is renowned for its robust performance and durability, making it an ideal choice for a wide range of construction and excavation projects. The 320A is equipped with advanced features that enhance productivity and ease of operation, ensuring it meets the demanding needs of your worksite. Priced competitively, this used machine offers excellent value without compromising on quality or performance. Ideal for businesses looking to expand their fleet with a trusted brand, the Caterpillar 320A is ready to take on your next project.
<ul>
<li>Year: 2017</li>
<li>Brand: Caterpillar</li>
<li>Model: 320A</li>
<li>Location: Hunan, China</li>
</ul>

Caterpillar 320A

Discover the 2015 Sumitomo SH360-5, a robust and reliable excavator, ideal for your heavy-duty construction needs. Located in Fujian, China, this machine has been a preferred choice for refurbishment, offering exceptional value with its strong performance history. Perfect for contractors and industrial operators looking for a cost-effective solution without compromising on quality or durability.
<ul>
<li>Year: 2015</li>
<li>Brand: Sumitomo</li>
<li>Model: SH360-5</li>
<li>Location: Fujian, China</li>
<li>Condition: Ideal for refurbishment, known for reliability and efficiency in various construction applications</li>
</ul>

Discover the reliability and efficiency of the 2020 Caterpillar 308B, now available in Guangdong, China. This compact excavator is designed for a variety of applications, offering versatility and power to meet your project needs. Known for its robust performance and durability, the 308B is an excellent choice for construction, landscaping, and utility work. It features easy maintenance access and a comfortable operator station, ensuring productivity and ease of use. Ideal for tight spaces and challenging terrains, this machine is ready to enhance your fleet's capabilities.
<ul>
<li>Year: 2020</li>
<li>Brand: Caterpillar</li>
<li>Model: 308B</li>
<li>Location: Guangdong, China</li>
</ul>

Specifications	Value
No.	1134584
Tonnage (tons)	7
Working weight (kg)	6500
Bucket capacity (m³)	0.32-0.39
Boom length (mm)	3710
Rod length (mm)	1650
Country of origin	Jining, Shandong Province
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	Komatsu SAA4D95LE-5
Rated power (kw/rpm)	48.5/1950
Cooling mode	water-cooling
Cylinder diameter × stroke (mm)	95*115
Number of cylinders (PCS)	4
Displacement (L)	3.26
Working form	Turbocharged, post-cooled
Ground specific pressure (Kpa)	30.2
Rotation speed (rpm)	11
Bucket digging force (kN)	54.8
Rod digging force (kN)	38.2
Maximum tractive force (kN)	56.4
Travel speed (km/h)	4.5/2.8
Maximum flow of main pump (l/min)	172
Traveling Hydraulic Circuit (Mpa)	24.5
Rotary Hydraulic Circuit (Mpa)	21.1
Main pump type	Variable piston pump
Working Hydraulic Circuit (Mpa)	24.5
Pilot Oil Circuit (MPa)	2.9
Bucket cylinders - Number × diameter × stroke (mm)	1-90*710
Bucket rod cylinders - Number × diameter × stroke (mm)	1-100*865
Boom cylinders - Number × diameter × stroke (mm)	1-115*840
Fuel Tank (L)	130
Hydraulic Tank (L)	95
Engine Oil changes (L)	12.5
Total transport length (mm)	6080
Total transport width (mm)	2225
Total transport height (mm)	2620
Counterweight ground clearance (mm)	750
Minimum ground clearance (mm)	350
Back end turning radius (mm)	1750
Total track length (mm)	2765
Track gauge (mm)	1700
Track plate width (mm)	450
Total track width (mm)	2150
Track ground length (mm)	2130
Number of sprockets (single side) (each)	1
Number of wheels (single side) (each)	5
Number of track plates (single side) (PCS)	38
Maximum digging radius (mm)	6360
Maximum digging depth (mm)	4100
Maximum excavation height (mm)	7150
Maximum unloading height (mm)	5015
Maximum vertical digging depth (mm)	3505
Maximum excavation radius of stop surface (mm)	6220

2016 Komatsu PC70-8
