HOME>>Komatsu>>Komatsu PC70-8

2016 Komatsu PC70-8

1/7

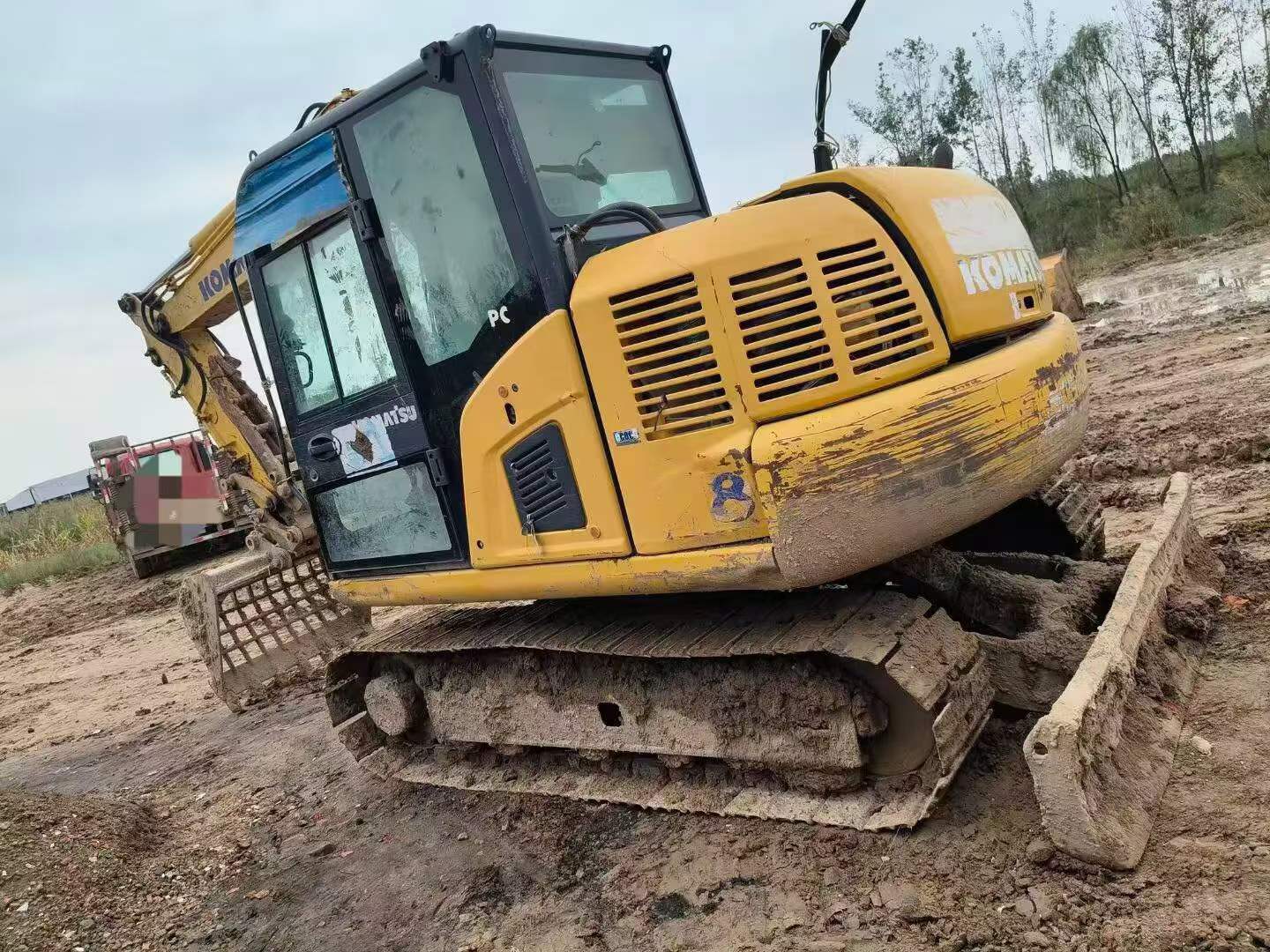

Buy Komatsu PC70-8 Used Excavator / 1

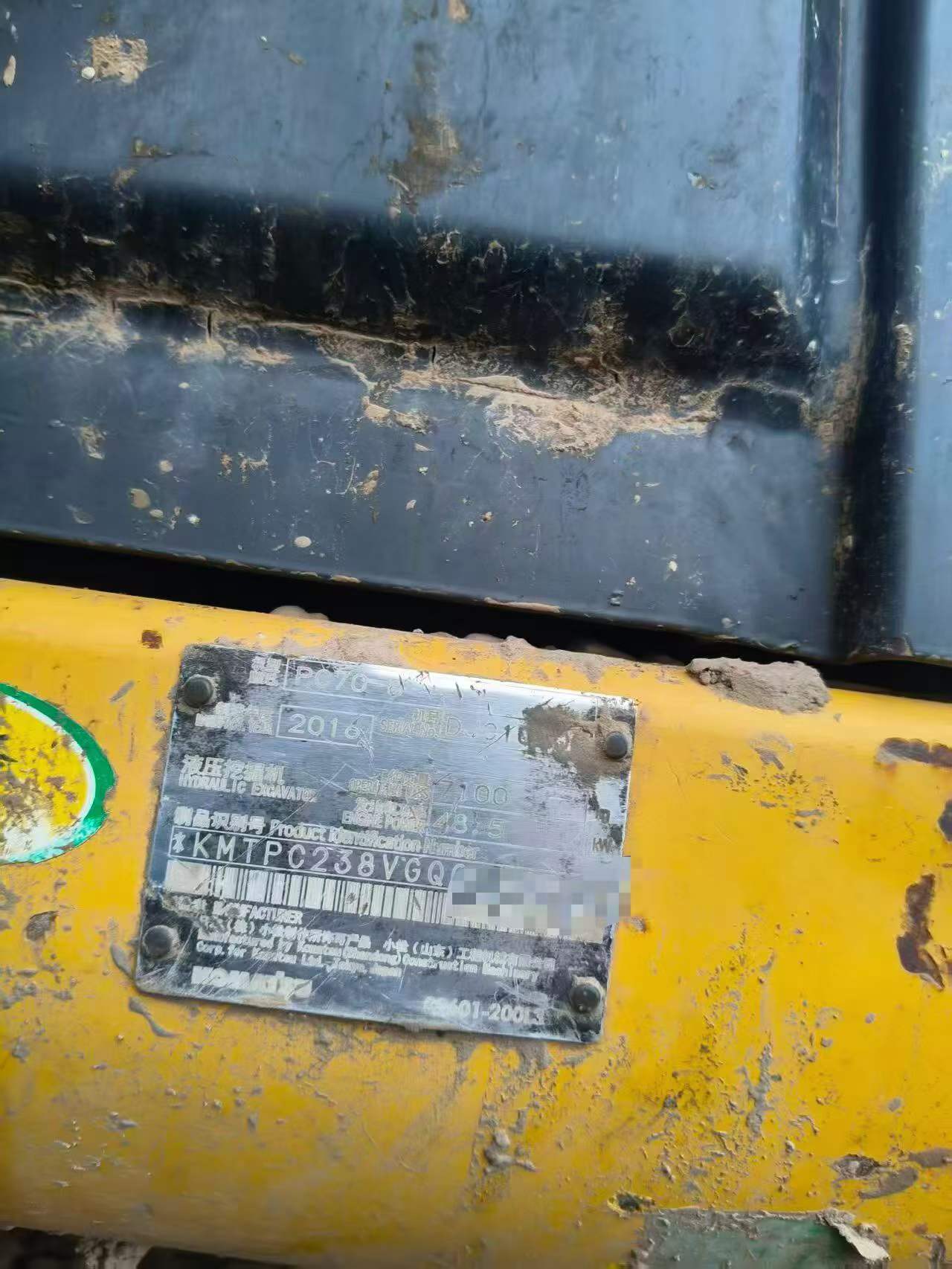

Buy Komatsu PC70-8 Used Excavator / 2

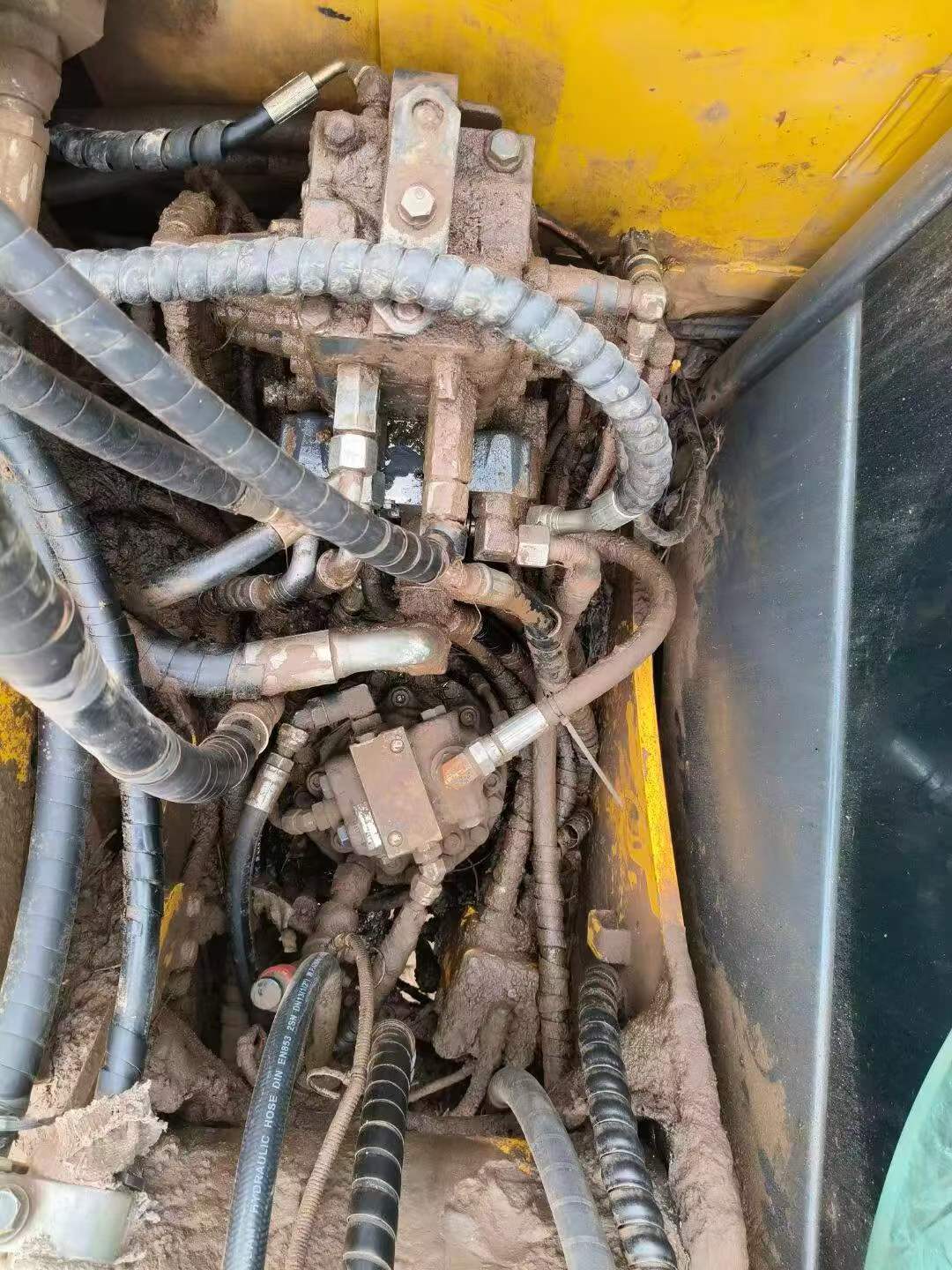

Buy Komatsu PC70-8 Used Excavator / 3

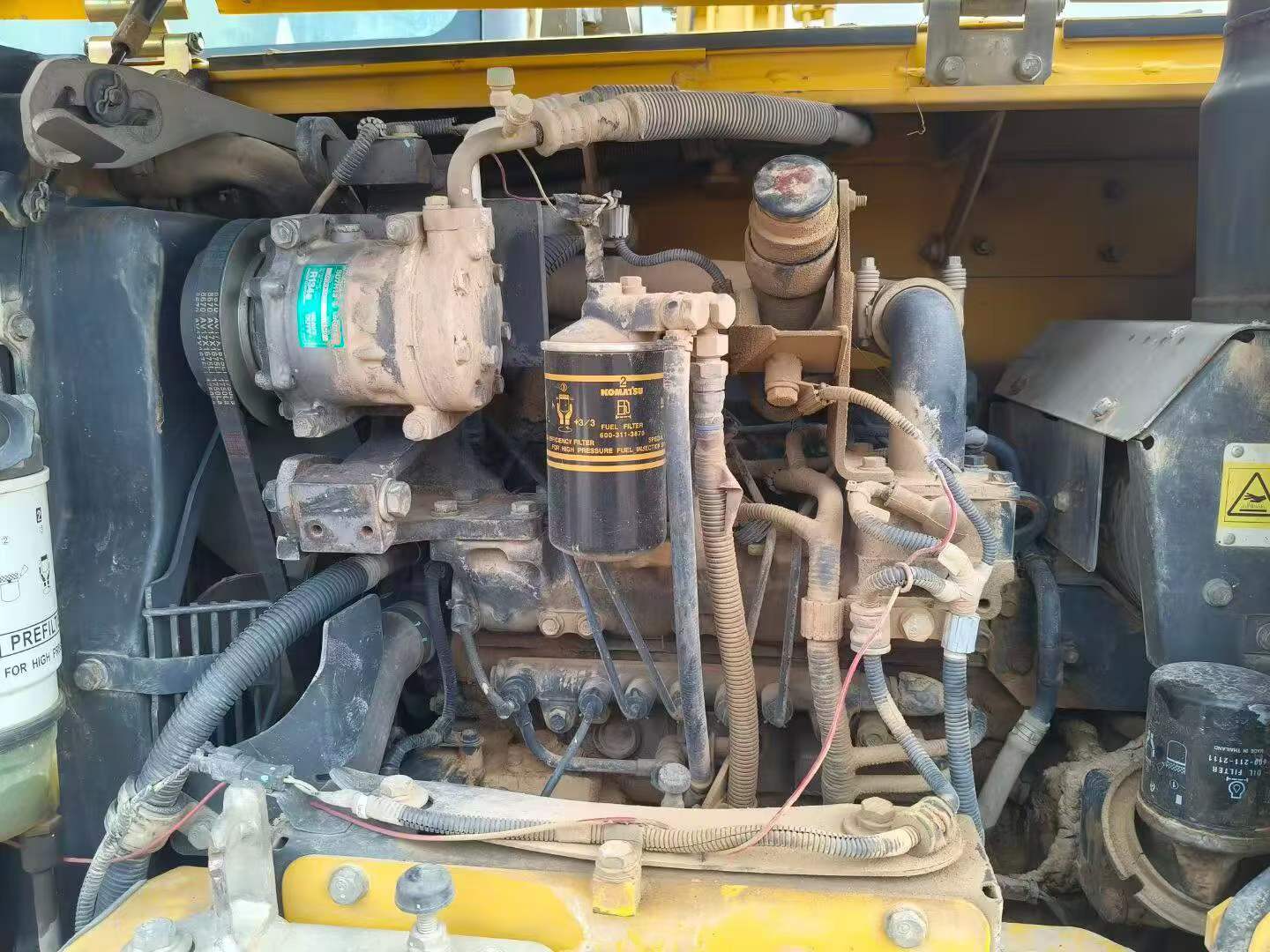

Buy Komatsu PC70-8 Used Excavator / 4

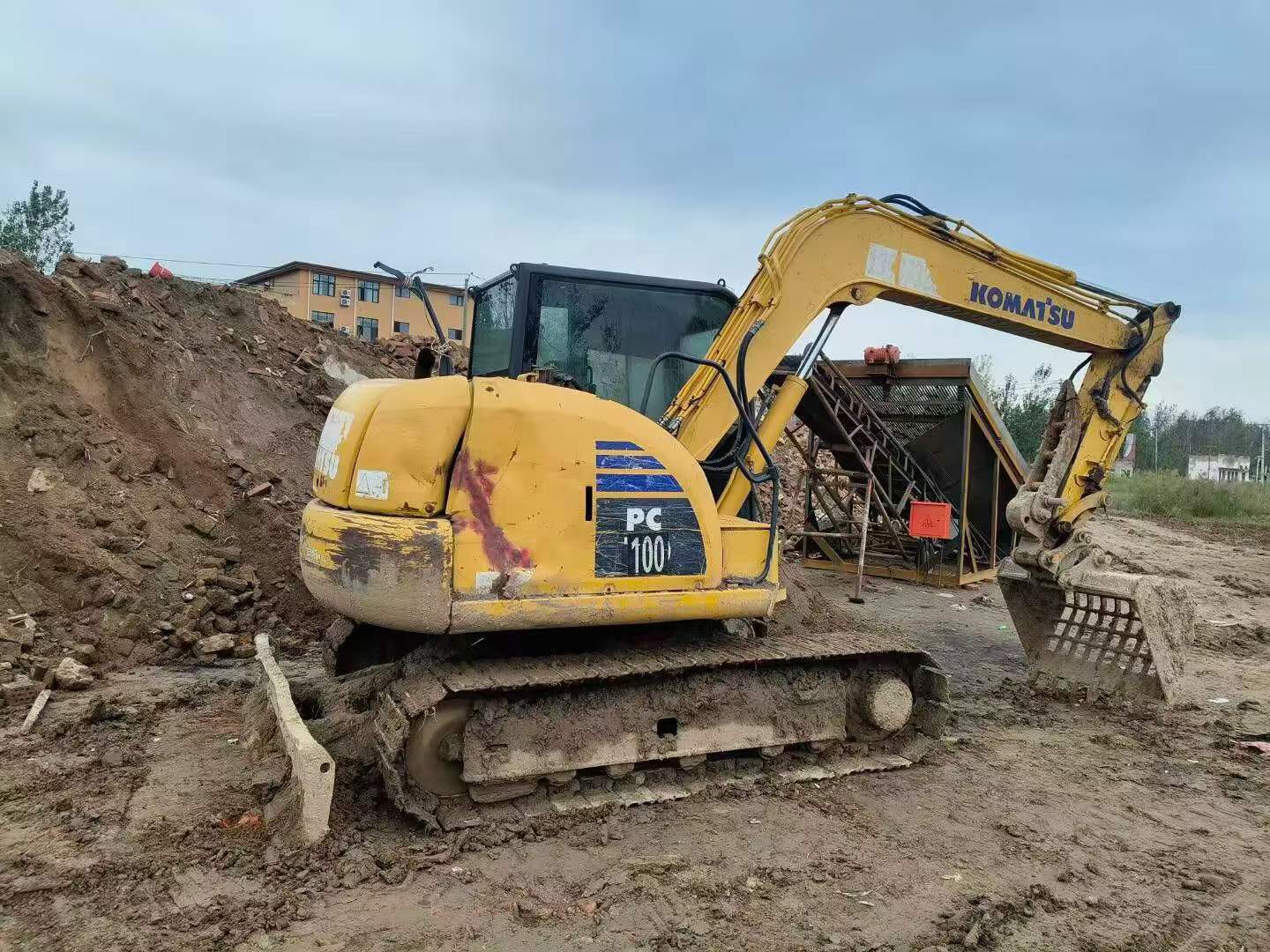

Buy Komatsu PC70-8 Used Excavator / 5

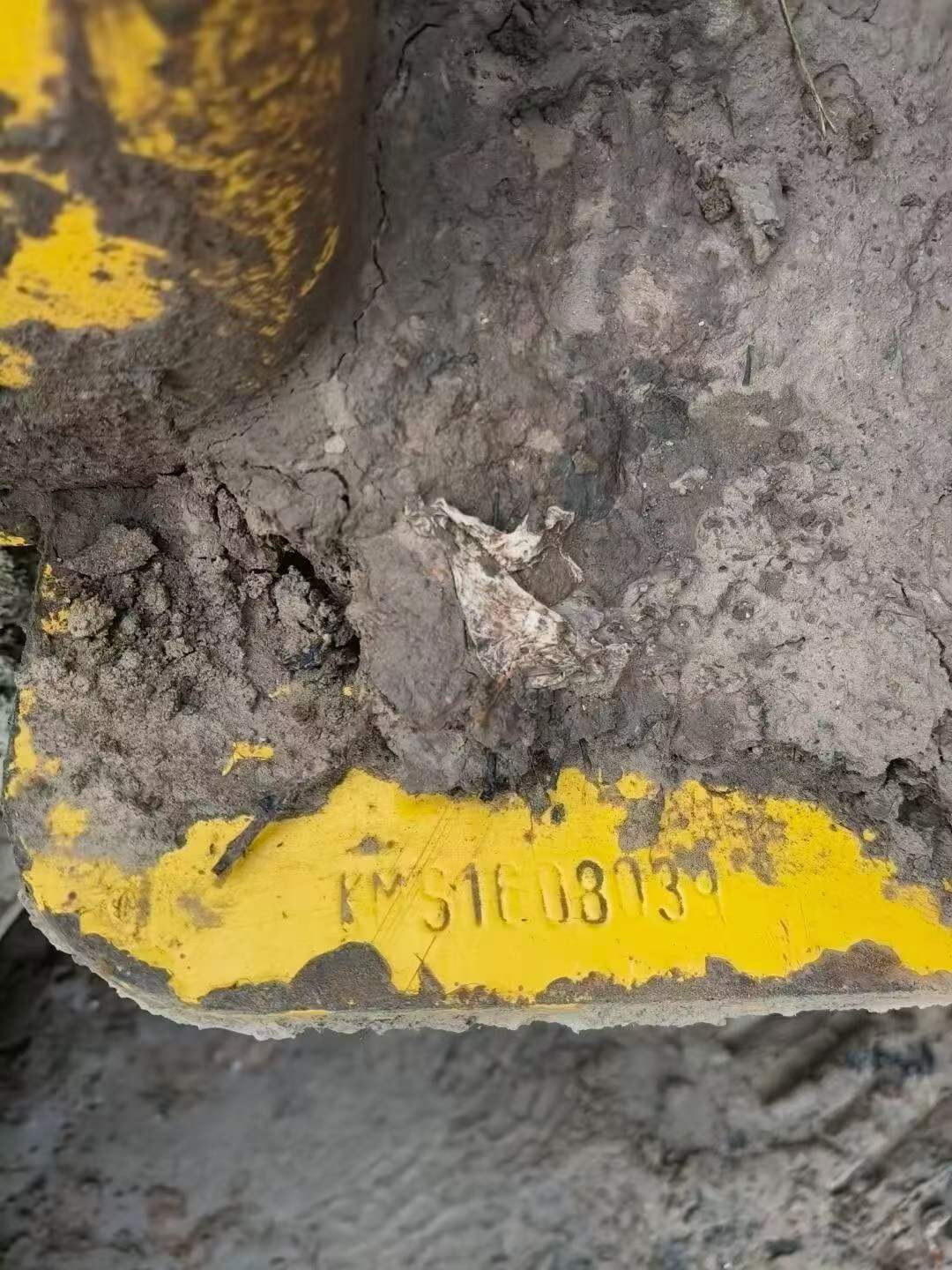

Buy Komatsu PC70-8 Used Excavator / 6

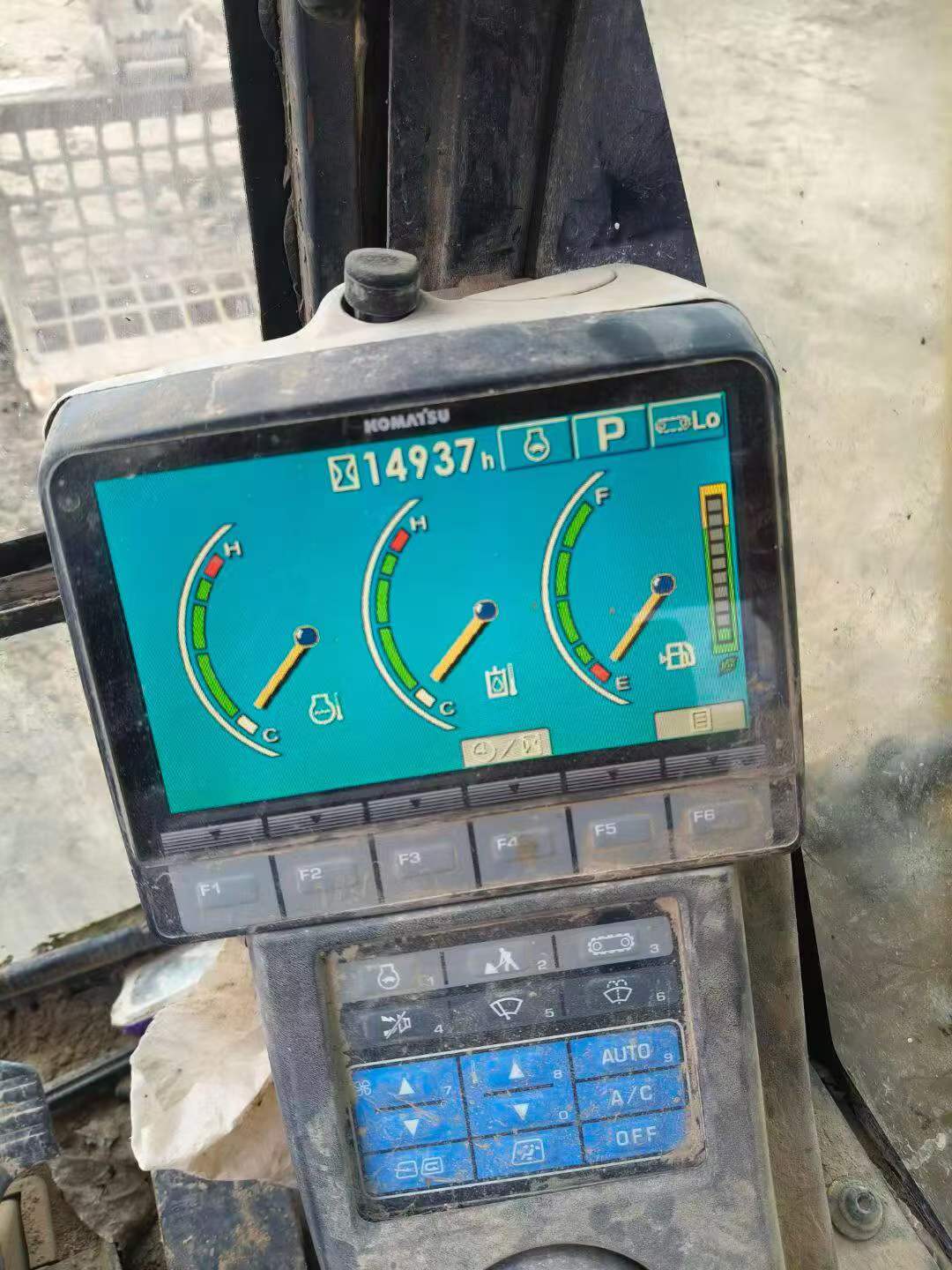

Buy Komatsu PC70-8 Used Excavator / 7

Product Description

This 2016 Komatsu PC70-8 midi excavator offers reliable performance for construction and earthmoving applications. With its compact 7-ton class design, this machine delivers excellent maneuverability in confined job sites while maintaining robust digging capabilities. The PC70-8 features Komatsu's proven hydraulic system and fuel-efficient engine technology, ensuring productive operation and lower operating costs.

Key specifications and features:

  • Operating weight: Approximately 7,000 kg
  • Net horsepower: 40.3 kW (54 HP)
  • Bucket capacity range: 0.16-0.28 m³
  • Maximum digging depth: 4,120 mm
  • Maximum reach at ground level: 6,480 mm
  • Enclosed ROPS cab with air conditioning
  • Hydraulic quick coupler compatible

Currently located in Shandong, China, this unit is ready for inspection. The PC70-8 is well-suited for utility work, landscaping, and general excavation projects requiring a versatile midi excavator with proven Japanese engineering.

SpecificationsValue
No.1157801
Tonnage (tons)7
Working weight (kg)6500
Bucket capacity (m³)0.32-0.39
Boom length (mm)3710
Rod length (mm)1650
Country of originJining, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA4D95LE-5
Rated power (kw/rpm)48.5/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95*115
Number of cylinders (PCS)4
Displacement (L)3.26
Working formTurbocharged, post-cooled
Ground specific pressure (Kpa)30.2
Rotation speed (rpm)11
Bucket digging force (kN)54.8
Rod digging force (kN)38.2
Maximum tractive force (kN)56.4
Travel speed (km/h)4.5/2.8
Maximum flow of main pump (l/min)172
Traveling Hydraulic Circuit (Mpa)24.5
Rotary Hydraulic Circuit (Mpa)21.1
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)24.5
Pilot Oil Circuit (MPa)2.9
Bucket cylinders - Number × diameter × stroke (mm)1-90*710
Bucket rod cylinders - Number × diameter × stroke (mm)1-100*865
Boom cylinders - Number × diameter × stroke (mm)1-115*840
Fuel Tank (L)130
Hydraulic Tank (L)95
Engine Oil changes (L)12.5
Total transport length (mm)6080
Total transport width (mm)2225
Total transport height (mm)2620
Counterweight ground clearance (mm)750
Minimum ground clearance (mm)350
Back end turning radius (mm)1750
Total track length (mm)2765
Track gauge (mm)1700
Track plate width (mm)450
Total track width (mm)2150
Track ground length (mm)2130
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6360
Maximum digging depth (mm)4100
Maximum excavation height (mm)7150
Maximum unloading height (mm)5015
Maximum vertical digging depth (mm)3505
Maximum excavation radius of stop surface (mm)6220
see more

Overview

No.1157801

Brand Name:

Komatsu

Model Number:

PC70-8

Year:

2016

Location:

Shandong China

Pub Date:

Are you interested in this machine?

Please contact us
