Product Description

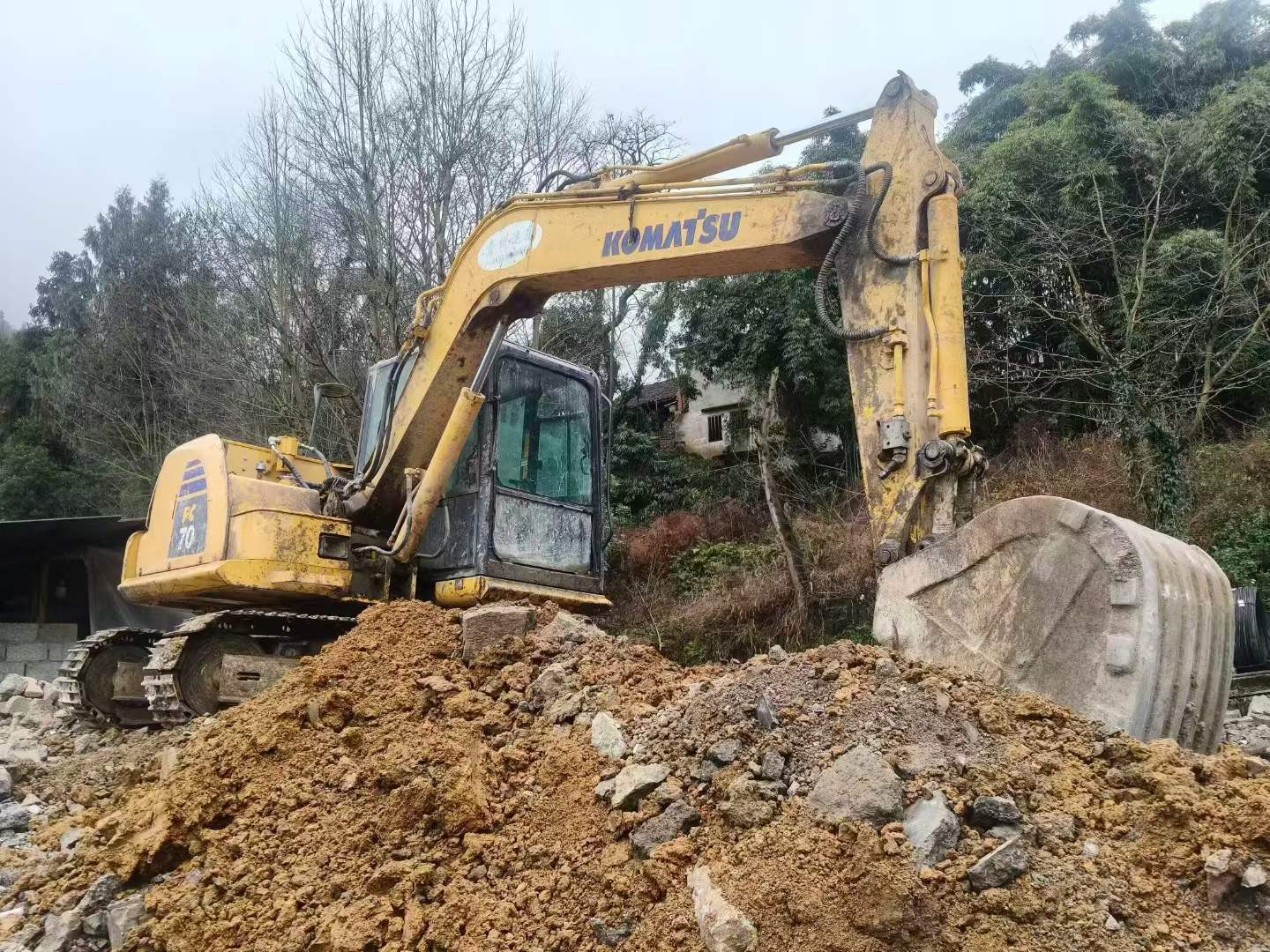

Strengthen your operational capacity with this 2018 Komatsu PC70-8, a proven 7-ton excavator engineered for reliable fleet integration. Powered by the Komatsu SAA4D95LE-5 engine delivering 48.5kW at 1950rpm, this machine provides consistent performance across demanding jobsites. Currently located in Guizhou, this unit serves as an ideal backup or supplementary asset for contractors managing multiple projects simultaneously.
Built with a 3710mm boom and 1650mm arm, the PC70-8 achieves a maximum digging reach of 6360mm and depth of 4100mm. Bucket digging force reaches 54.8kN, while the variable piston pump system ensures responsive hydraulic performance through a 172 l/min main pump flow. Compact transport dimensions of 6080mm length and 2225mm width facilitate efficient mobilization between sites.
- Working weight: 6500kg with 0.32-0.39m³ bucket capacity

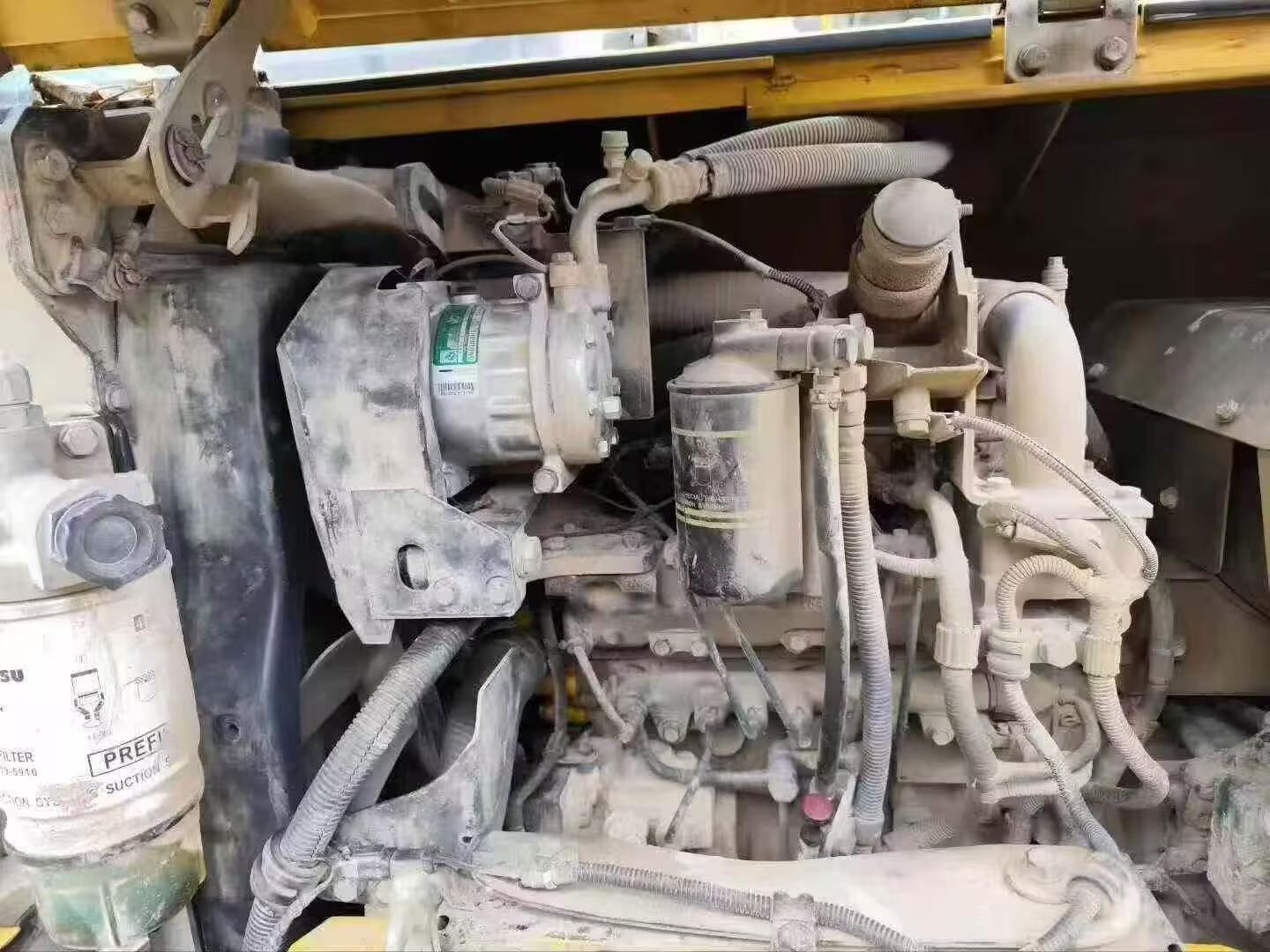

- Water-cooled turbocharged engine with 3.26L displacement
- 130L fuel tank and 95L hydraulic reservoir for extended operation
- Travel speed: 4.5/2.8 km/h with 56.4kN maximum tractive force

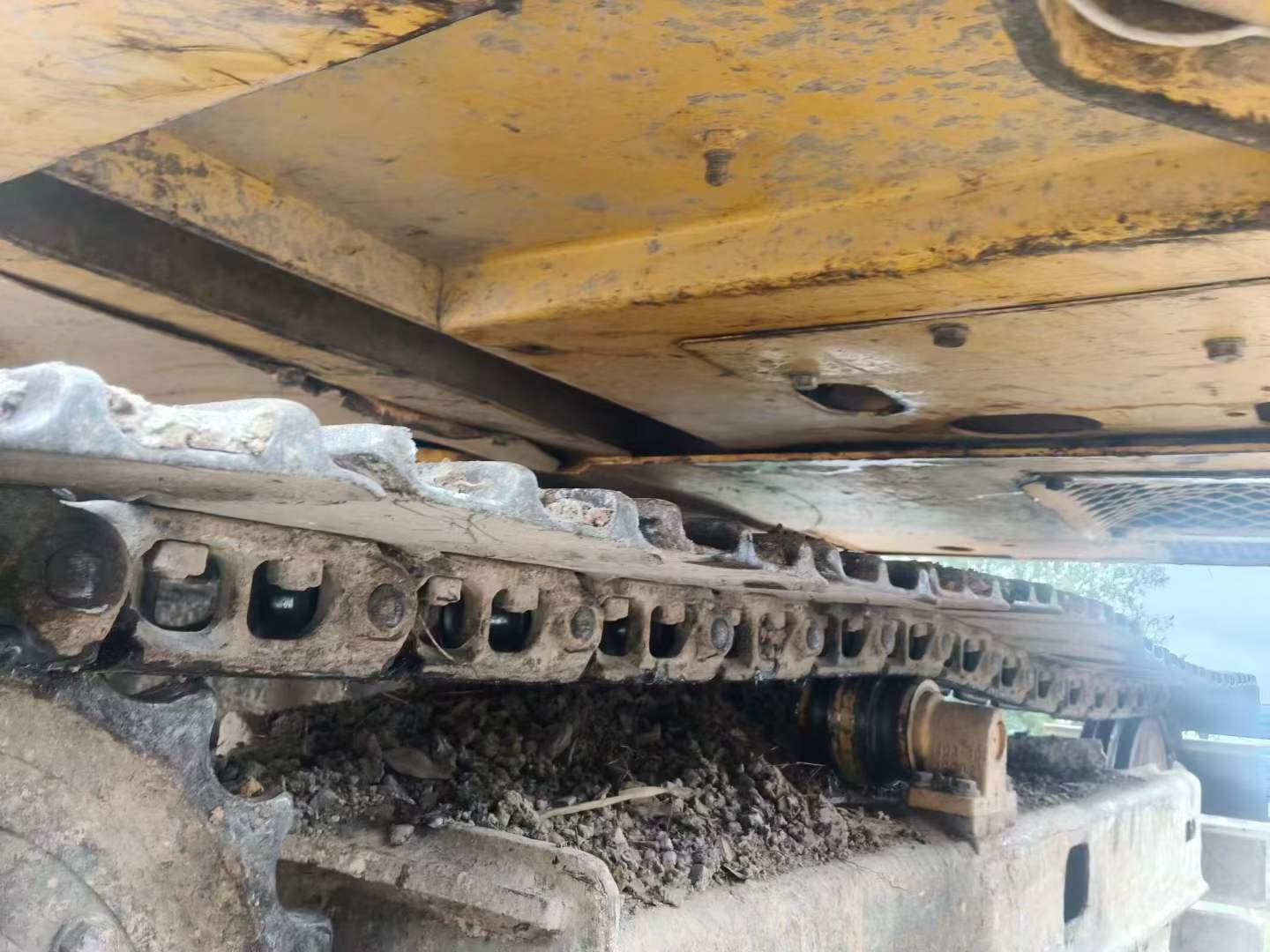

- 450mm track plates delivering 30.2kPa ground pressure
| Specifications | Value |
|---|---|
| No. | 1005739 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6500 |
| Bucket capacity (m³) | 0.32-0.39 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-5 |
| Rated power (kw/rpm) | 48.5/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95*115 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.26 |
| Working form | Turbocharged, post-cooled |
| Ground specific pressure (Kpa) | 30.2 |
| Rotation speed (rpm) | 11 |
| Bucket digging force (kN) | 54.8 |
| Rod digging force (kN) | 38.2 |
| Maximum tractive force (kN) | 56.4 |
| Travel speed (km/h) | 4.5/2.8 |
| Maximum flow of main pump (l/min) | 172 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 21.1 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Pilot Oil Circuit (MPa) | 2.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-90*710 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-100*865 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-115*840 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 95 |
| Engine Oil changes (L) | 12.5 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2225 |
| Total transport height (mm) | 2620 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2150 |
| Track ground length (mm) | 2130 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6360 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5015 |
| Maximum vertical digging depth (mm) | 3505 |
| Maximum excavation radius of stop surface (mm) | 6220 |
