2020 Komatsu PC70-8

1/9
Buy Komatsu PC70-8 Used Excavator / 1
Buy Komatsu PC70-8 Used Excavator / 2
Buy Komatsu PC70-8 Used Excavator / 3
Buy Komatsu PC70-8 Used Excavator / 4
Buy Komatsu PC70-8 Used Excavator / 5
Buy Komatsu PC70-8 Used Excavator / 6
Buy Komatsu PC70-8 Used Excavator / 7
Buy Komatsu PC70-8 Used Excavator / 8
Buy Komatsu PC70-8 Used Excavator / 9

Product Description

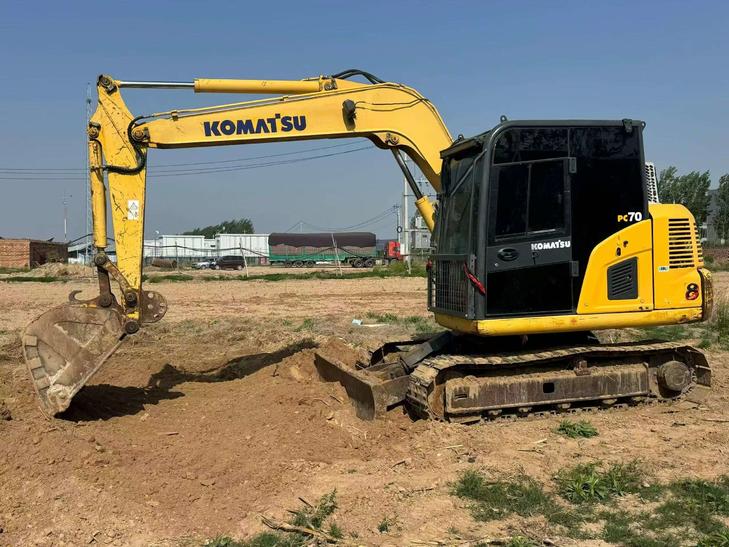

This 2020 Komatsu PC70-8 excavator represents a rare opportunity to acquire a well-maintained machine in exceptional original condition. Located in Beijing, China, this unit retains its factory paint and original components throughout, indicating careful ownership and minimal wear. The machine comes equipped with a dozer blade for enhanced versatility on site, allowing operators to perform grading and backfilling tasks without additional equipment.

Key features include:

  • Original factory paint and unmodified configuration
  • Integrated dozer blade for multi-function capability
  • Verified performance and power systems requiring no inspection
  • Premium condition with documented maintenance history

The PC70-8 offers reliable hydraulic performance and fuel efficiency suited for construction, landscaping, and utility applications. This turnkey machine is ready for immediate deployment in demanding work environments.

SpecificationsValue
No.1172287
Tonnage (tons)7
Working weight (kg)6500
Bucket capacity (m³)0.32-0.39
Boom length (mm)3710
Rod length (mm)1650
Country of originJining, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA4D95LE-5
Rated power (kw/rpm)48.5/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95*115
Number of cylinders (PCS)4
Displacement (L)3.26
Working formTurbocharged, post-cooled
Ground specific pressure (Kpa)30.2
Rotation speed (rpm)11
Bucket digging force (kN)54.8
Rod digging force (kN)38.2
Maximum tractive force (kN)56.4
Travel speed (km/h)4.5/2.8
Maximum flow of main pump (l/min)172
Traveling Hydraulic Circuit (Mpa)24.5
Rotary Hydraulic Circuit (Mpa)21.1
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)24.5
Pilot Oil Circuit (MPa)2.9
Bucket cylinders - Number × diameter × stroke (mm)1-90*710
Bucket rod cylinders - Number × diameter × stroke (mm)1-100*865
Boom cylinders - Number × diameter × stroke (mm)1-115*840
Fuel Tank (L)130
Hydraulic Tank (L)95
Engine Oil changes (L)12.5
Total transport length (mm)6080
Total transport width (mm)2225
Total transport height (mm)2620
Counterweight ground clearance (mm)750
Minimum ground clearance (mm)350
Back end turning radius (mm)1750
Total track length (mm)2765
Track gauge (mm)1700
Track plate width (mm)450
Total track width (mm)2150
Track ground length (mm)2130
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6360
Maximum digging depth (mm)4100
Maximum excavation height (mm)7150
Maximum unloading height (mm)5015
Maximum vertical digging depth (mm)3505
Maximum excavation radius of stop surface (mm)6220
see more

Overview

No.1172287

Brand Name:

Komatsu

Model Number:

PC70-8

Year:

2020

Location:

Peking China

Pub Date:
