2020 Komatsu PC70-8

1/4

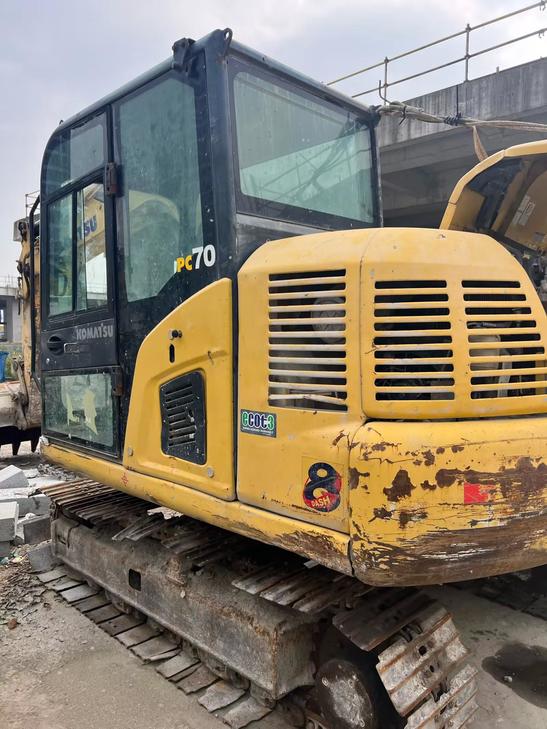

Buy Komatsu PC70-8 Used Excavator / 1
Buy Komatsu PC70-8 Used Excavator / 2
Buy Komatsu PC70-8 Used Excavator / 3
Buy Komatsu PC70-8 Used Excavator / 4

Product Description

Discover the reliability and efficiency of the 2020 Komatsu PC70-8, available now in Yunnan, China. This compact excavator is a robust choice for various construction and excavation projects, offering a blend of power, maneuverability, and ease of maintenance. Known for its durable design, the PC70-8 is an excellent addition to any fleet, providing consistent performance and cost-effective operation. With comprehensive documentation available, this machine is ready to meet your project needs at a competitive price.

  • Year: 2020
  • Brand: Komatsu
  • Model: PC70-8
  • Location: Yunnan, China
  • Well-maintained and fully documented
  • Affordable pricing
SpecificationsValue
No.1174796
Tonnage (tons)7
Working weight (kg)6500
Bucket capacity (m³)0.32-0.39
Boom length (mm)3710
Rod length (mm)1650
Country of originJining, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA4D95LE-5
Rated power (kw/rpm)48.5/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95*115
Number of cylinders (PCS)4
Displacement (L)3.26
Working formTurbocharged, post-cooled
Ground specific pressure (Kpa)30.2
Rotation speed (rpm)11
Bucket digging force (kN)54.8
Rod digging force (kN)38.2
Maximum tractive force (kN)56.4
Travel speed (km/h)4.5/2.8
Maximum flow of main pump (l/min)172
Traveling Hydraulic Circuit (Mpa)24.5
Rotary Hydraulic Circuit (Mpa)21.1
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)24.5
Pilot Oil Circuit (MPa)2.9
Bucket cylinders - Number × diameter × stroke (mm)1-90*710
Bucket rod cylinders - Number × diameter × stroke (mm)1-100*865
Boom cylinders - Number × diameter × stroke (mm)1-115*840
Fuel Tank (L)130
Hydraulic Tank (L)95
Engine Oil changes (L)12.5
Total transport length (mm)6080
Total transport width (mm)2225
Total transport height (mm)2620
Counterweight ground clearance (mm)750
Minimum ground clearance (mm)350
Back end turning radius (mm)1750
Total track length (mm)2765
Track gauge (mm)1700
Track plate width (mm)450
Total track width (mm)2150
Track ground length (mm)2130
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6360
Maximum digging depth (mm)4100
Maximum excavation height (mm)7150
Maximum unloading height (mm)5015
Maximum vertical digging depth (mm)3505
Maximum excavation radius of stop surface (mm)6220
see more

Overview

No.1174796

Brand Name:

Komatsu

Model Number:

PC70-8

Year:

2020

Location:

Yunnan China

Pub Date:
