Product Description

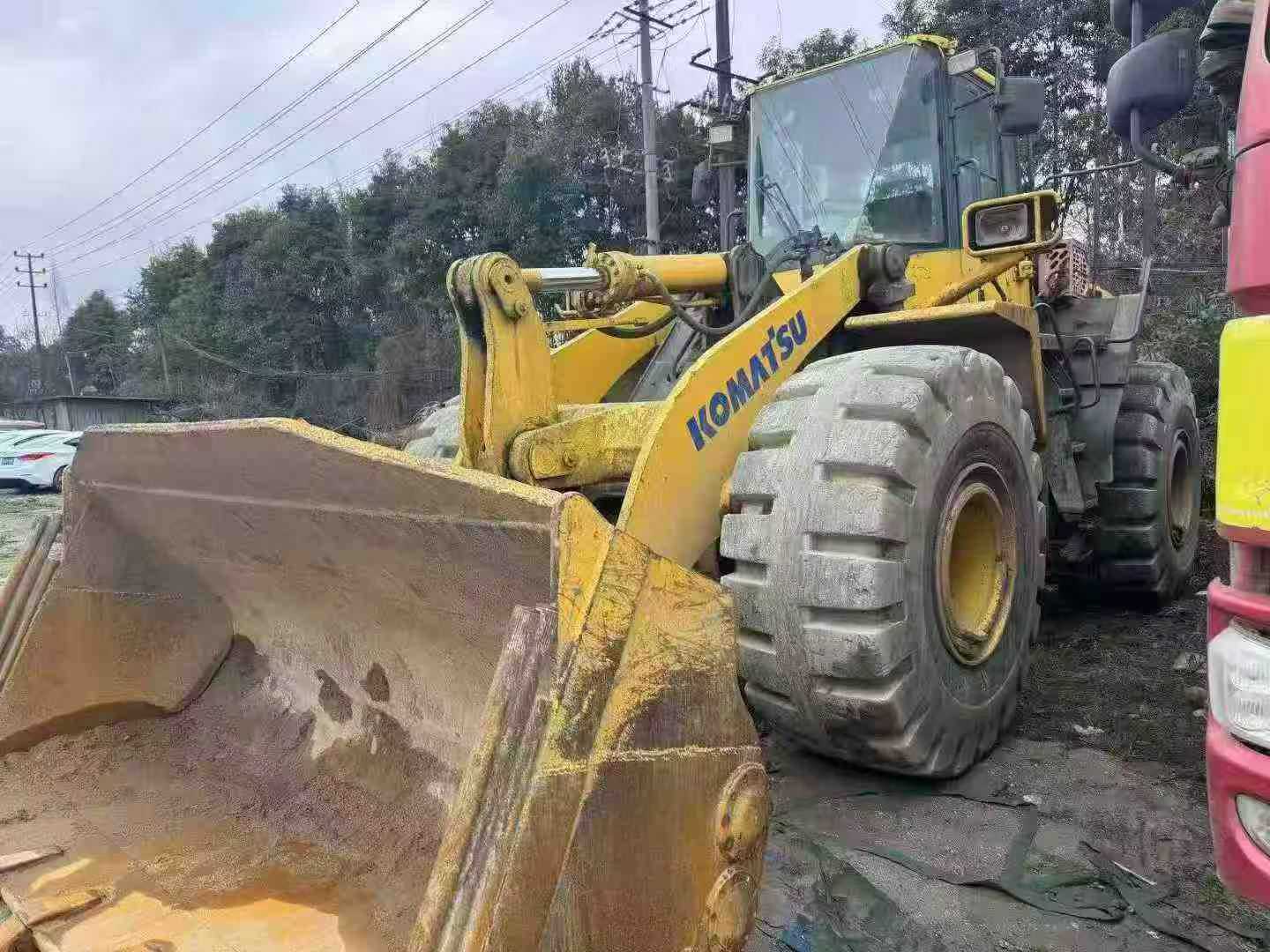

Maximize productivity without the capital expense of new equipment. This 2017 Komatsu WA470 wheel loader delivers exceptional value with proven performance specifications that rival current models. Powered by a robust 194kW engine and equipped with a 3.3-3.9m³ bucket capacity, this machine handles 7,000kg rated loads with a digging force of 205.8kN. Operating weight of 21,690kg provides stability for demanding applications, while the 190kN maximum tractive force ensures reliable performance in challenging terrain.
Currently located in Kunming, Yunnan, this loader features four forward speeds reaching up to 36.6km/h for efficient cycle times. Quick hydraulic response times—6.3s lift, 1.6s unloading, and 11.6s total cycle—translate directly to higher hourly production rates. With an outside turning radius of just 5,820mm and 40° steering angle, maneuverability matches modern standards.
- Rated Power: 194kW at 2200rpm
- Bucket Capacity: 3.3-3.9m³
- Operating Weight: 21,690kg
- Unloading Height: 3,275mm (45° angle)
- Hydraulic Flow: 158L/min at 20.6MPa
Acquire proven Komatsu engineering at a fraction of replacement cost. Smart buyers recognize the value equation.
| Specifications | Value |
|---|---|
| No. | 1032164 |
| Engine type | |
| Rated power (kw/rpm) | 194/2200 |
| Cooling mode | |
| Cylinder diameter × stroke (mm) | |
| Working form | |
| Bucket capacity (m³) | 3.3/3.9 |
| Rated load (tons) | |
| Rated load (kg) | 7000 |
| Digging force (lifting force) (kN) | 205.8 |
| Machine operating weight (kg) | 21690 |
| Unloading height - Unloading Angle 45°(mm) | 3275 |
| Unloading distance - Unloading Angle 45°(mm) | 1280 |
| Maximum tractive force (kN) | 190 |
| Loading position height (mm) | 4355 |
| Wheelbase (mm) | 3400 |
| Wheel base (mm) | 3010 |
| Minimum ground clearance (mm) | 525 |
| Machine length (mm) | 8560 |
| Machine width (mm) | 3010 |
| Machine height (mm) | 3490 |
| Maximum length (mm) | 8810 |
| Maximum total height (mm) | 6000 |
| Bucket width (mm) | 3200 |
| Transaxle swing Angle (°) | 80 |
| Steering Angle | 40 |
| Minimum turning radius of outer wheel center line | 5820 |
| Turning radius - Outside of bucket (mm) | 40 |
| Hydraulic pump type | |
| Flow rated speed (l/min) | 158 |
| Rated working pressure (bars) | 20.6Mpa |
| Boom cylinder diameter × stroke (mm×mm) | |
| Bucket cylinder diameter × stroke (mm×mm) | |
| Lift (s) | 6.3 |
| Unloading (s) | 1.6 |
| Lower empty bucket (s) | 3.7 |
| Ternary sum (s) | 11.6 |
| Gearbox brand and model | |
| Speed 1 gear (km/h) | 7.0/7.2 |
| Speed 2 (km/h) | 12.5/13.2 |
| Speed 3 (km/h) | 22.2/23.1 |
| Speed 4 (km/h) | 35.3/36.6 |
