Product Description

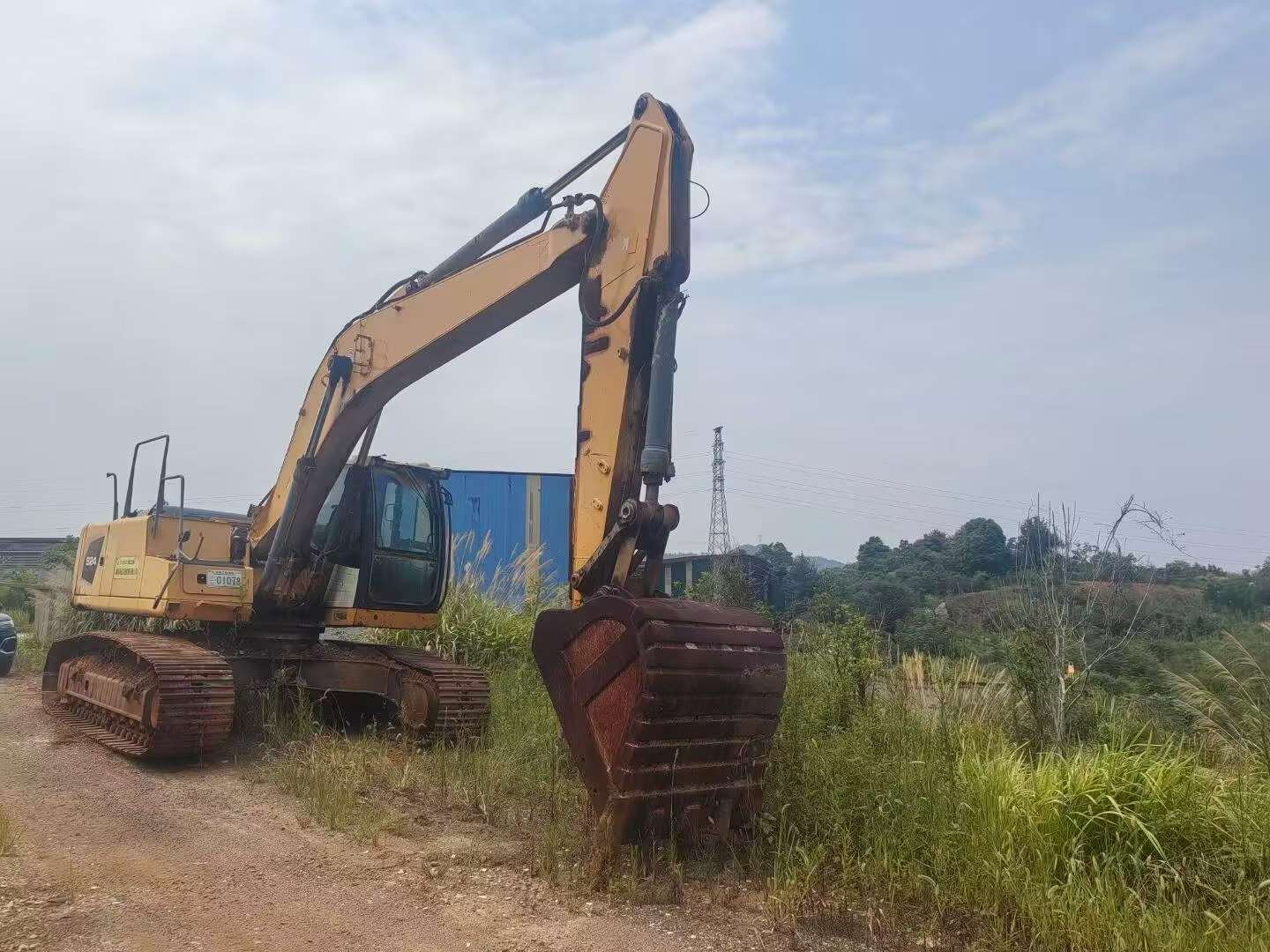

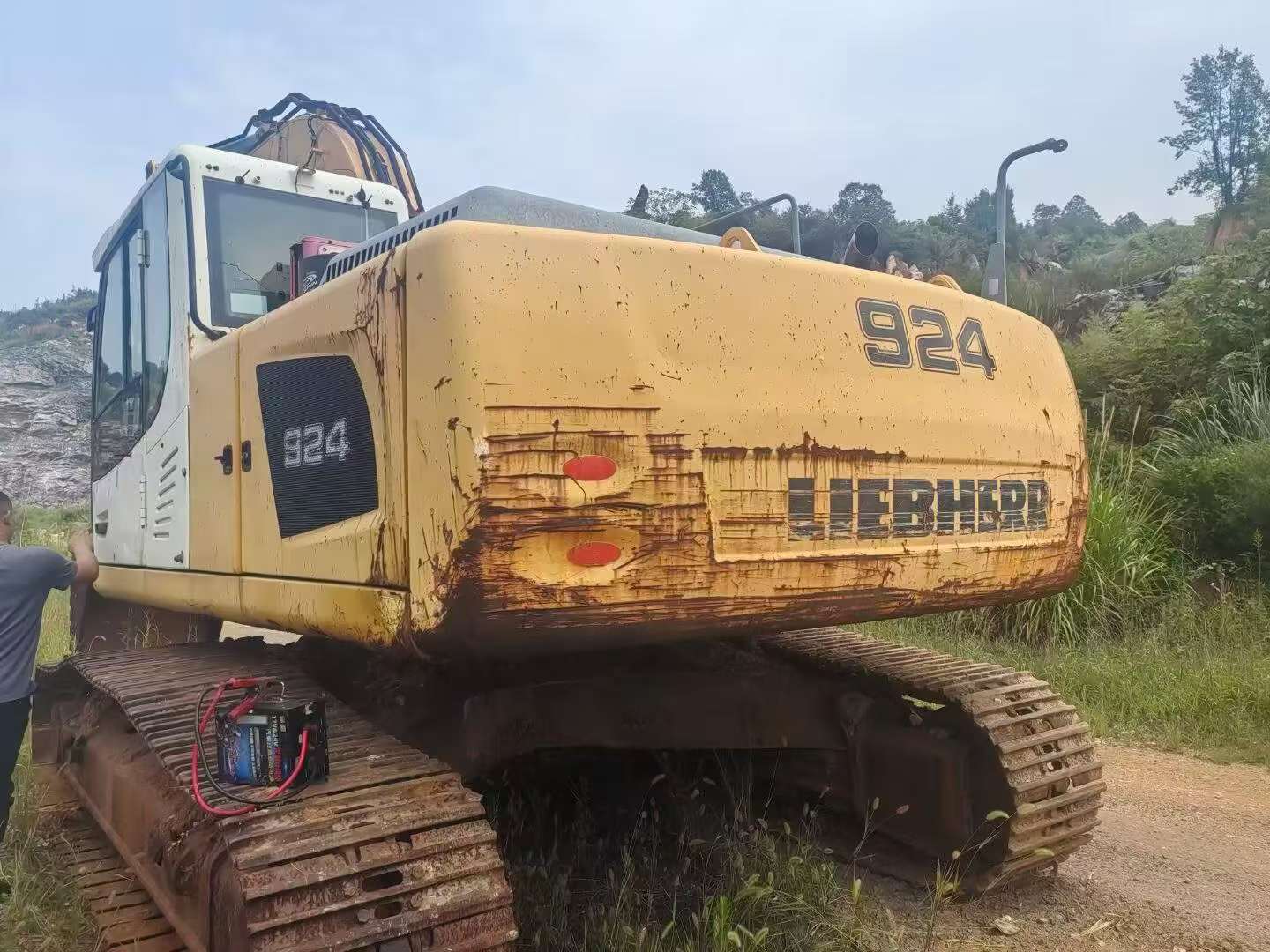

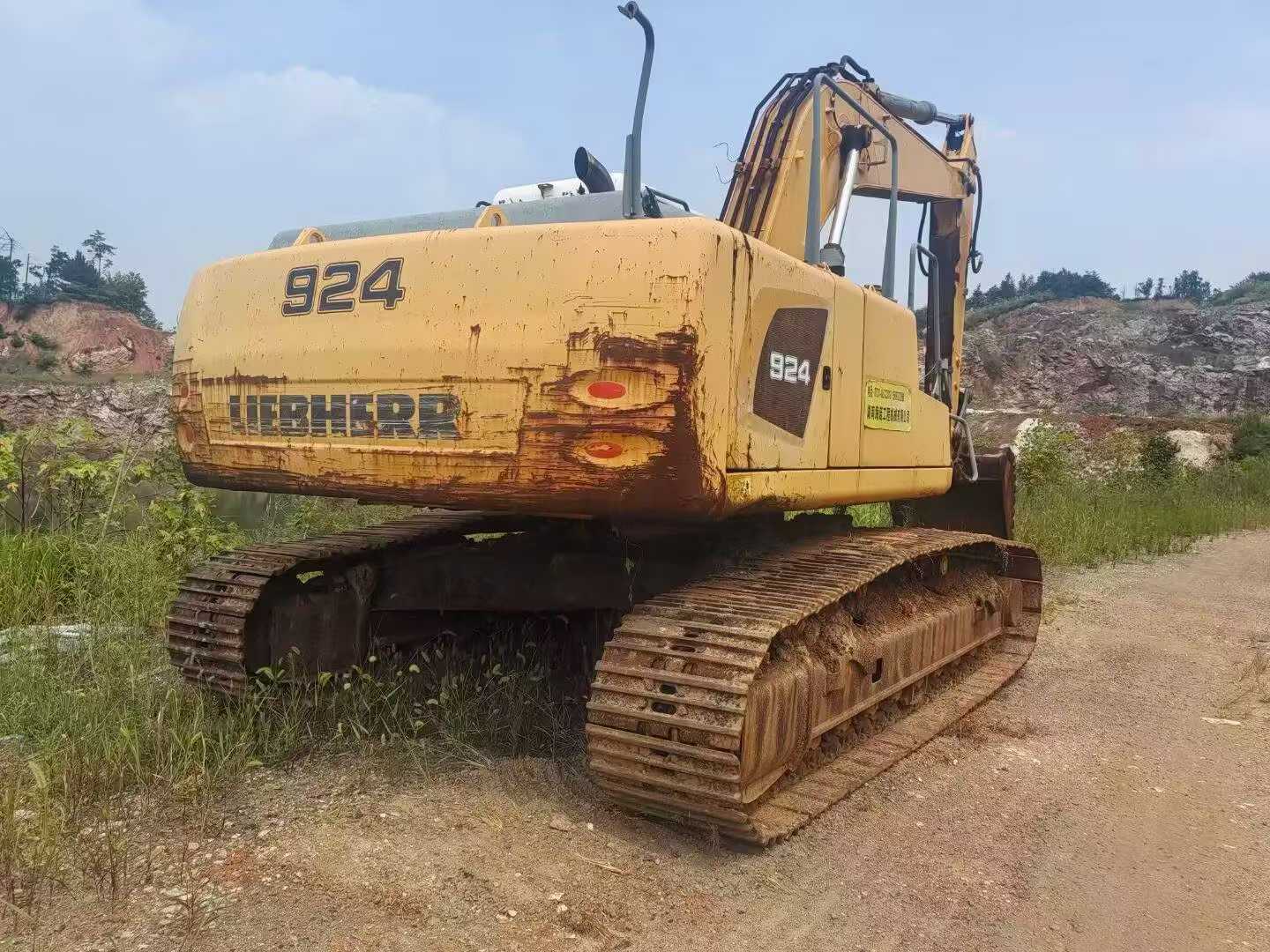

Discover the 2018 Liebherr R924, a premium used excavator available in Hunan, China. This machine is in excellent condition, with major components showcasing its well-maintained history. Ideal for construction and excavation projects, the R924 offers reliability and efficiency, ensuring that your operations run smoothly and productively. We invite you to inquire further if this robust and versatile excavator aligns with your project needs.
- Year: 2018
- Brand: Liebherr
- Model: R924
- Location: Hunan, China
| Specifications | Value |
|---|---|
| No. | 1131934 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23,900-24,850 |
| Bucket capacity (m³) | 1.45 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2000/2500/3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

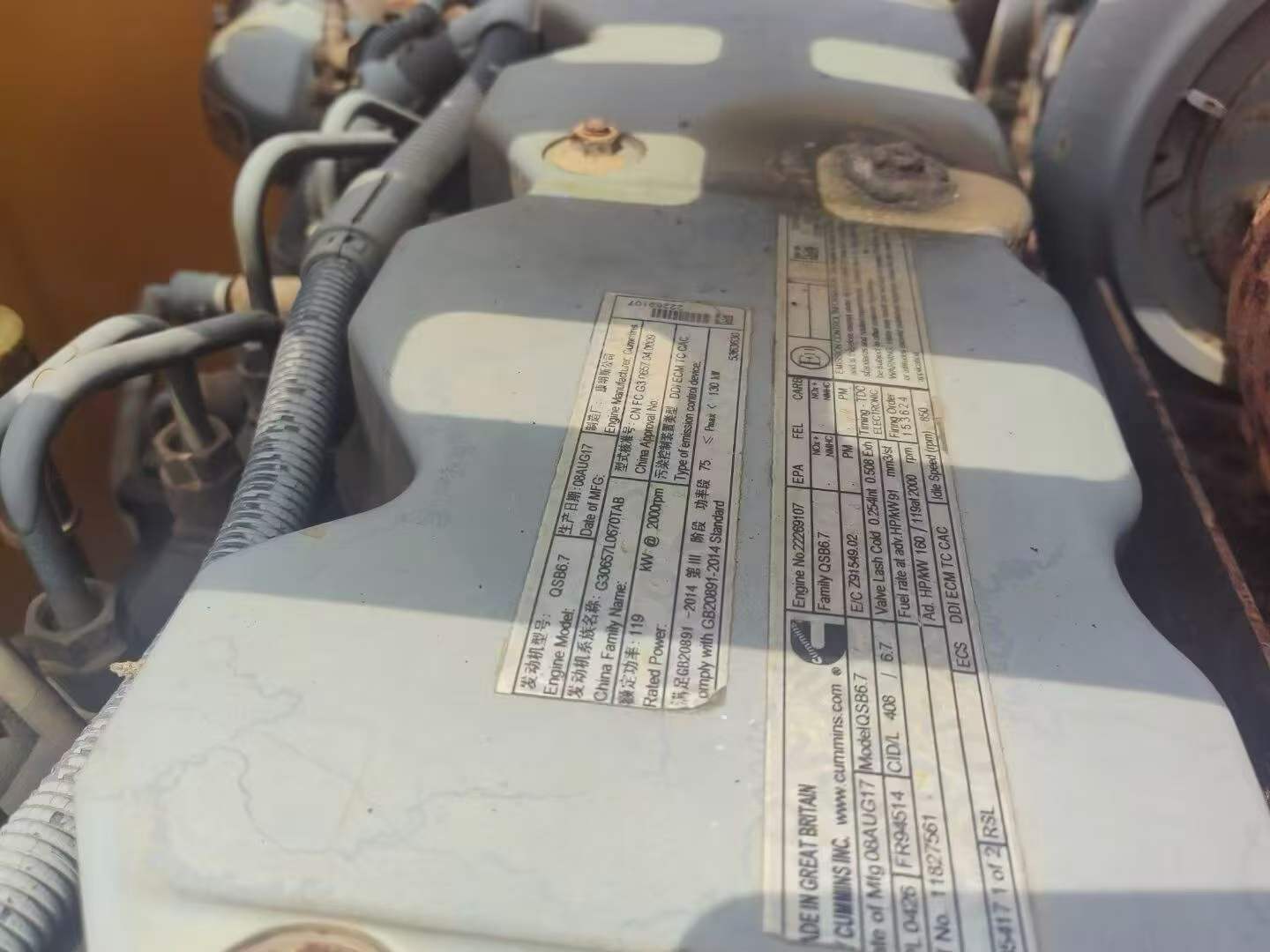

| Engine type | Cummins QSB 6.7 |
| Rated power (kw/rpm) | 125/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 * 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 4-stroke diesel engine common rail, turbocharged |
| Rotation speed (rpm) | 0-11.3 |
| Bucket digging force (kN) | 157 |
| Maximum tractive force (kN) | 228 |
| Travel speed (km/h) | 3.0/5.0 |
| Turning torque (Nm) | 73.3 |
| Maximum flow of main pump (l/min) | 2 x 216 |
| Main pump type | In-line double swash plate variable pump |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 100 |
| Hydraulic System (L) | 300 |
| Maximum digging depth (mm) | 6950 |
| Maximum excavation height (mm) | 9850 |
| Maximum unloading height (mm) | 6950 |
| Maximum excavation radius of stop surface (mm) | 10100 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8/9 |
