2020 Liebherr R924

1/9
Buy Liebherr R924 Used Excavator / 1
Buy Liebherr R924 Used Excavator / 2
Buy Liebherr R924 Used Excavator / 3
Buy Liebherr R924 Used Excavator / 4
Buy Liebherr R924 Used Excavator / 5
Buy Liebherr R924 Used Excavator / 6

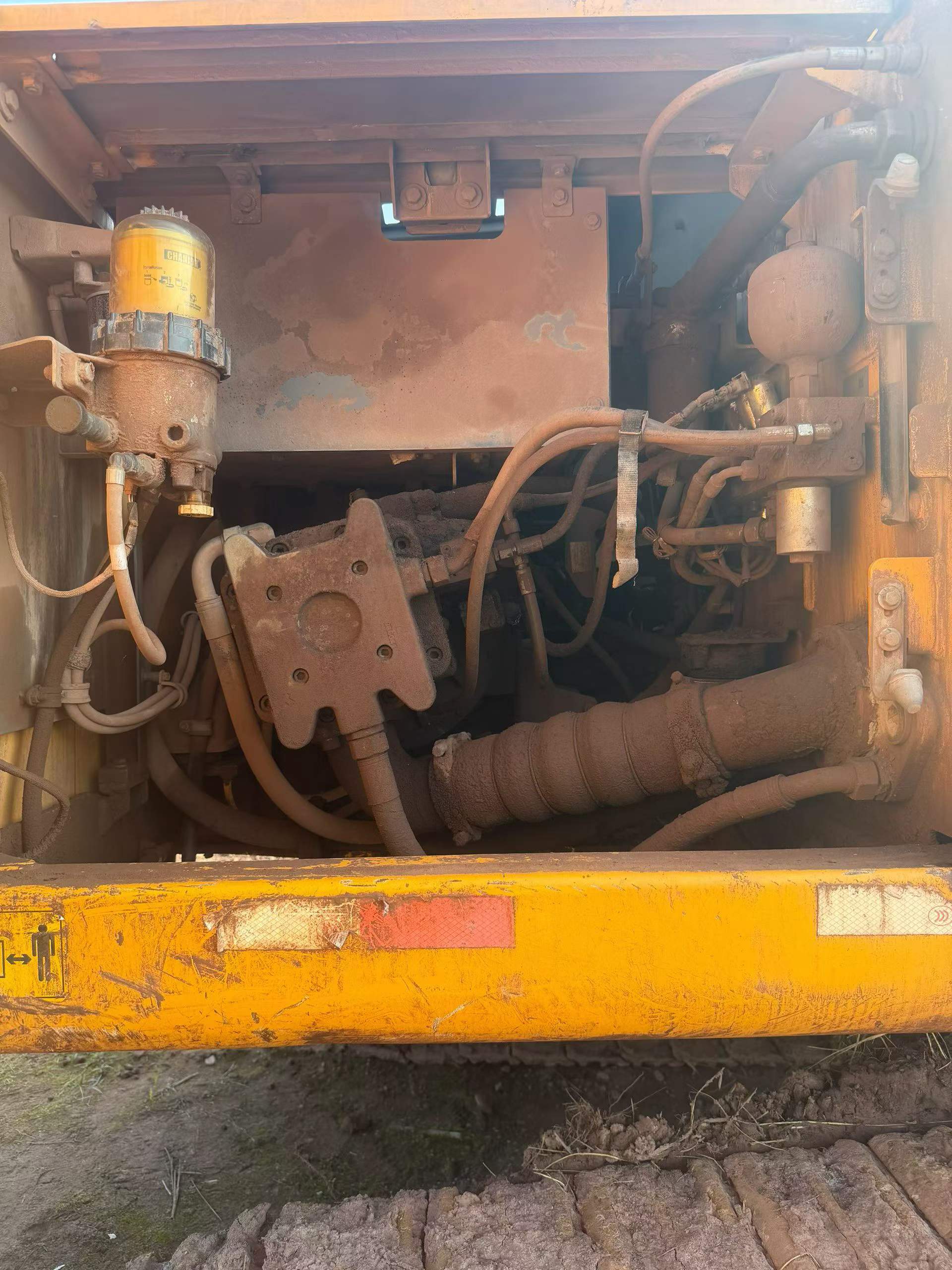

Buy Liebherr R924 Used Excavator / 7
Buy Liebherr R924 Used Excavator / 8
Buy Liebherr R924 Used Excavator / 9

Product Description

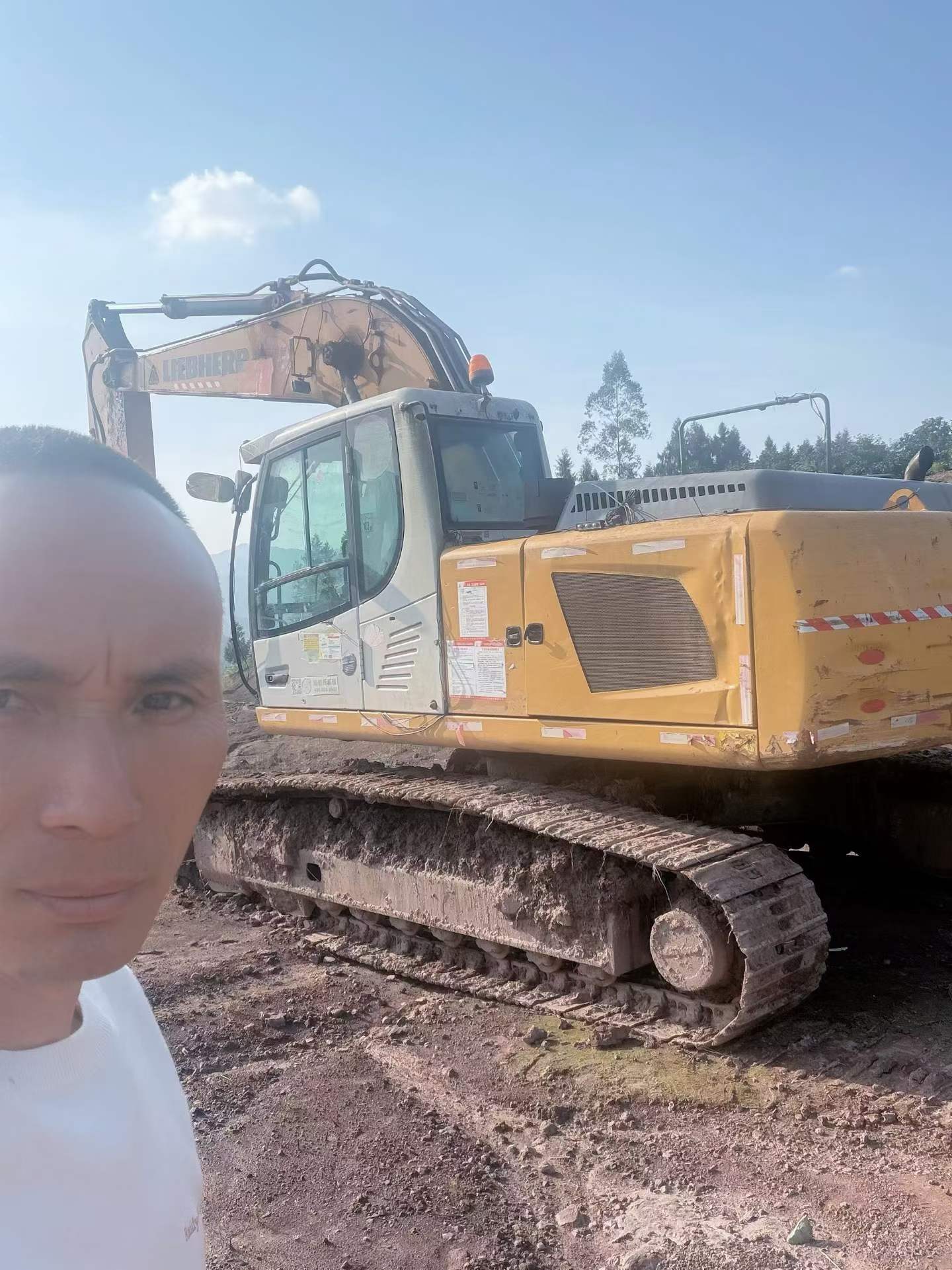

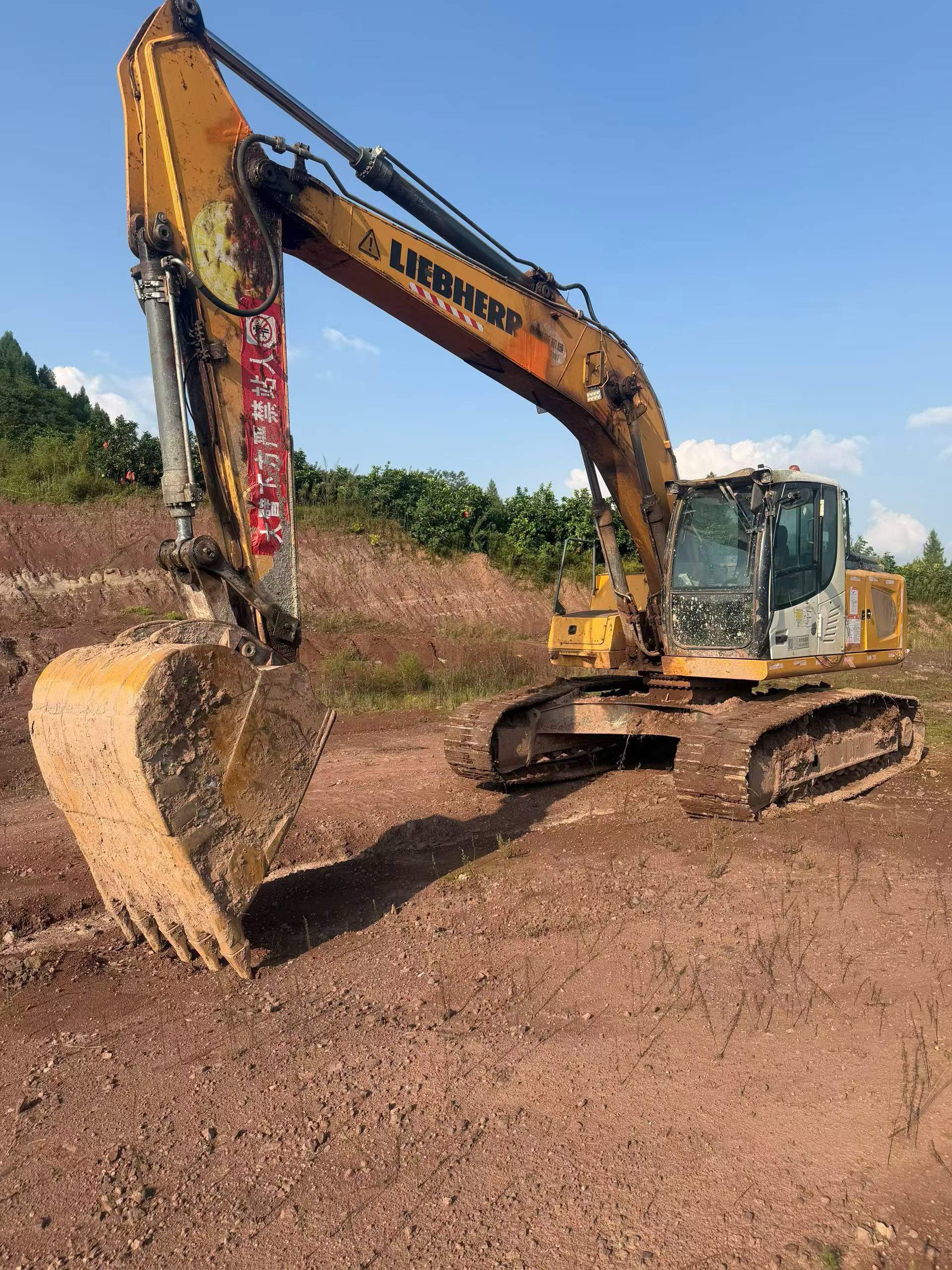

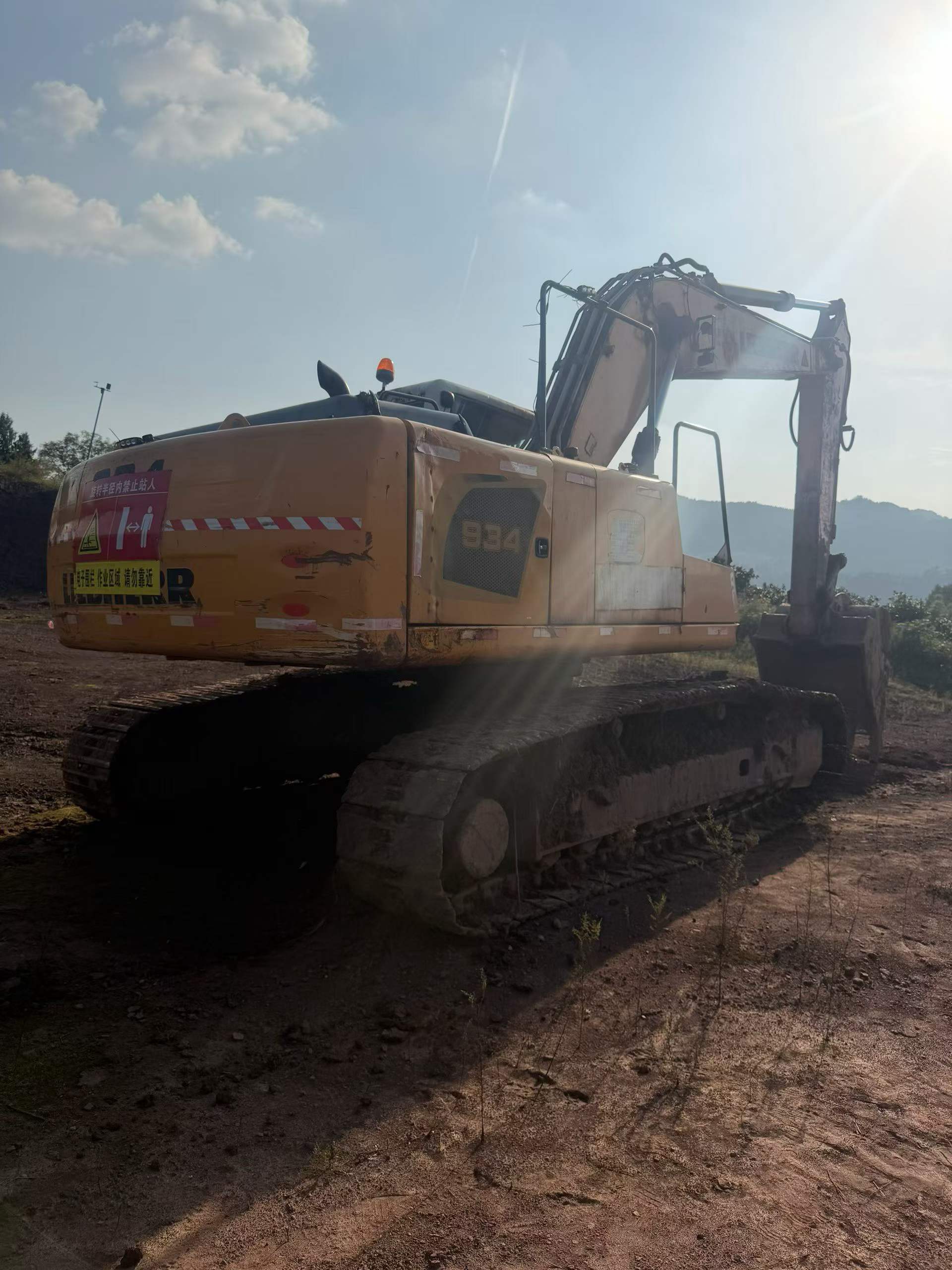

Available now from Zhejiang, China: a 2020 Liebherr R924 crawler excavator offering proven performance in a compact timeframe. With just four years of service, this machine delivers Liebherr's engineering standards at a competitive entry point for contractors seeking reliable hydraulic excavator capacity.

The R924 provides robust digging force and cycle times suited to general earthmoving, site development, and material handling applications. Liebherr's established service network and parts availability support ongoing operational readiness across international markets.

  • Year of Manufacture: 2020
  • Make and Model: Liebherr R924
  • Current Location: Zhejiang Province, China
  • Condition: Used, operational
  • Price: USD 16,700 (CNY 167,000)

Inspection and shipping arrangements can be coordinated to your facility. Contact us for service records, additional imagery, and export documentation.

SpecificationsValue
No.1167414
Tonnage (tons)24
Working weight (kg)23,900-24,850
Bucket capacity (m³)1.45
Boom length (mm)5900
Rod length (mm)2000/2500/3000
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

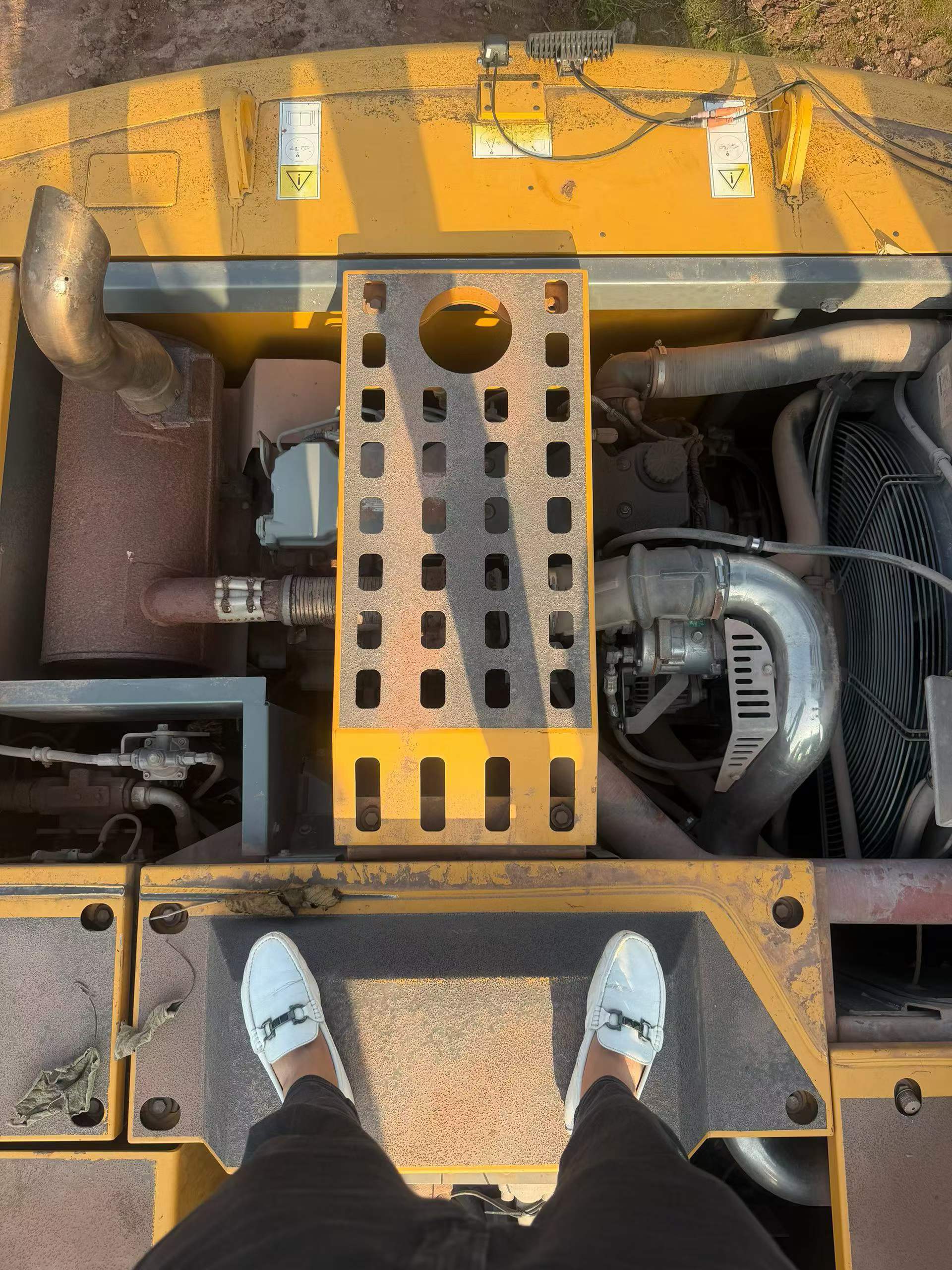

Engine typeCummins QSB 6.7
Rated power (kw/rpm)125/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 * 124
Number of cylinders (PCS)6
Displacement (L)6.7
Working form4-stroke diesel engine common rail, turbocharged
Rotation speed (rpm)0-11.3
Bucket digging force (kN)157
Maximum tractive force (kN)228
Travel speed (km/h)3.0/5.0
Turning torque (Nm)73.3
Maximum flow of main pump (l/min)2 x 216

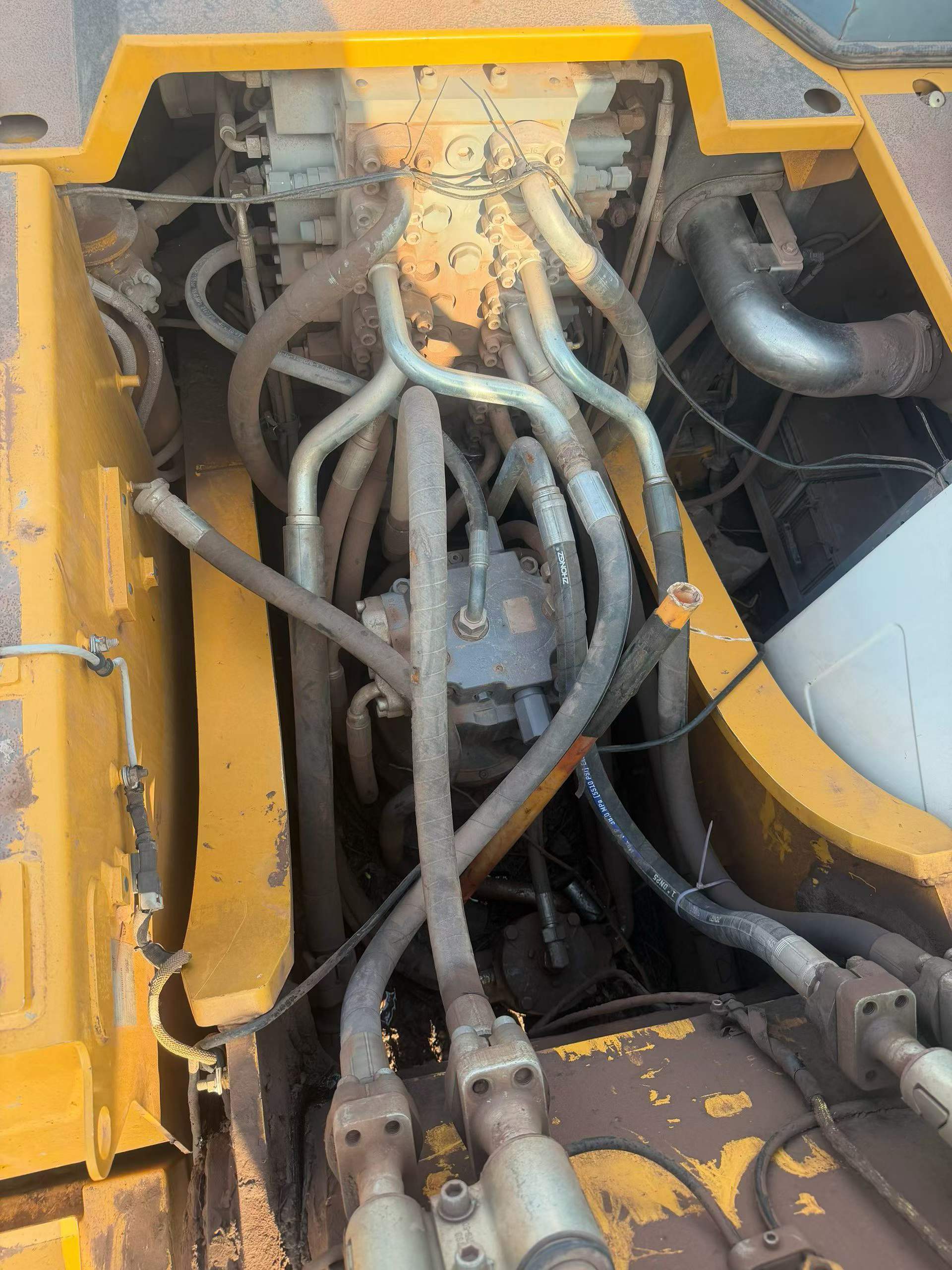

Main pump typeIn-line double swash plate variable pump
Fuel Tank (L)580
Hydraulic Tank (L)100
Hydraulic System (L)300
Maximum digging depth (mm)6950
Maximum excavation height (mm)9850
Maximum unloading height (mm)6950
Maximum excavation radius of stop surface (mm)10100
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8/9
see more

Overview

No.1167414

Brand Name:

Liebherr

Model Number:

R924

Year:

2020

Location:

Zhejiang China

Pub Date:
