Product Description

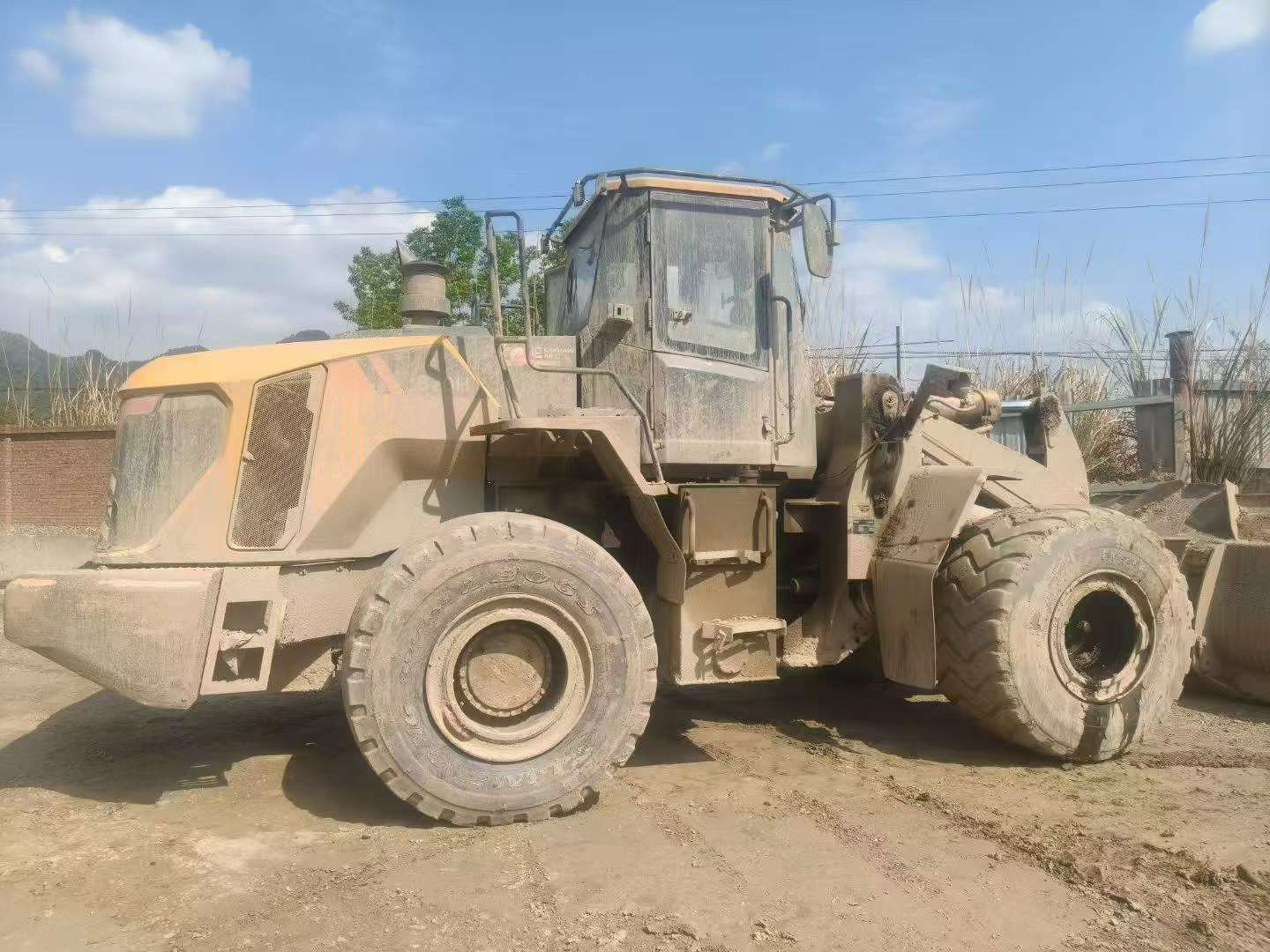

Proven in demanding conditions since 2019, this LiuGong CLG870H wheel loader delivers consistent performance backed by robust engineering. With a rated load capacity of 7,000 kg and a powerful 180 kW engine, this workhorse handles heavy-duty loading operations with authority. The 200 kN digging force and 192 kN maximum tractive force ensure reliable material handling across challenging terrains, while the 27-degree climbing ability tackles steep grades without hesitation.
Built to last, this model features a substantial 21,500 kg operating weight that provides stability during intensive cycles. Quick cycle times—just 5.7 seconds for lift and 10 seconds total for combined operations—maximize productivity on every shift. Currently located in Baoding, Hebei, this proven machine represents tested durability you can depend on.
- Rated Load: 7,000 kg with 200 kN digging force
- Engine: 180 kW rated power, 9.3L displacement
- Max Unloading Height: 3,000 mm
- Fuel Capacity: 330L for extended operation
- Operating Weight: 21,500 kg for enhanced stability
| Specifications | Value |
|---|---|
| No. | 1043400 |
| Engine type | |
| Rated power (kw/rpm) | 180 |
| Exhaust volume (L) | 9.3 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 7000 |
| Digging force (lifting force) (kN) | 200 |
| Machine operating weight (kg) | 21500 |
| Max - Unloading height (mm) | 3000 |
| Unloading distance (mm) | 1346 |
| Maximum tractive force (kN) | 192 |
| Maximum climbing ability (°) | 27 |
| Fuel Tank (L) | 330 |
| Coolant (L) | 52 |
| Hydraulic System (L) | 280 |
| Engine Oil (L) | 22 |
| Wheelbase (mm) | 3450 |
| Wheel base (mm) | 2280 |
| Machine length (mm) | 8773 |
| Machine width (mm) | 3220 |
| Machine height (mm) | 3467 |
| Transaxle swing Angle (°) | 12 |
| Steering Angle | 38 ° |
| Lift (s) | 5.7 |
| Unloading (s) | 1.3 |
| Lower empty bucket (s) | 3 |
| Ternary sum (s) | 10 |
