Product Description

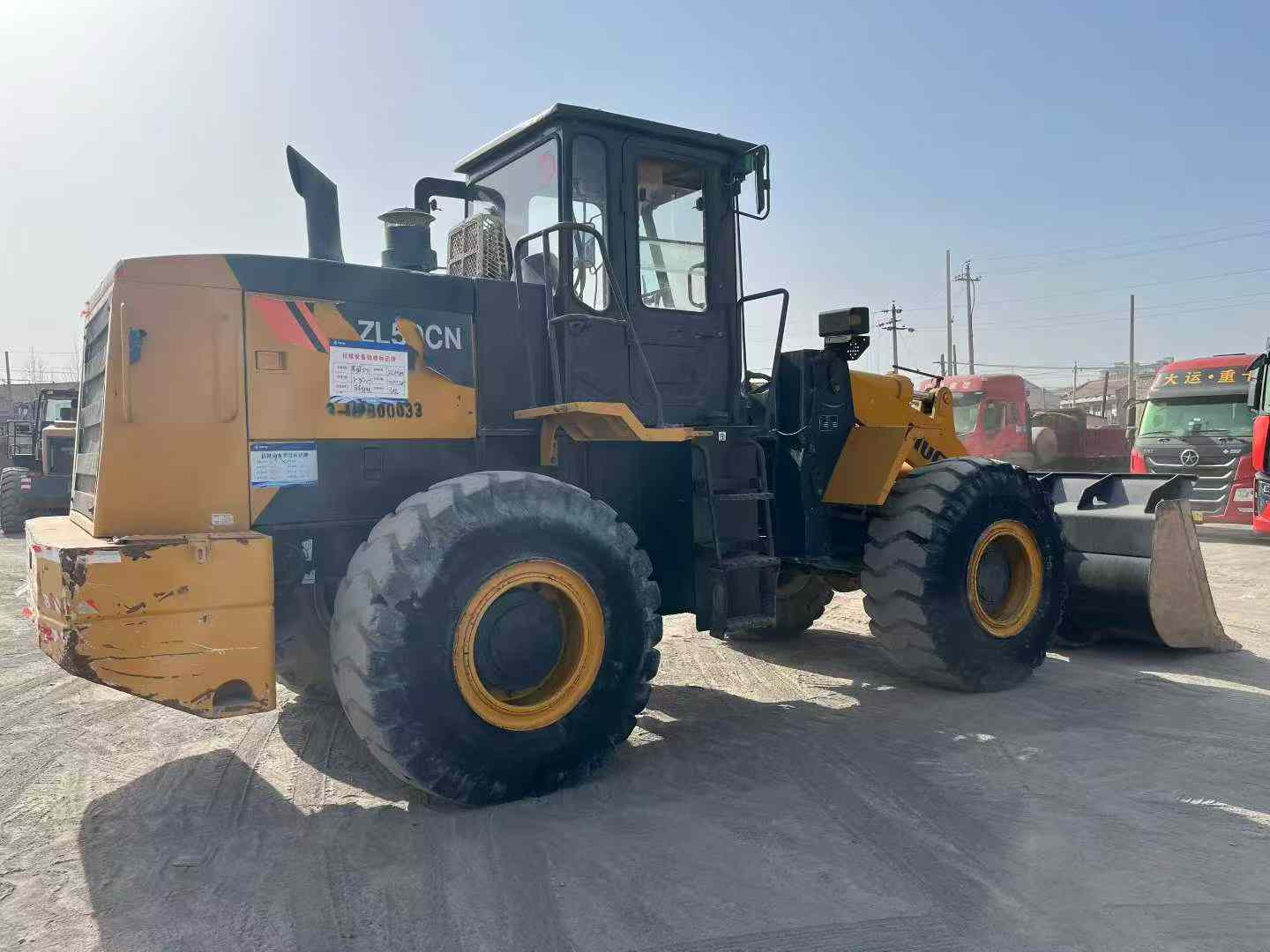

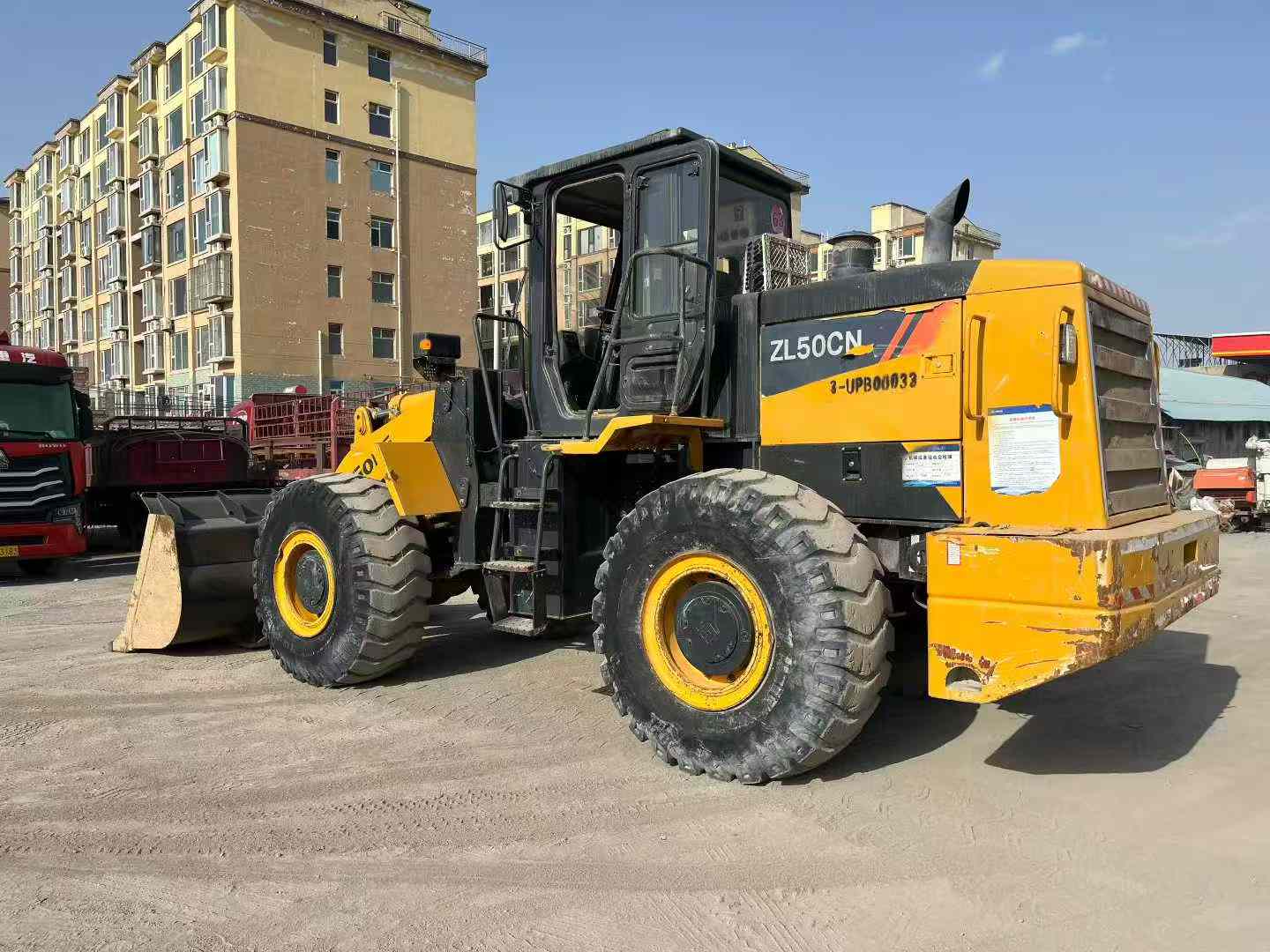

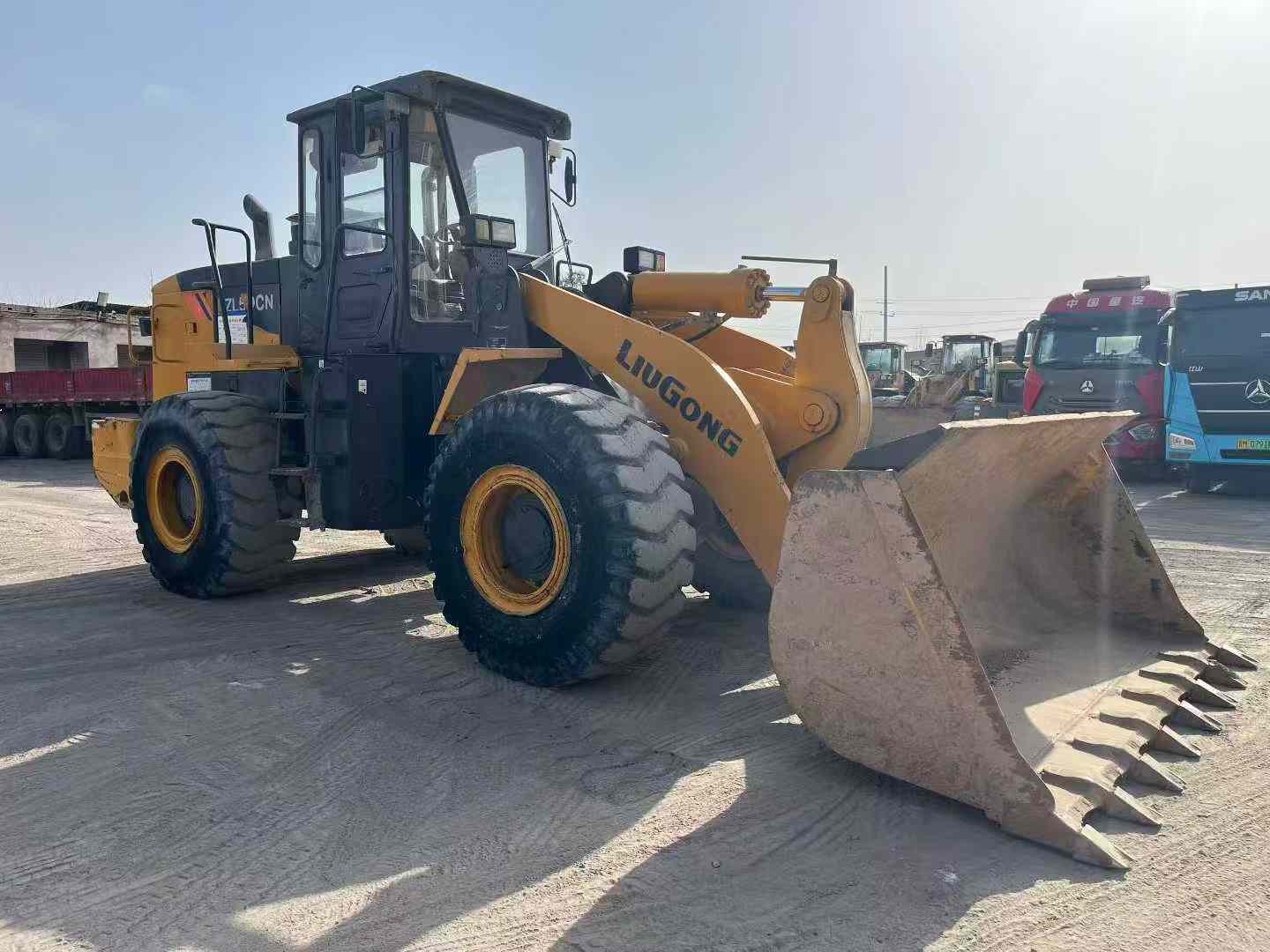

Built for reliability and backed by one of China's most established heavy equipment manufacturers, this 2016 LiuGong ZLG50G wheel loader delivers proven performance for demanding material handling operations. With a 160kW rated power output and 5,000kg rated load capacity, this machine handles high-volume loading tasks with consistent efficiency. The 3m³ bucket capacity and 158kN digging force provide excellent material penetration, while the 3,100mm maximum unloading height ensures compatibility with standard dump trucks and hoppers.
LiuGong's extensive global parts network and strong resale values make this ZLG50G a smart investment in the used equipment market. Key specifications include:
- Operating weight: 16,800kg for optimal stability
- Four-speed transmission with top speed of 38km/h
- 30° maximum climbing ability for challenging terrain
- 6,913mm turning radius (outside of bucket)
- 38° steering angle for maneuverability in confined spaces
- Compact dimensions: 8,060mm (L) × 2,976mm (W) × 3,467mm (H)
Currently located in Baoding, Hebei, this loader represents dependable Chinese engineering with the parts support infrastructure critical for long-term opera
| Specifications | Value |
|---|---|
| No. | 1010954 |
| Rated power (kw/rpm) | 160 |
| Bucket capacity (m³) | 3 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 158 |
| Machine operating weight (kg) | 16800 |
| Max - Unloading height (mm) | 3100 |
| Unloading distance (mm) | 1035 |
| Maximum tractive force (kN) | 160 |
| Maximum climbing ability (°) | 30 ° |
| Transaxle swing Angle (°) | |
| Steering Angle | 38 ° |
| Minimum turning radius of outer wheel center line | 5932 |
| Turning radius - Outside of bucket (mm) | 6913 |
| Speed 1 gear (km/h) | 7 |
| Speed 2 (km/h) | 12.7 |
| Speed 3 (km/h) | 24.5 |
| Speed 4 (km/h) | 38 |
| Machine length (mm) | 8060 |
| Machine width (mm) | 2976 |
| Machine height (mm) | 3467 |
