Product Description

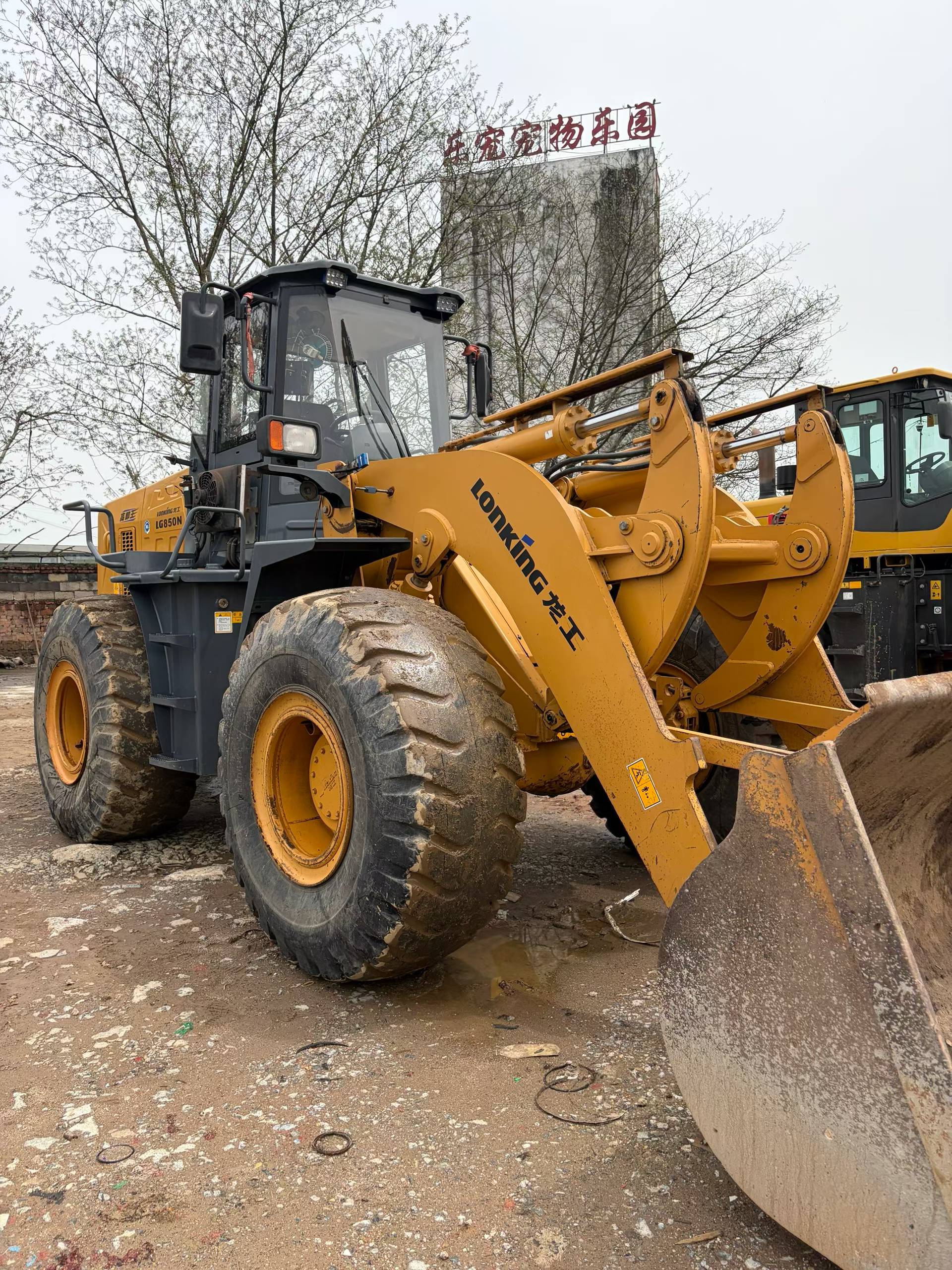

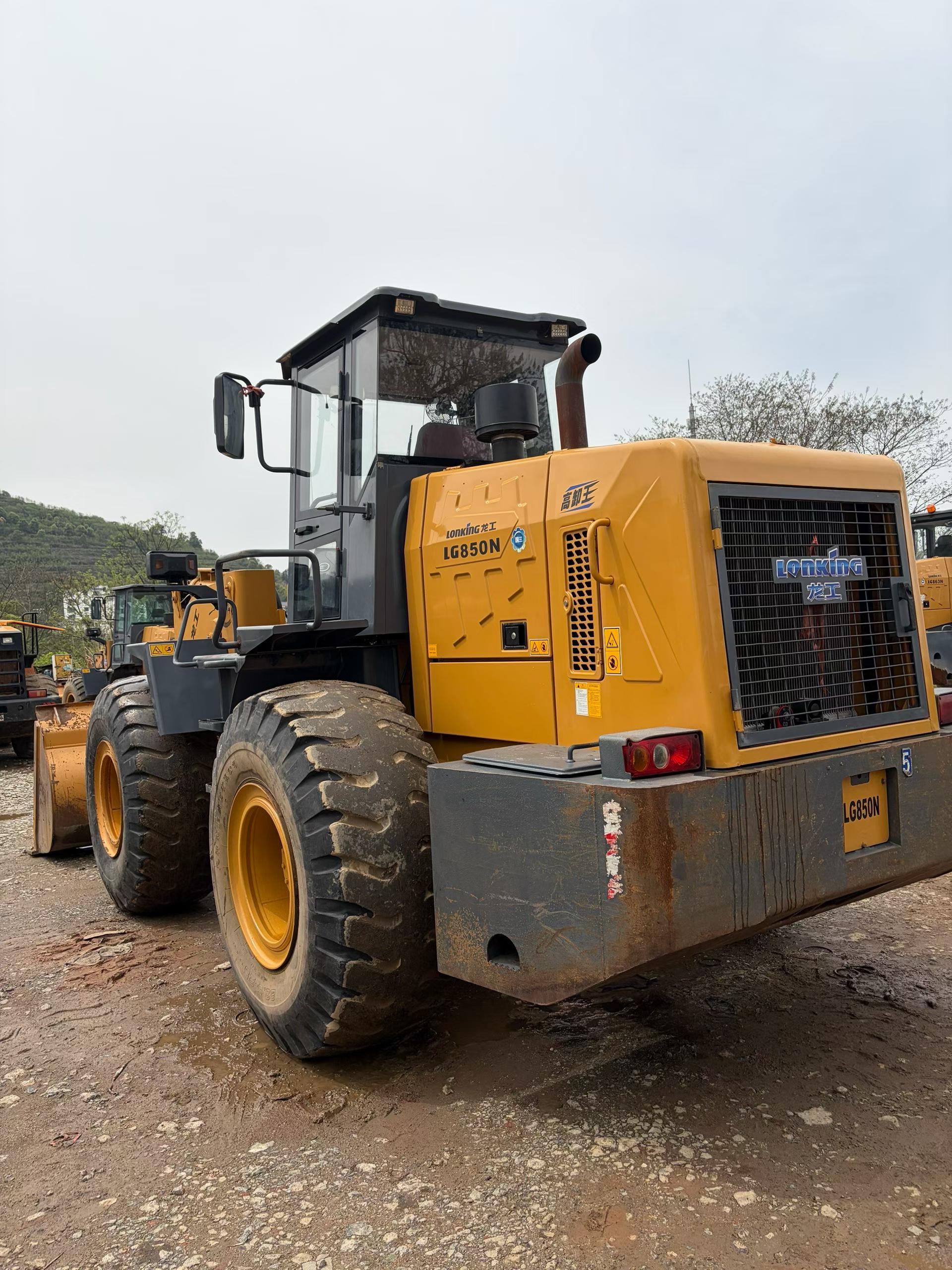

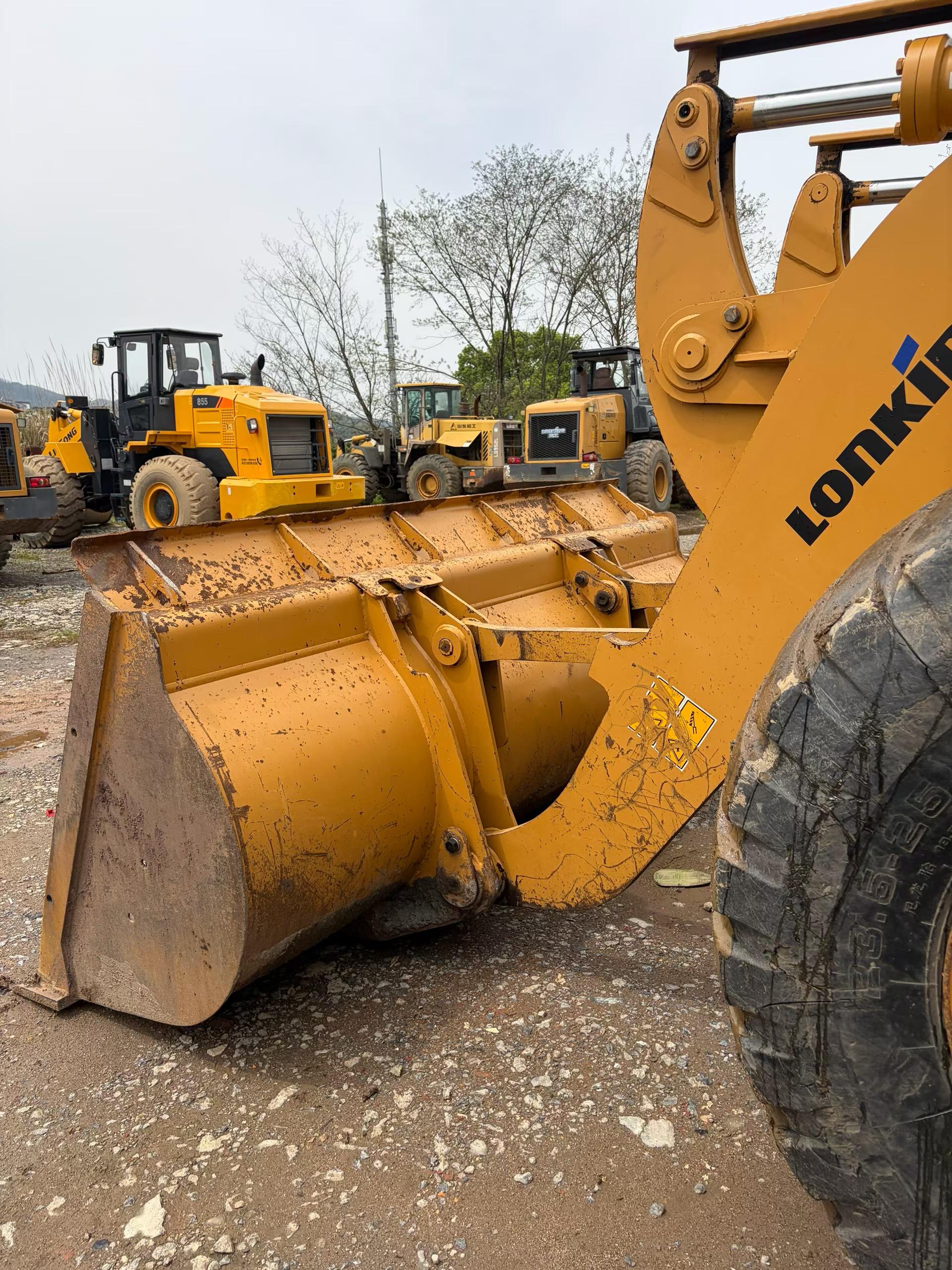

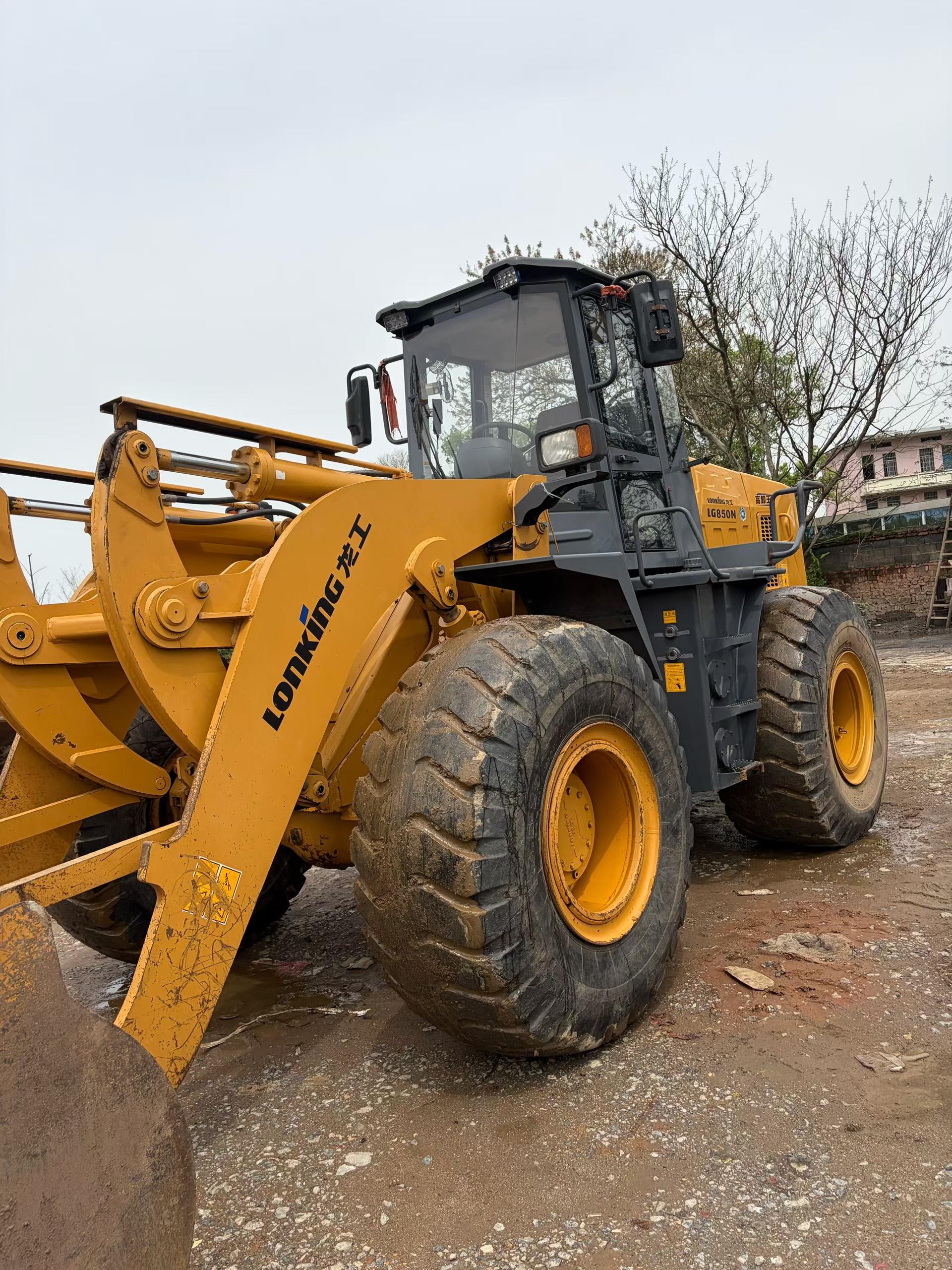

Built for precision and power, this 2020 Lonking LG850 wheel loader delivers exceptional operator-focused performance on demanding job sites. Powered by a robust 162kW water-cooled engine with 9.7L displacement, this machine combines a 5,000kg rated load capacity with a generous 3m³ bucket to maximize productivity across material handling and loading operations.

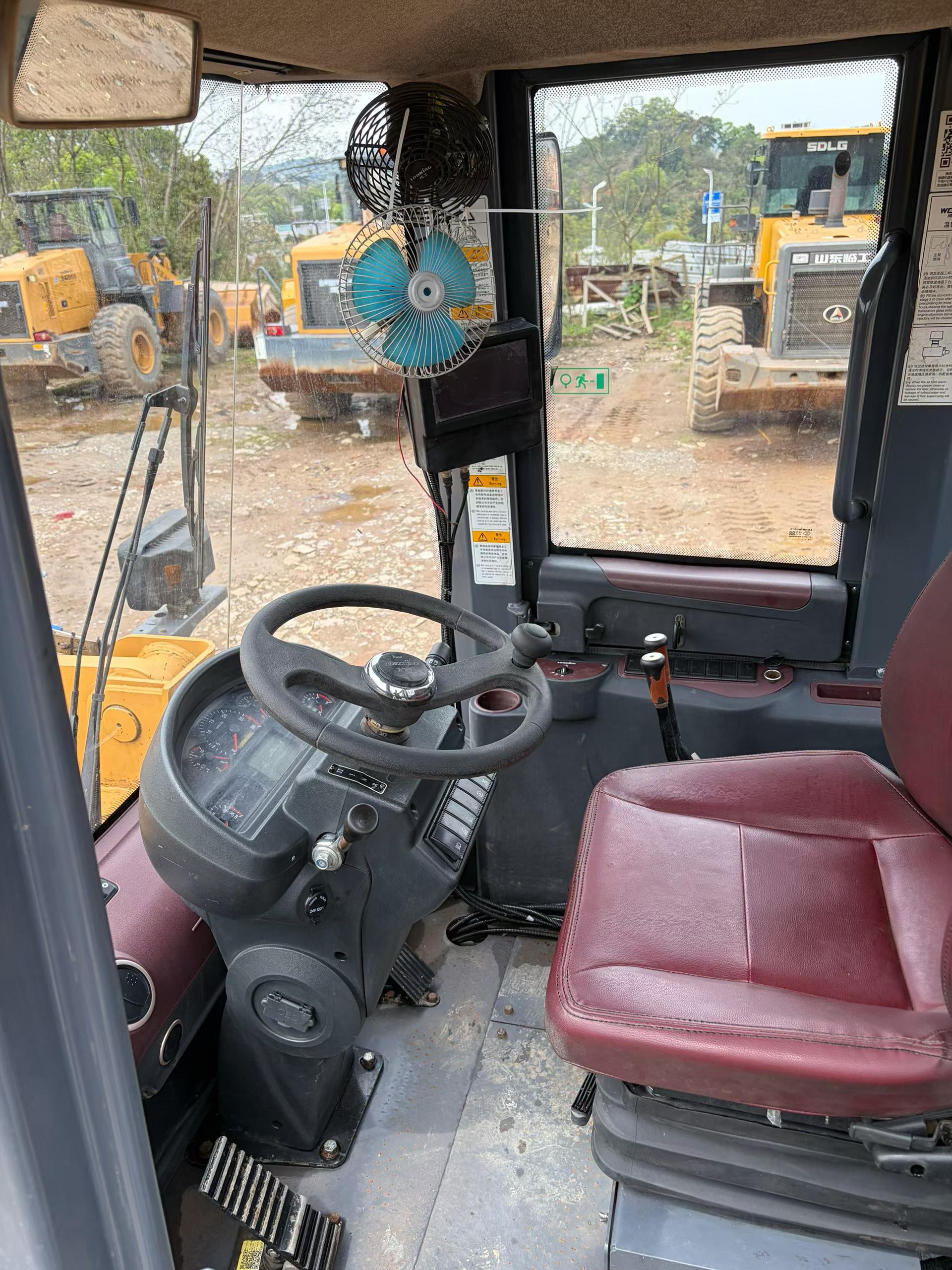

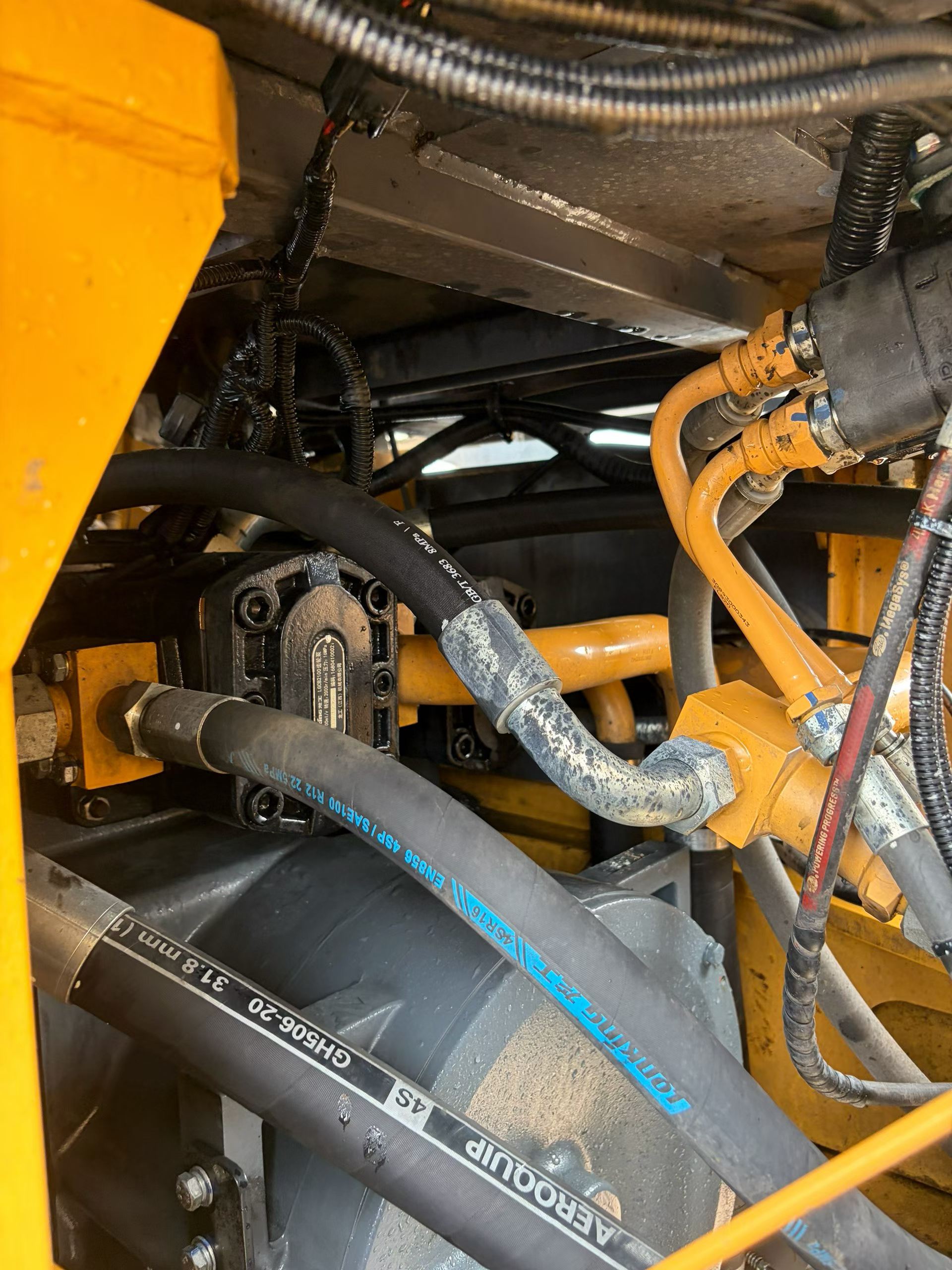

Operators benefit from superior maneuverability with a tight 6,870mm turning radius and responsive dual-speed transmission (11.5/36 km/h) that adapts to varied terrain conditions. The elevated cabin position provides commanding visibility across the work area, while the machine's 15,850kg operating weight ensures stable performance during heavy lifting cycles. Hydraulic systems operate at 16 bars with efficient 6.5-second lift times and 12.5-second total cycle times.
- Rated Load: 5,000kg with 165kN digging force

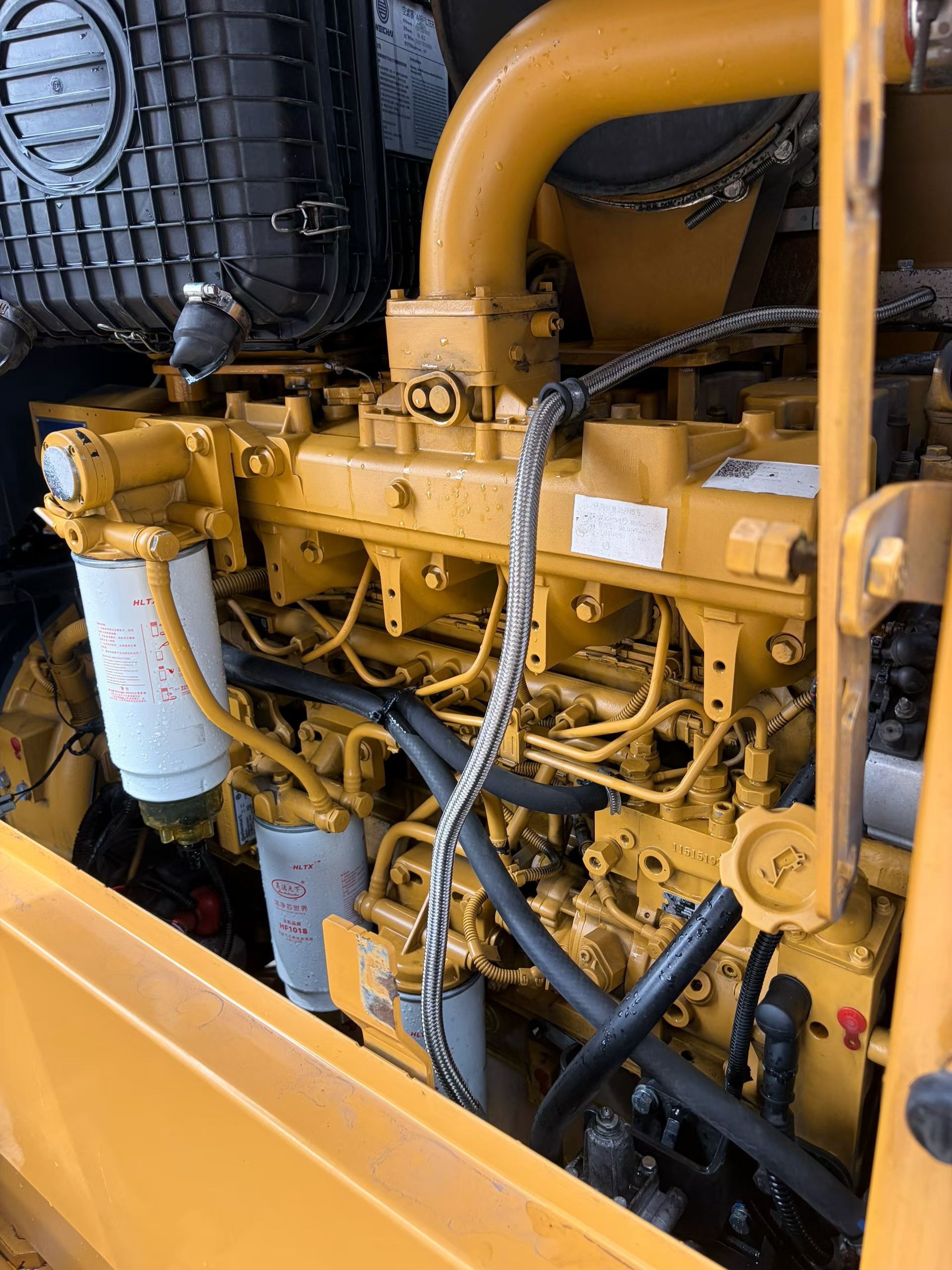

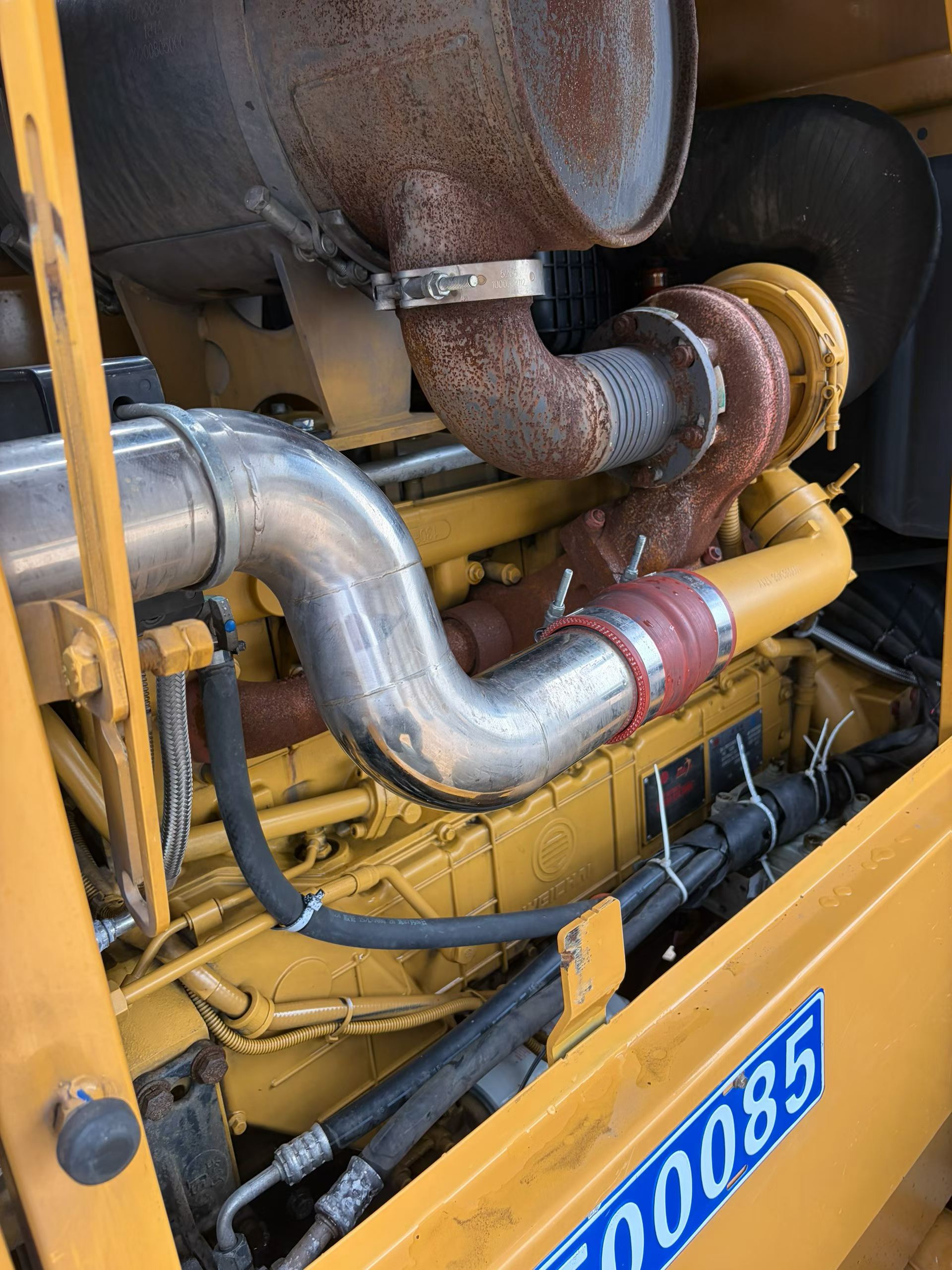

- Engine: 162kW @ 2,200rpm, water-cooled
- Dimensions: 7,430mm × 3,000mm × 3,310mm
- Location: Yichun, Jiangxi, China
- Compact turning radius for confined site work
| Specifications | Value |
|---|---|
| No. | 1049698 |
| Engine type | |
| Rated power (kw/rpm) | 162/2200 |
| Cooling mode | water-cooling |
| Working form | |
| Exhaust volume (L) | 9.726 |
| Bucket capacity (m³) | 3 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 165 |
| Machine operating weight (kg) | 15850 |
| Drive axle model | |
| Minimum turning radius of outer wheel center line | 5694 |
| Turning radius - Outside of bucket (mm) | 6870 |
| Rated working pressure (bars) | 16 |
| Lift (s) | 6.5 |
| Ternary sum (s) | 12.5 |
| Gearbox brand and model | |
| Speed 1 gear (km/h) | 11.5 |
| Speed 2 (km/h) | 36 |
| Machine length (mm) | 7430 |
| Machine width (mm) | 3000 |
| Machine height (mm) | 3310 |
