Product Description

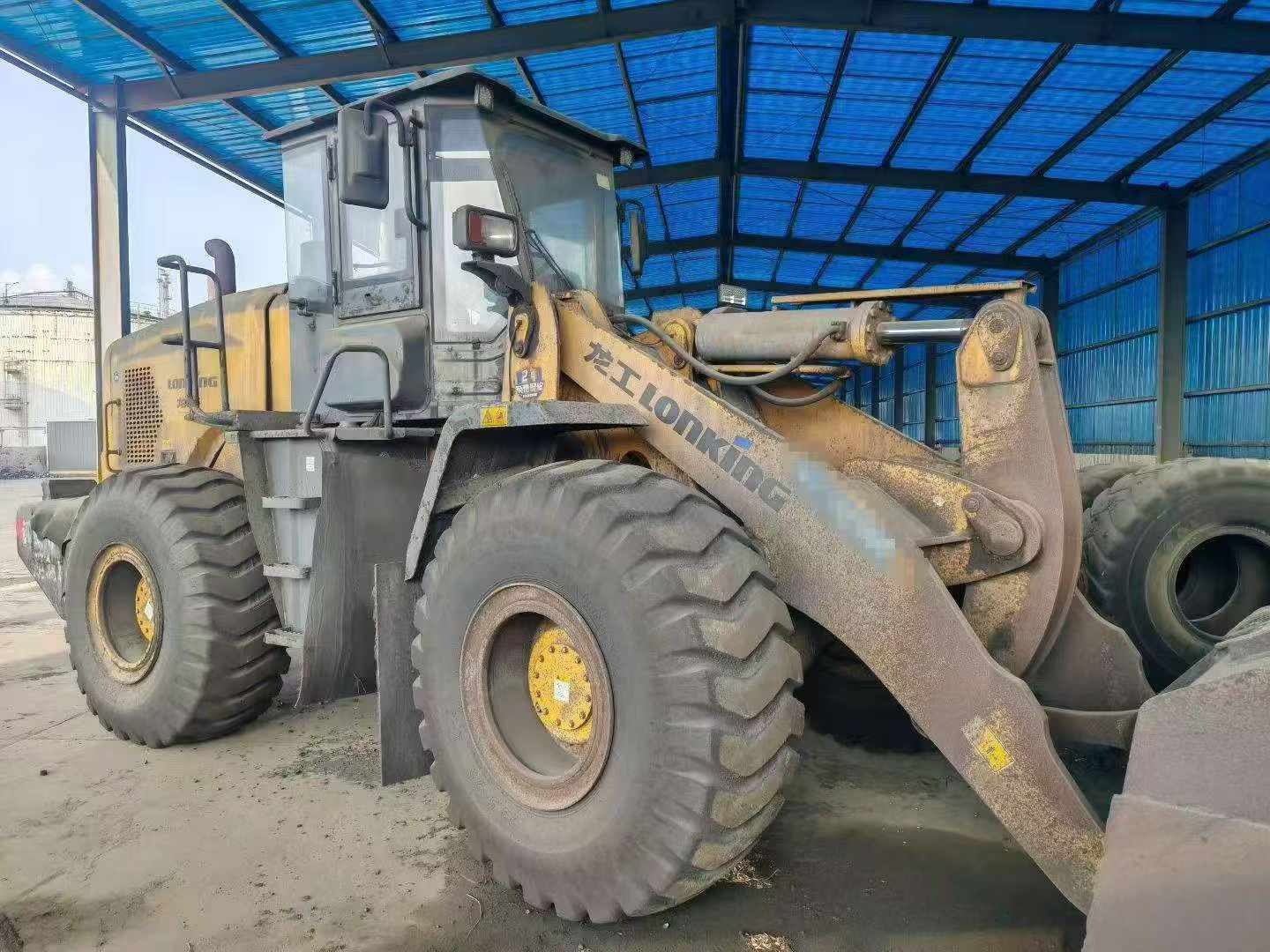

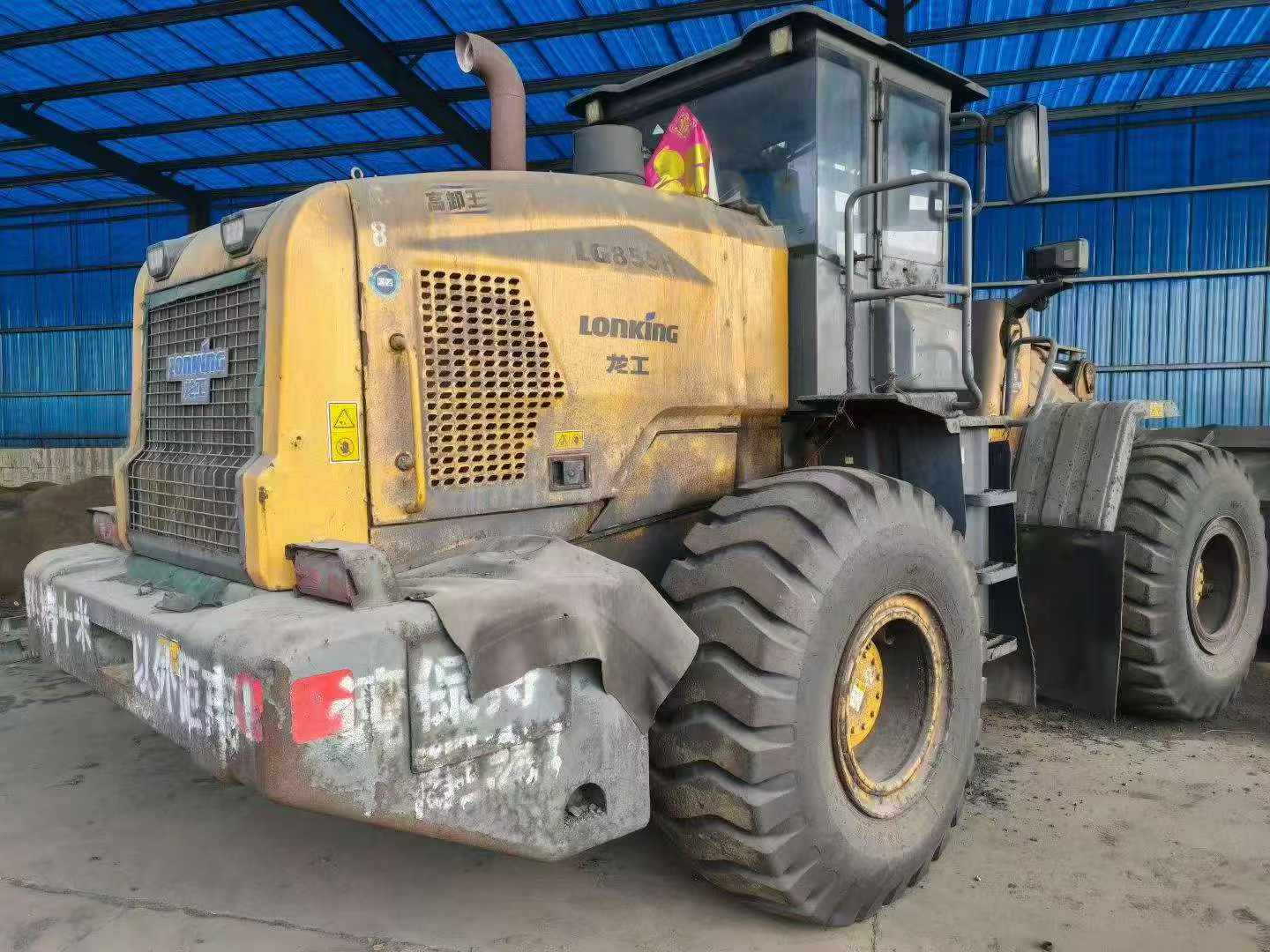

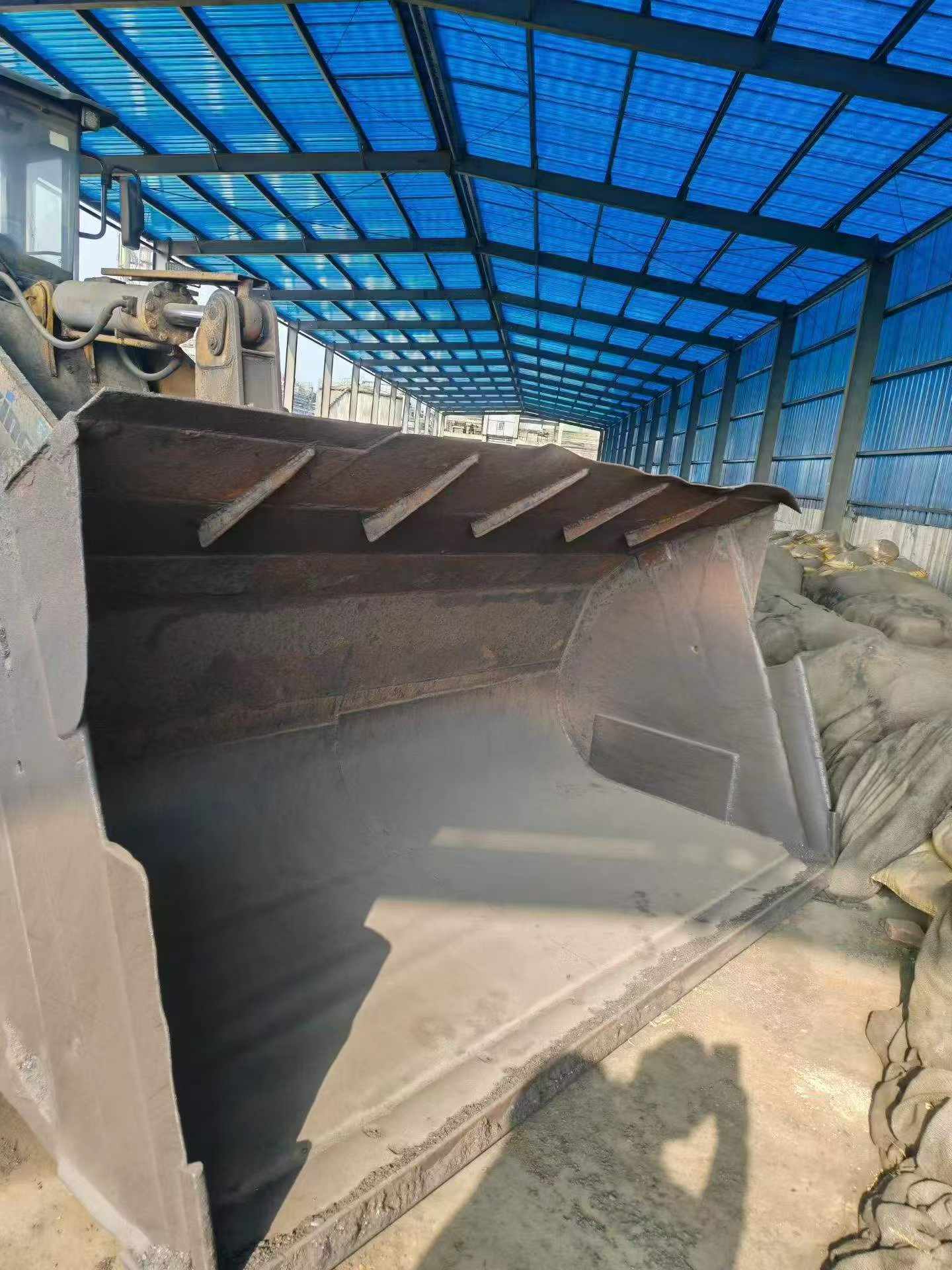

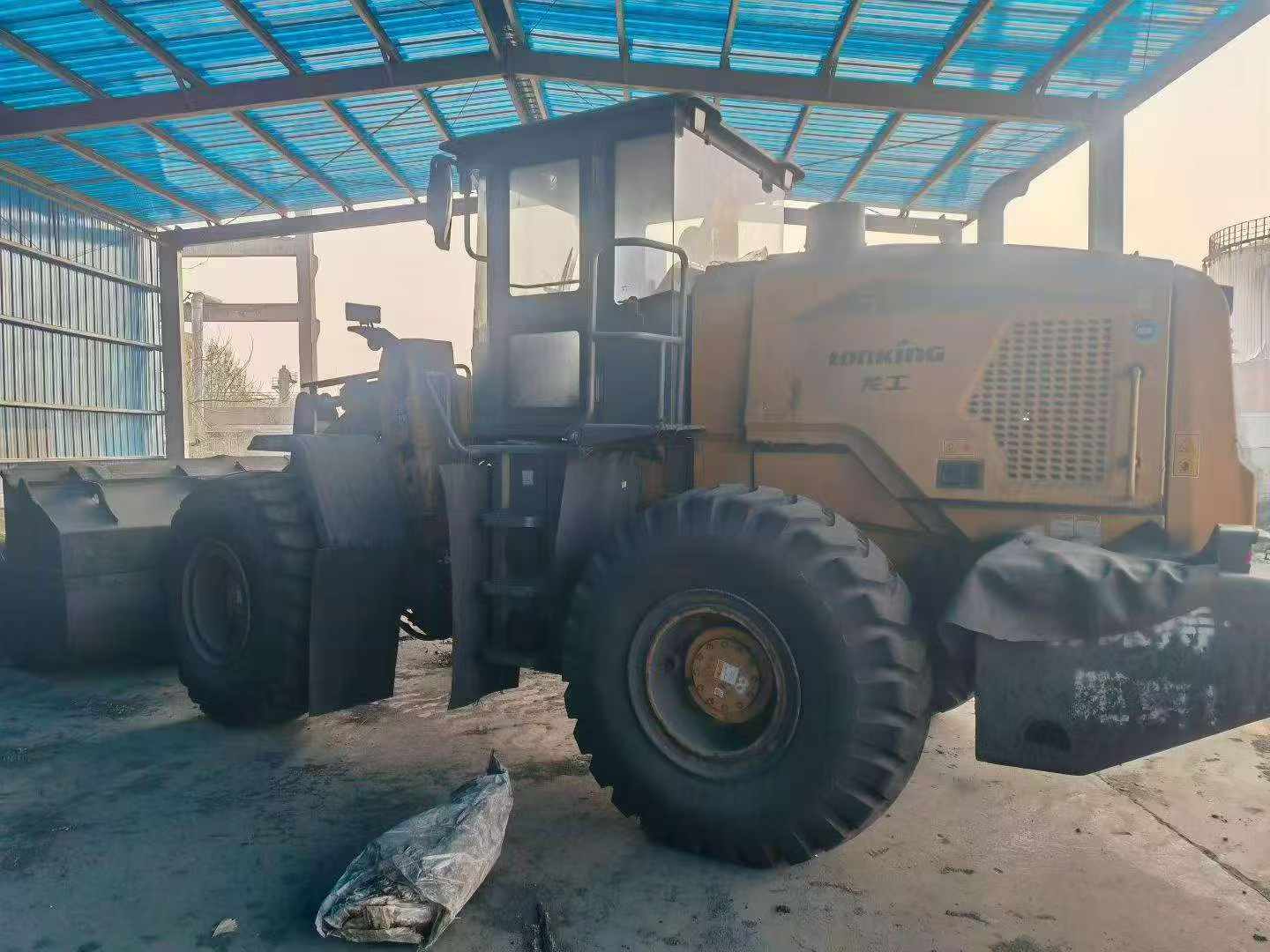

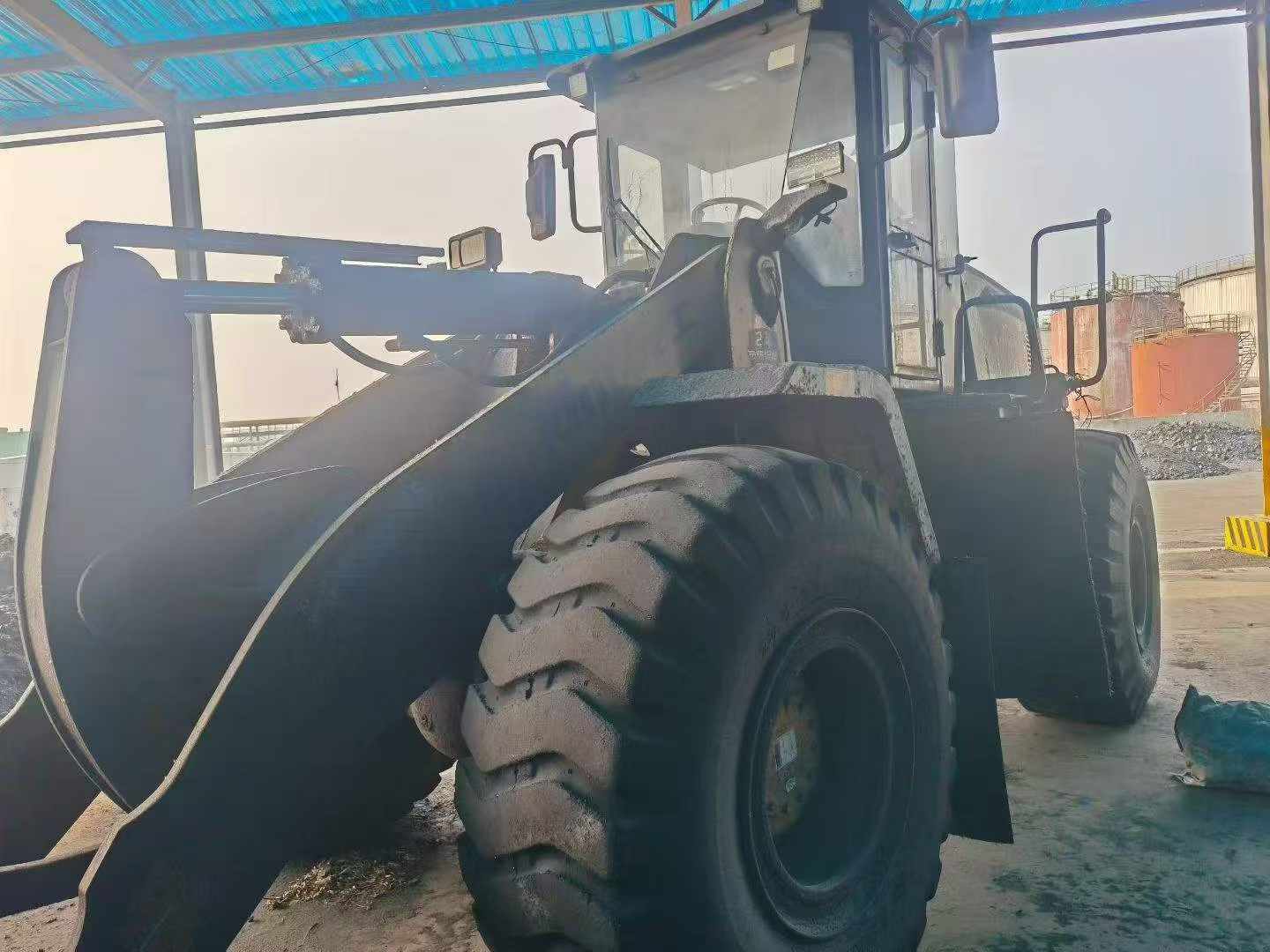

Engineered for high-volume material handling, this 2022 Lonking LG855H wheel loader delivers 5,000 kg rated capacity with a robust 2.8 m³ bucket configuration. Power meets precision through advanced hydraulic systems that achieve 3,080 mm maximum unloading height and 1,270 mm unloading distance, optimizing truck loading cycles across construction and quarry applications. The LG855H series demonstrates Lonking's commitment to operational efficiency with rapid cycle times—4.8 seconds for lift operations and 9.3 seconds for complete ternary movement.
Built on a stable 3,230 mm wheelbase with 2,240 mm wheel base, this machine maintains 408 mm ground clearance while navigating gradients up to 28°. Compact dimensions (8,080 mm length, 2,835 mm width) combined with a 6,240 mm turning radius enable maneuverability in confined work zones. Dual-speed transmission provides 13 km/h in first gear for heavy loading and 39 km/h in second for rapid repositioning. Currently located in Baoding, Hebei, this loader represents proven Chinese engineering designed for demanding industrial environments.
| Specifications | Value |
|---|---|
| No. | 1040968 |
| Bucket capacity (m³) | 2.8 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | |
| Machine operating weight (kg) | |
| Max - Unloading height (mm) | 3080 |
| Unloading distance (mm) | 1270 |
| Maximum tractive force (kN) | |
| Maximum climbing ability (°) | 28 |
| Wheelbase (mm) | 3230 |
| Wheel base (mm) | 2240 |
| Minimum ground clearance (mm) | 408 |
| Machine length (mm) | 8080 |
| Machine width (mm) | 2835 |
| Machine height (mm) | 3400 |
| Minimum turning radius of outer wheel center line | 6240 |
| Turning radius - Outside of bucket (mm) | 7229 |
| Lift (s) | 4.8 |
| Ternary sum (s) | 9.3 |
| Speed 1 gear (km/h) | 13 |
| Speed 2 (km/h) | 39 |
