Product Description

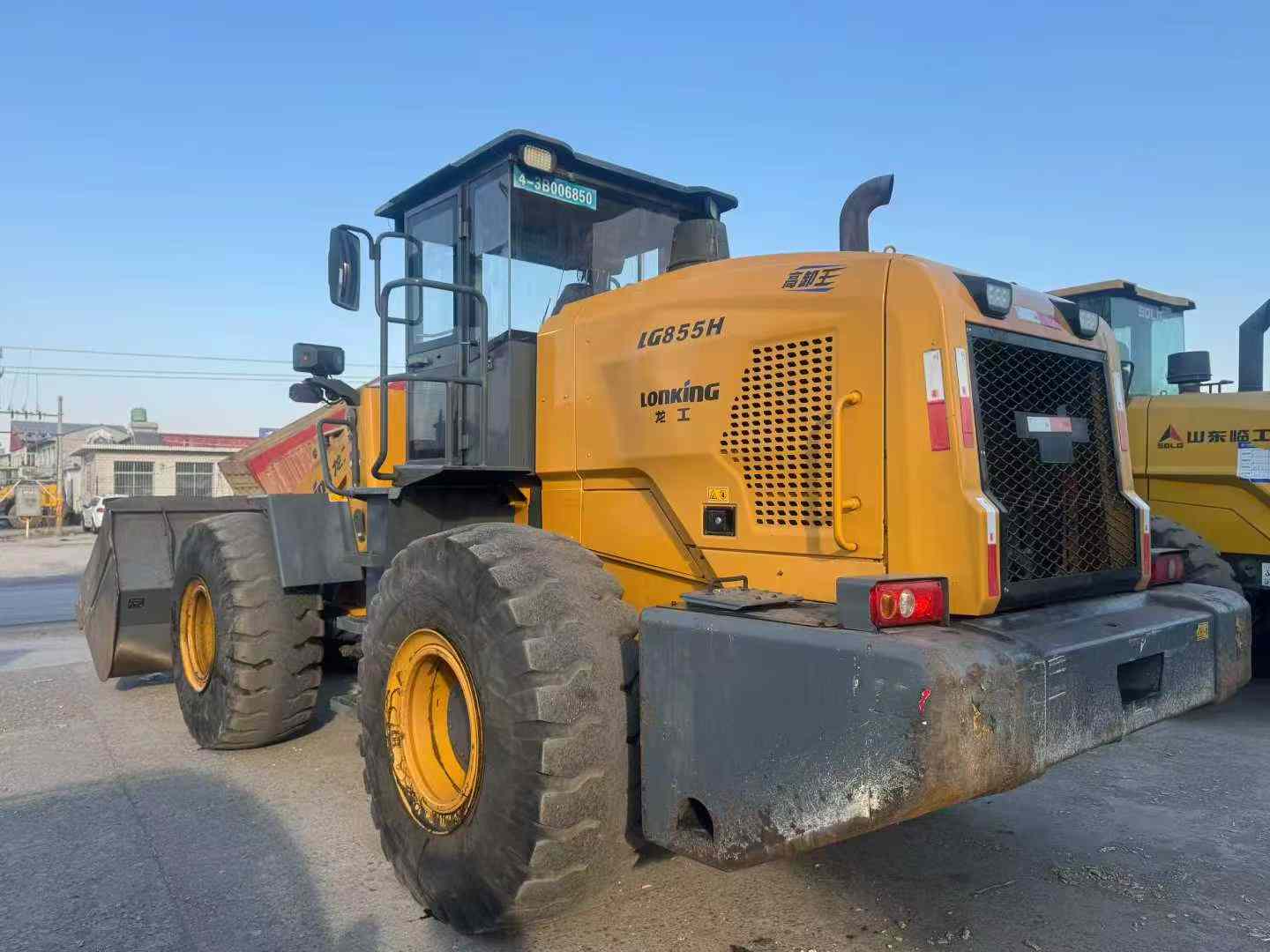

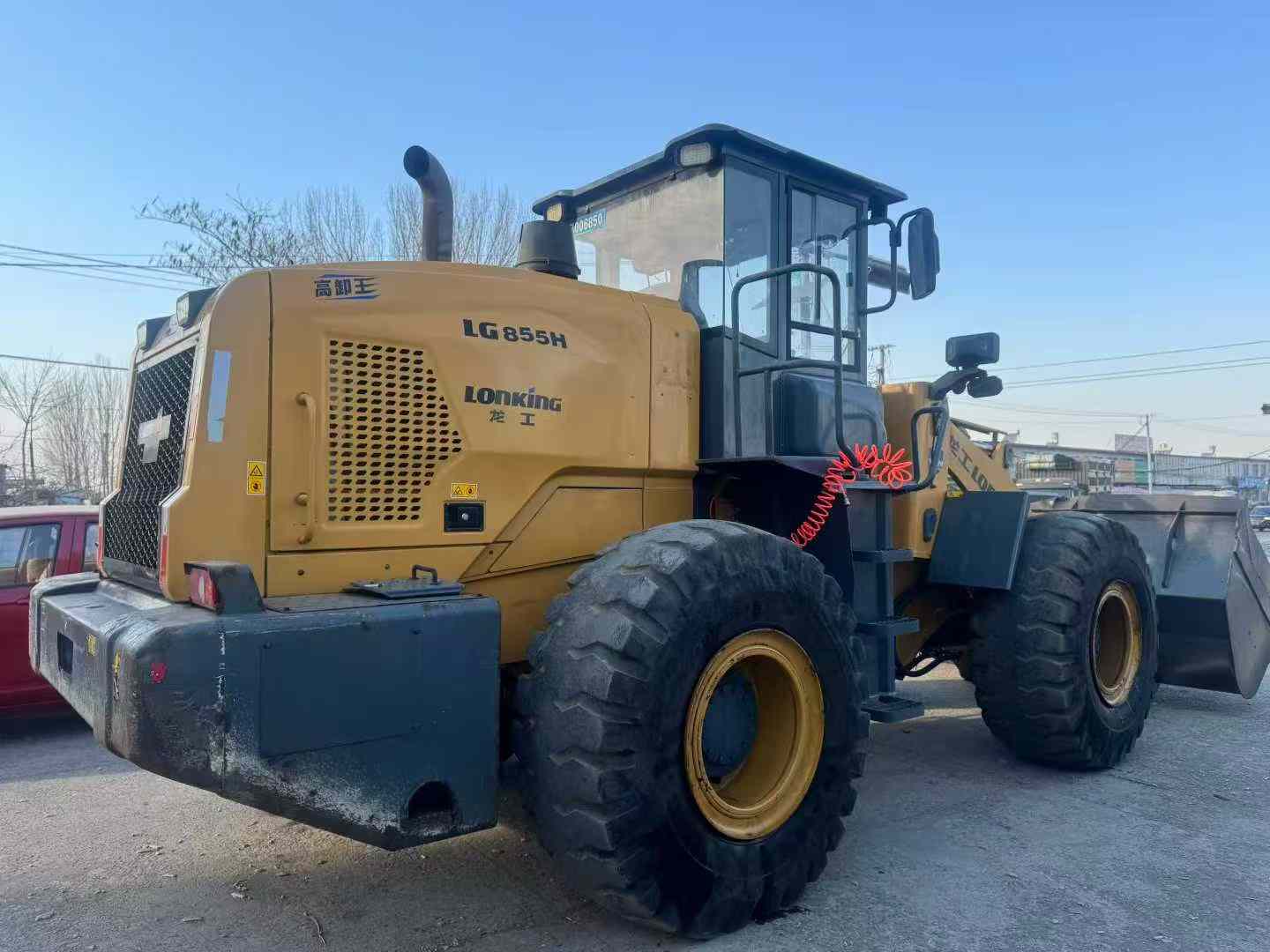

Built for precision handling and all-day productivity, this 2024 Lonking LG855H wheel loader delivers 5,000 kg rated load capacity with a commanding 2.8 m³ bucket. Operators benefit from exceptional visibility across the 3,400 mm height profile, while the 3,230 mm wheelbase provides stable performance across uneven terrain. With a maximum unloading height of 3,080 mm and 1,270 mm unloading distance, material placement becomes efficient and repeatable.
Engineered for operator confidence, this loader features a tight 6,240 mm minimum turning radius for maneuvering in confined jobsites. The 28-degree climbing ability and 408 mm ground clearance handle challenging gradients and obstacles. Cycle times remain competitive with 4.8-second lift and 9.3-second total cycle performance. Two-speed transmission offers 13 km/h for precise loading work and 39 km/h for rapid repositioning.
Currently located in Baoding, Hebei, this machine represents modern Chinese engineering focused on practical operator needs—clear sightlines, responsive controls, and stable handling characteristics that reduce fatigue during extended shifts.
| Specifications | Value |
|---|---|
| No. | 1011541 |
| Bucket capacity (m³) | 2.8 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | |
| Machine operating weight (kg) | |
| Max - Unloading height (mm) | 3080 |
| Unloading distance (mm) | 1270 |
| Maximum tractive force (kN) | |
| Maximum climbing ability (°) | 28 |
| Wheelbase (mm) | 3230 |
| Wheel base (mm) | 2240 |
| Minimum ground clearance (mm) | 408 |
| Machine length (mm) | 8080 |
| Machine width (mm) | 2835 |
| Machine height (mm) | 3400 |
| Minimum turning radius of outer wheel center line | 6240 |
| Turning radius - Outside of bucket (mm) | 7229 |
| Lift (s) | 4.8 |
| Ternary sum (s) | 9.3 |
| Speed 1 gear (km/h) | 13 |
| Speed 2 (km/h) | 39 |
