2020 Sany 215C-9

1/8
Buy Sany 215C-9 Used Excavator / 1
Buy Sany 215C-9 Used Excavator / 2
Buy Sany 215C-9 Used Excavator / 3
Buy Sany 215C-9 Used Excavator / 4
Buy Sany 215C-9 Used Excavator / 5
Buy Sany 215C-9 Used Excavator / 6
Buy Sany 215C-9 Used Excavator / 7
Buy Sany 215C-9 Used Excavator / 8

Product Description

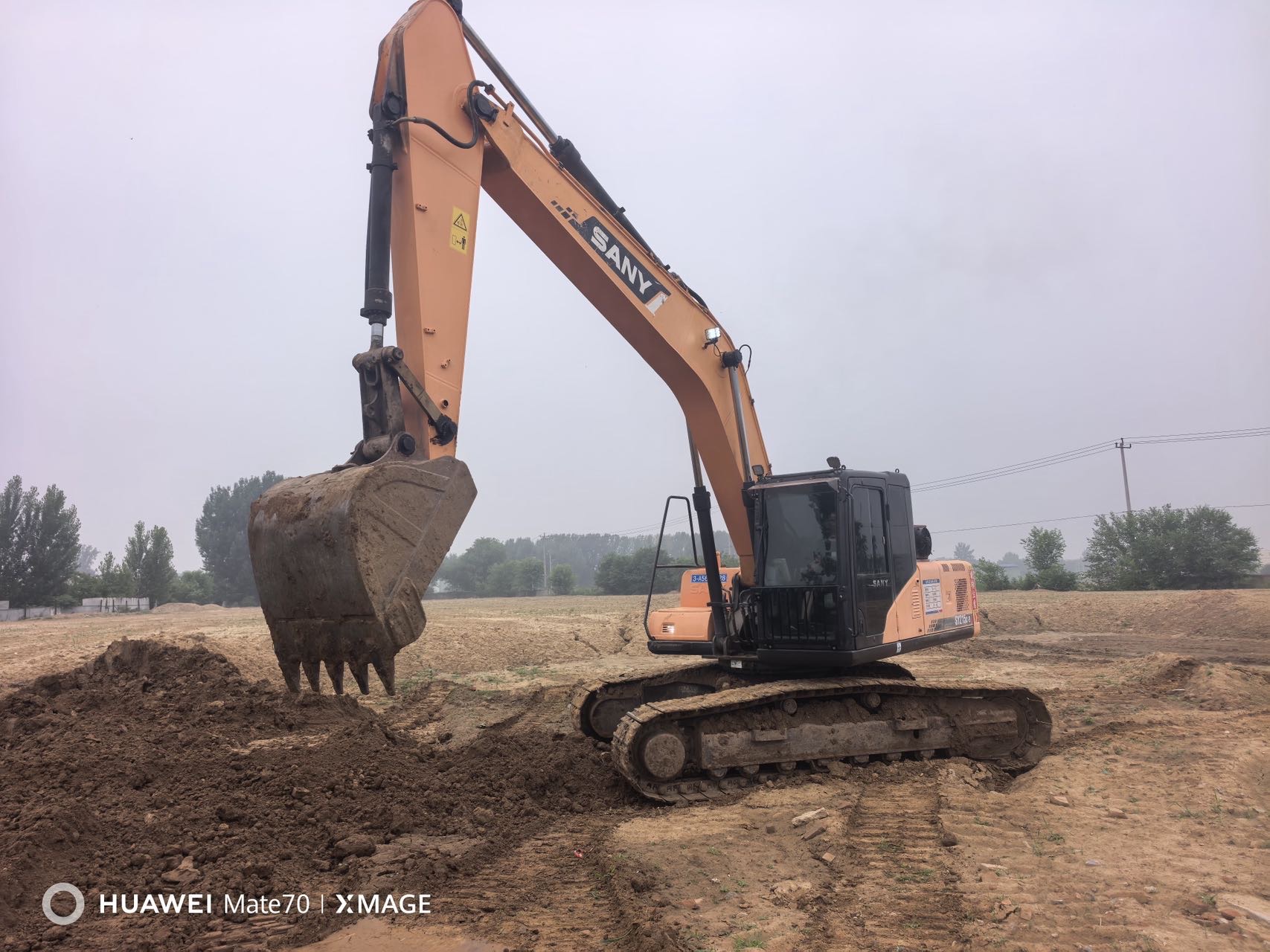

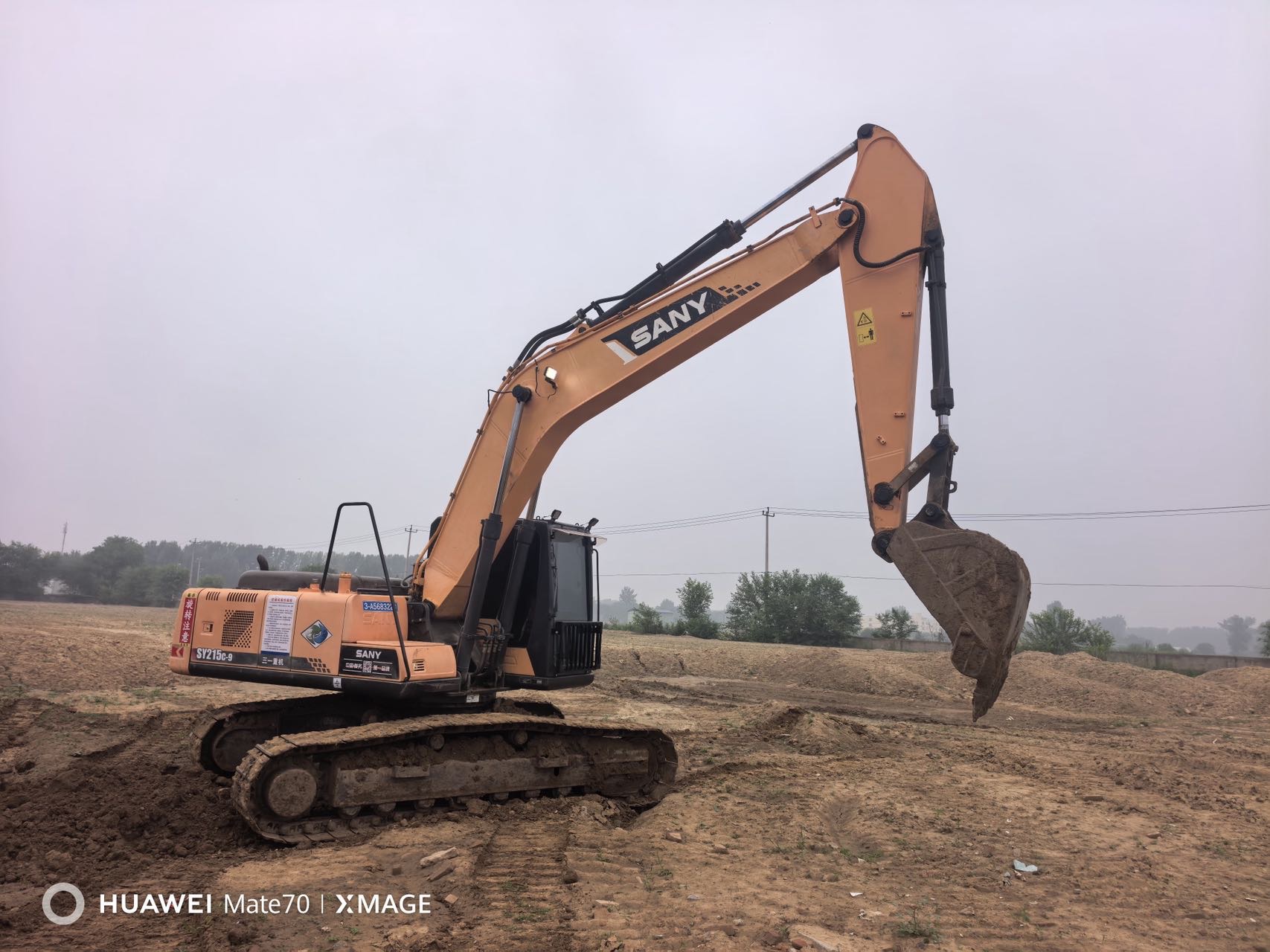

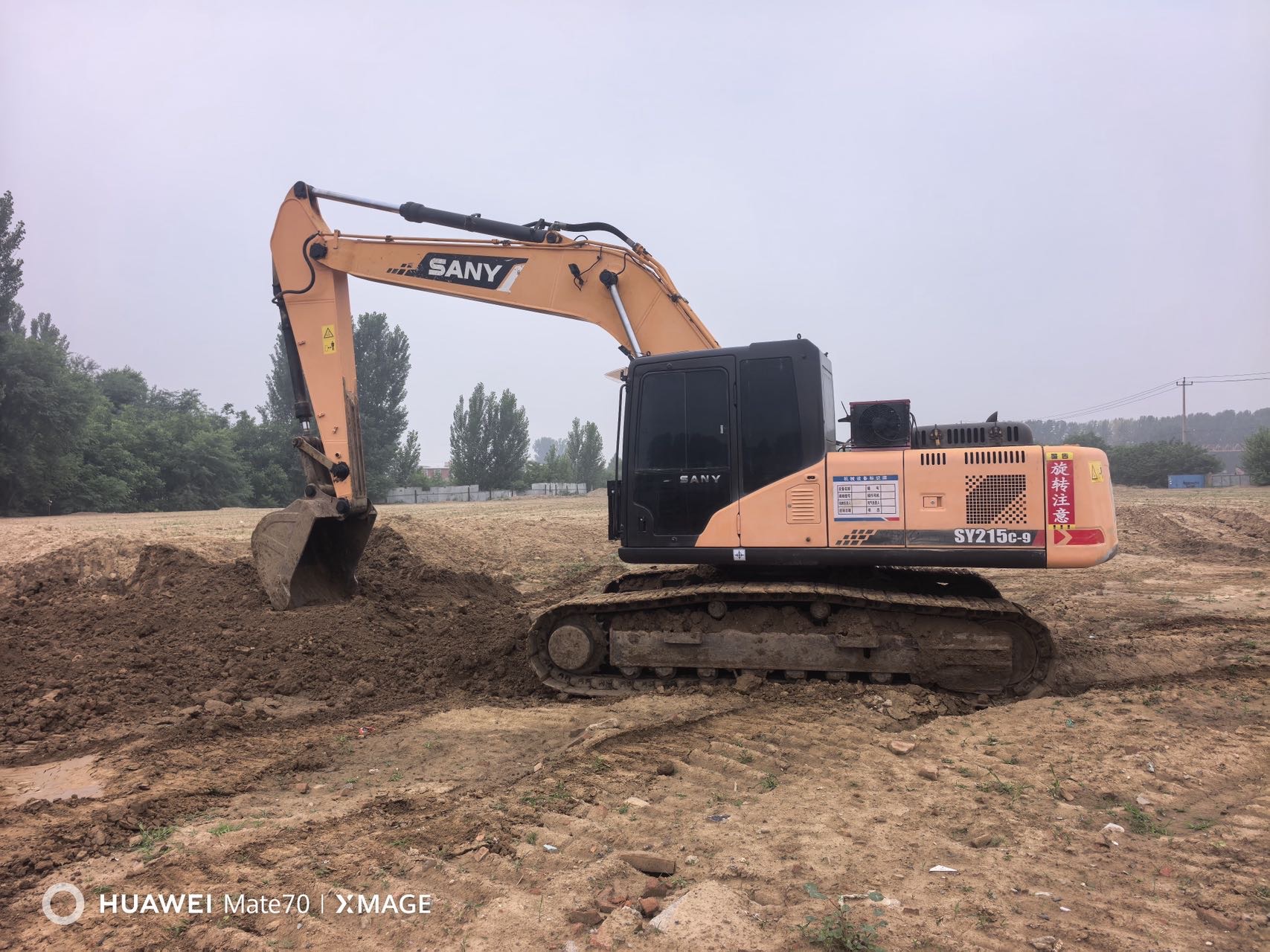

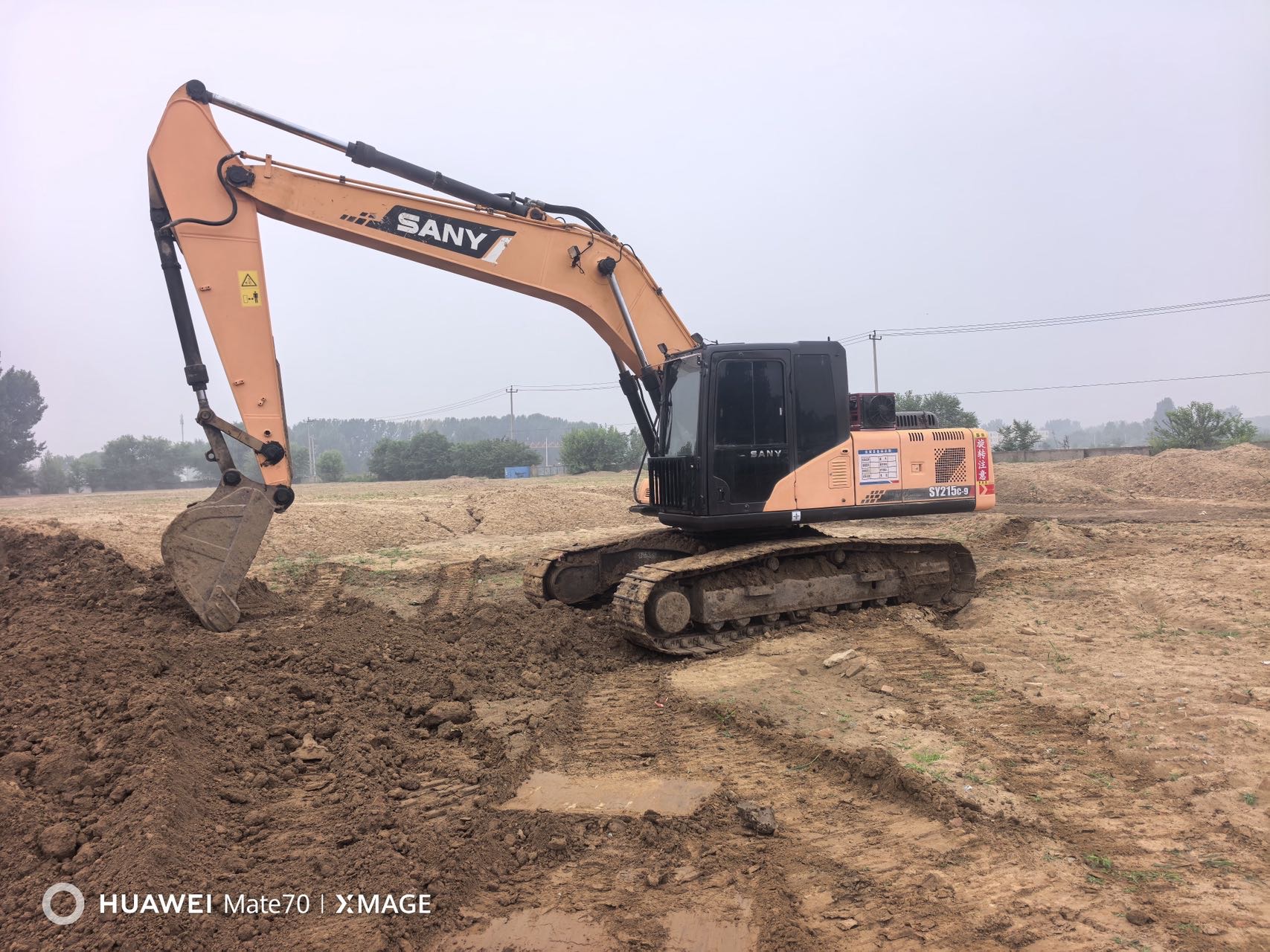

This 2020 Sany SY215C-9 excavator is offered for sale out of Hebei, China, coming straight off active site work. It has been earning its keep on a job site rather than sitting idle, and the photos are of the actual machine — what you see is what you are buying.

Key points for buyers assessing this unit:

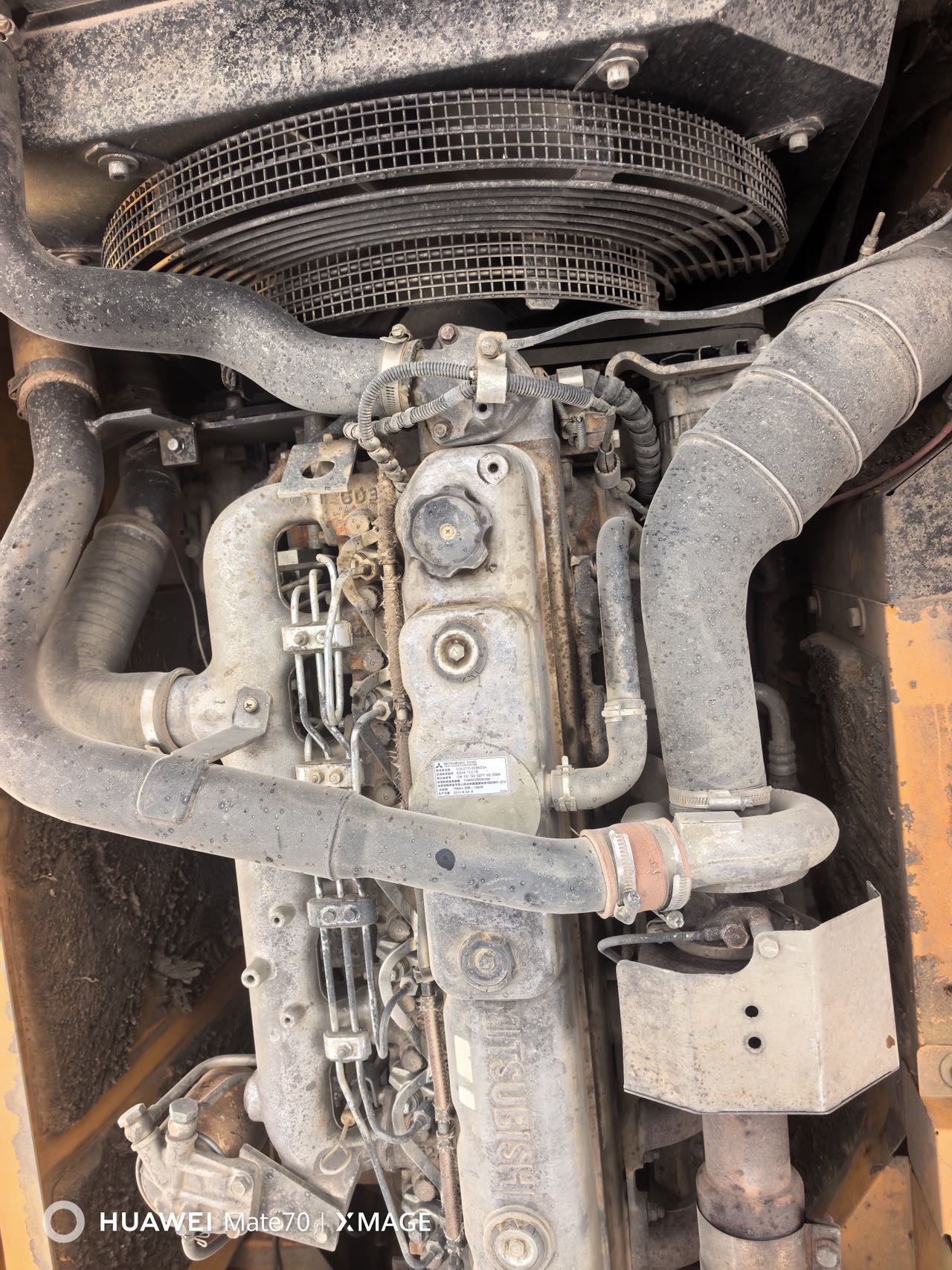

  • Mitsubishi engine, operating as normal

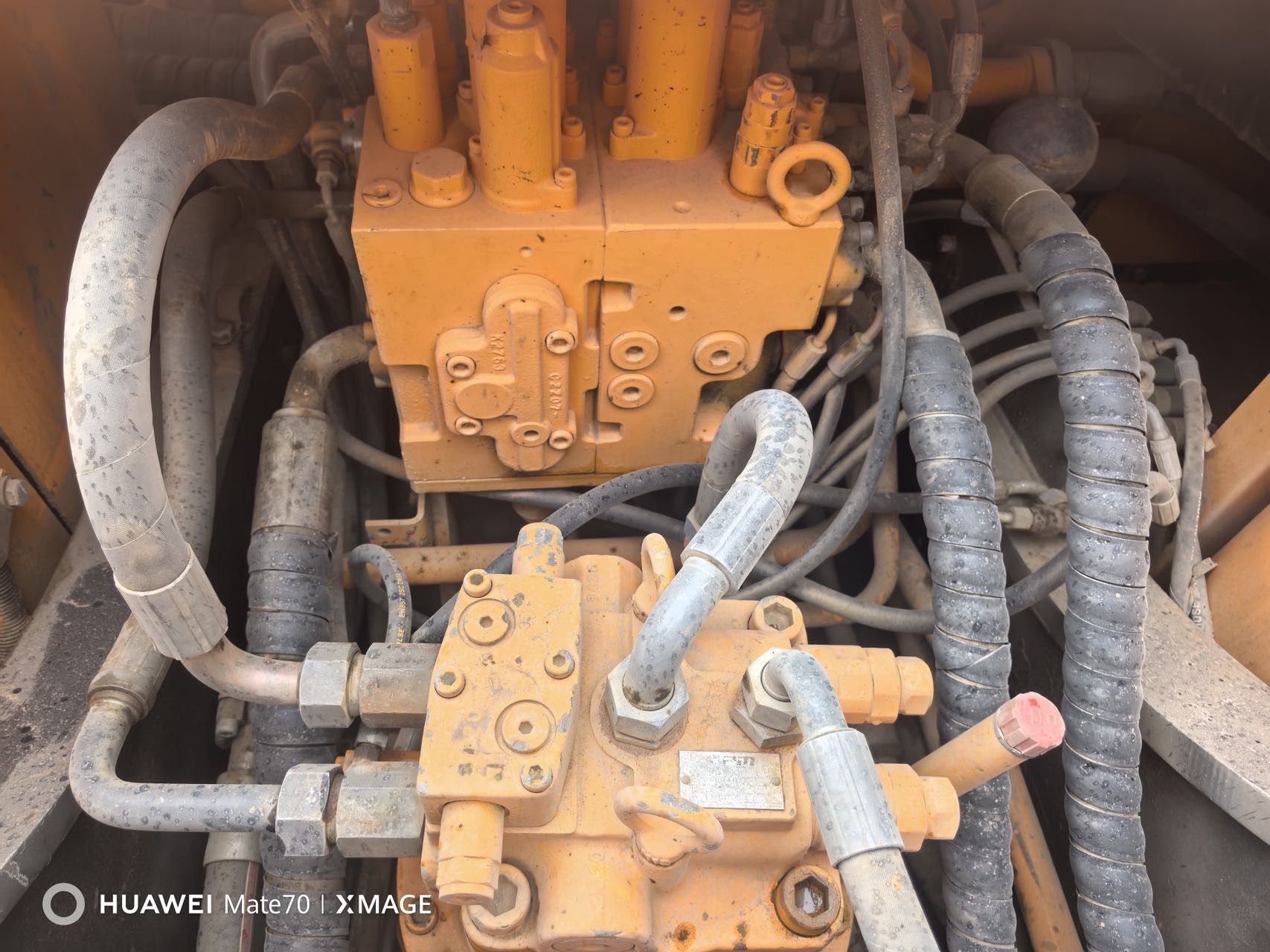

  • Hydraulic system functioning correctly
  • Toothed bucket included
  • Available for on-site inspection and test operation

Wear is consistent with a 2020 working machine of this class. Nothing has been dressed up or concealed, and the listing reflects the unit as it stands today.

Serious buyers are welcome to travel to the site, walk around the machine, and run it under load before committing. This is a genuine sale on straightforward terms — no inflated claims, no games.

Contact us to arrange a viewing, request additional photos, or discuss further details. Trade inquiries are welcome.

SpecificationsValue
No.1156391
Tonnage (tons)21
Working weight (kg)21800
Bucket capacity (m³)0.93 (0.8~1.2)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)46.5
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3595
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9950
Maximum digging depth (mm)6600
Maximum excavation height (mm)9570
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5800
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9885
see more

Overview

No.1156391

Brand Name:

Sany

Model Number:

215C-9

Year:

2020

Location:

Hebei China

Pub Date:
