2020 Sany 215C-9

1/10

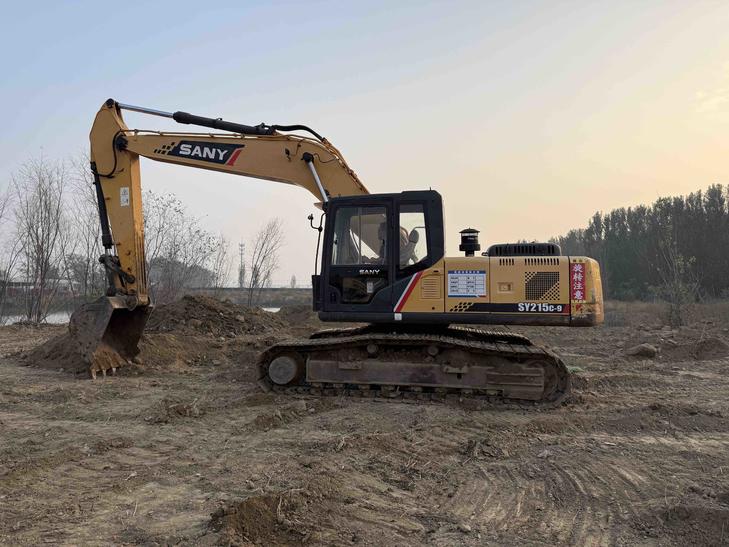

Buy Sany 215C-9 Used Excavator / 1
Buy Sany 215C-9 Used Excavator / 2
Buy Sany 215C-9 Used Excavator / 3
Buy Sany 215C-9 Used Excavator / 4
Buy Sany 215C-9 Used Excavator / 5
Buy Sany 215C-9 Used Excavator / 6
Buy Sany 215C-9 Used Excavator / 7
Buy Sany 215C-9 Used Excavator / 8
Buy Sany 215C-9 Used Excavator / 9
Buy Sany 215C-9 Used Excavator / 10

Product Description

2020 Sany 215C-9 excavator available from Hebei, China. This 21-ton class hydraulic excavator has been owner-operated and maintained throughout its service life. The machine features well-preserved undercarriage components with minimal track wear, and the track chains retain approximately 80-90% of their original condition. As a single-owner unit, this excavator has been carefully operated and consistently serviced.

  • Year: 2020
  • Make: Sany
  • Model: 215C-9
  • Condition: Used, well-maintained
  • Ownership: Single owner
  • Undercarriage: Low wear, good condition
  • Location: Hebei Province, China

On-site inspection welcome. This excavator is ready for continued productive service under new ownership. Suitable for earthmoving, excavation, and general construction applications.

SpecificationsValue
No.1163168
Tonnage (tons)21
Working weight (kg)21800
Bucket capacity (m³)0.93 (0.8~1.2)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)46.5
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3595
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9950
Maximum digging depth (mm)6600
Maximum excavation height (mm)9570
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5800
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9885
see more

Overview

No.1163168

Brand Name:

Sany

Model Number:

215C-9

Year:

2020

Location:

Hebei China

Pub Date:
