2020 Sany 215C-9

1/9
Buy Sany 215C-9 Used Excavator / 1

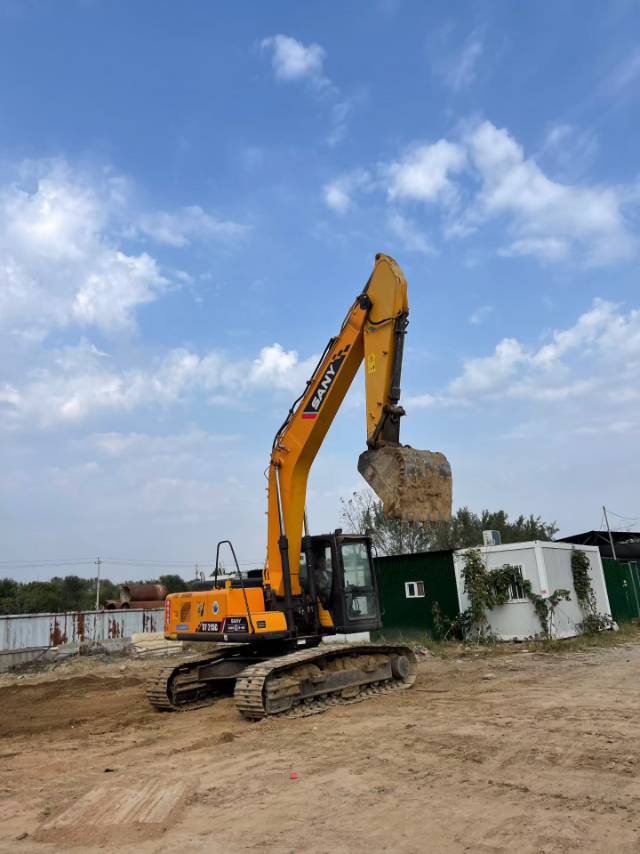

Buy Sany 215C-9 Used Excavator / 2

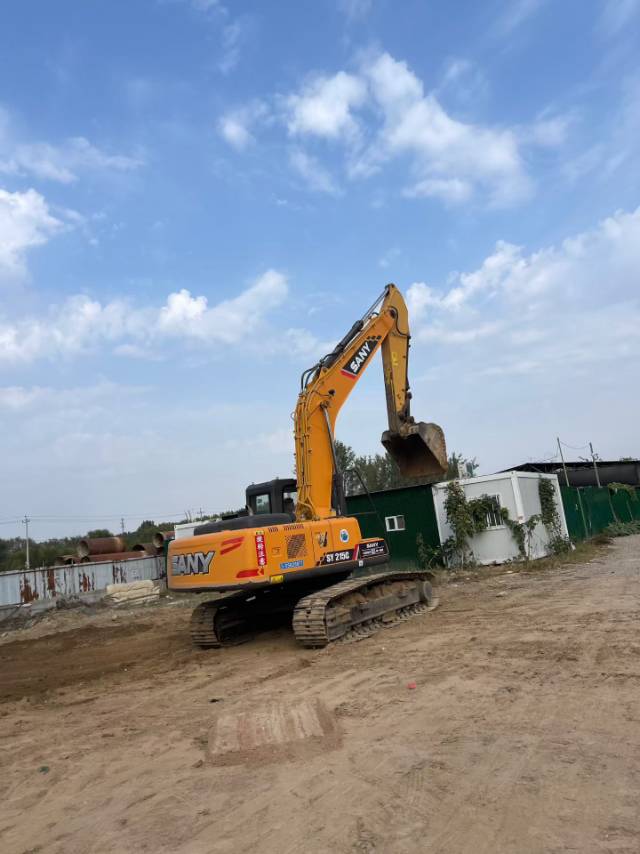

Buy Sany 215C-9 Used Excavator / 3

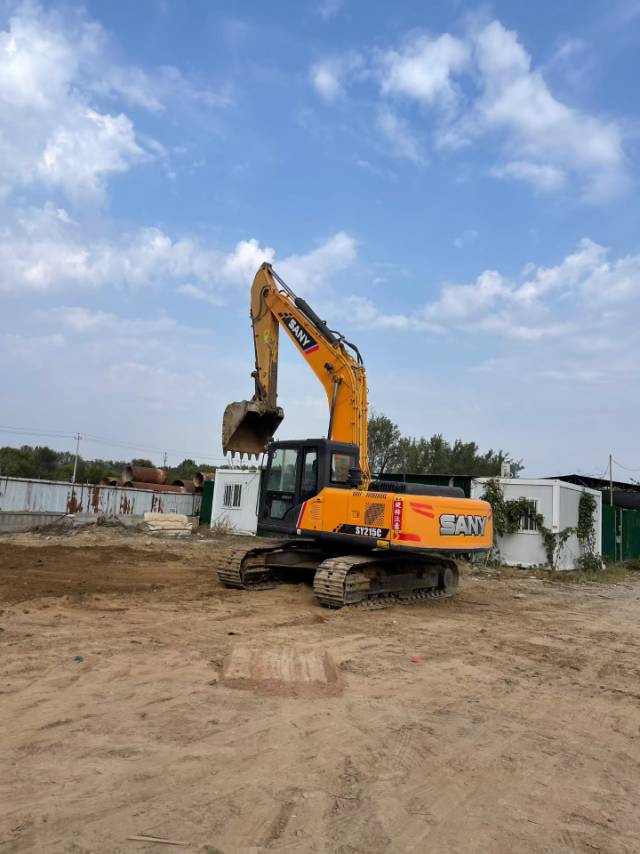

Buy Sany 215C-9 Used Excavator / 4

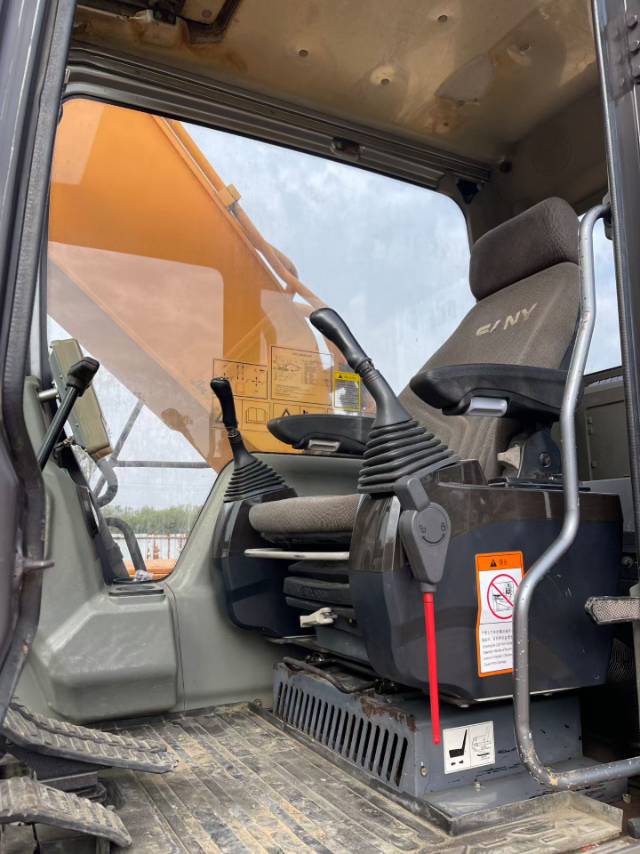

Buy Sany 215C-9 Used Excavator / 5

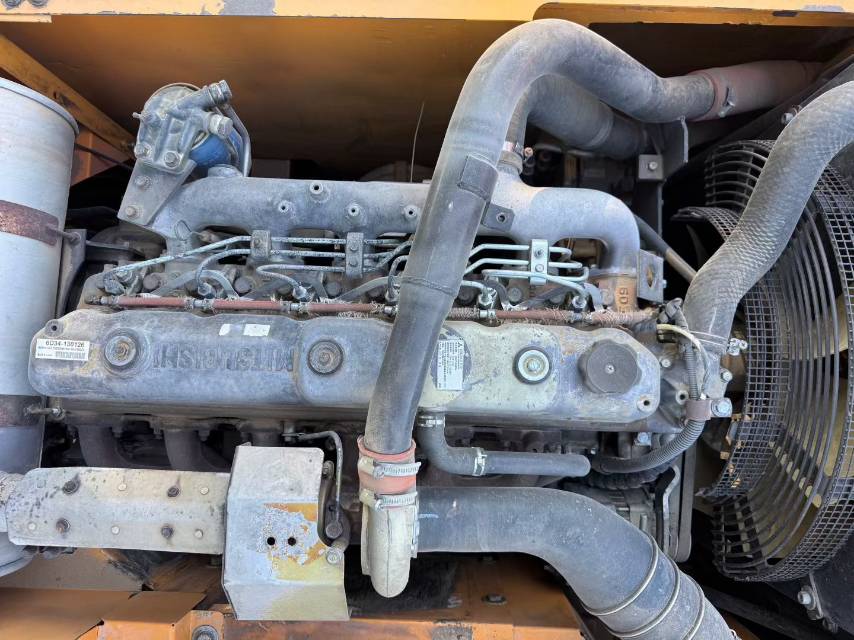

Buy Sany 215C-9 Used Excavator / 6

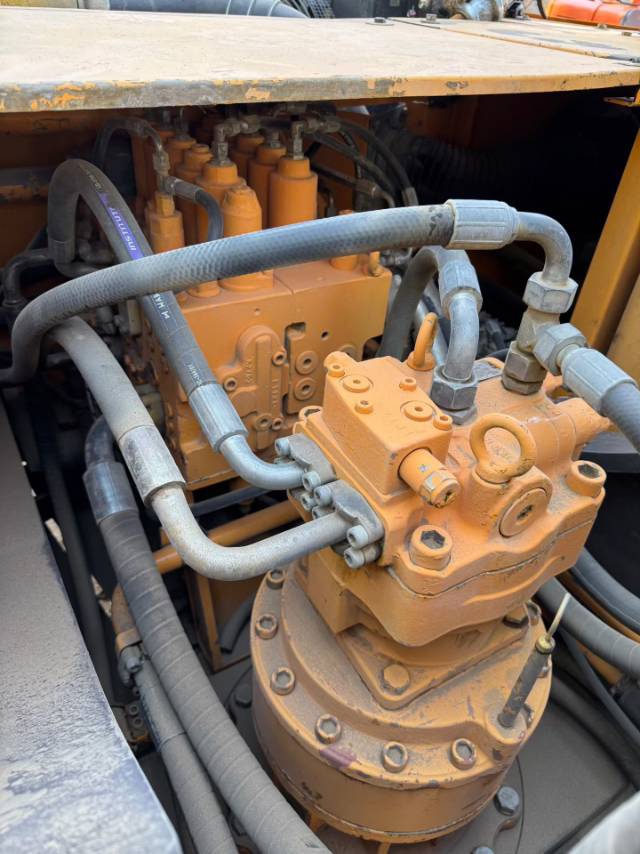

Buy Sany 215C-9 Used Excavator / 7

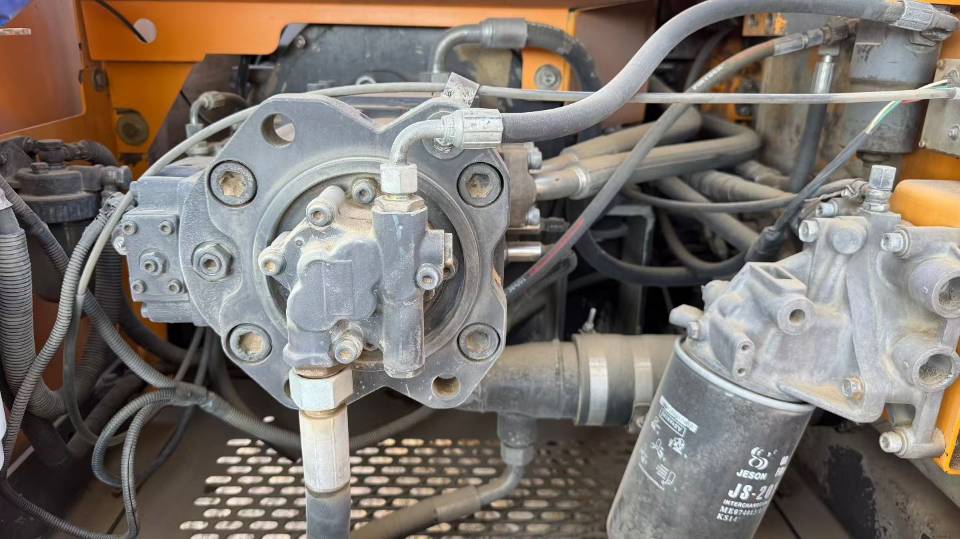

Buy Sany 215C-9 Used Excavator / 8

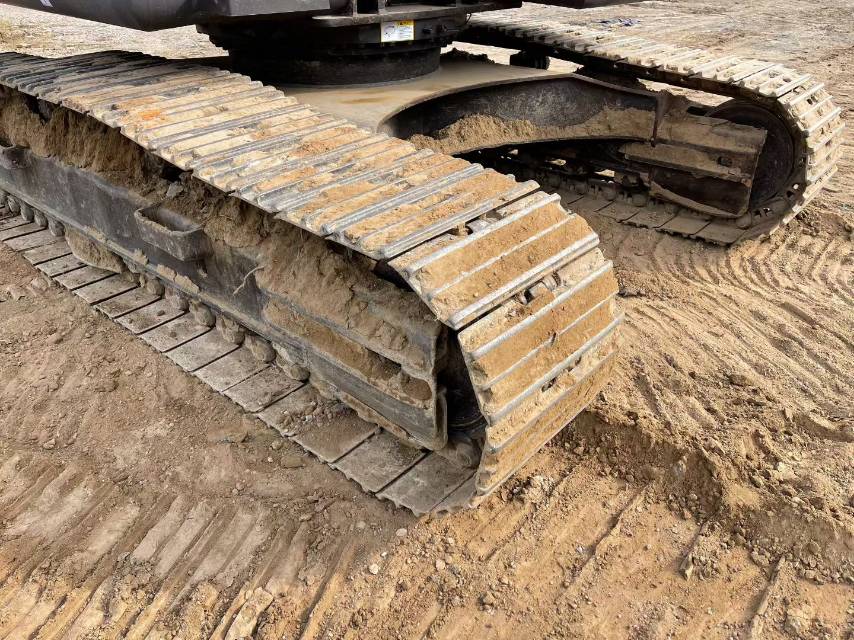

Buy Sany 215C-9 Used Excavator / 9

Product Description

This 2020 Sany 215C-9 excavator offers reliable performance for earthmoving applications. Currently located in Jilin, China, this unit has been utilized exclusively for excavation work without hydraulic breaker attachment, preserving the machine's structural integrity.

  • Year: 2020
  • Make: Sany
  • Model: 215C-9
  • Location: Jilin, China
  • Primary use: Earthmoving operations
  • No hydraulic hammer usage history

The machine demonstrates solid digging performance with responsive hydraulics. Major components show proper maintenance with no visible leaks. The undercarriage presents in serviceable condition. Recently removed from active jobsite and available for immediate deployment. Suitable for contractors seeking a mid-size excavator for general excavation and earthwork projects.

SpecificationsValue
No.1164567
Tonnage (tons)21
Working weight (kg)21800
Bucket capacity (m³)0.93 (0.8~1.2)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)46.5
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3595
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9950
Maximum digging depth (mm)6600
Maximum excavation height (mm)9570
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5800
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9885
see more

Overview

No.1164567

Brand Name:

Sany

Model Number:

215C-9

Year:

2020

Location:

JiLin China

Pub Date:

Are you interested in this machine?

Please contact us
