Product Description

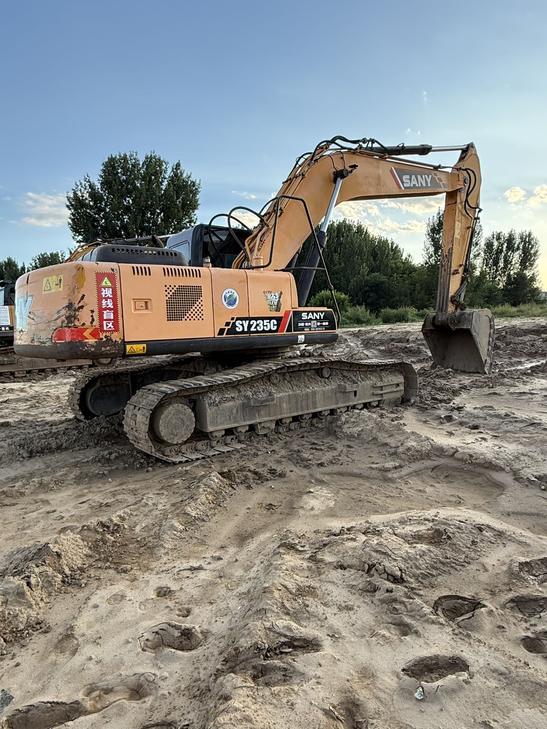

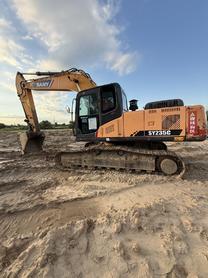

Discover the 2020 Sany 235C-9, a premium used excavator available in Hebei, China. This machine retains its original condition and peak performance, ideal for immediate deployment on your worksite. The tracks are in excellent condition, estimated at 80-90% new, and the original bucket is included. The undercarriage and its components are in top shape, with the boom and arm showing no signs of welding or repair. The engine, hydraulic system, and other major components are in their original, leak-free state, ensuring robust and reliable operation. Ready to work right out of the lot, this Sany 235C-9 is a solid choice for demanding construction projects.
- Year: 2020
- Brand: Sany
- Model: 235C-9
- Location: Hebei, China
| Specifications | Value |
|---|---|
| No. | 1136036 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 24200 |
| Bucket capacity (m³) | 1.1 (Optional 1.1 to 1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU 6BG1 |
| Rated power (kw/rpm) | 128.5/2100 |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Four-stroke, six-cylinder turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 122 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 9920 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3550 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7940 |
| Maximum digging radius (mm) | 10150 |
| Maximum digging depth (mm) | 6785 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6725 |
| Maximum vertical digging depth (mm) | 5845 |
