Product Description
This 2021 Sany 55C-9 excavator represents a well-maintained unit from one of China's leading heavy equipment manufacturers. Located in Hubei, China, this machine features the reliable Isuzu engine known for fuel efficiency and durability in demanding applications. The one-touch start system provides convenient cold-weather operation and reduces downtime on the jobsite.
Key features include:
- 2021 model year with minimal operating hours

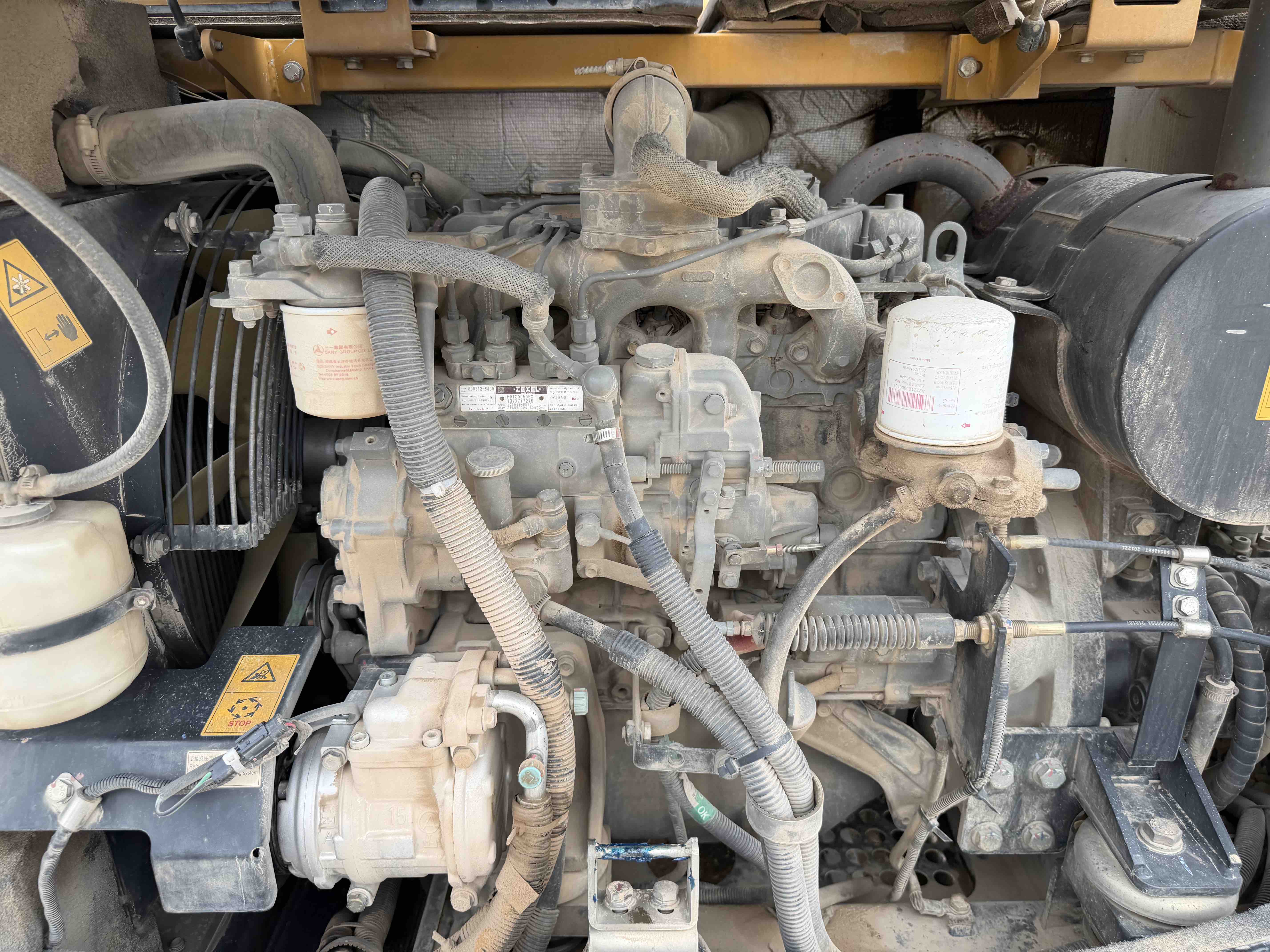

- Isuzu diesel engine for proven performance
- One-touch ignition system
- Excellent overall condition requiring no immediate maintenance
- Currently located in Hubei Province, China
The Sany 55C-9 is well-suited for construction, excavation, and utility work in the 5.5-ton class. This unit is available for immediate inspection and delivery. Contact us for detailed specifications, service records, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1137582 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.50~0.65 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

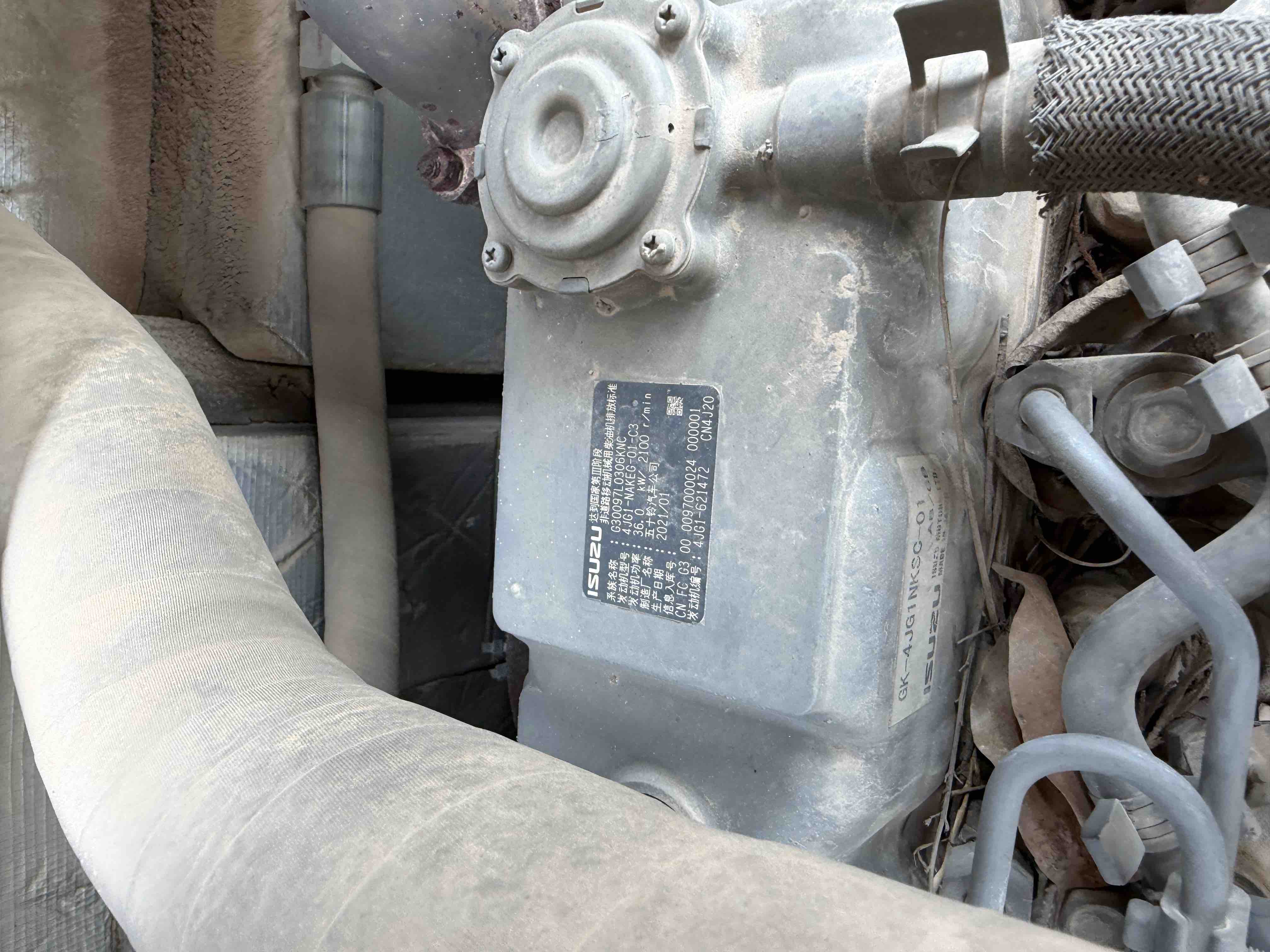

| Engine type | ISUZU 4BG1 |
| Rated power (kw/rpm) | 72.7/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | four-cylinder |
| Working form | Four-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 7870 |
| Total transport width (mm) | 2570 |
| Total transport height (mm) | 2880 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2490 |
| Back end turning radius (mm) | 2210 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3665 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2930 |
| Maximum height at minimum turning radius (mm) | 6495 |
| Maximum digging radius (mm) | 8330 |
| Maximum digging depth (mm) | 5500 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6115 |
| Maximum vertical digging depth (mm) | 5085 |
