Product Description
This 2021 Sany 55C-9 excavator is available from Hubei, China. With minimal operating hours for its age, this compact excavator delivers reliable performance for earthmoving, trenching, and site development applications. The machine is reported in normal working condition and has been maintained according to standard service intervals.
Key features include:
- 5.5-ton operating weight class suitable for urban construction and utility work
- Fuel-efficient engine meeting current emission standards
- Compact dimensions for maneuverability in confined spaces

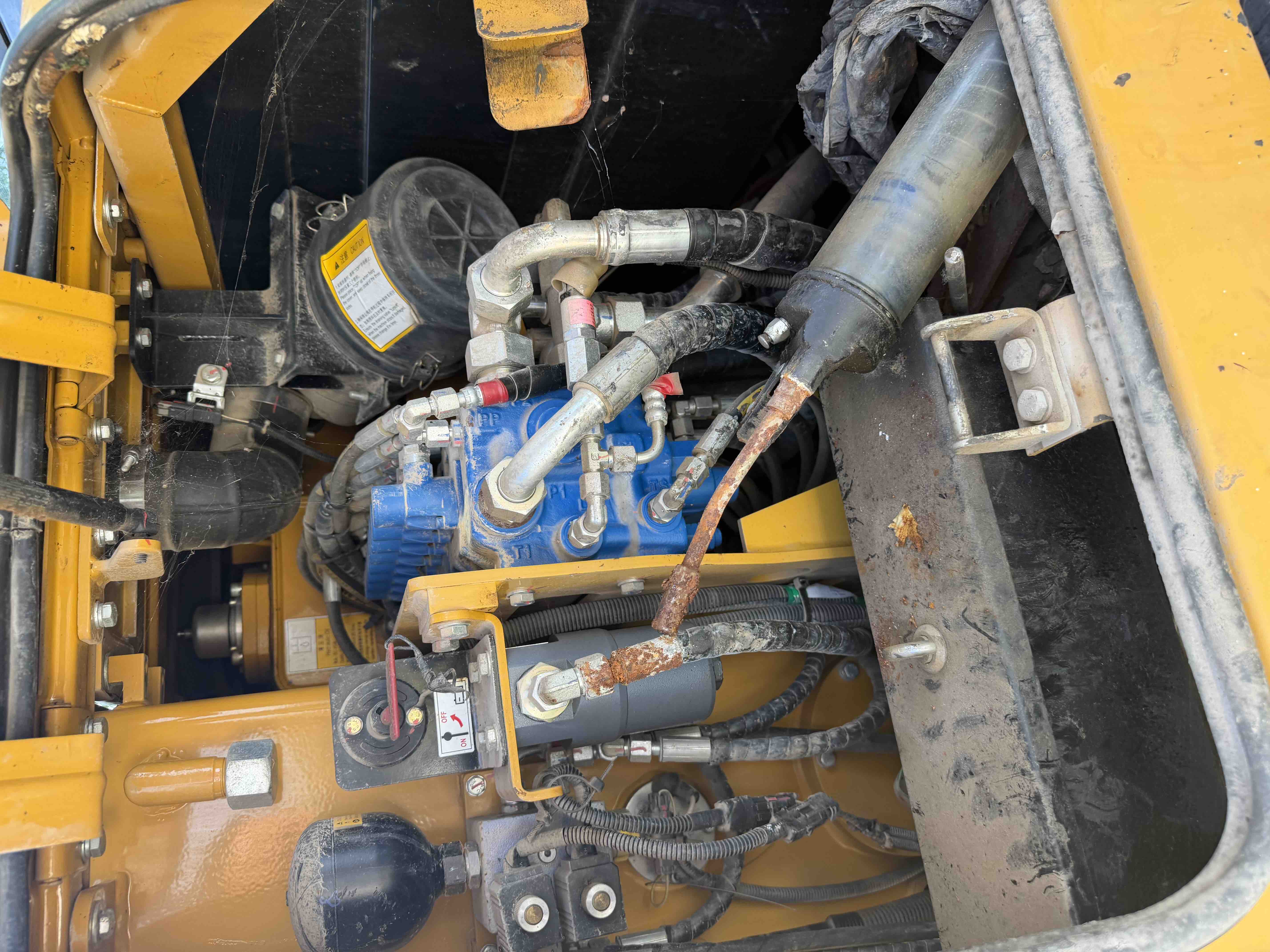

- Standard hydraulic system with proportional controls
- Enclosed operator cabin with climate control
The Sany 55C-9 represents proven Chinese manufacturing quality at a competitive price point. This unit is ready for immediate deployment in construction, landscaping, or municipal projects. Ideal for contractors seeking cost-effective equipment with established parts availability throughout Asia and growing global support networks.
| Specifications | Value |
|---|---|
| No. | 1174273 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.50~0.65 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

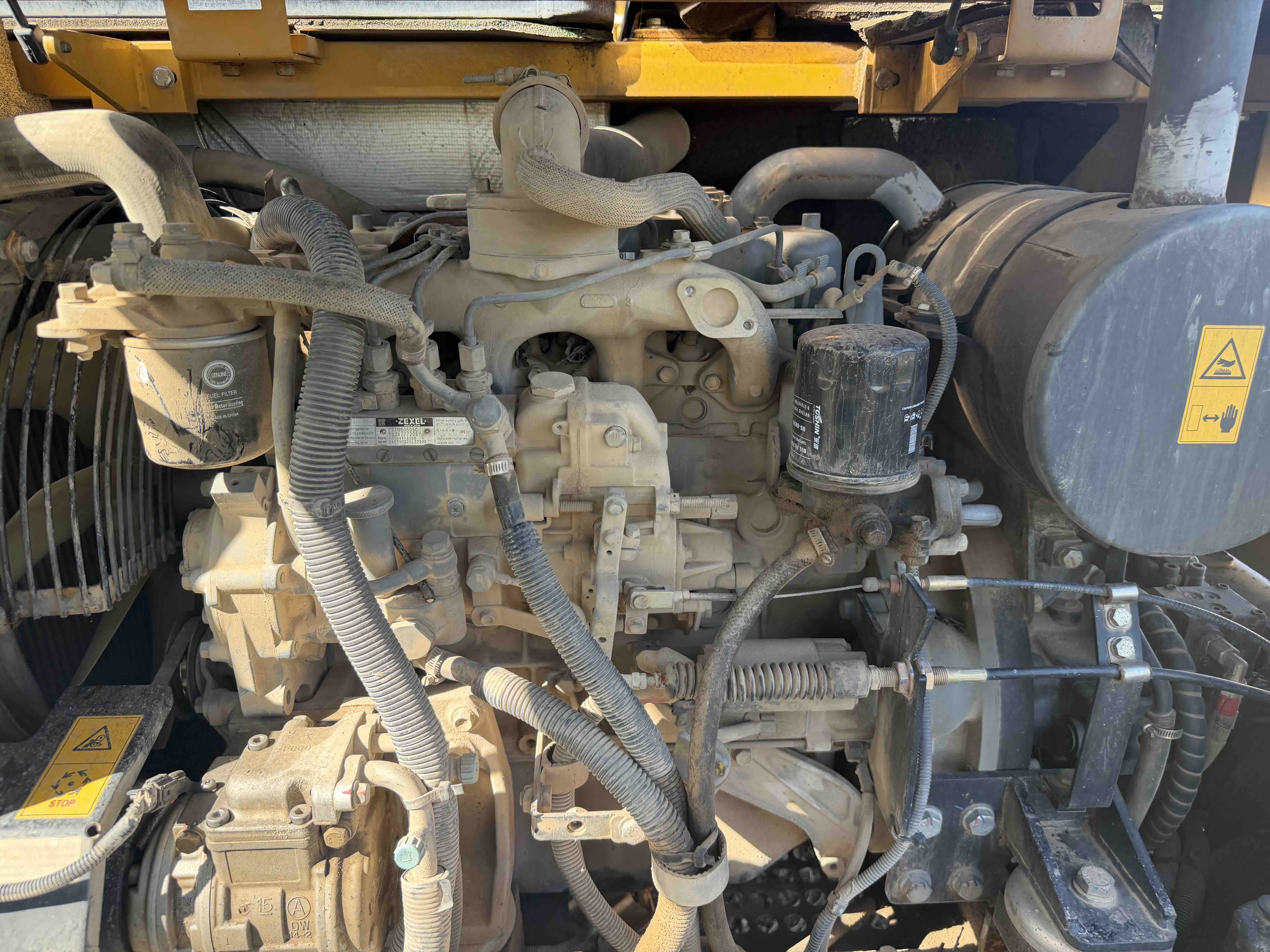

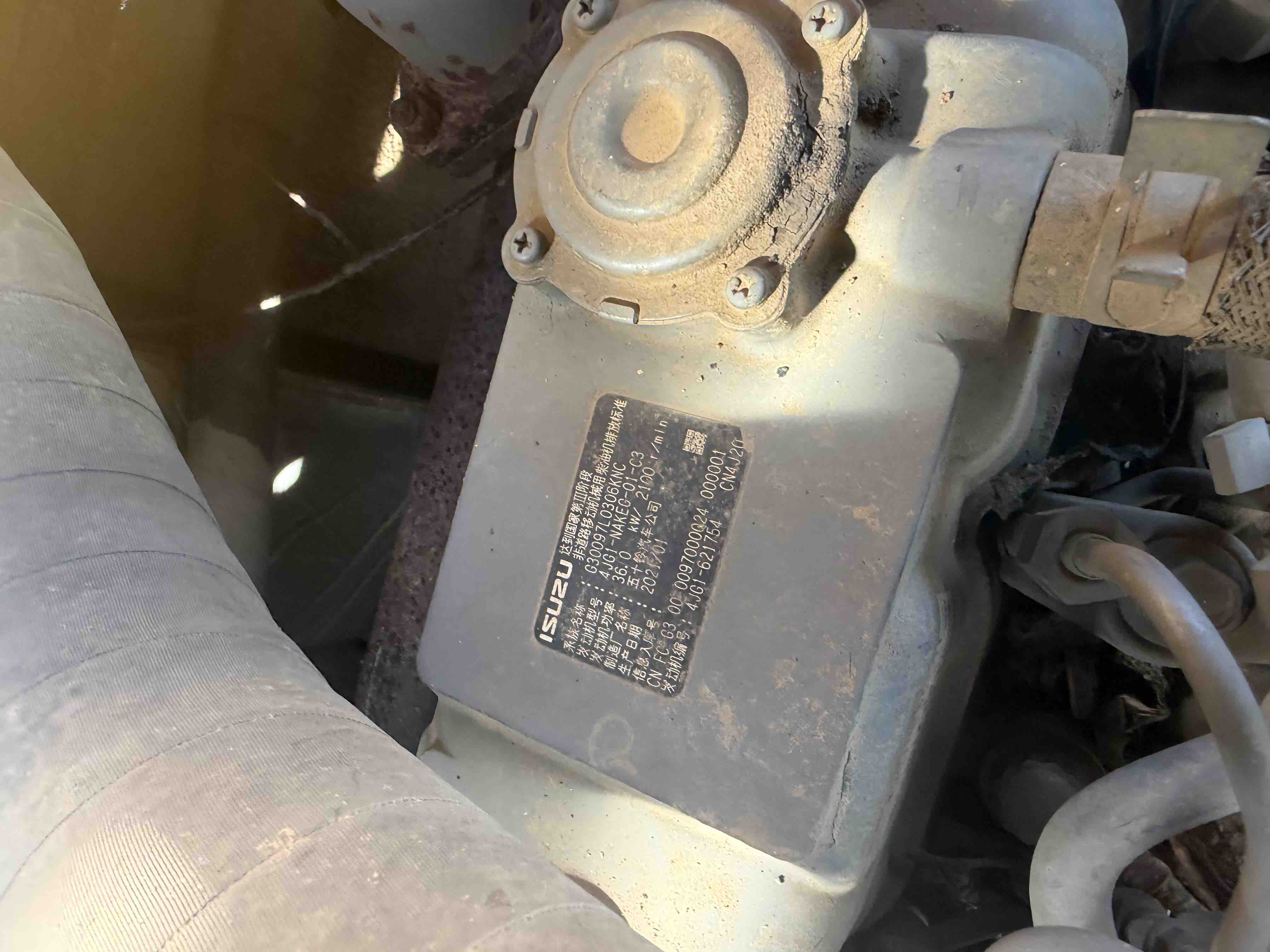

| Engine type | ISUZU 4BG1 |
| Rated power (kw/rpm) | 72.7/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | four-cylinder |
| Working form | Four-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 43 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 7870 |
| Total transport width (mm) | 2570 |
| Total transport height (mm) | 2880 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2490 |
| Back end turning radius (mm) | 2210 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3665 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2930 |
| Maximum height at minimum turning radius (mm) | 6495 |
| Maximum digging radius (mm) | 8330 |
| Maximum digging depth (mm) | 5500 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6115 |
| Maximum vertical digging depth (mm) | 5085 |
