2020 Sany 60C-9

1/9
Buy Sany 60C-9 Used Excavator / 1
Buy Sany 60C-9 Used Excavator / 2

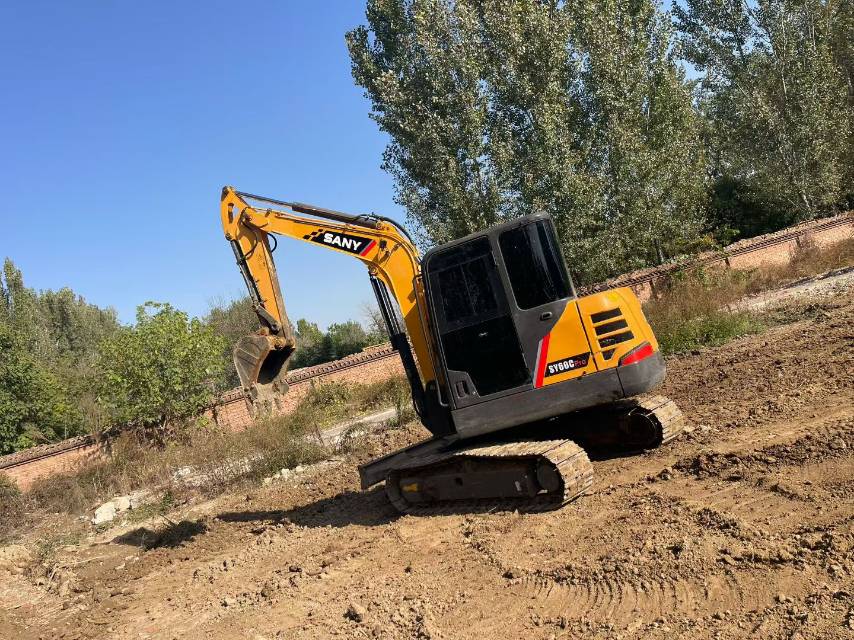

Buy Sany 60C-9 Used Excavator / 3

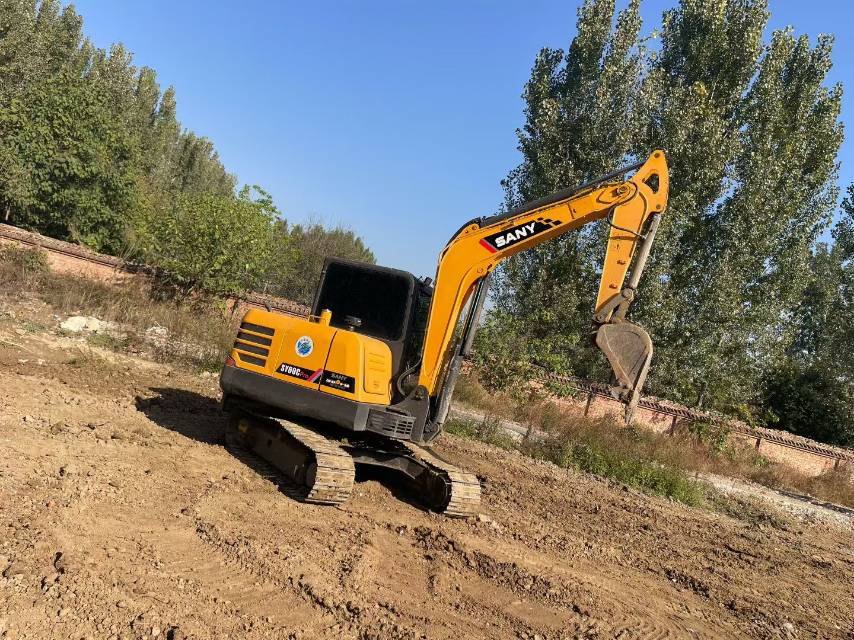

Buy Sany 60C-9 Used Excavator / 4

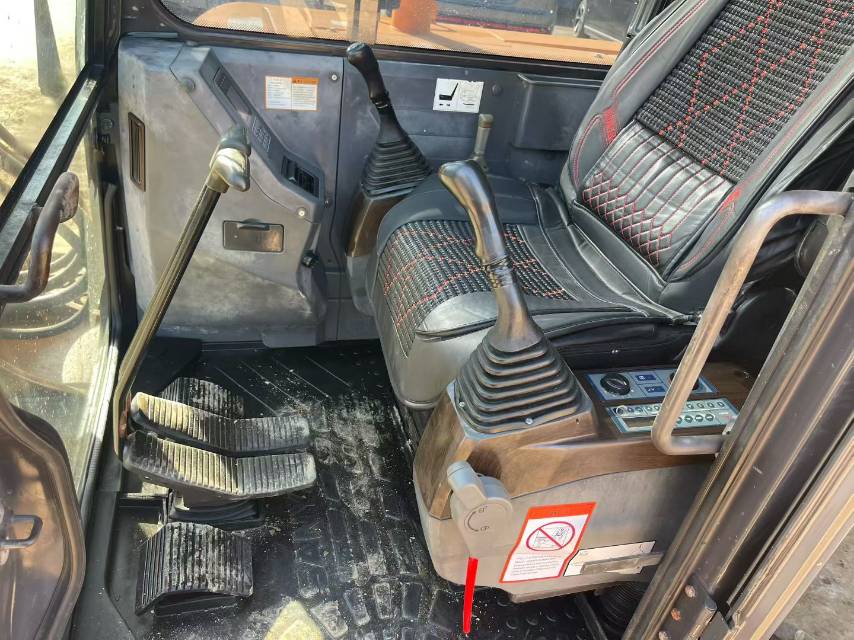

Buy Sany 60C-9 Used Excavator / 5

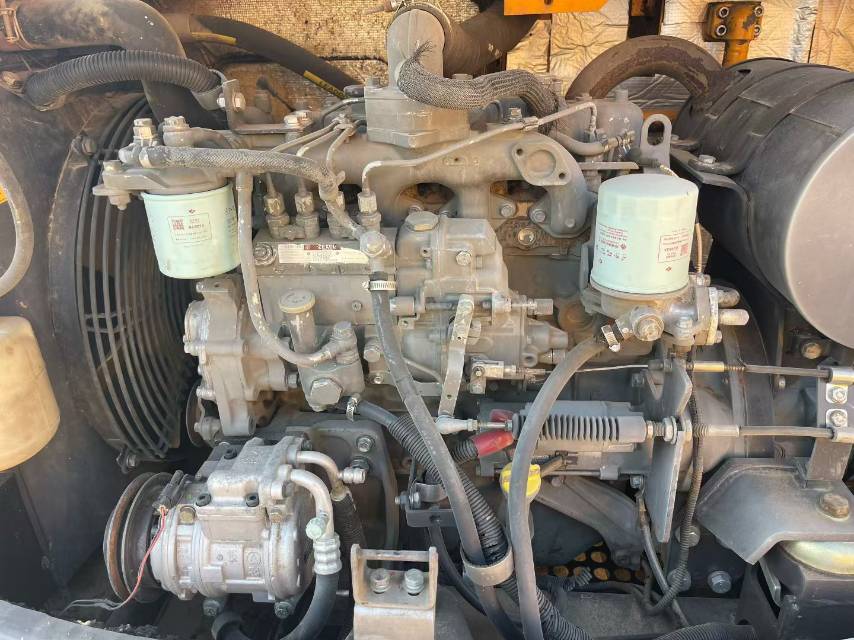

Buy Sany 60C-9 Used Excavator / 6

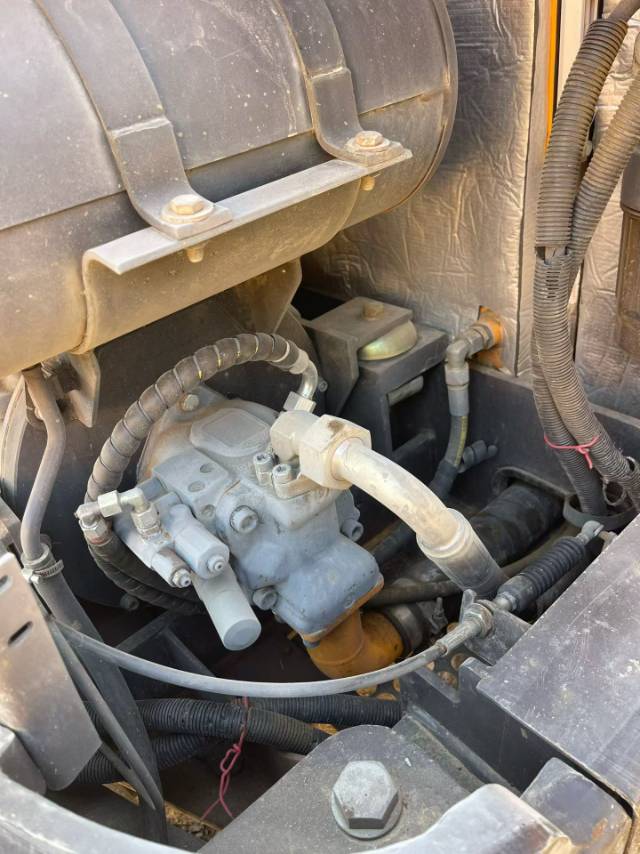

Buy Sany 60C-9 Used Excavator / 7

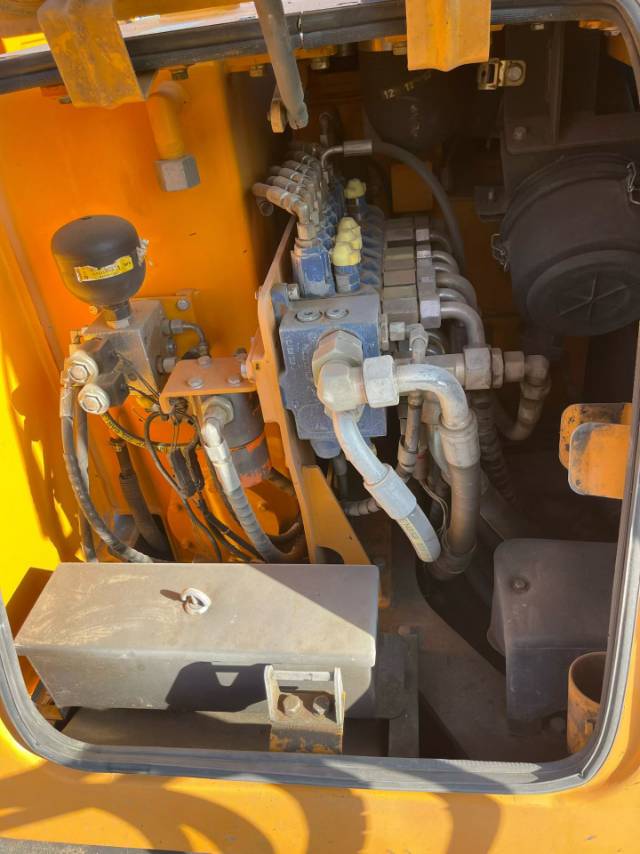

Buy Sany 60C-9 Used Excavator / 8

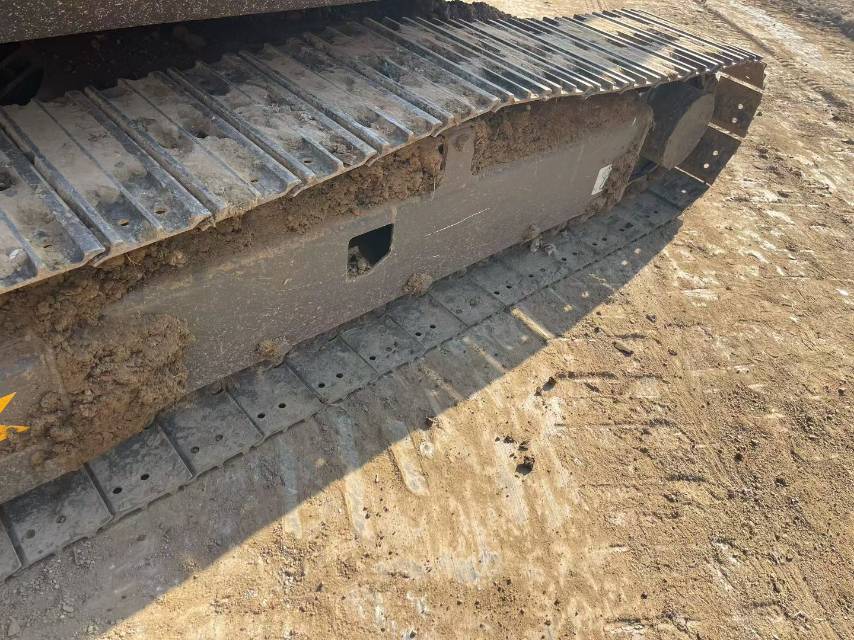

Buy Sany 60C-9 Used Excavator / 9

Product Description

This 2020 Sany 60C-9 mini excavator from Jilin, China delivers reliable performance for contractors seeking dependable compact equipment. The machine features well-maintained core components with no leaks reported from the engine, hydraulic system, or drivetrain, indicating proper care throughout its operational life.

Key highlights include:

  • Solid undercarriage with straight chassis alignment
  • Responsive hydraulic performance for efficient digging and lifting operations
  • Compact 6-ton class design ideal for urban construction and utility work
  • Low operating hours relative to model year

The Sany 60C-9 combines maneuverability with adequate digging depth and reach for light to medium-duty applications. This unit is ready for immediate deployment in excavation, trenching, and material handling projects. Available for inspection at our Jilin facility.

SpecificationsValue
No.1174002
Tonnage (tons)6
Working weight (kg)6,000
Bucket capacity (m³)0.23 (optional 0.21)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JG1-NABGB-04-C2
Rated power (kw/rpm)40.9/2100
Cooling modewater-cooling
Maximum torque (N.m)191/1800
Number of cylinders (PCS)4-cylinder
Displacement (L)3.059
Working formFour cylinder, four stroke, direct injection engine
Ground specific pressure (Kpa)30.7
Rotation speed (rpm)9.6
Climbing ability (%)70% / 35 °
Bucket digging force (kN)45
Rod digging force (kN)33
Travel speed (km/h)4.22/2.25
Total transport length (mm)5925
Total transport width (mm)2005
Total transport height (mm)2630
Minimum ground clearance (mm)370
Minimum turning radius of front working device (mm)2555
Back end turning radius (mm)1640
Onboard width (mm)1860
Total track length (mm)2700
Track gauge (mm)1600
Track plate width (mm)400
Total track width (mm)2000
Maximum digging radius (mm)6090
Maximum digging depth (mm)3770
Maximum excavation height (mm)5735
Maximum unloading height (mm)3975
Maximum vertical digging depth (mm)3025
Bulldozer lift or depth (mm)Lift 300/ push 405
Dodging plate width × height (mm)Height 400
see more

Overview

No.1174002

Brand Name:

Sany

Model Number:

60C-9

Year:

2020

Location:

JiLin China

Pub Date:
