Product Description

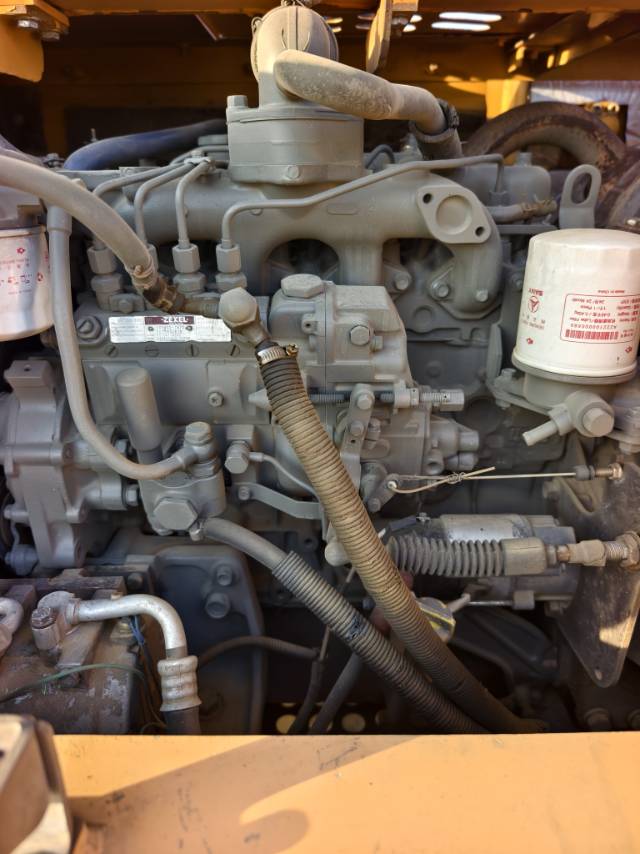

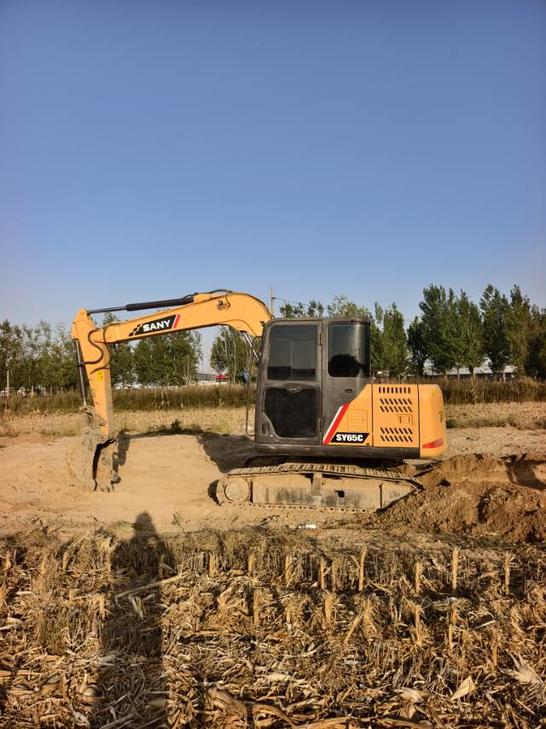

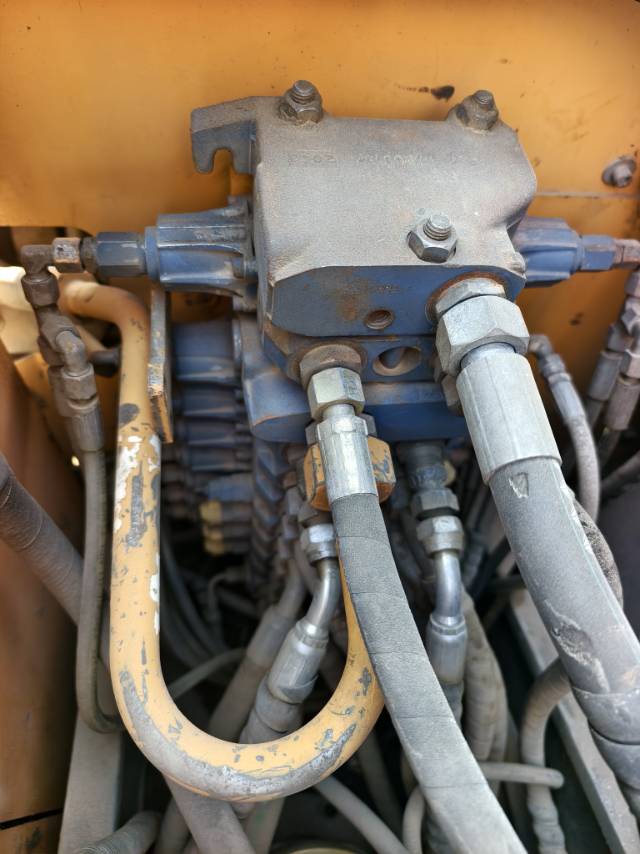

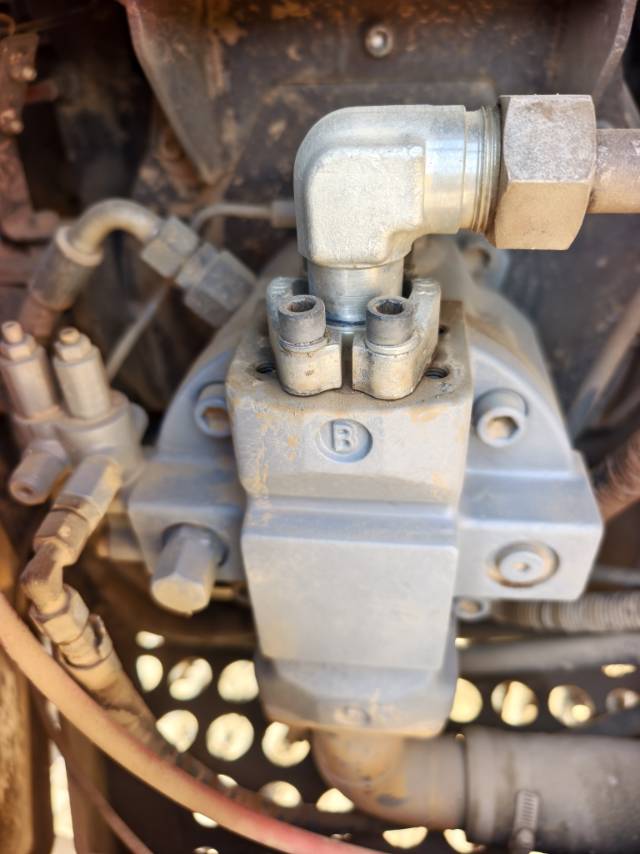

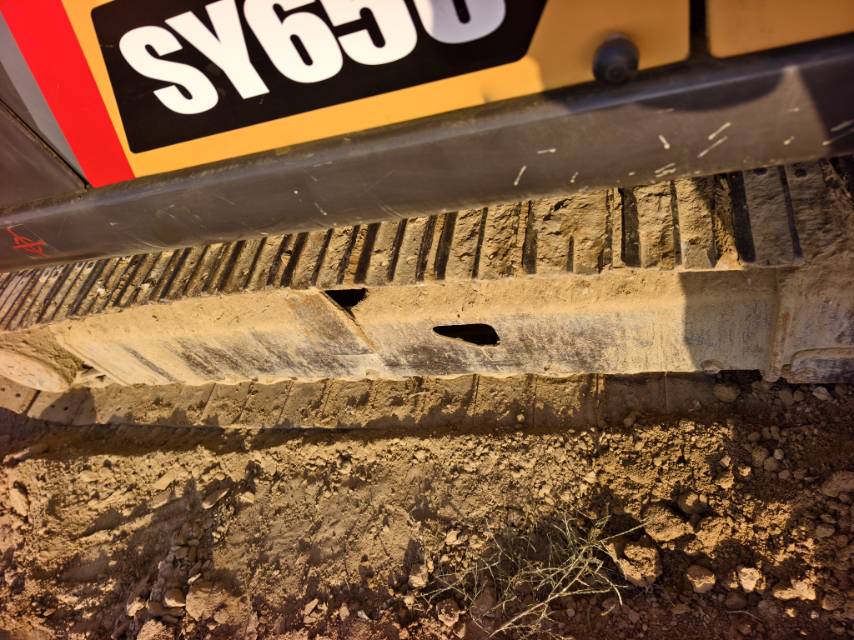

This 2020 Sany 65C-9 excavator is available from our Peking, China location. The machine presents in excellent cosmetic condition with verified performance across all operational systems. Core components including engine, hydraulic system, and undercarriage have been inspected and show no mechanical issues.
- Year: 2020
- Make: Sany
- Model: 65C-9
- Location: Peking, China
- Condition: Well-maintained with strong cosmetic appeal
- HVAC system fully operational
- Major components verified in working order
- Ready for immediate deployment
This unit requires no reconditioning work and can be transported directly to your job site. Suitable for contractors seeking reliable mid-range excavation equipment with documented service history. Contact us for detailed inspection reports and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1157543 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.3 (Optional 1.4) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 138/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Four-stroke six-cylinder turbocharged intercooled EFI engine |
| Ground specific pressure (Kpa) | 50 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 181 |
| Rod digging force (kN) | 123 |
| Travel speed (km/h) | 5.4/3.4 |
| Total transport length (mm) | 10690 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3085 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3915 |
| Back end turning radius (mm) | 3240 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4635 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3830 |
| Maximum height at minimum turning radius (mm) | 8010 |
| Maximum digging radius (mm) | 10160 |
| Maximum digging depth (mm) | 6400 |
| Maximum excavation height (mm) | 9560 |
| Maximum unloading height (mm) | 6610 |
| Maximum vertical digging depth (mm) | 6165 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
