Product Description

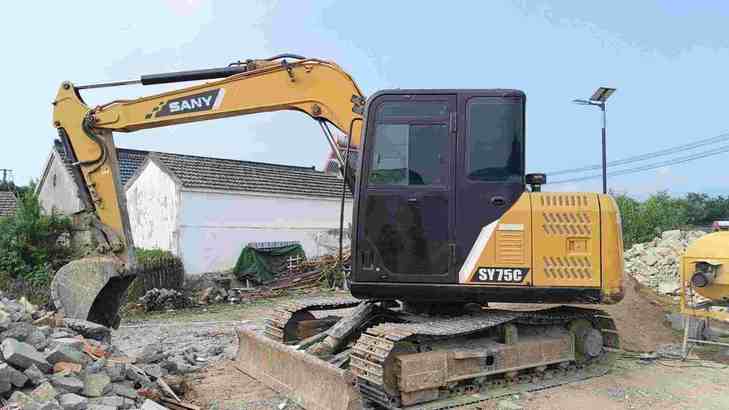

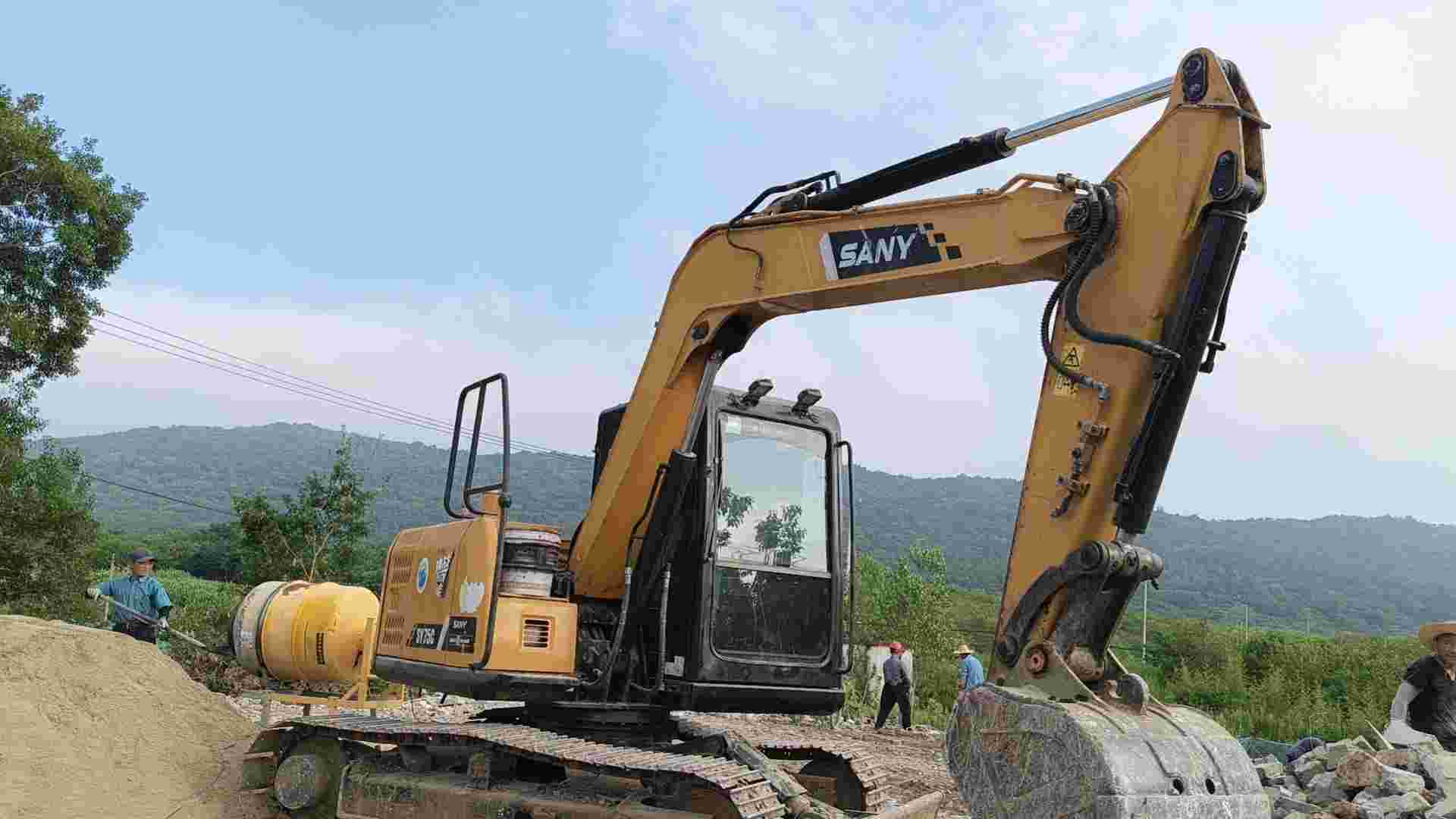

Discover the 2020 Sany 75C-9, a robust and reliable excavator available for purchase in Anhui, China. This machine, used primarily by an individual for personal projects, is in excellent condition, reflecting the high standards of Sany's construction equipment. Known for its durability and efficiency, the 75C-9 model is a preferred choice for various excavation tasks. Ideal for contractors and construction companies looking for a well-maintained, second-hand excavator that delivers both performance and value. This unit is ready to be integrated into your fleet, offering a cost-effective solution without compromising on quality.
- Year: 2020
- Brand: Sany
- Model: 75C-9
- Location: Anhui, China
- Condition: Excellent, well-maintained
| Specifications | Value |
|---|---|
| No. | 1131301 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7280 |
| Bucket capacity (m³) | 0.28 (optional 0.16 ~ 0.32) |
| Country of origin | Shanghai, China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | CC-4JG1PAC |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | four-cylinder |
| Working form | Four-cylinder four-stroke direct injection diesel engine |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 4.4/2.4 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2720 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1720 |
| Onboard width (mm) | 2040 |
| Total track length (mm) | 2820 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7060 |
| Maximum unloading height (mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Bulldozer lift or depth (mm) | Lift 350/ depth 360 |
| Dodging plate width × height (mm) | Altitude 405 |
